Pathway Connectivity PWREP DIN P4 RDM DMX/RDM DMX Repeater with DIN-mount 4-Ports - E1.20 RDM Compliant

ITEM #: P1009 MFG #: PWREP DIN P4 RDM

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$650.00

Availability: In Stock
iAvailability Description Popup


    PWREP DIN P4 RDM - Overview

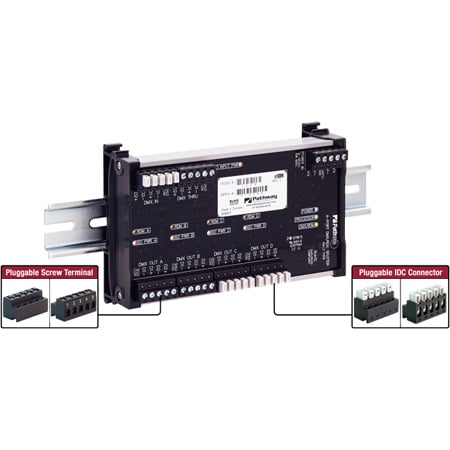

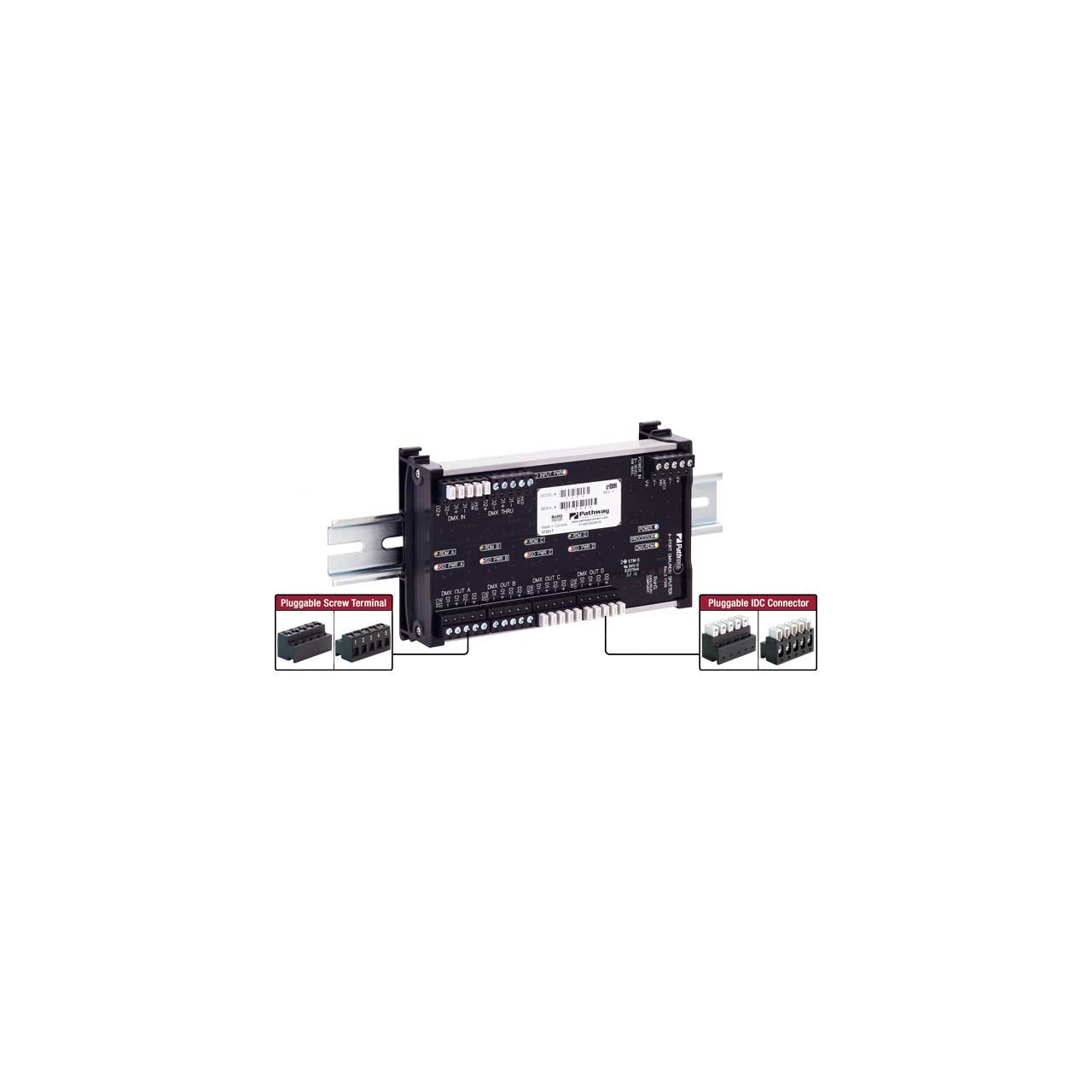

    The Pathway Connectivity P1009 is a DIN-rail mountable four-way repeater that supports the bi-directional communication standard E1.20 Remote Device Management ("RDM"), as well as DMX512. Used in installations that require 'star' wiring configurations, all output ports are separate electrical entities, fully opto-isolated and independently protected against fault voltages.

    • Features:

      • One DMX512 /RDM input port
      • Four fully isolated DMX512/RDM bi-directional output ports
      • One active DMX512/RDM bi-directional thru port
      • Pluggable terminal blocks for all connectors
      • Power and data easily daisy-chained between modules
      • DMX IN indicator
      • DC Power input indicator
      • ISO 5V indicator
      • Auto-termination of DMX THRU
      • No fuses - self-resetting port protection recovers from voltage faults

    • Specifications:

      • General
      • 1000V opto-isolation between DMX ports, 250V fault protection on DMX ports
      • Input operating voltage: 9-30 VDC 6W power consumption
      • Operating conditions: 14°F to 118°F (-10° to +48°C); 10-90% relative humidity, non-condensing

        Weight & Dimensions
      • 0.70 lbs (0.316 kg)
      • 3.6"W x 6.25"L x 1.5"H (91mm x 160mm x 38mm)

    • Item Includes:

      • 1x Pathway Connectivity P1009 DMX/RDM Repeater with 4 way eDIN Isolated - 6.25 Inch
