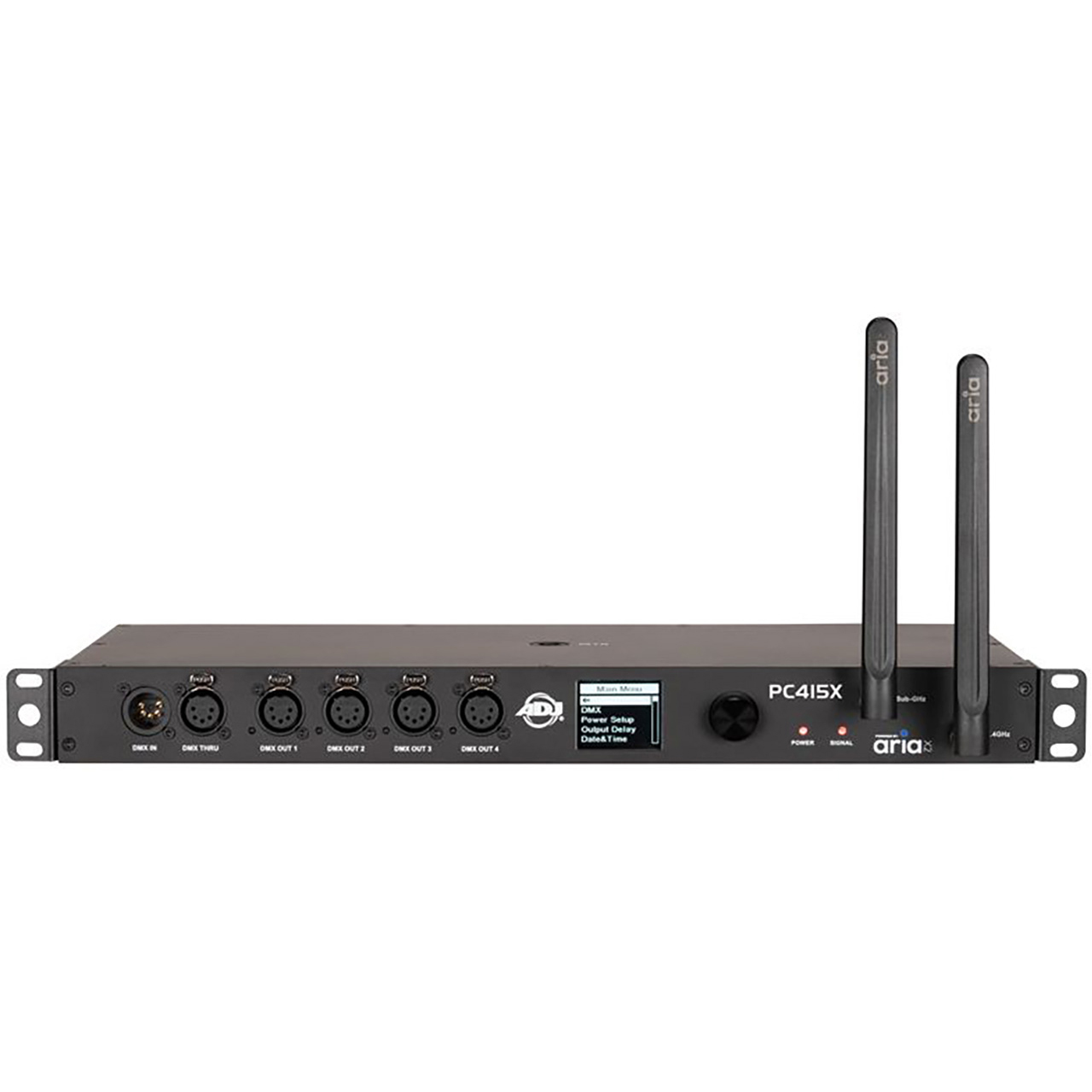

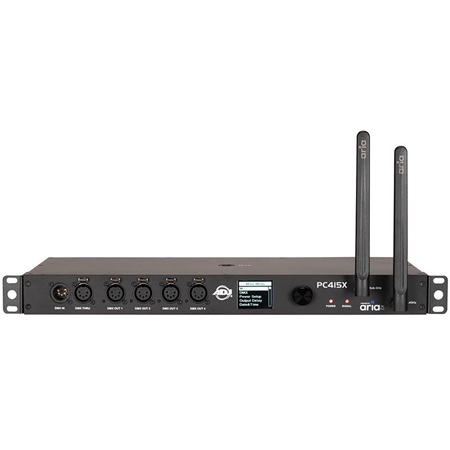

ADJ PCC415 PC415X Rack-Mountable 4 Output Power Distribution and DMX Lighting Control Hub - IP20 Rated

PCC415 - Overview

• Features:

  • Multi-functional Design: The PC415X offers 4 power outputs, an Aria X2 transceiver, and DMX/RDM splitter in one device
  • Flexible DMX Channel Modes: Operate in 1, 2, or 4 DMX channel modes, ensuring compatibility across different setups
  • User-Friendly Control: Navigate with ease using the push button and encoder wheel, complemented by an OLED control menu display
  • Event Scheduler: Manage power and DMX outputs with an internal On/Off scheduler for automated operation
  • Single DMX Universe: Works seamlessly as a single DMX universe transmitter, ideal for precise control over lighting configurations
  • Multi-Protocol Support: Features Sub-GHz, 2.4 GHz WiFi, Bluetooth, and proprietary Aria X2 Mesh Protocol for reliable wireless communication
  • Future-Ready: Configuration via front panel and app support (app coming soon) for on-the-go adjustments

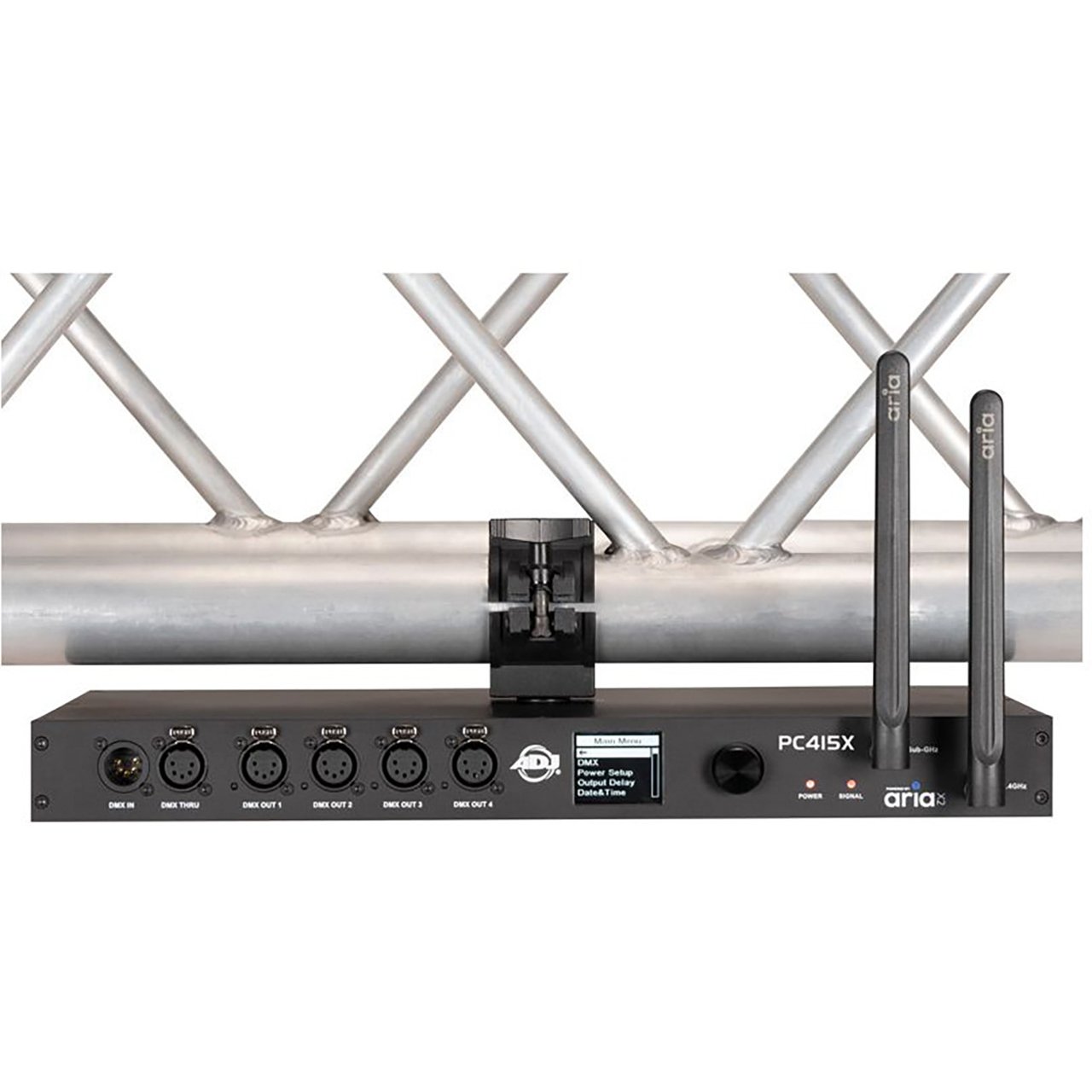

  • Mounting Flexibility: Rack-mountable and truss-mountable for versatile installation options


• Specifications:

  Supported Protocols
  • DMX/RDM: Designed for DMX lighting control, with RDM support planned in a future software release
  • Proprietary Protocols: Supports Aria X2 Mesh Protocol and 802.15.4 communication, plus Bluetooth 5.2 for versatile device connectivity

    RF Characteristics
  • Frequency Range: Operates between 2404-2480 MHz, with additional EU (863-870 MHz) and US (902-928 MHz) bands.
  • Enhanced Reliability: CSMA and planned adaptive frequency hopping ensure minimal interference
  • Over-the-Air Updates: Future-proof your setup with OTA updates

    Standards & Compliance
  • Safety: Meets EN IEC 62368-1 and BS EN standards for safe operation
  • Health & EMC: Complies with EN IEC 62311:2020 and ETSI EMC standards, ensuring safety and low interference

    Connectors

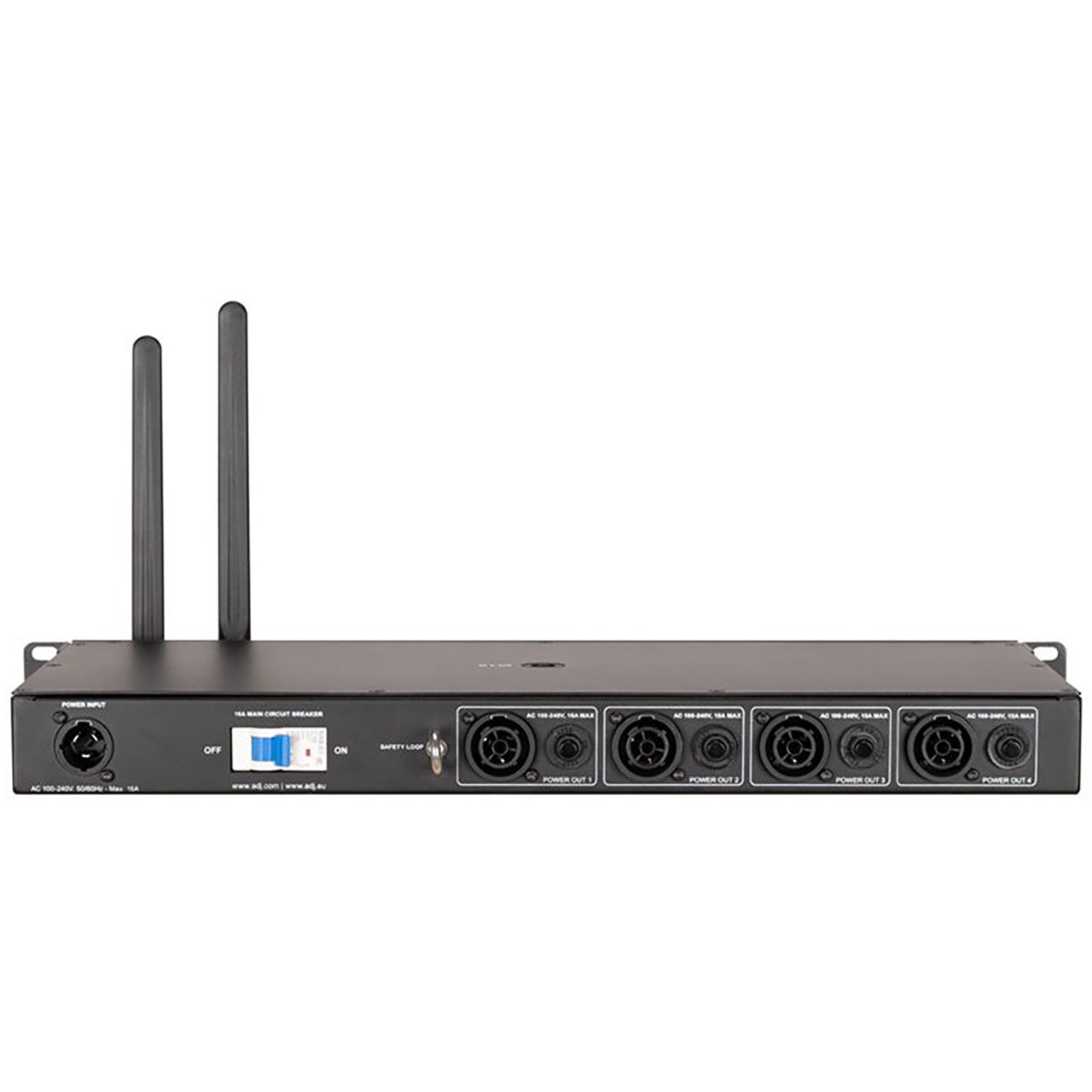

  • DMX and Power Options: Features (1) DMX input, (4) DMX outputs, and (4) IP65 locking power outputs with 15A resettable breakers.
  • Antenna Compatibility: Equipped with dual 5G JT SMA antennas.

    Power Requirements
  • Versatile Power Input: Compatible with AC100-240V 50/60Hz and equipped with a 16A main power switch
  • Low Power Consumption: Runs efficiently with minimal power requirements and features a CR2032 lithium battery for critical backup

    Physical Specifications
  • Robust Design: Durable IP20 metal enclosure with a digital screen, rotary knob, and safety eyelet
  • Temperature Tolerant: Operates in ambient temperatures up to 113°F and humidity below 75%
  • Compact Dimensions: At just 7.4 lbs, it's designed for easy handling and secure installation

    Dimensions & Weight
  • Length: 19" (482mm)
  • Width: 9.81" (249.17mm)
  • Height: 1.73" (43.80mm)
  • Weight: 7.4 lbs (3.36 kg)

    Approvals
  • CE, cETLus (pending), IP20-rated for indoor use


• Item Includes:

  • 1x PCC415 DMX Control Hub
  • 1x Set of Rack Ears
  • 2x Aria X2 Antennas
  • 1x IP65 Locking Power Cable


• Warranty:

  • 2 Year Warranty


• GTIN:

  0810087373825
