Doug Fleenor Design PRE10-A DMX512 Architectural Playback Device for up to 10 Snapshots - 1 Active Preset

ITEM #: DFD-PRE10-A MFG #: PRE10-A

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

List Price:

$750.00

Our Price:

$608.00

Availability: In Stock
iAvailability Description Popup


    PRE10-A - Overview

    The Doug Fleenor Design PRE10-A Preset 10 Architectural is a lighting control station capable of storing up to ten presets. The PRE10-A offers "Radio Button" operation, where only one preset may be active at time. These presets are recorded by capturing the output of a DMX512 console. Each preset can then be assigned a unique fade time, from 0 to 999 seconds. Presets are recalled by pressing one of the buttons.

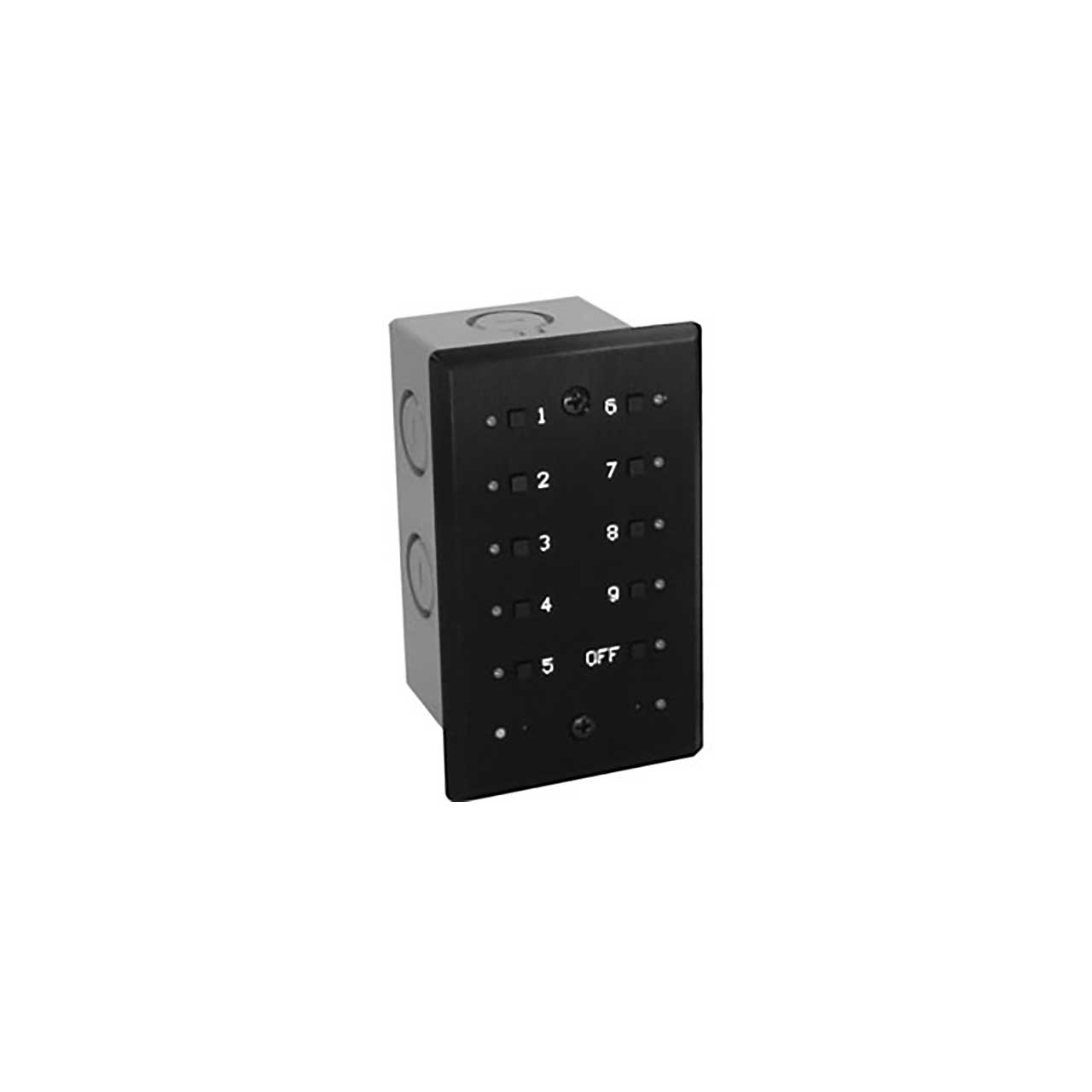

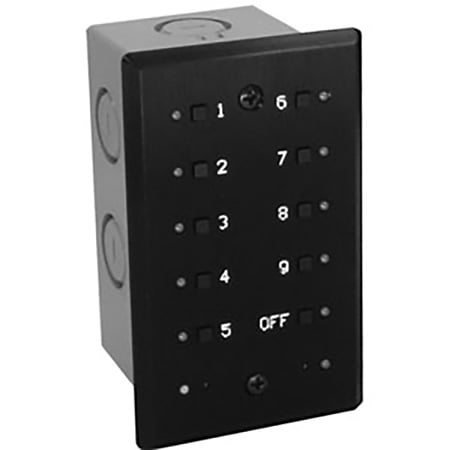

    Systems can be created by using one or more stations and a power supply. The solid aluminum faceplate is designed to install over a standard single gang electrical box. Connections to the Preset 10 Architectural are power (2 wires) and DMX512 (3wires). Power for the Preset 10 can be supplied from a variety of sources, including a 10V class 2 "doorbell" transformer.

    The Preset 10 Architectural system can work in conjunction with a lighting console, automatically switching between preset and console control. W hen the console generates a DMX512 signal the Preset 10 Architectural goes off-line. The console then operates normally. Upon loss of DMX512 from.

    • Specifications:

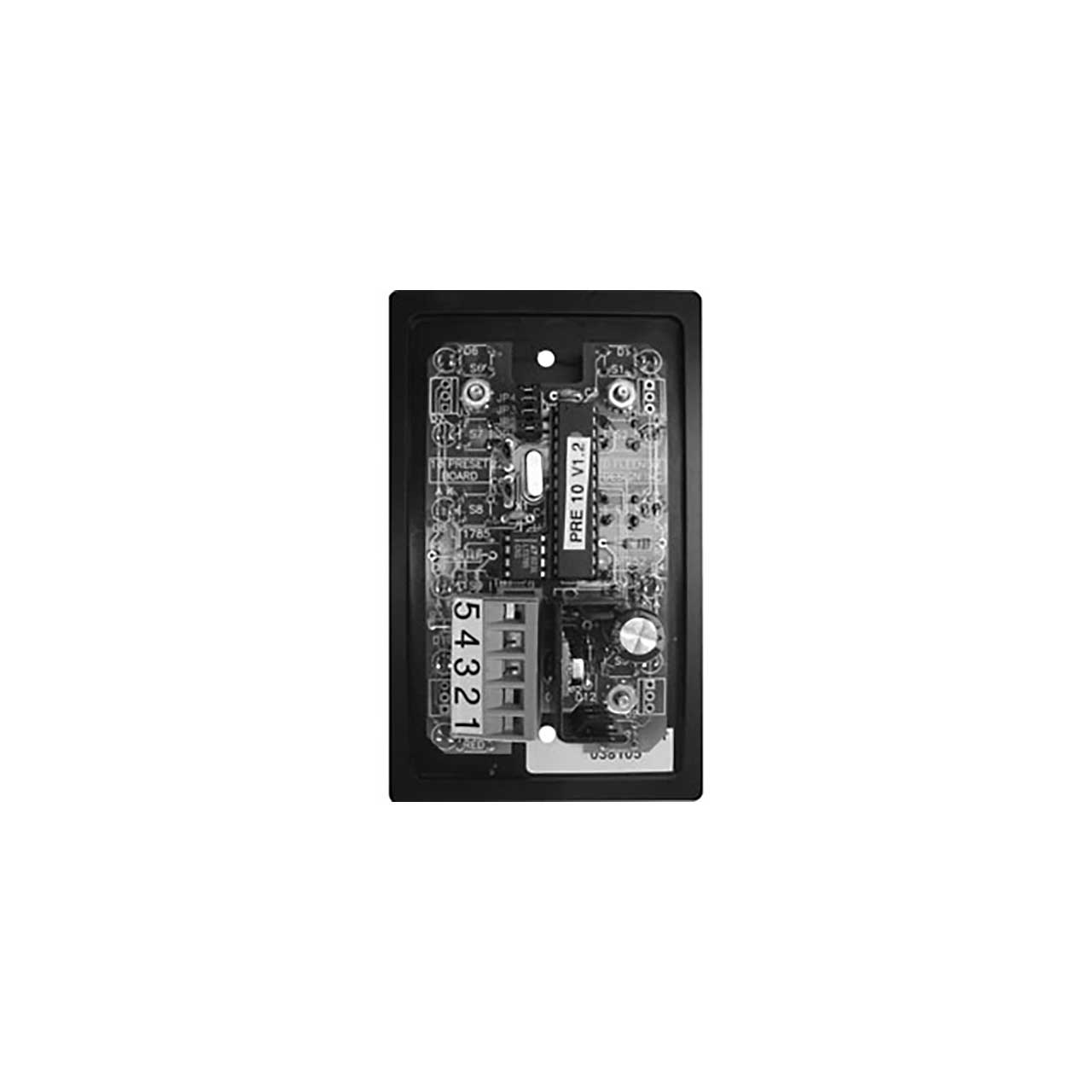

      • Connector: Phoenix Contact MSTB series 5 position two part terminal block; Model: MSTB 2,5/5-ST-5,08 Order Number: 17 57 04 8
      • Connector pin out: 1: DMX512 common, 2: DMX512 data -, 3: DMX512 data +, 4: Supply common (tied to pin1), 5: Supply "hot"
      • Input/Output circuit: ESD protected EIA-485 transceiver (LT1785)

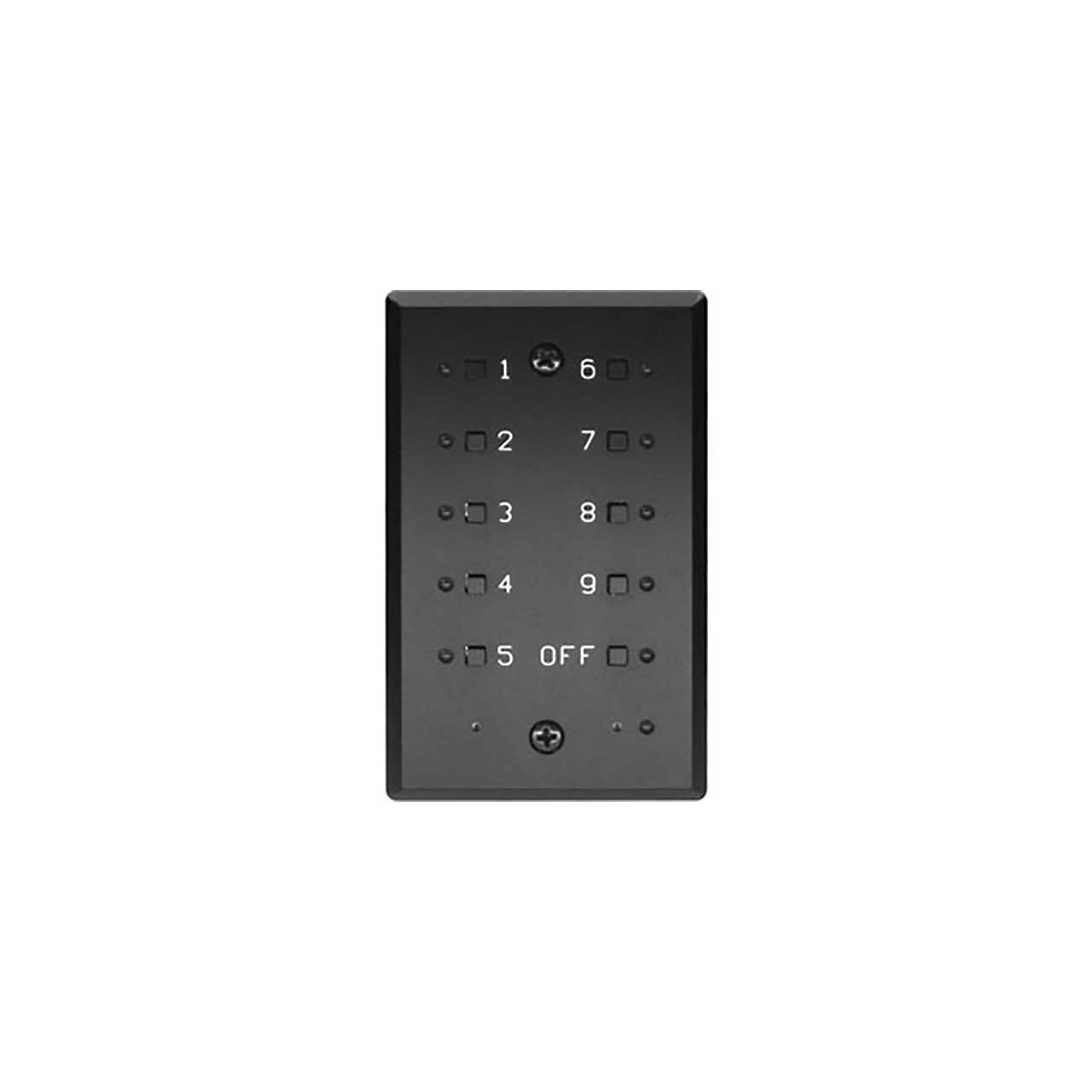

      • Indicators: Ten green preset indicator LEDs; One red Lockout / Record LED
      • User controls: Ten preset push buttons; One recessed record push button; One recessed fade time push button
      • Option jumpers: Master / Slave mode selection; Pervious preset / Hold last look mode selection
      • Power input: 9 to 15 volts AC or DC / 200mA per station; (A 10 volt class 2 "doorbell" transformer is recommended for fixed installations)
      • Color: Black anodized with silver engraved nomenclature

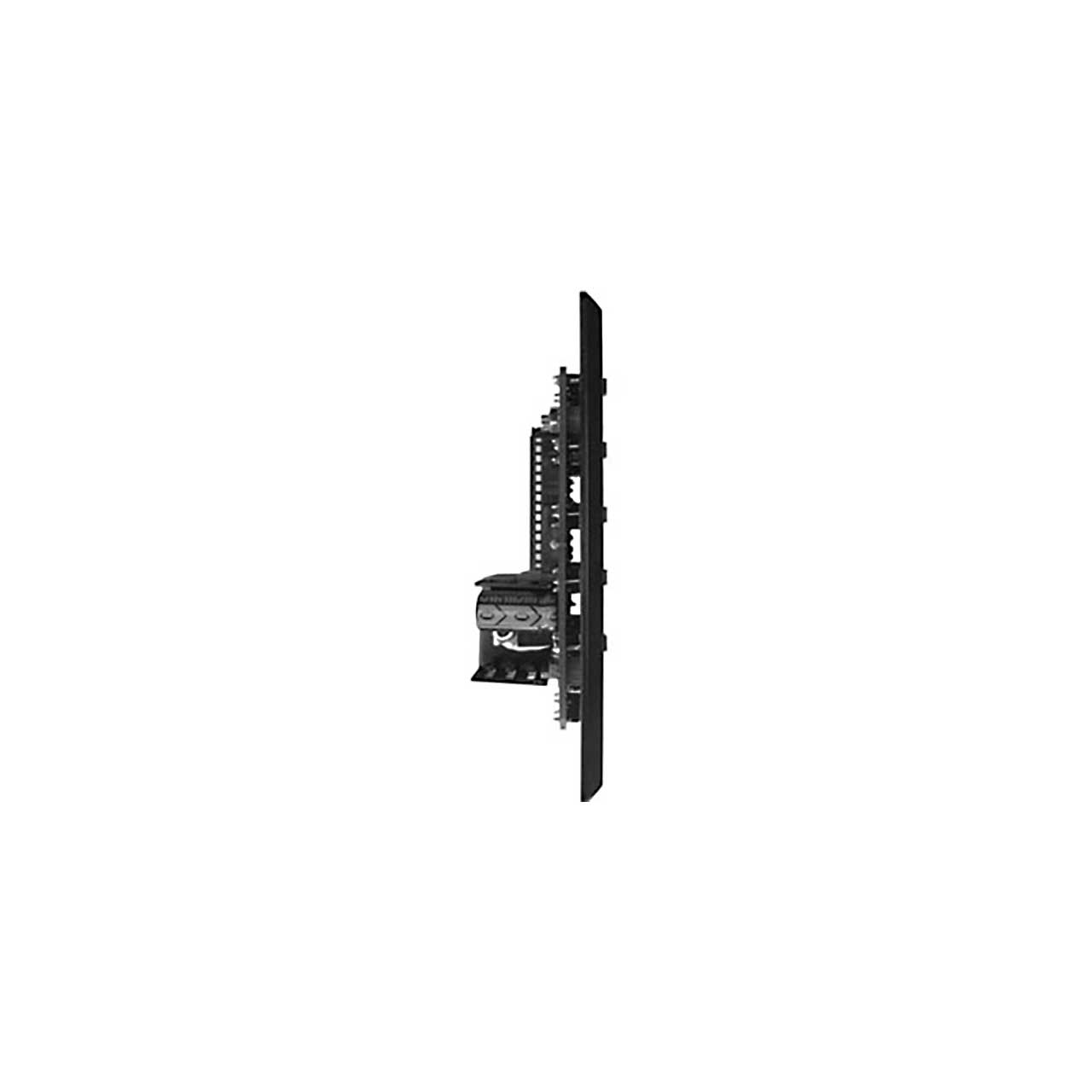

      • Size Faceplate(H x W x D): 4.5 in x 2.75 in x 0.2 in
      • Faceplate rear inset(H x W x D): 4.05 in x 2.4 in x 0.1 in
      • Electrical box minimum inside dimensions(H x W x D): 3.5 in x 2.1 in x 1.25 in

    • Warranty:

      • 5 year
