Ergotron 45-476-224 HX Desk Dual Monitor Arm - Matte Black - Holds up to 32 inch Monitors - 17.5 lb max per Arm

45-476-224 - Overview

• Features:

  • Includes arm, extension, hinge bow, two monitor pivots, handle, desk clamp, grommet mount, mounting hardware

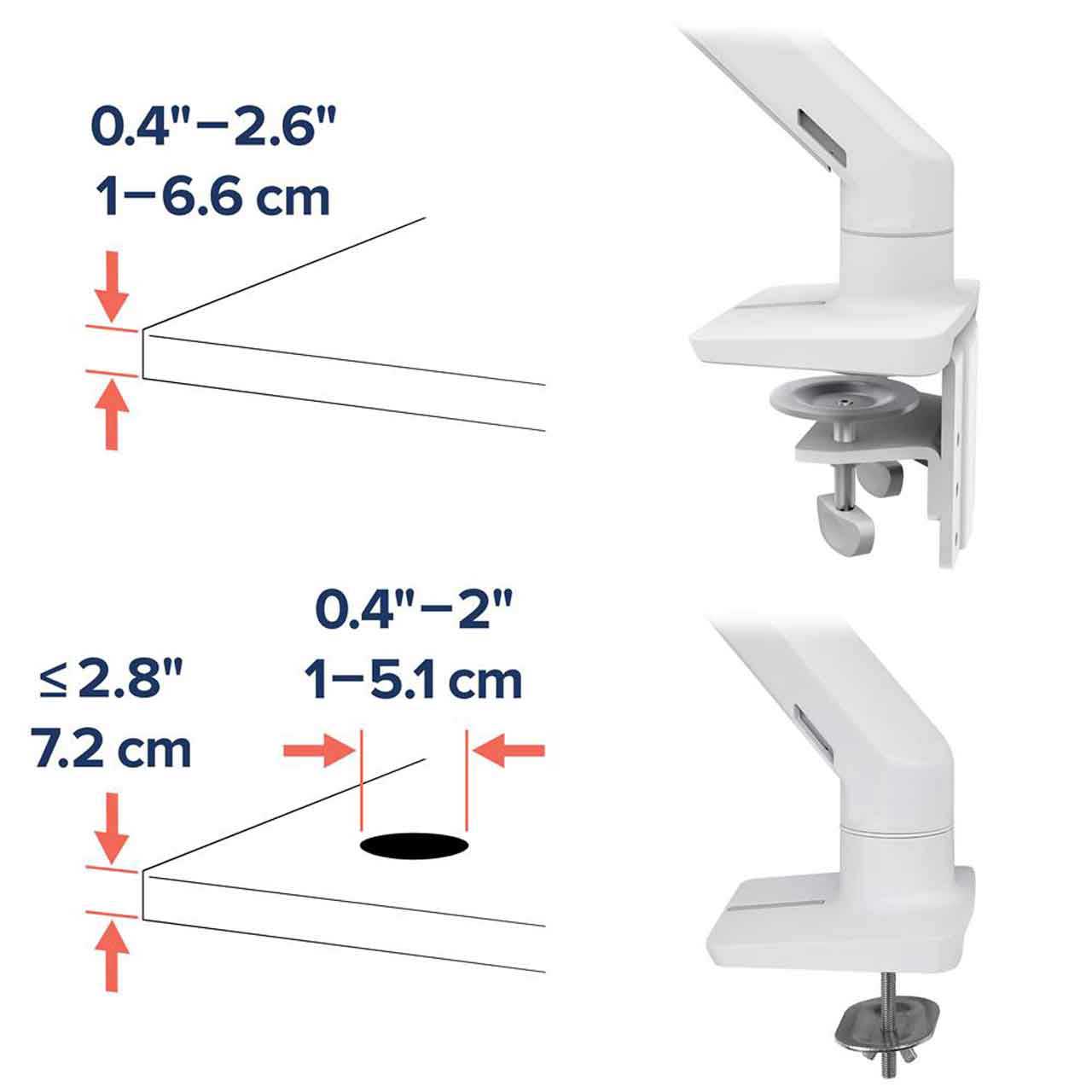

  • Desk clamp attaches to surface edge 0.4" to 2.6" (1 to 6.6 cm) thick
  • Grommet Mount (included) attaches through surface holes
  • Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
  • Portrait/landscape rotation with lockout
  • Streamline cable management that routes cables under arm and within extension
  • Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm). The optional VESA Bracket Adaptor Kit (97-759) allows the attachment of displays with VESA hole patterns of 200 x 100, 200 x 200, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
  • Weight Capacity: Individual LCD weight = 5-17.5 lbs (2.3-7.9 kg) per monitor. Total LCD weight= 10-35 lbs (4.6-15.8 kg). Monitor depth greater than 3" (7.5 cm) may diminish capacity
  • Rotation: Monitor can be rotated 360° at connection point of arm and extension; rotation is restricted to 180° at connection point of extension and base

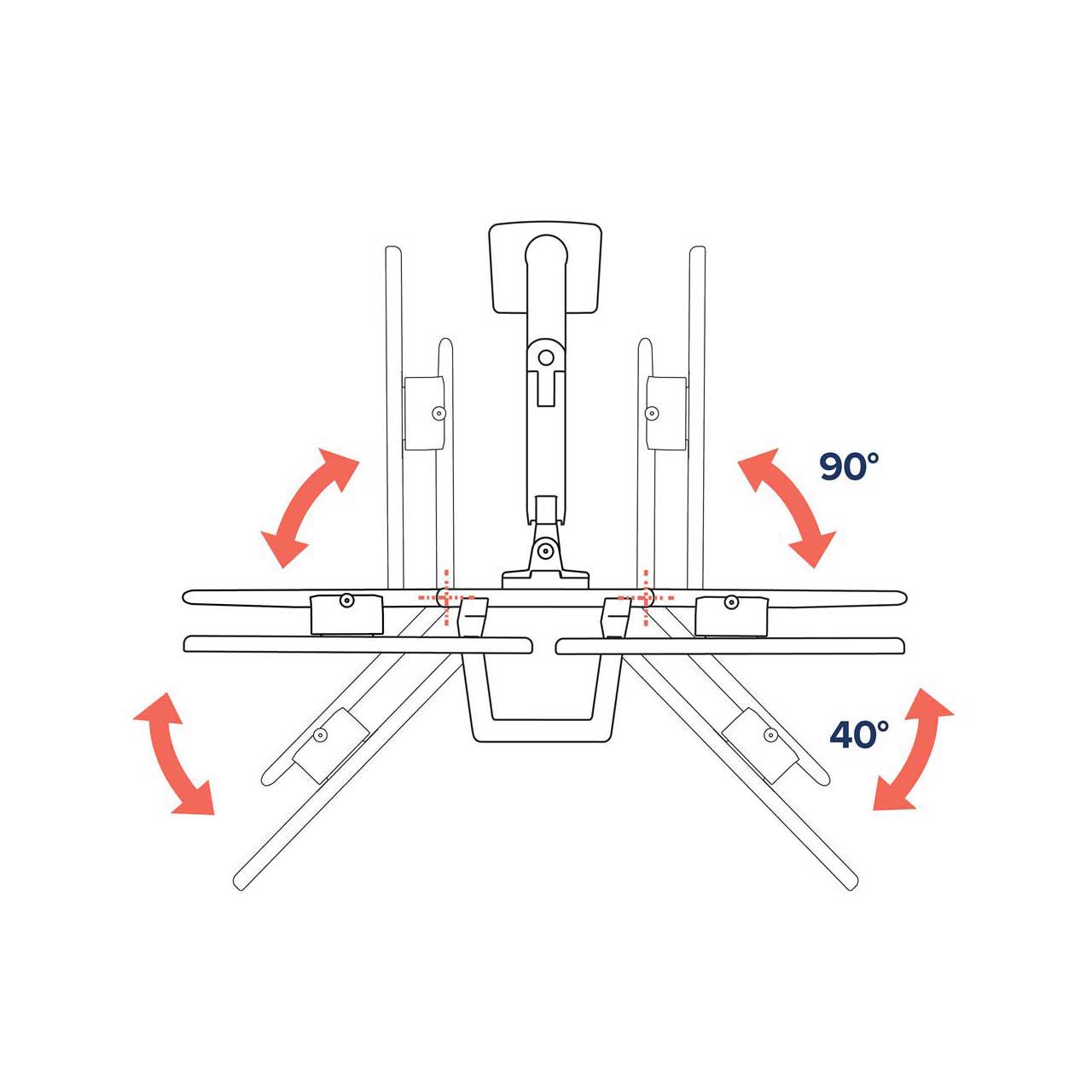

  • Hinge bow turns 40° inward and 90° outward
  • Pivots feature quick install and release and feature effortless portrait to landscape 6° pan and tilt

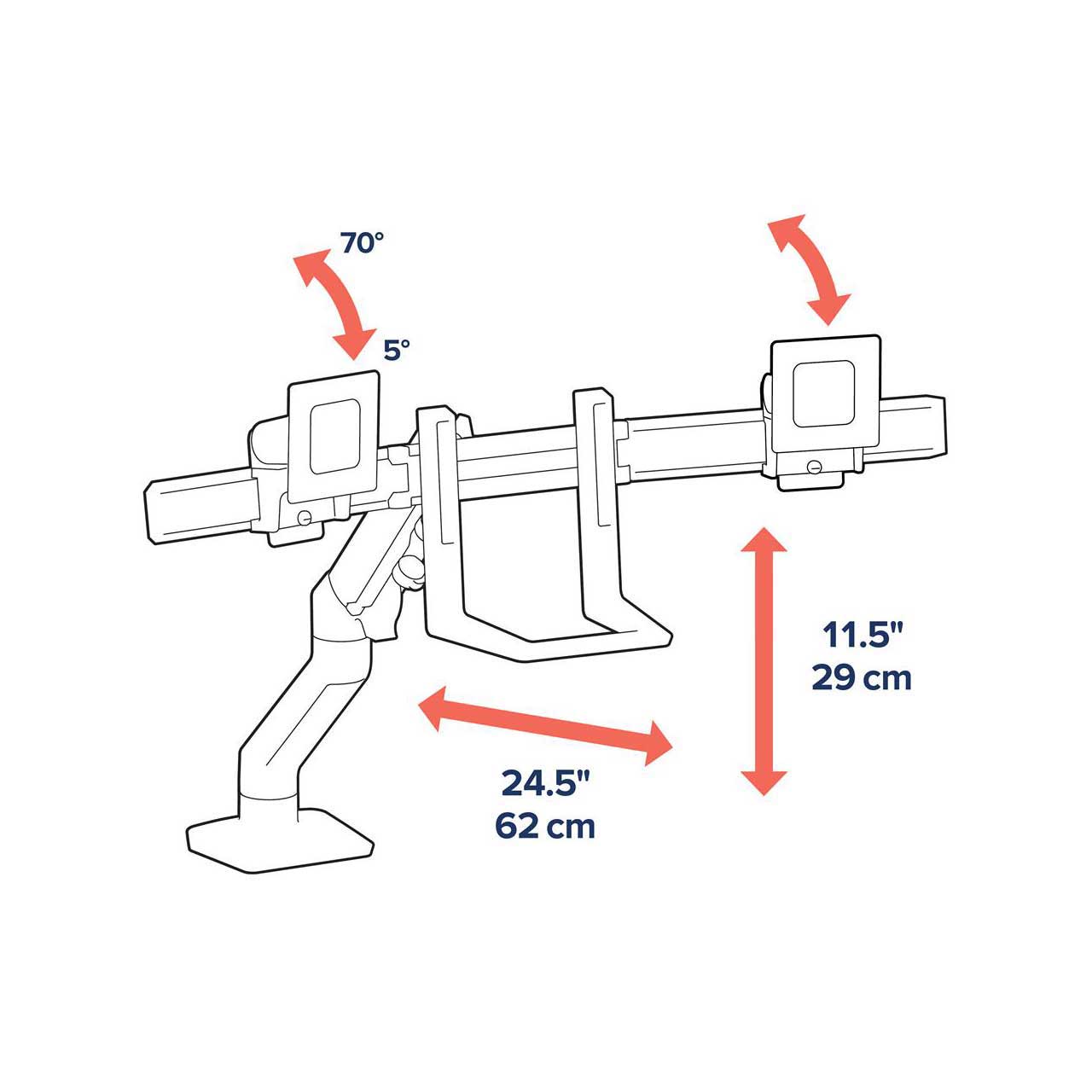

  • Up to 24.5" (60 cm) extended reach and 11.5" (29.2 cm) vertical height adjustment
  • This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)


• Specifications:

  • Screen: ≤32"
  • Capacity: 10-35 lbs (4.5-15.9 kg)
  • Lift: 11.5" (29.2 cm)
  • Tilt: 75° (Tilt Range: 70° backward, 5° forward)
  • Pan: 180°
  • Rotation: 360°
  • Vesa: MIS-D


• Warranty:

  • 10 Years


• Benefits:

  • Comfortable fit: Offers ergonomic monitor positioning using patented Constant Force™ Technology
  • Saves space: Places screen in the best view to tackle each to-do
  • Sustainable choice: BIFMA level® 2 certified for a low environmental and social impact
  • Rotation stop: Avoid hitting cube walls with a rotation-stop on the base
  • Sleek build: Cables stay hidden under the arm and through the extension
  • Quality design: Built for thousands of movements by passing 10,000-cycle test


• GTIN:

  0698833084481
