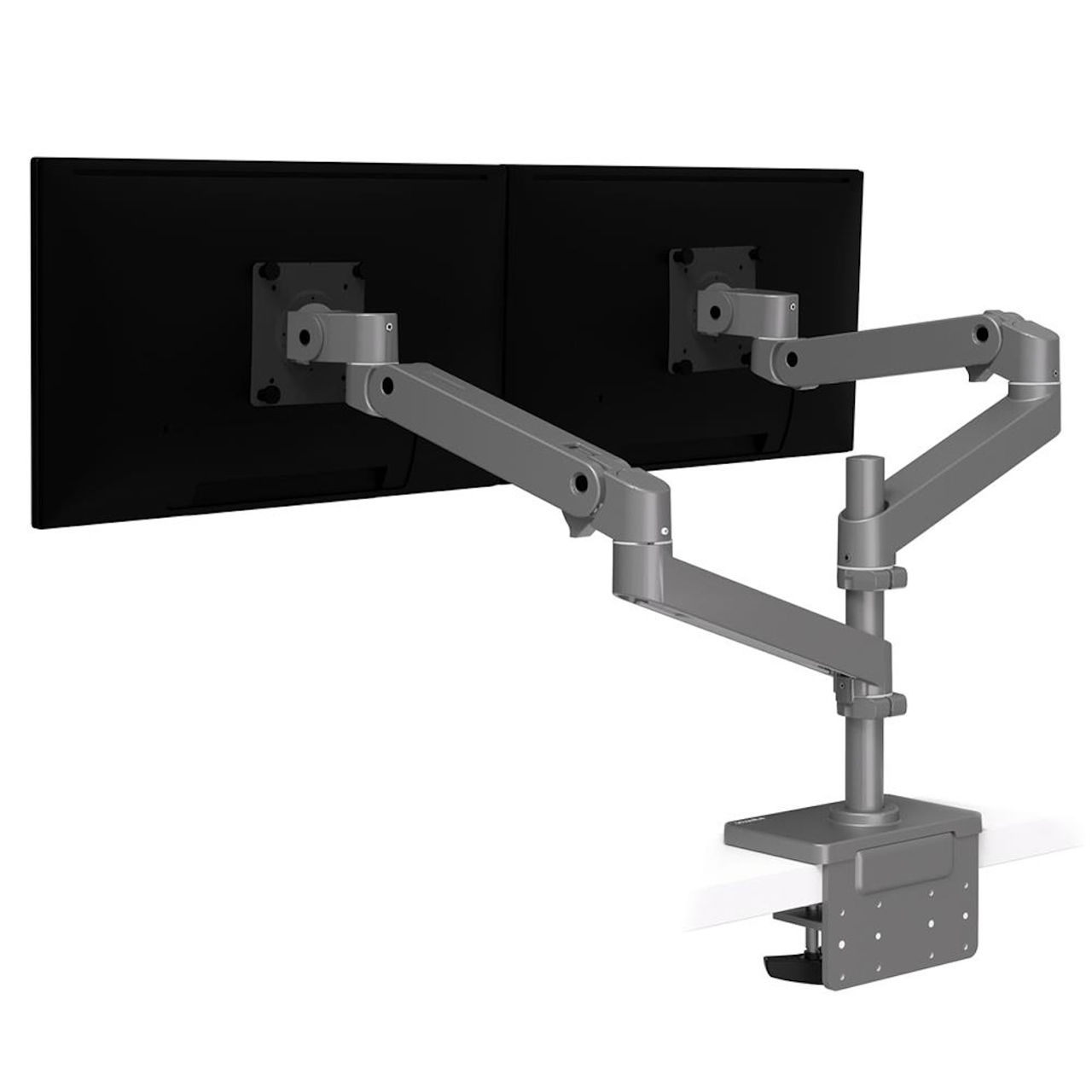

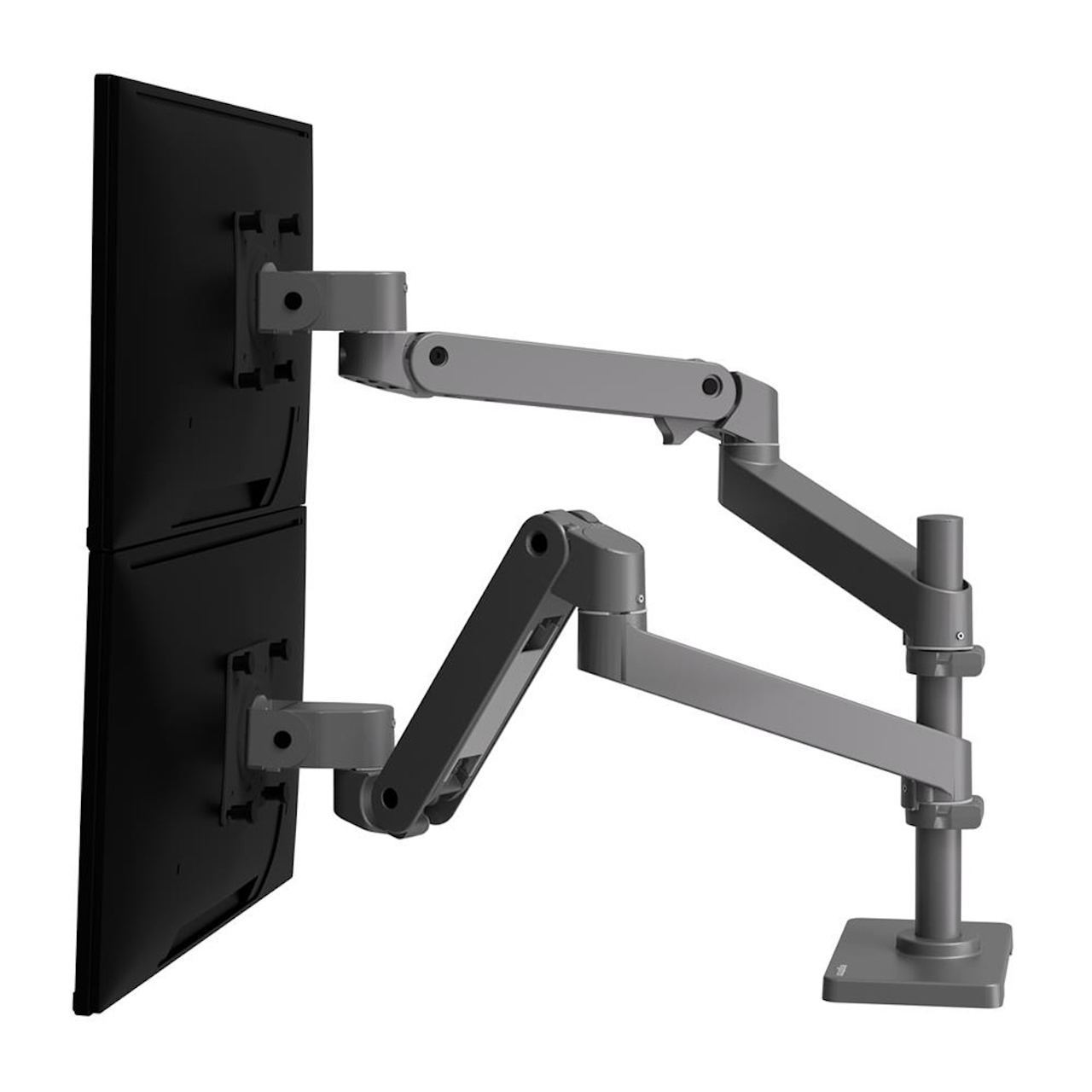

Ergotron 45-690-293 LX Pro Dual Stacking Arm Two Monitor Mount - 2-Piece Clamp - Dark Grey

45-690-293 - Overview

• Features:

  • Elevate Comfort: More motion with less effort for best-in-class ergonomic positioning
  • Boost Productivity: Lift, tilt and turn your monitors for perfect views that hone your focus
  • Modular Architecture: Flexible design and accessory add-ons for every configuration
  • Maximize Workspace: Raises screens off the desktop from a compact base
  • Sleek Build: Improved cable management and streamlined look enhance your work area
  • Easy Installation: Fewer parts and intuitive adjustment make setup effortless
  • Tension-Level Indicator: Set the tension level once to counterbalance an arm with its monitor; reference the indicator for quick setup of multiple arms.
  • Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment


• Specifications:

  • Typical LCD Size: ≤ 24"
  • Weight Capacity
    - Maximum Individual LCD Weight: 4lbs - 22lbs (1.8kg - 10kg) per monitor
    - Total Weight Capacity: 44lbs (20kg)

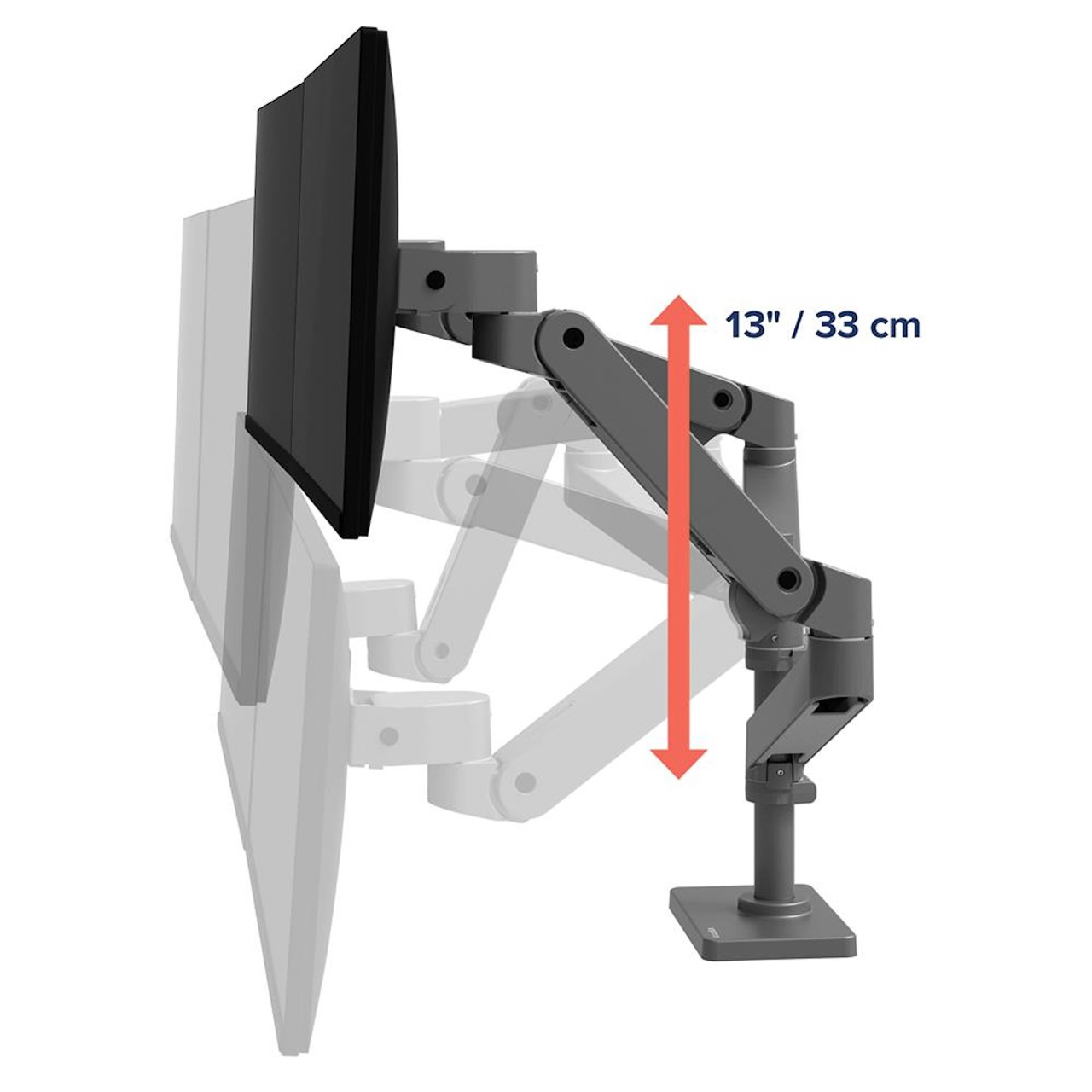

  • Lift: 13" (33cm)

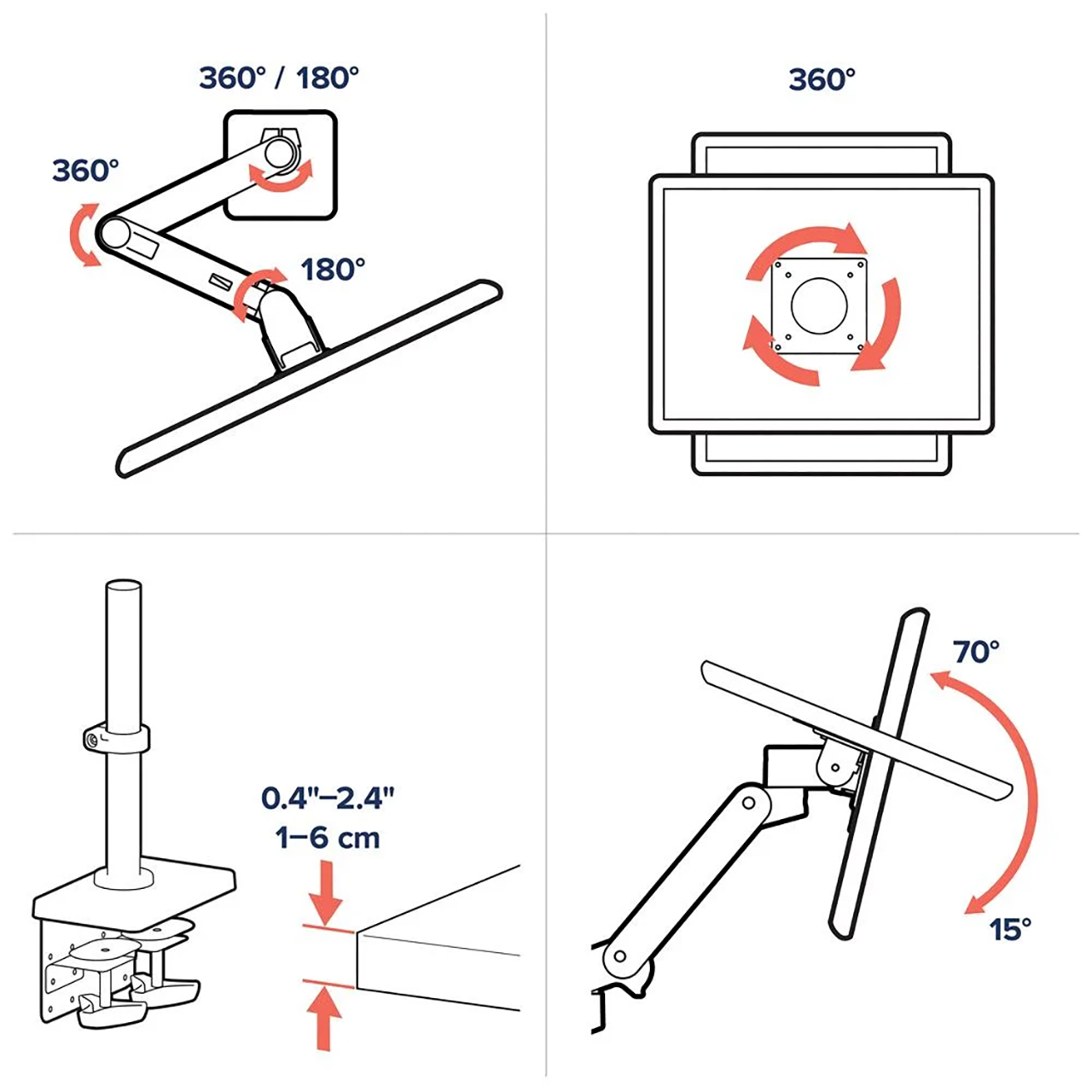

  • Tilt: 85° (+70°/-15°)
  • Monitor Pan: 180°
  • Base Arm Pan: 360° (180° with rotation stop engaged)
  • Monitor Rotation: 360°
  • VESA: MIS-D, 100/75, C (100mm x 100mm & 75mm x 75mm hole pattern)

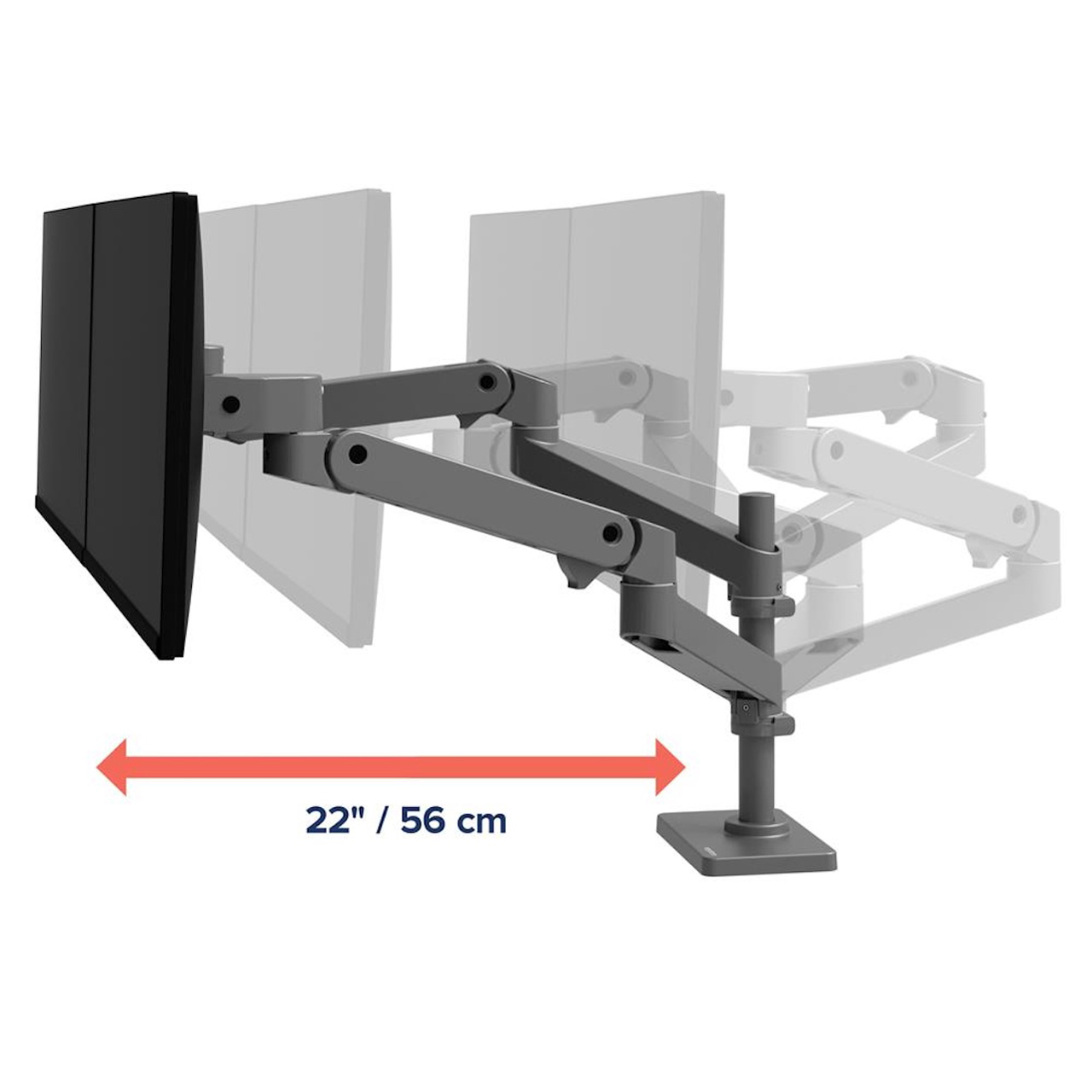

  • Extension: ≤ 25.8" (65.6cm)
  • Shipping Weight: 22.2lbs (10.1kg)
  • Shipping Dimensions (LxWxH): 22.8" x 18.6" x 6.5" (58cm x 47.3cm x 16.4cm)
  • Pro Install Option: SRVC-SPI-1


• Item Includes:

  • 2x Arms
  • 2x Extensions
  • 2x Monitor pivots
  • 1x 2-piece desk clamp
  • 1x 12" (30.4cm) pole
  • Attachment hardware


• Warranty:

  • 10 Year Limited Warranty
