ESE ES-216 Audio Level Indicator - Digital VU Meter

ITEM #: ES 216 MFG #: ES 216

free ship

List Price:

$69.00

Our Price:

$65.95

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    ES 216 - Overview

    Audio Level Indicator

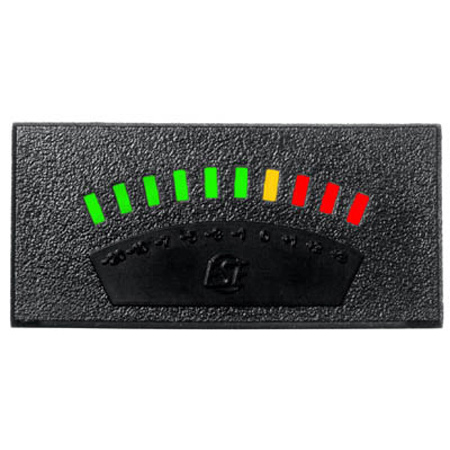

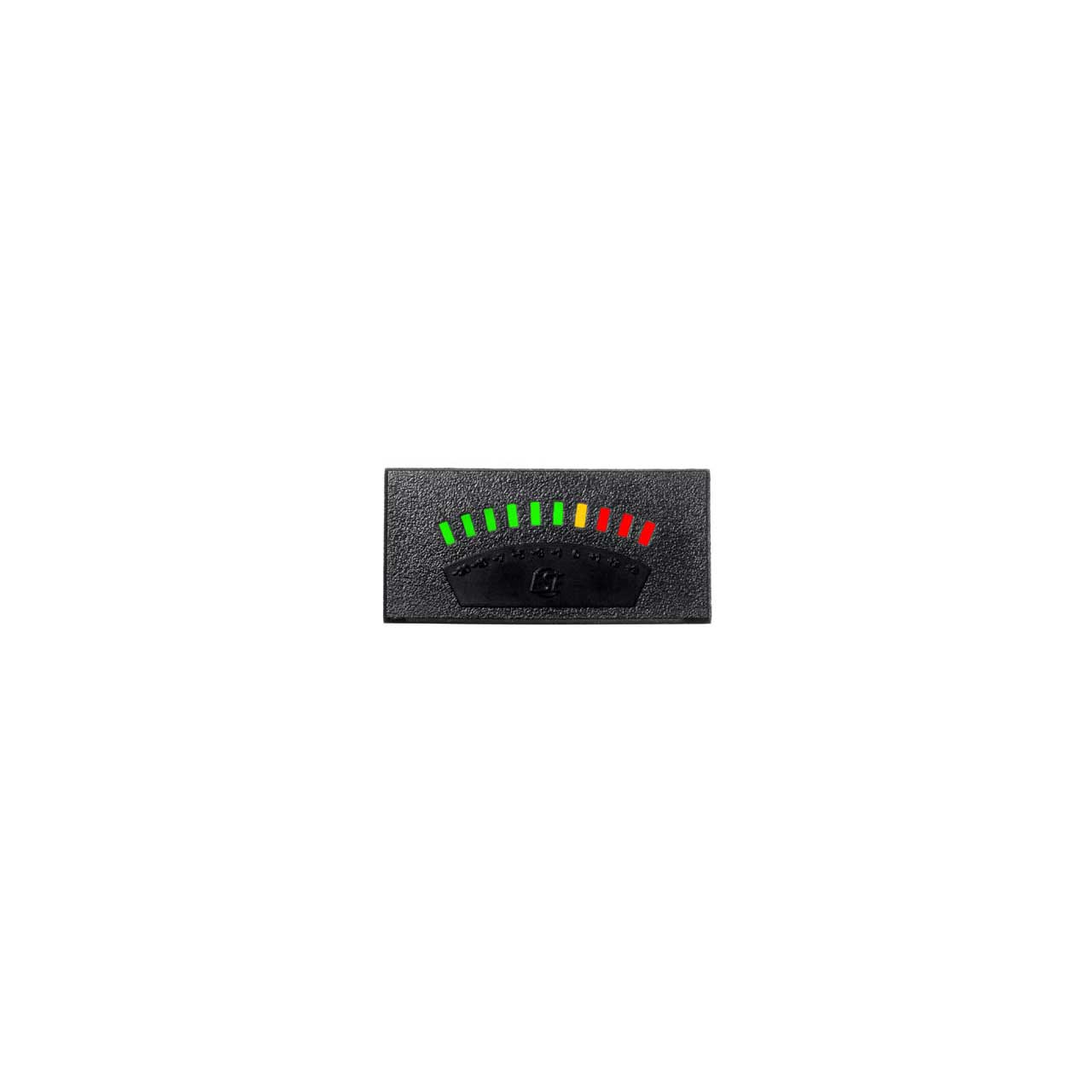

    The ES-216 is an in-line audio level indicator which provides a purely digital representation of an audio signal's loudness. The unit features ten LED's (six Green, one Yellow and three Red) that display levels of -20, -10, -7, -5, -3, -1, 0, +1, +2, and +3 db. One LED is lit at a time and simulates the "flying wand" effect of an analog meter. Units are shipped in Peak mode unless otherwise specified (VU response may be specified optionally). The plastic bezel is designed for panel / console mounting. Four spring fingers hold the unit in the cutout opening. Connections are made via four spade lugs on the PC board. The unit measures 3"W x 1.4"H x 1.5"D. It can be console or panel mounted and is designed to fit into the same opening as many of the commonly used mechanical meters. The rack mount options allow the unit(s) to be mounted one, two, three or four per panel (Part#'s ES 216P, ES 216P2, ES 216P3 or ES 216P4

    • Features:

      • 0 LED Levels
      • Peak Detecting (VU optional)
      • Balanced or Unbalanced input
      • Calibration adjustment
      • 10-24 VDC Power Input
      • Various Options available: Black, P

    • Specifications:

      • Indicators: 10.
      • Scale: +3 dB thru -20 dB.
      • Reference Level "0" Adjustment:-14 dB to +30 dB.
      • Input Impedance: 6000 ohms, balanced (any sensitivity).
      • Input Circuit: Transformerless
      • Frequency Response: 20 - 20 Khz +/- 1 dB (all modes)
      • Rise Times: Peak Mode - 1 mSec, VU Mode - 300 mSec
      • Fall Time: 300 mSec
      • Power Requirement: +10 to +24 VDC @ 24 mA, (regulated or unregulated).
      • Modes of Operation: Peak (unless otherwise specified), VU (Slow Averaging)
      • Mode Selection: PCB Jumper
      • Mechanical: 3" x 1.4" x 1.5" Deep
      • Options: P, P2 , P3, P4
