Belden 8723 CM Rated 2-Pair Audio - Control & Instrument Cable - SFTP (7x30) TC 22AWG - Chrome - 1000 Foot

ITEM #: BL-8723-1000 MFG #: 8723 0601000

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,386.30

Our Price:

$559.00

Availability: In Stock
iAvailability Description Popup


    8723 0601000 - Overview

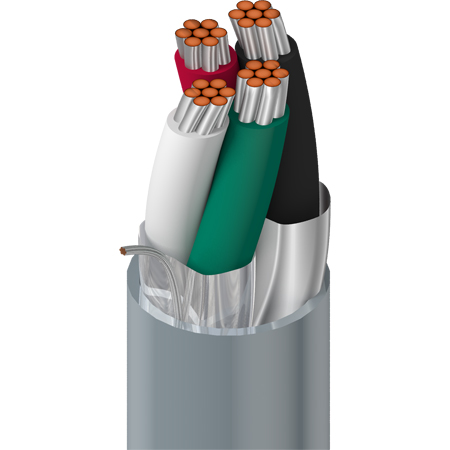

    Belden 8723 is an Audio, Control & Instrument Cable. It's 22 AWG with stranded (7x30) tinned copper conductors, polypropylene insulation, individually Beldfoil® shielded (100% coverage) twisted pairs with 24 AWG stranded tinned copper drain wire in a PVC jacket.

    Belden Multi-Pair Cable is electronic cable that consists of multiple groups of twisted-pair circuits. This construction allows many wires to be bundled into one package, reducing electromagnetic interference and crosstalk, as well as providing easier installation.

    Applications:
    Low voltage analog signals (4-20ma, 0-10v, ...)
    Low voltage digital control (24v, …)
    Line level audio; computer communication
    Panel wiring

    • Features:

      • Dependable Signaling: Ideal for critical applications like telecommunications, water meters, thermometers, instrumentation and control panels, etc.
      • Easier Installation: Bundling multiple wires within one cable allows for faster wire installation.
      • Prevent Downtime: Multi-pair cable offers consistency and reliability to your operations, guarding against crosstalk and electromagnetic interference.

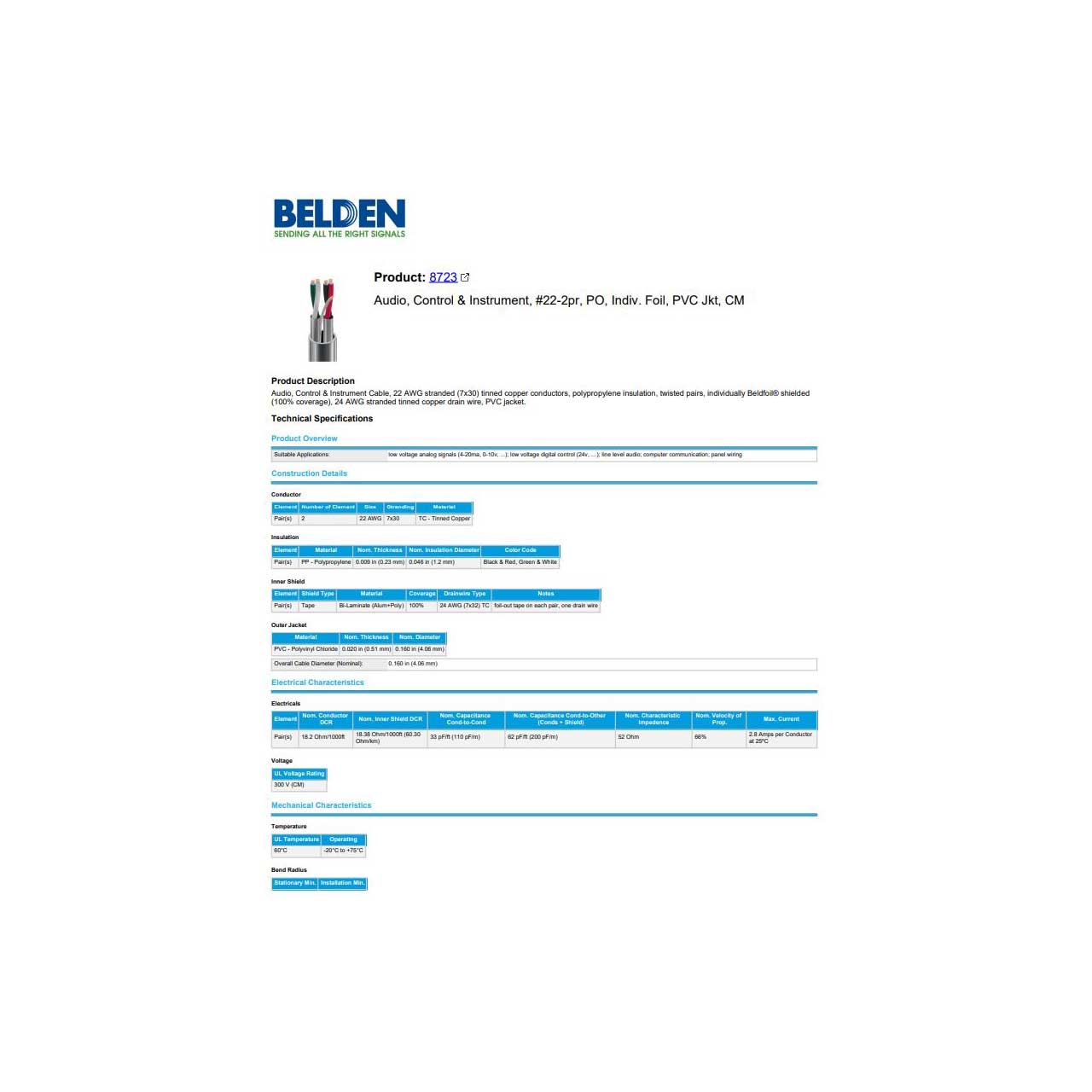

    • Specifications:

      • Conductor Number of Element: 2
      • Total Number of Conductors: 4
      • Conductor Size AWG: 22
      • Conductor Stranding: 7x30
      • Conductor Material: TC - Tinned Copper
      • Insulation Material: PP - Polypropylene Pair
      • Insulation Nom. Thickness: 0.009 in (0.23 mm)
      • Insulation Nom. Insulation Diameter: 0.046 in (1.2 mm)
      • Insulation Color Code: Black & Red, Green & White
      • Inner Shield Type: Tape
      • Inner Shield Material: Bi-Laminate (Alum+Poly)
      • Inner Shield Coverage: 100%
      • Inner Shield Drainwire Type: 24 AWG (7x32) TC
      • Inner Shield Notes: Foil-out tape on each pair, one drain wire
      • Outer Jacket Material: PVC - Polyvinyl Chloride
      • Outer Jacket Nom. Thickness: 0.020 in (0.51 mm)
      • Outer Jacket Nom. Diameter: 0.160 in (4.06 mm)
      • Overall Cable Diameter (Nominal): 0.160 in (4.06 mm)
      • UL Voltage Rating: 300 V (CM)
      • UL Temperature: 60°C
      • Operating Temperature: -20°C to +75°C
      • Environmental Suitability: Indoor
      • Flammability / Reaction to Fire: UL 1685 FT4 Loading, IEC 60332-1-2
      • CEC/NEC/UL Compliance: Article 800, CM
      • Plenum (Y/N): N
      • Plenum Numbers: BL-82723, BL-87723, BL-88723

    • Item Includes:

      • 8723 2-Pair Audio,Control & Instrument Cable - Chrome - 1000 Foot

    • Warranty:

      • Limited 10 Year Warranty

    • GTIN:

      0612825214458
