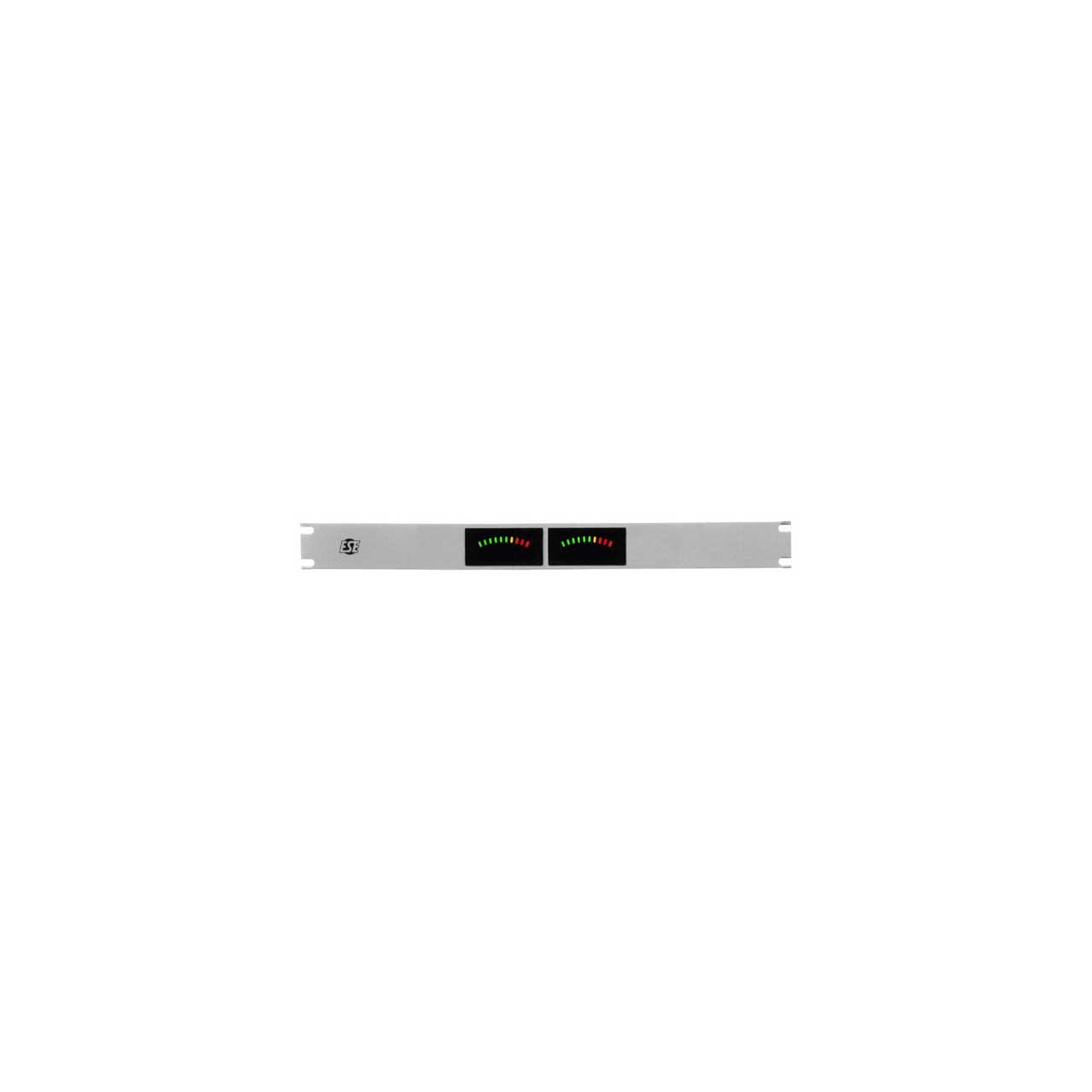

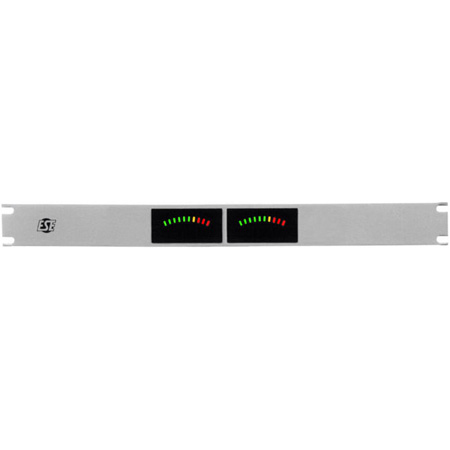

ESE ES-216P2 Stereo/Mono Audio Indictator - Digital VU Meter

ITEM #: ES 216P2 MFG #: ES 216P2

free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$190.00

Our Price:

$180.95

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


ES 216P2 - Overview

The ES-216P family consists of one or more Audio Level Indicators mounted on a rack-mount panel. The ES-216 is an in-line audio level indicator which provides a purely digital representation of an audio signal's loudness. The unit features ten LED's (six Green, one Yellow and three Red) that display levels of -20, -10, -7, -5, -3, -1, 0, +1, +2, and +3 db. One LED is lit at a time and simulates the "flying wand" effect of an analog meter. Units are shipped in Peak mode unless otherwise specified (VU response may be specified optionally). The plastic bezel is designed for panel / console mounting. Four spring fingers hold the unit in the cutout opening. Connections are made via four spade lugs on the PC board. The unit measures 19"W x 1.75"H x 3.5"D.

  • Features:

    • 10 LED Levels
    • Peak Detecting (VU optional)
    • Balanced or Unbalanced input
    • Calibration adjustment
    • 10-24 VDC Power Input
    • Various Options available (Options for Entire ES-216P Family): Black, P(1)

  • Specifications:

    • Indicators: 10.
    • Scale: +3 dB thru -20 dB.
    • Reference Level "0" Adjustment:-14 dB to +30 dB.
    • Input Impedance: 6000 ohms, balanced (any sensitivity).
    • Input Circuit: Transformerless
    • Frequency Response: 20 - 20 Khz +/- 1 dB (all modes)
    • Rise Times: Peak Mode - 1 mSec, VU Mode - 300 mSec
    • Fall Time: 300 mSec
    • Power Requirement: +10 to +24 VDC @ 24 mA, (regulated or unregulated).
    • Modes of Operation: Peak (unless otherwise specified), VU (Slow Averaging)
    • Mode Selection: PCB Jumper
    • Mechanical: 3" x 1.4" x 1.5" Deep
    • Options: P, P2 , P3, P4

  • Item Includes:

    • ES-216P2 - Stereo or Dual Mono Audio Level Indicator - 1 3/4" Rack Mount
    • ES-216P3 - Triple (Stereo.Center) Audio Level Indicator - 1 3/4" Rack Mount
    • ES-216P4 - Dual Stereo Audio Level Indicator - 1 3/4" Rack Mount
