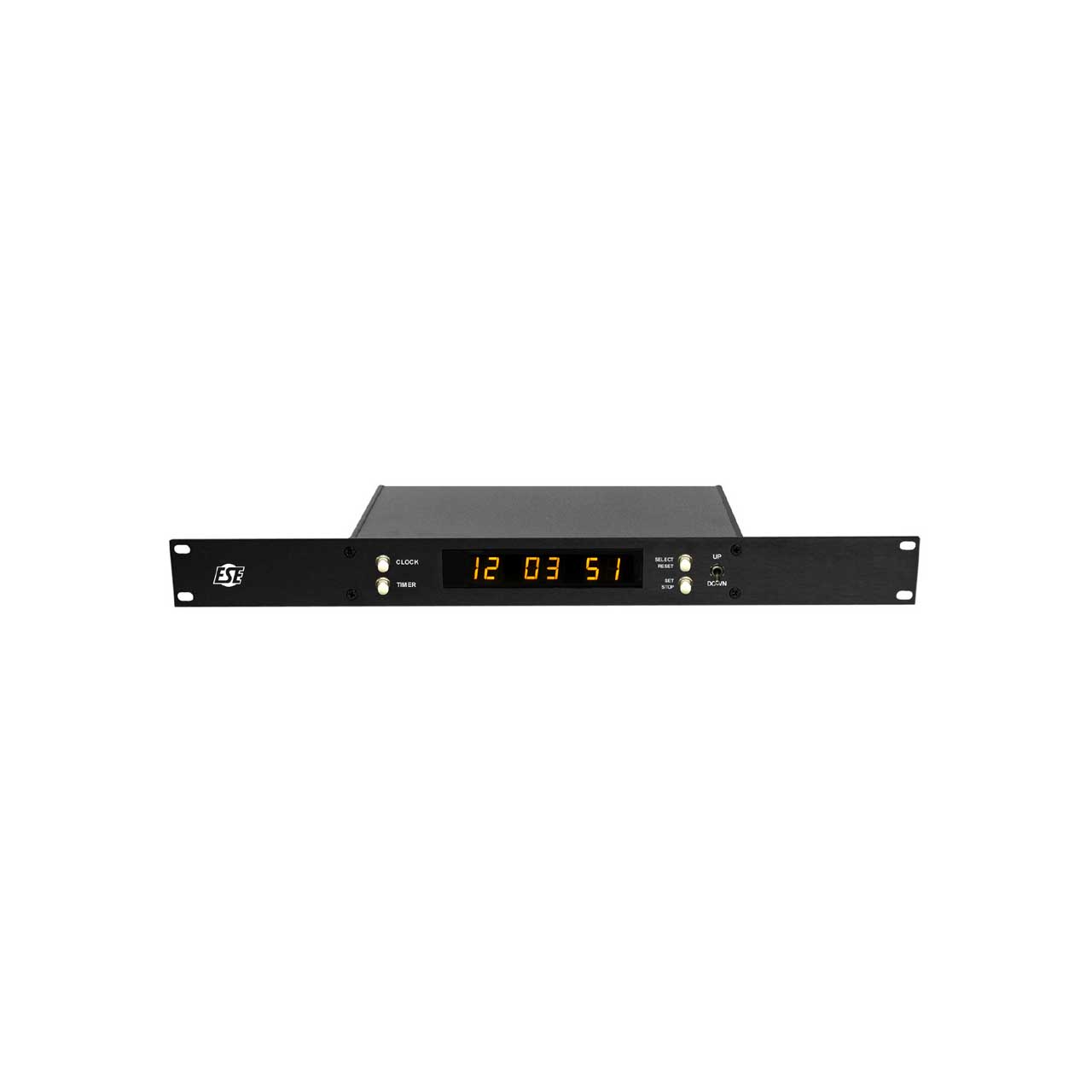

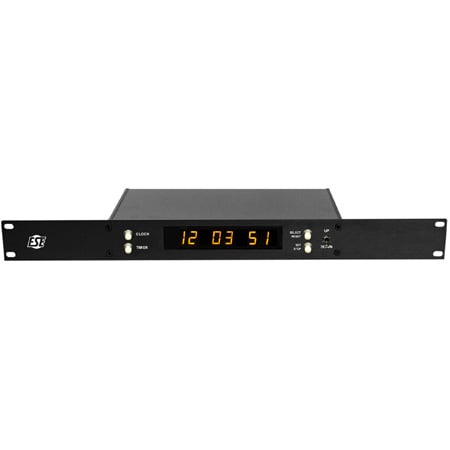

ESE ES 562UE .55 Inch Combo Clock/Up & Down Timer - 12 Hour - Black with Option P 19 Inch Rack Mount

ITEM #: ES-562UE-BK-P MFG #: ES 562UE P OPTION

Primary Image
ESE
Free Shipping with $49 Minimum Order

List Price:

$480.00

Our Price:

$465.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    ES 562UE P OPTION - Overview

    The ESE ES-562UE Option P (12 hour)is a six digit Clock and a 100 Hour Up/Down Timer combined in one unit. The display and dual-function pushbutton controls are switchable between the Clock and Timer functions. The Clock and Timer are separate from each other and maintain their own memory. Dual-function Set/Stop, Select/Reset controls, along with Clock/Timer mode controls and Timer Up/Down momentary toggle switch are provided on the top of the case.

    Option P - 19" Front Panel (Rack Mount): Designed for mounting into a standard equipment rack. Panel is 1/8" black anodized Aluminum and chassis is 5" - 10" deep

    • Features:

      • .56" Yellow LED Display
      • Independent Time-of-Day Clock and 24 Hour Up & Down Timer
      • Single Display Switchable between Clock and Timer
      • 12 Hour (ES-562UE) or 24 Hour (ES-564UE) Clock
      • Optional ESE Time Code Output to Drive Remote Displays (Option ESE)
      • Optional Remote Control Input (Option R)
      • Optional 1.75" Rackmount Enclosure (Option P)
      • 220-240 VAC (110-120 VAC is standard) & UL Options Available


    • Specifications:

      • Power: 5 Watts
      • Electrical: 117 VAC, 50/60Hz
      • Line Cord: 2-wire, 6'
      • Enclosure: Desk Top
      • Mechanical (HxWxD): 2.5" x 8" x 6"
      • Controls: Push-buttons
      • # of Digits: Six (Hr-Min-Sec)
      • Display Height: .56" Yellow
      • Viewing Distance: 20 feet
      • Format: 12 hour
      • Options Inluded: (P) 19 Inch Rack Mount, Black


    • Item Includes:

      • 1x ESE ES 562UE .55 Inch Combo Clock/Up & Down Timer - 12 Hour - Black with Option P 19 Inch Rack Mount
