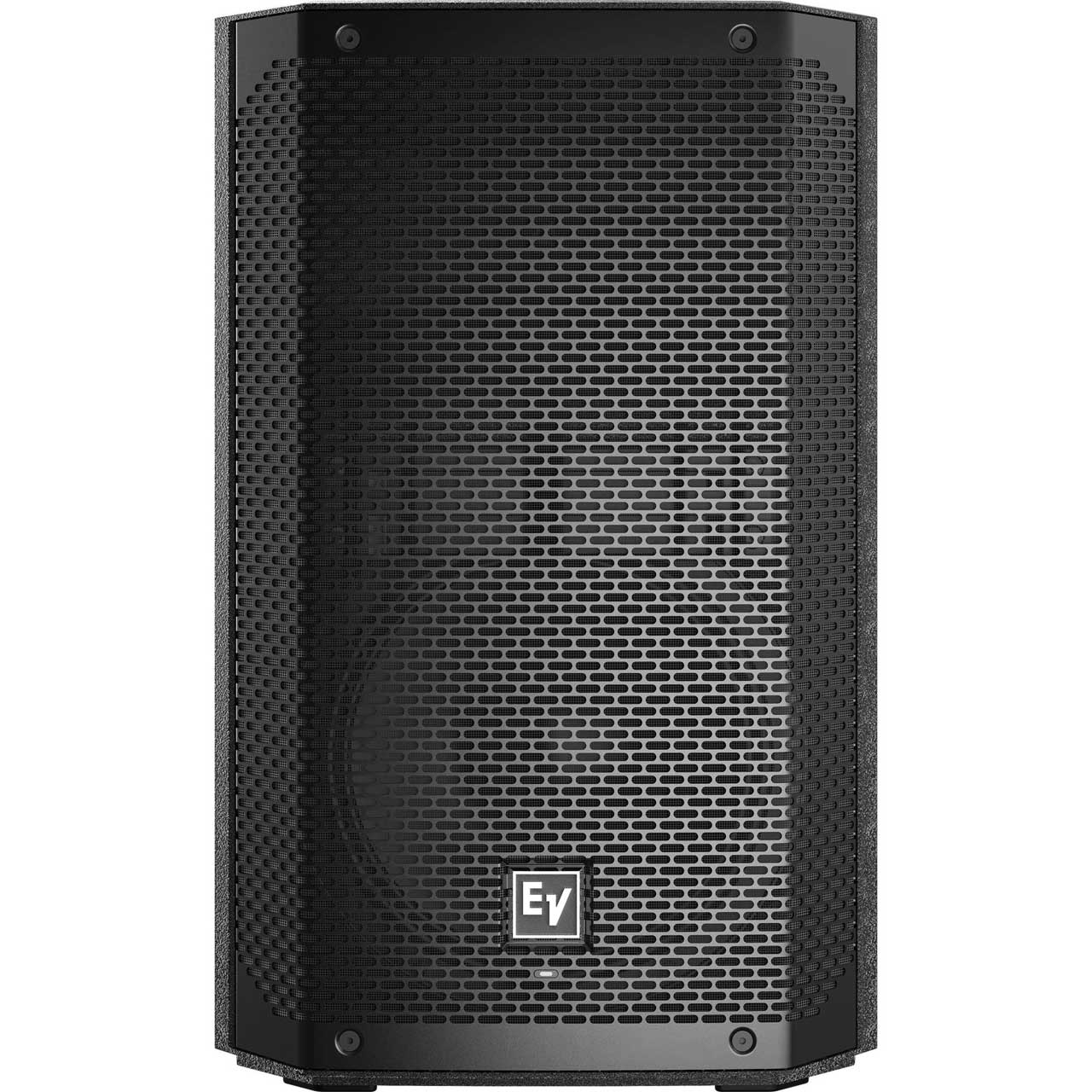

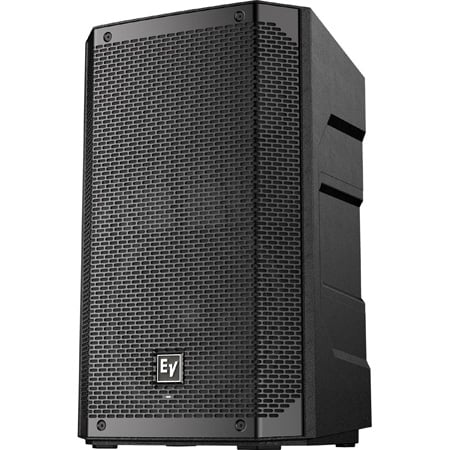

Electro-Voice ELX200-10 10 Inch 2-Way 1200W Passive Loudspeaker (Black Single)

ITEM #: EV-ELX200-10 MFG #: F.01U.326.055

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

List Price:


Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    F.01U.326.055 - Overview

    The Electro-Voice ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components-tested to levels far exceeding the industry norm-make the ELX200-10 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors' products in its category.

    Every aspect of the ELX200-10 is designed for ideal results as part of the whole - the acoustical, electrical and mechanical components all work together seamlessly. The full-range models feature a low profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well as structural integrity. The proprietary features that have made the other members of the EV portable speaker family a go-to for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept.

    EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system's highest output levels. Translation: loud and clear all the way up to the limit.

    Unified in one of the strongest full-range composite enclosures ever built by EV, the ELX200-10 is established as the new benchmark for toughness - both acoustically and physically; maximum efficiency with maximum toughness.

    • Features:

      • 1200W (Peak), 127dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices
      • 1.4" DH-1C (1" exit) titanium compression driver for extended transparent high-frequency response
      • High-output EVS-10M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction
      • EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading

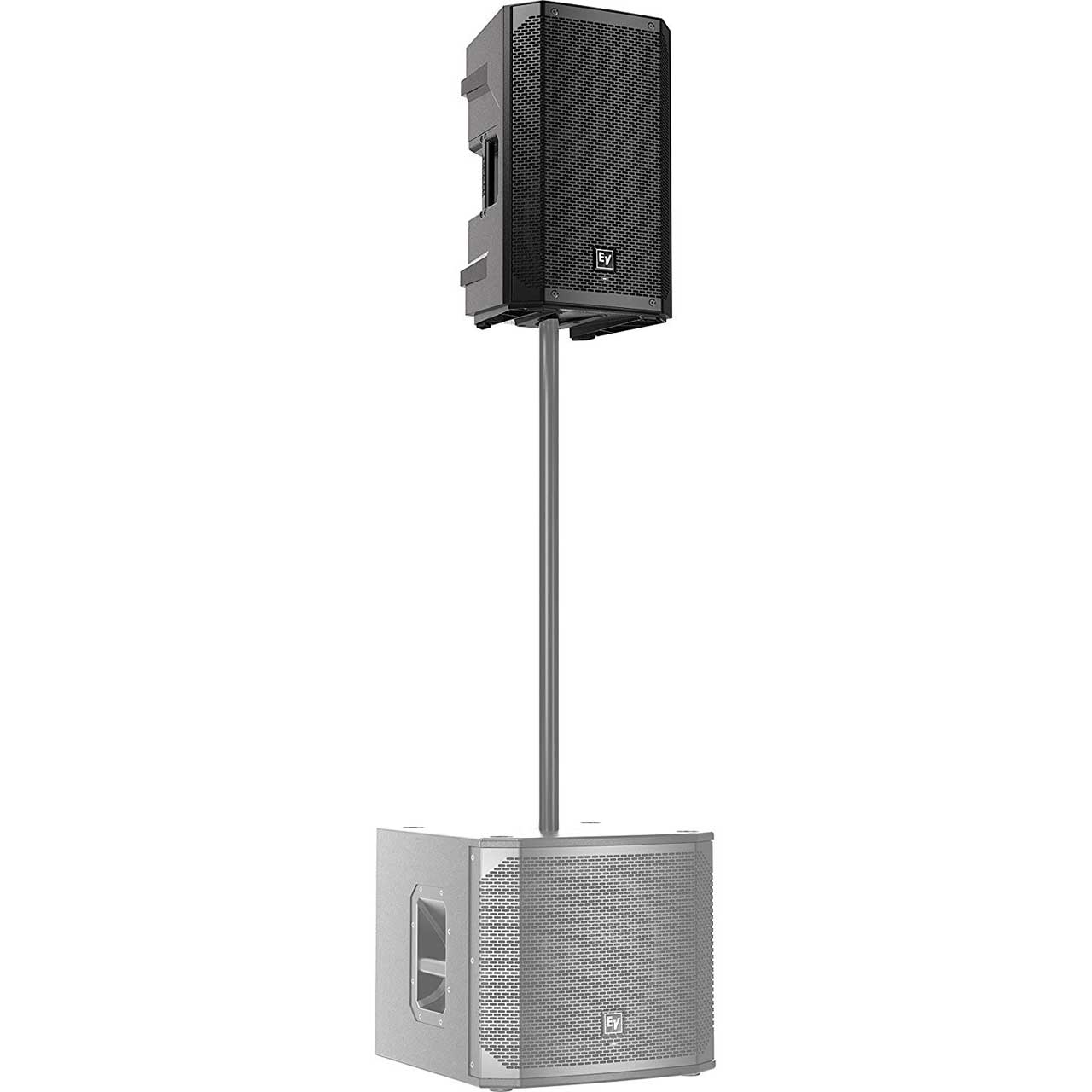

      • Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX two-handle design for easy lifting
    • Specifications:

      • Frequency Response (-3dB): 65Hz - 20kHz
      • Frequency Range (-10dB): 49Hz - 22kHz
      • Axial Sensitivity: 90dB
      • Maximum SPL: 127dB
      • Rec. High-Pass Frequency: 55Hz
      • Coverage (HxV): 90° x 60°
      • Power Handling: 300W Continuous, 1200W Peak
      • LF Transducer: EVS-10M 254mm (10")
      • HF Transducer: DH-1C 1" titanium compression driver
      • Crossover Frequency: 2kHz
      • Nominal Impedance:
      • Minimum Impedance: 7.2Ω
      • Connectors: Dual NL4 Speakon
      • Enclosure: Polypropylene
      • Grille: 18 AWG steel with powdercoat
      • Suspension: (3) M10 suspension points
      • Color: Black
      • Dimensions (HxWxD): 21.0" x 13.0" x 12.6" (531mm x 330mm x 319mm)
      • Net Weight: 29.6lbs (13.4kg)
      • Shipping Weight: 33.7lbs (15.3kg)
    • Warranty:

      • 5 year
    • GTIN:
