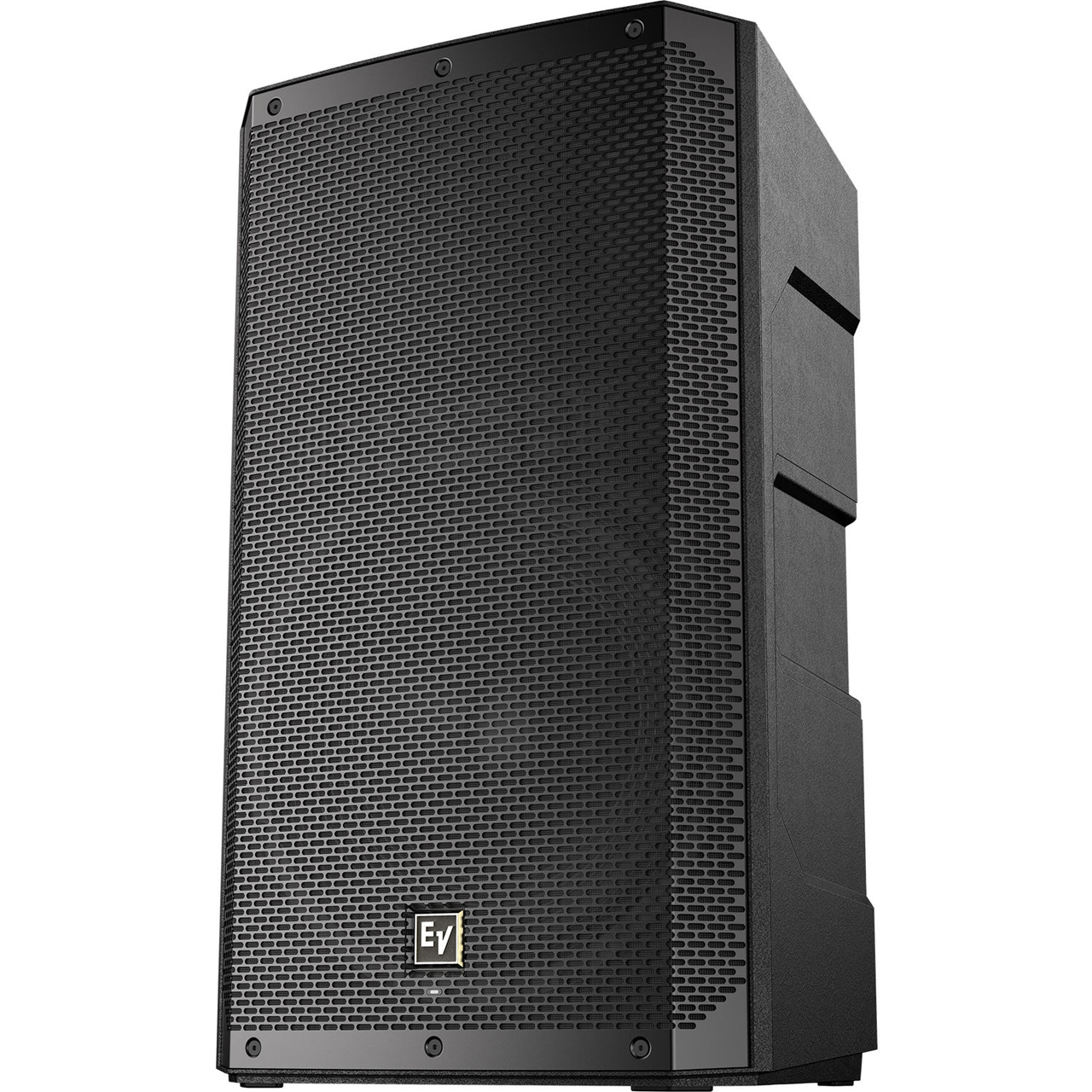

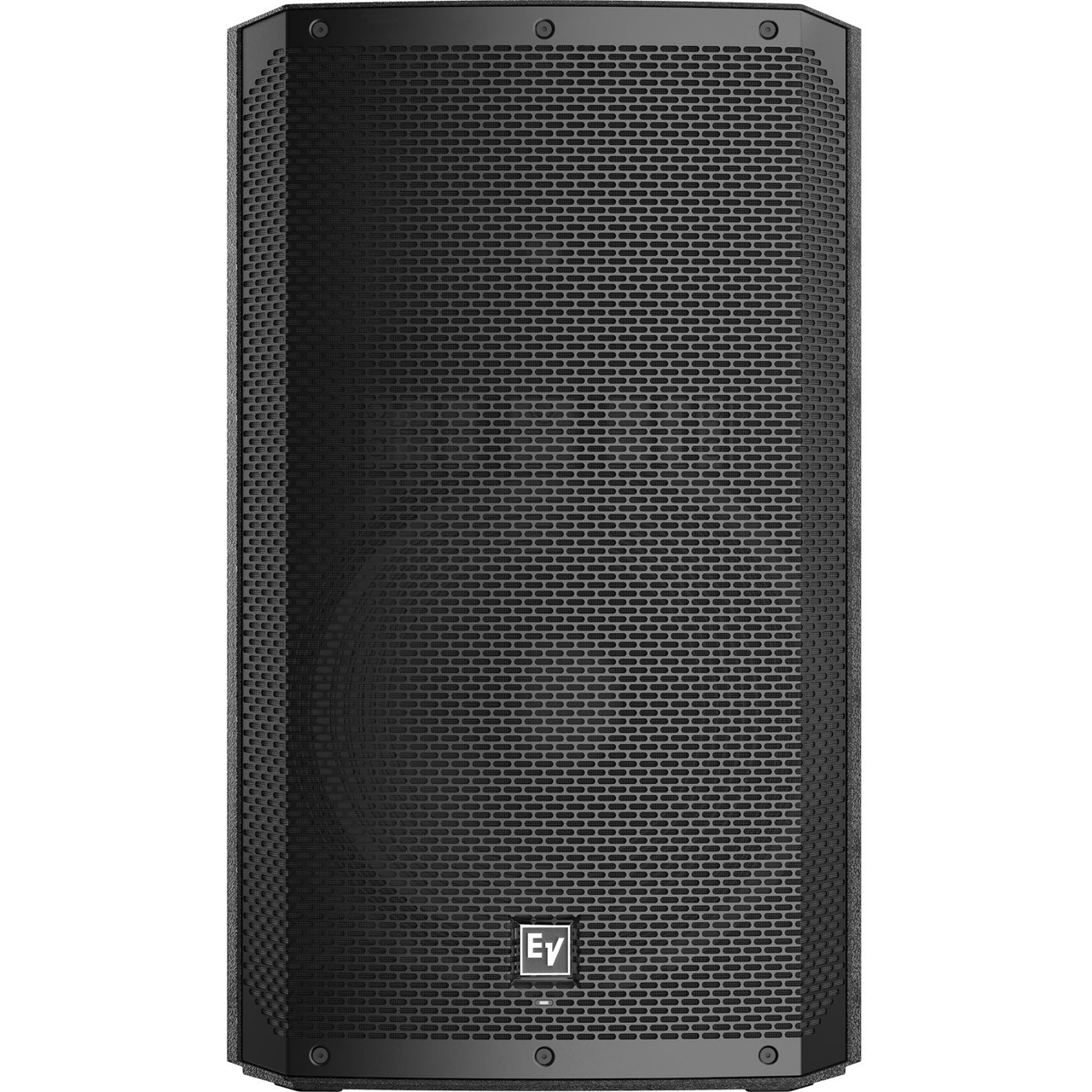

Electro-Voice ELX200-15 2-Way 15-Inch 1200 Watt Passive Loudspeaker - Black - Dual NL4 speakON Connectors

ITEM #: EV-ELX200-15 MFG #: ELX200-15

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,217.00

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ELX200-15 - Overview

The Electro-Voice ELX200-15 is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components-tested to levels far exceeding the industry norm-make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors' products in its category.

Every aspect of ELX200 is designed for ideal results as part of the whole - the acoustical, electrical and mechanical components all work together seamlessly. The full-range models feature a low profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well as structural integrity. The proprietary features that have made the other members of the EV portable speaker family a goto for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept.

EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system's highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness - both acoustically and physically; maximum efficiency with maximum toughness.

  • Features:

    • 1200 W (peak), 130 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.
    • 1.4 inch DH-1L (1 inch exit) titanium compression driver for extended transparent high-frequency response.
    • High-output EVS-15M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
    • EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
    • Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX three-handle design for easy lifting.

  • Specifications:

    • Suspension: 3x M10 Suspension Points
    • Minimum Impedance: 7.0Ω
    • HF Transducer: DH-1L 1-inch Titanium Compression Driver
    • Speaker Type: Full-Range
    • Woofer Size: 15"
    • Powered or Passive: Passive
    • Frequency Response (-3 dB): 77 Hz - 16 kHz
    • Frequency Range (-10 dB): 52 Hz - 19 kHz
    • Max. SPL/1m (calc): 130dB
    • Coverage (Nominal -6 dB) H: 90°
    • Coverage (Nominal -6 dB) V: 60°
    • LF Transducer: EVS-15M 15" (381mm)
    • Power Rating: 1200W
    • Crossover Frequency: 1.6 kHz
    • Connector Type: Dual NL4
    • Enclosure Material: Polypropylene composite
    • Grille: 18 AWG steel with powdercoat
    • Dimensions (HxWxD): 27.95" x 16.65" x 15.12" (710mm x 423mm x 384mm)
    • Weight Net: 41.23lbs (18.7kg)
    • Shipping Weight: 47.18lbs (21.4kg)
    • Recommended High-Pass Frequency: 42Hz
    • Family: ELX200
    • Axial Sensitivity (SPL, 1 W @ 1 m): 95dB
    • Power Handling (Continuous/Peak): 300W/1200W
    • Nominal Impedance:

  • Item Includes:

    • 1x Electro-Voice ELX200-15 2-Way Passive Loudspeaker

  • Warranty:

    • 3 Year Limited Warranty
