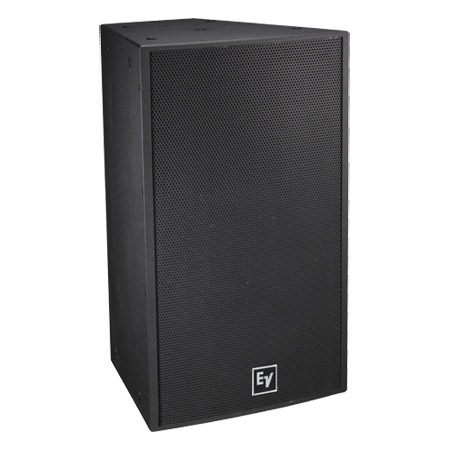

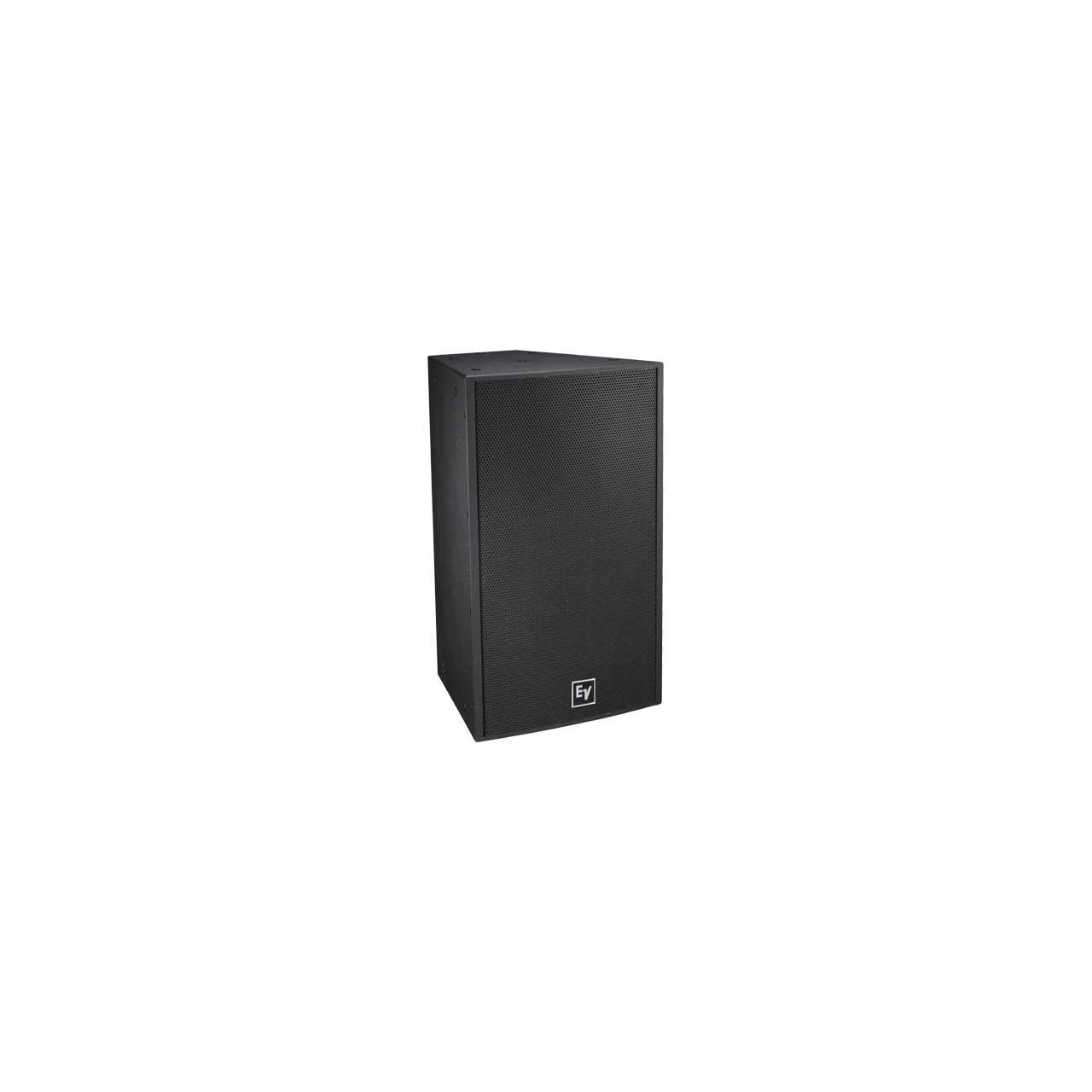

Electro-Voice EVF-1152S 15 Inch 2-Way Full Range Loudspeaker with 90 Deg x 60 Deg Coverage - Black

ITEM #: EV-EVF1152S96BK MFG #: EVF-1152S/96-BLK

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$2,702.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    EVF-1152S/96-BLK - Overview

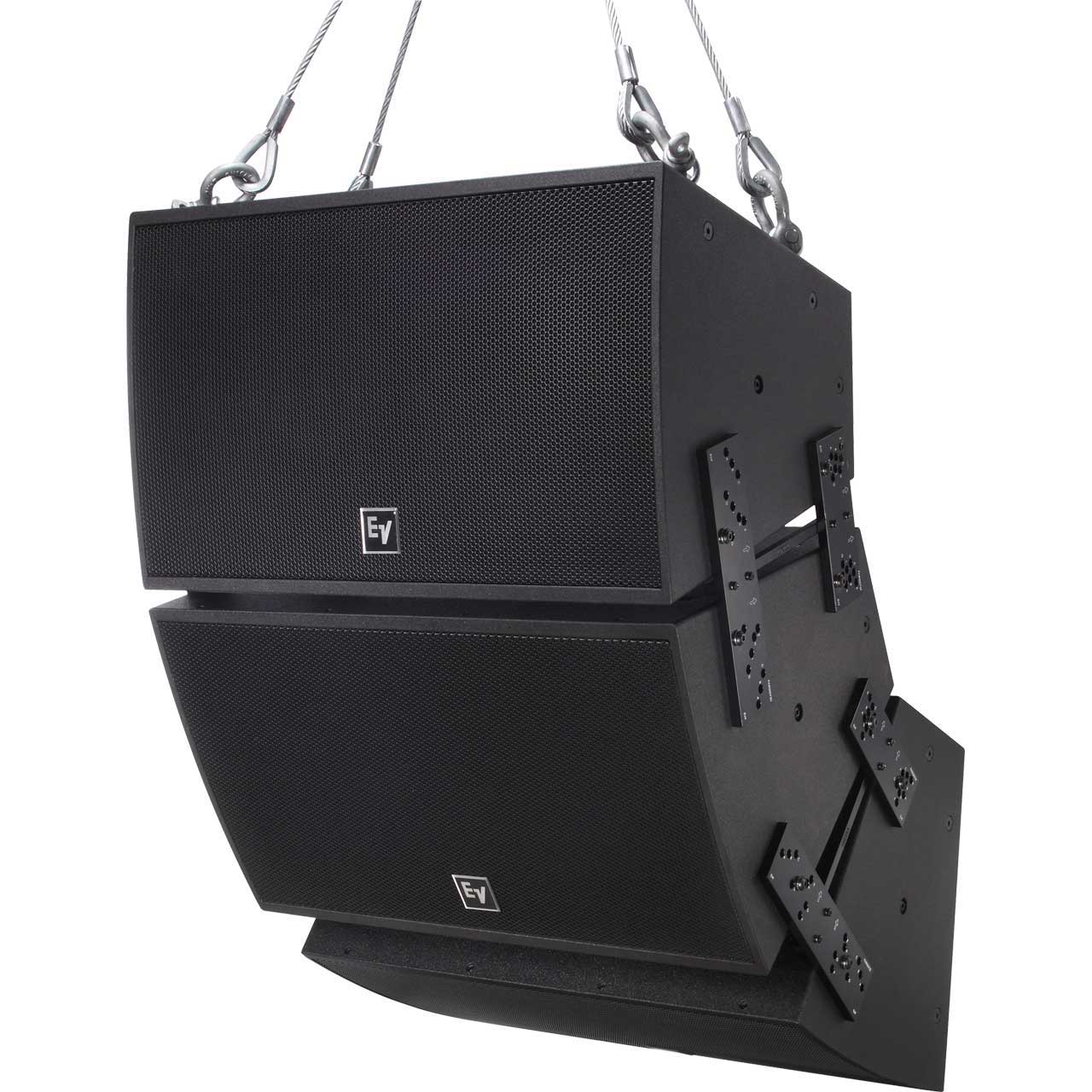

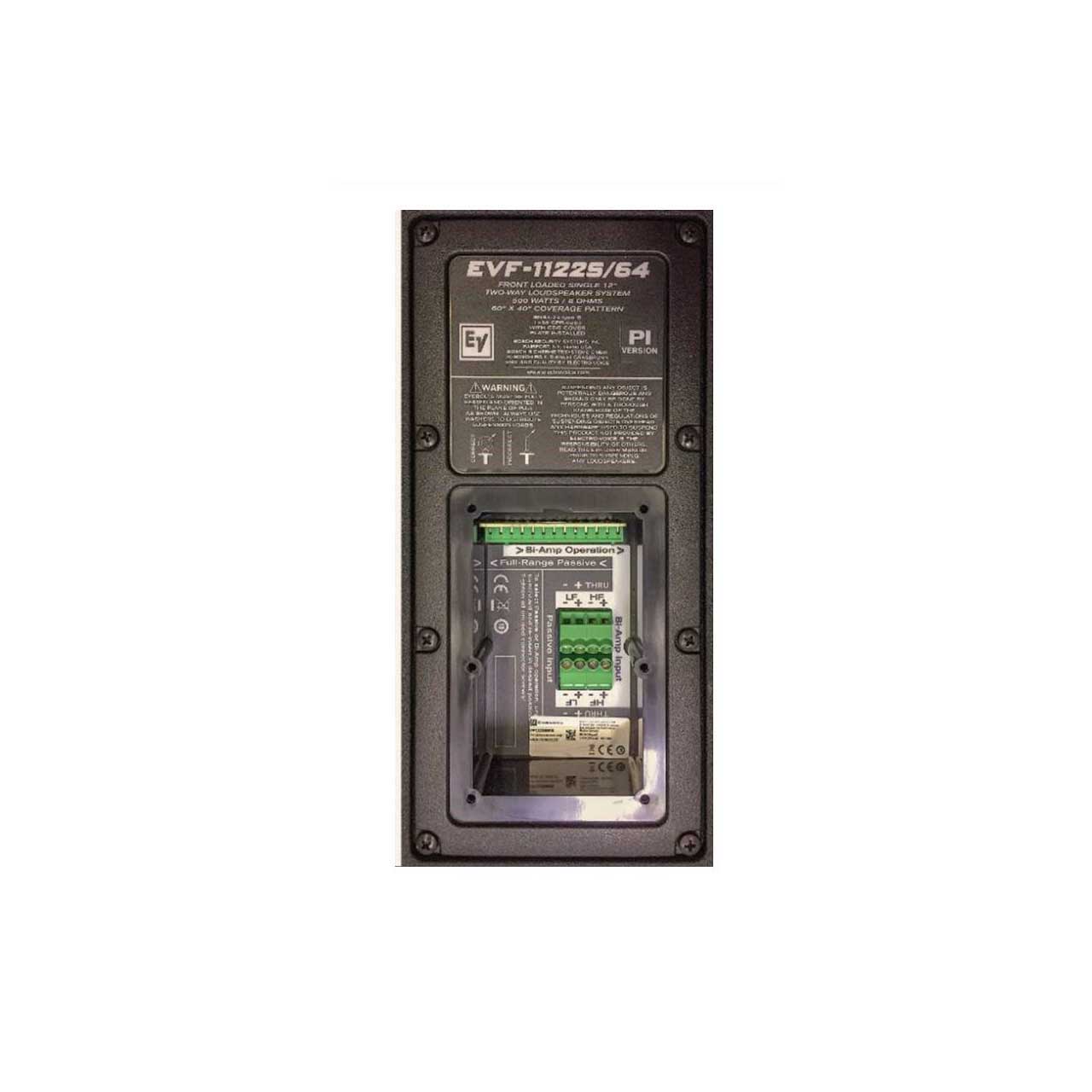

    Every EVF trapezoidal enclosure is constructed out of weather-resistant birch, and coated with EVCoat for maximum protection from the elements. EVF's unique acoustic and rigging designs allow for vertical and horizontal clusters to be built using any combination of loudspeakers from both the entire EVF & EVH Series. With an assortment of full-range, low-frequency, and subwoofer loudspeakers, the EVF Series provides the tools to maximize the flexibility of system design, no matter what the application and budget. EVF's innovative input panels provide the choice of Phoenix-type connectors (included in all standard models), or allow the easy addition of a dual NL4-type connector cover plate or gland nut cover plate (for weatherizing applications). An externally accessible jumper also selects passive or active operation, and an available 70.7/100V transformer kit simply mounts to the input panel for use in distributed systems. All features provide the flexibility to manage more venues with less equipment, while quickly and precisely addressing customer requirements.

    • Features:

      • 15" Low Frequency transducer using FEA optimized woofer.
      • 2" titanium compression driver with 1.4''-throat diameter.
      • Rotatable 12" x 12" CD horn.
      • Very linear frequency response from 41 Hz to 18 kHz, max. deviation from linearity: +/- 2 dB
      • Advanced 4th Order Crossover 24 db octave Slope with HF protection
      • Integrated crossover with an acoustic crossover frequency of 1,450 Hz
      • Dynamic protection circuit for independent protection of both ways against thermal overload
      • Switchable bi-amp or passive operation: compact, trapezoidal-shaped, 13-ply birch plywood, optional flying hardware
      • Input phoenix panel to handle up to 10AWG connector
      • Easy external operation mode selection switch
      • ANSI /IEC 60529 - IP44
      • Maximum sustained humidity <80%
      • Salt content of normal air <20%
      • Galvanneal grill with vinyl coated acoustic screen and stainless steel Fasteners
      • Black

    • Specifications:

      • Frequency response (-3dB): 70 Hz - 19Khz
      • Frequency response (-10dB): 44 Hz - 20Khz
      • Nominal coverage H: 90° - rotatable
      • Nominal coverage V: 60° - rotatable
      • Crossover Frequency: 1450 Hz
      • Axial Sensitivity (1W/1Mtr): 100 dB
      • Maximum Calc. SPL: 127 dB
      • Power Handling: 500 W Cont / 2000W Peak
      • Nominal impedance: 8 Ohms
      • Minimum impedance: 6 Ohms
      • Connectors: Phoenix 10 AWG terminals
      • Dimensions: 30.3 x 18.5 x 18.3 inches
      • Weight: max. 70.5 Lbs
      • Enclosure Material: 13-ply weather-resistant birch
      • HF Transducer: 2" ND2B diaphragm compression driver
      • LF Transducer: 15" SMX2151 driver

    • Item Includes:

      • 1x EVF-1152S Loudspeaker
      • 1x EVI-M10K eyebolt kit (4 eyebolts)

    • Warranty:

      • 5 Year Warranty
