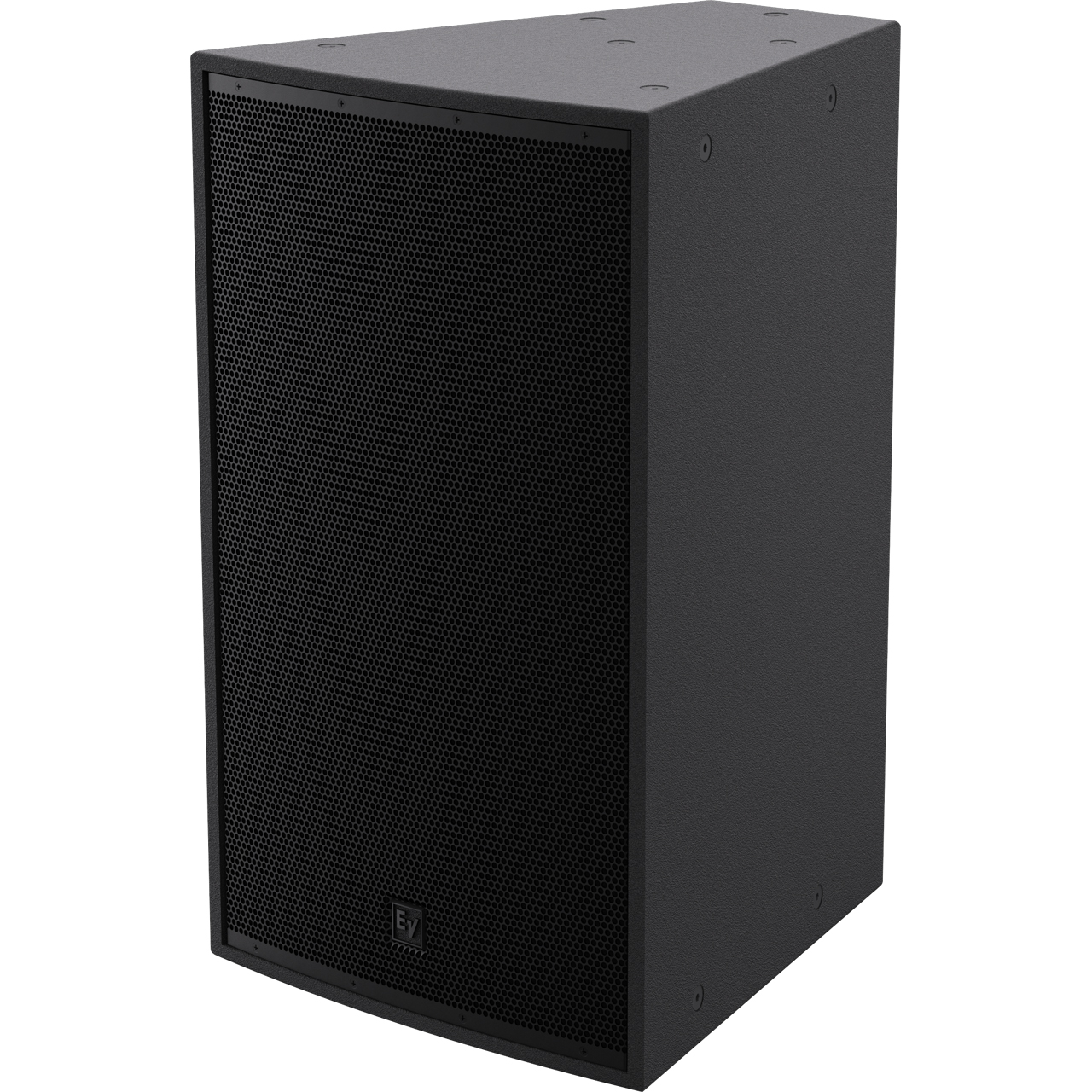

Electro-Voice EVF-15/64-B G2 Front Load 15-Inch Indoor Loudspeaker - 60x40 - Black

ITEM #: EV-F01U417927 MFG #: F.01U.417.927

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$2,903.00

Our Price:

$2,259.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


F.01U.417.927 - Overview

Introducing the long-anticipated second-generation of EVF loudspeaker from Electro-Voice. EV's most versatile pointsource lines for short to medium-throw applications launched in 2008 is now updated to perform even better in all point-source projects.

From mid-sized stadiums, performing arts spaces, and theaters, to high-SPL music venues or houses of worship, EVF G2 has been fully redesigned with modern components and processing to elevate the quality of an installation at a better value than ever before.

While EVF G2 inherit external dimensions from its 1st generation equivalent, every other aspect has been redesigned from scratch for better performance. Completely new in-house EV transducers, low-loss crossovers, EV's highest performance HF horns ever, flat-phase FIR presets with <10ms of system latency, new ergonomic wiring input panels, and so on.

Every detail of each model has been carefully considered to deliver not just a light refresh but a reimagining of how much performance is possible from a two-way loudspeaker at this price class.

The EVF-15 G2 is a high-performance full-range loudspeaker, available in four coverage patterns: 60° x 40°, 60° x 60°, 90° x 50°, and 90° x 90°.

Provided in black and white colors, EVF-15 G2 also offers eight fully-weatherized loudspeakers certified to IP55. This water and dust protection is valid with the moisture resistant cover installed and a minimum 5° down tilt. Fully weatherized models are also able to handle full exposure to the elements, including high salt marine environments.

The new single-step polyurea paint provides a consistent, higher performance exterior across multiple product families. The brand new white paint offers reliable UV performance and bright RAL9003 color.

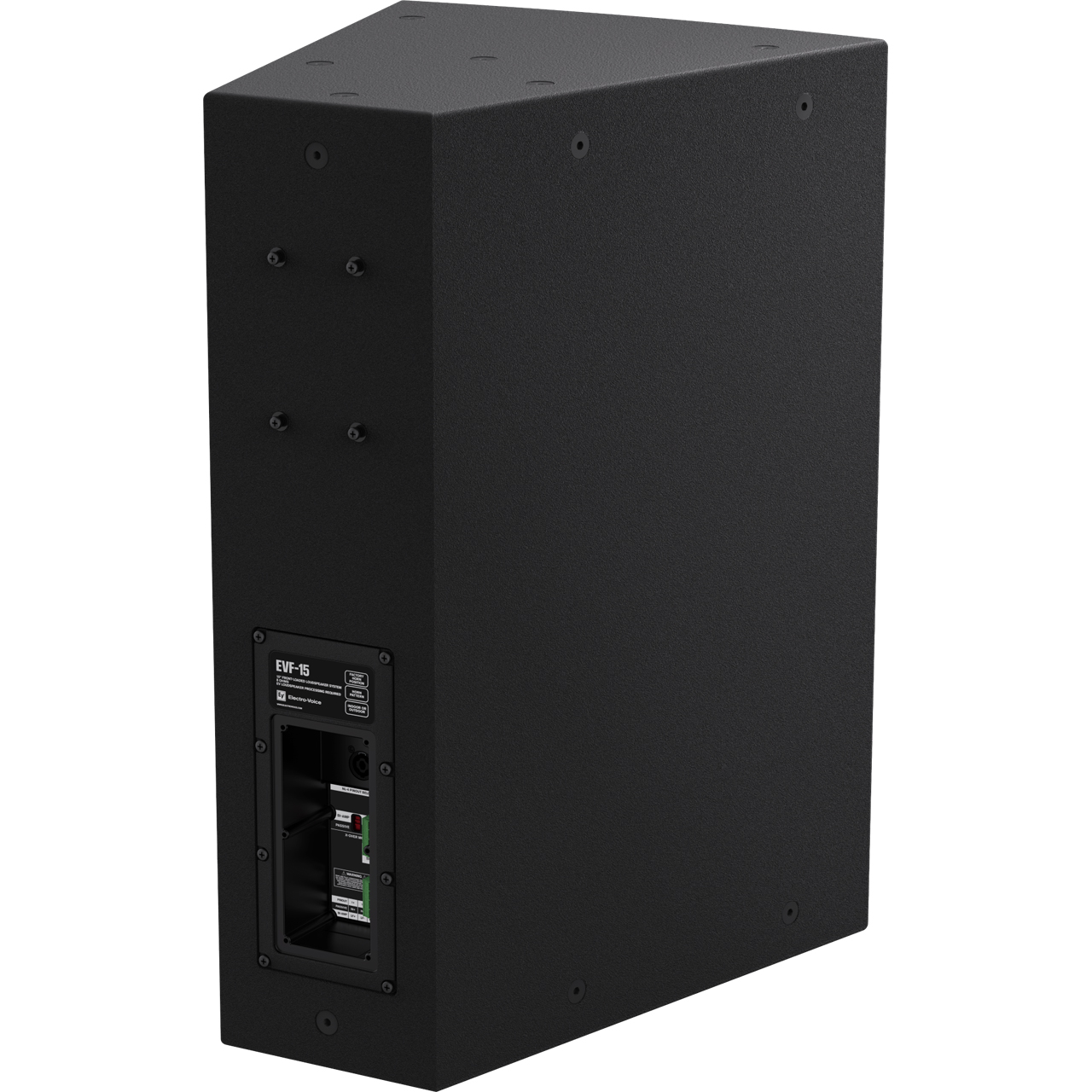

Suspension options include U-brackets, wall brackets, eyebolts and rigging kits. Four Omni-mount points on the rear of the enclosure also provide on-cabinet mounting option for compatible accessories.

  • Features:

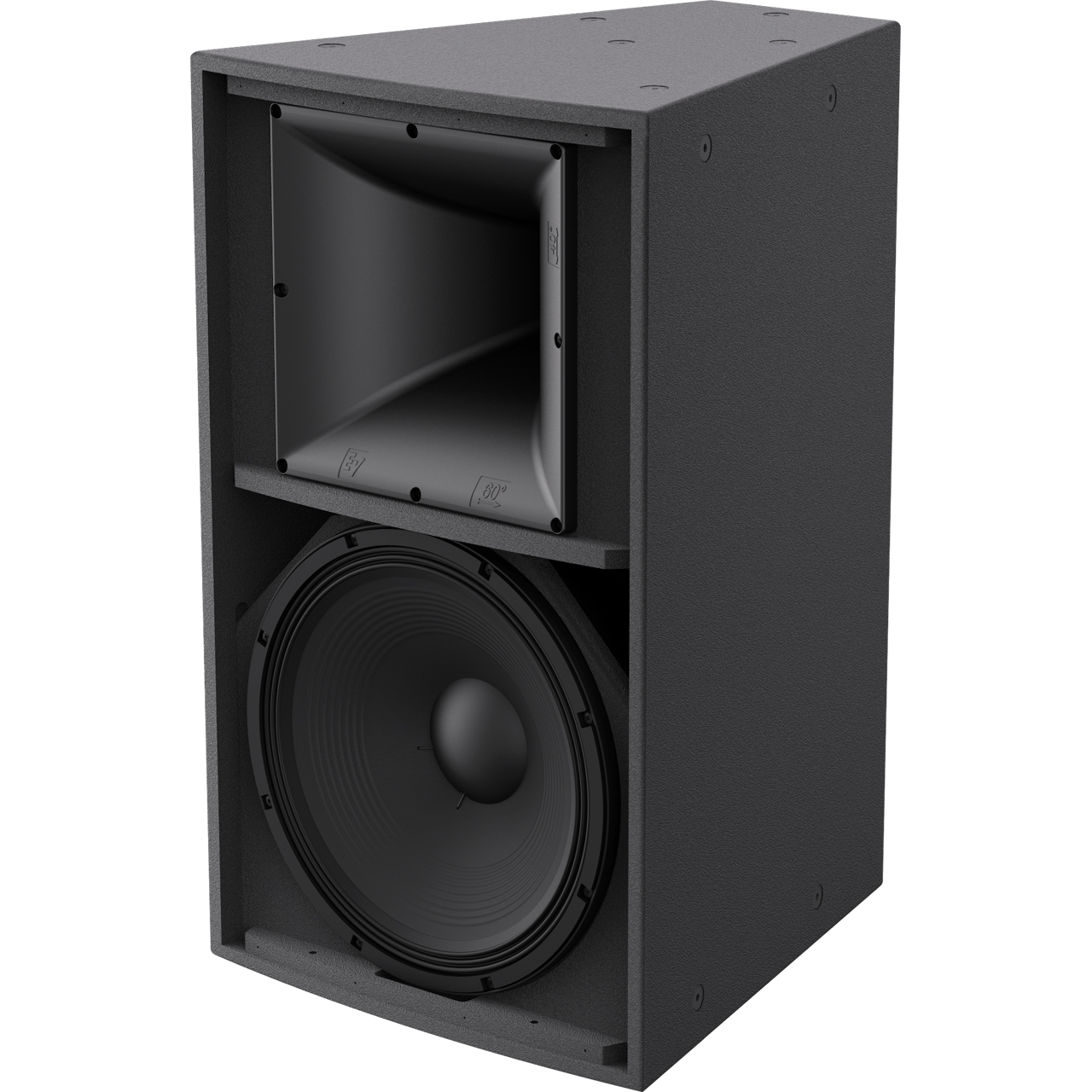

    • New EV transducers and low-loss crossover, nextgen low latency FIR presets with flat phase response, and stable 6.4Ω minimum impedance
    • Indoor and outdoor (FW) options available
    • Consistent pattern control ensures seamless arrayed performance

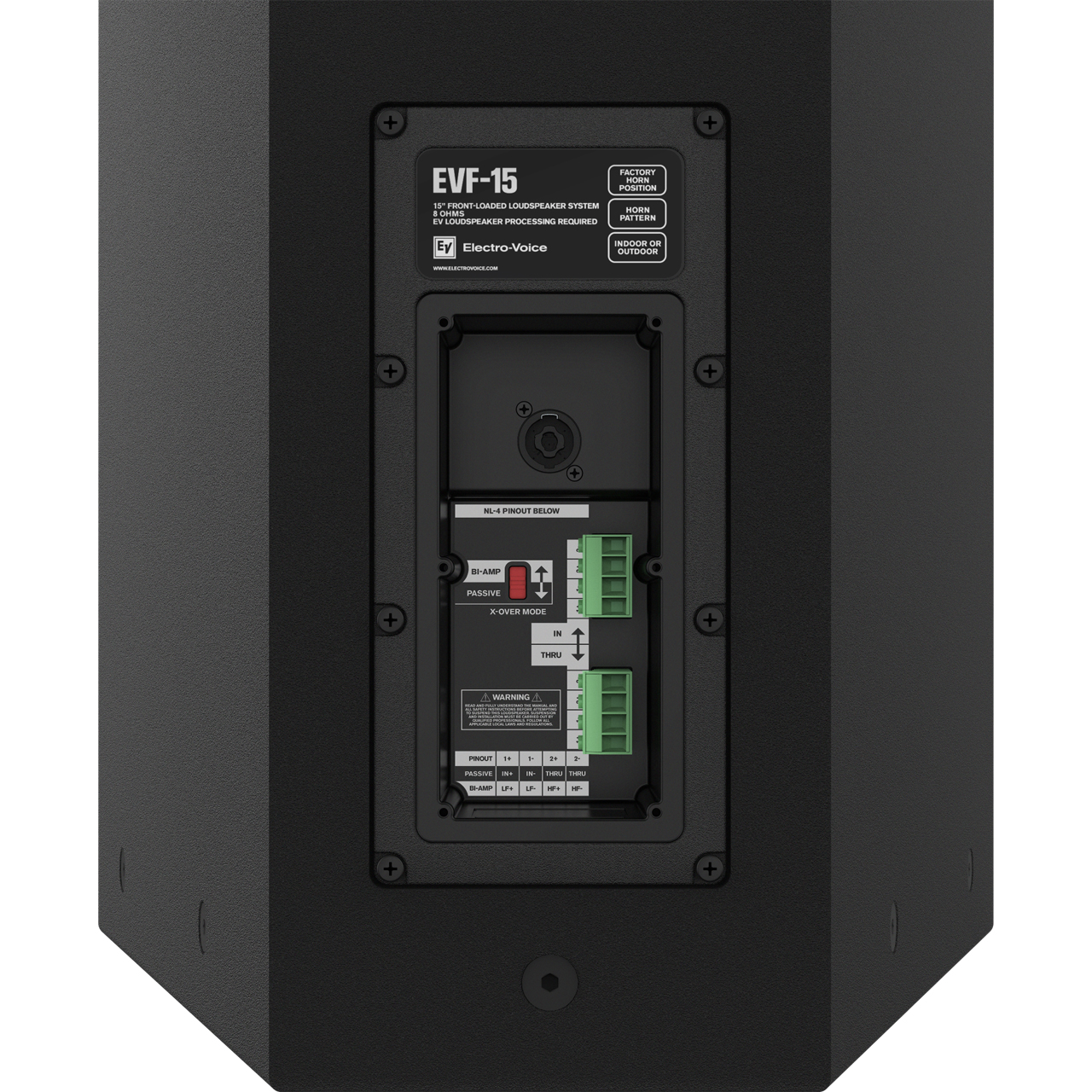

    • Removable Euroblock connections and built-in NL4-connection, and new mounting option for fullrange models
    • Updated grille design withstands high-SPLs while wet, and is fully front-serviceable

  • Specifications:

    • Frequency Response (-3dB)1: 50Hz - 18kHz
    • Frequency Range (-10dB)1: 40Hz - 20kHz
    • AES75 Linear SPL2: 117dB
    • AES75 Peak SPL2: 136dB
    • Coverage Angle (HxV): 60° x 40°
    • Power Handling (continuous): 400W
    • Power Handling (program): 800W
    • Peak Input Voltage3: 130V
    • Peak Input Voltage (HF)4: 62V
    • Peak Input Voltage (LF)5: 130V
    • Nominal Impedance:
    • Minimum Impedance: 6.4Ω
    • Preset High-Pass: 43Hz
    • Connector Type: 10 AWG Euroblock, NL4
    • Suspension Points: 22x M10 rigging points
    • IP Rating6: IP55
    • Operating Temperature: -4°F - 122°F (-20°C - 50°C)
    • Storage Temperature: -40°F - 140°F (-40°C - 60°C)
    • Color: Black (RAL9005)
    • Dimensions (HxWxD): 30.3" x 18.5" x 20.4" (769mm x 470mm x 518mm)
    • Weight: 84lbs (38kg)
    • Shipping Weight: 96lbs (43.5kg)
    • Included Hardware:
      - Dual gland nut cover plate
      - "Horn-rotated" label sticker

      1: Full-range preset, measured in full-space (4π)
      2: Measured per AES75-2023
      3: Passive
      4: Bi-amp HF
      5: Bi-amp LF
      6: Only FW models in outdoor, wet, or salty environments
