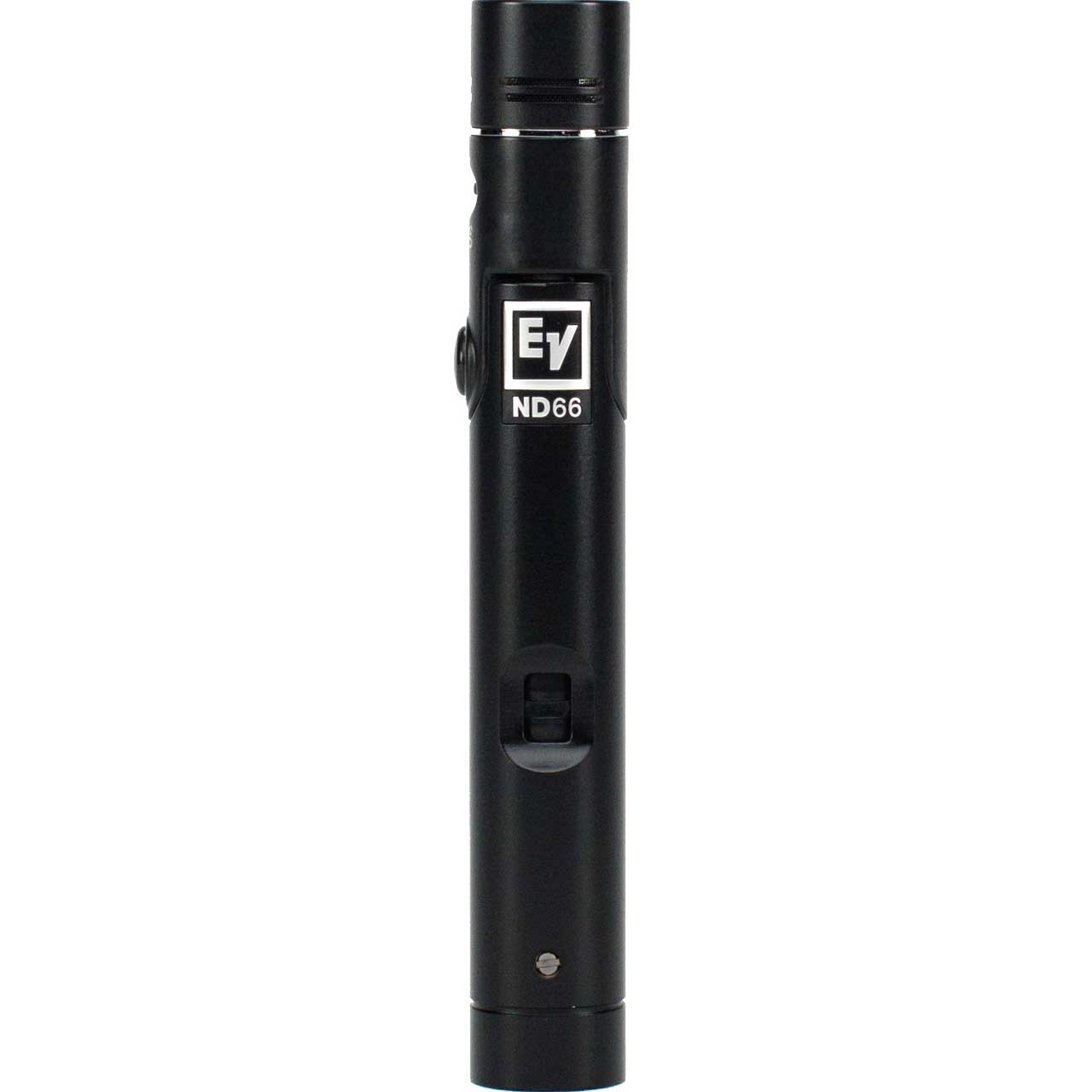

Electro-Voice ND66 Cardioid Condenser Instrument Microphone

ITEM #: EV-ND66 MFG #: ND66

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$225.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    ND66 - Overview

    The ND Series instrument models are an excellent choice for both live sound and studio work. Three dynamic models and one small-diaphragm condenser model are available, each optimized for their applications by polar pattern, capsule voicing and mechanical design.

    The new ND Series adds a small-diaphragm condenser model to the lineup - the ND66 cardioid condenser instrument microphone. The ND66's filters, pads and locking pivoting head - the only one of its kind on the market - make it an extremely versatile choice for drum overheads, hi-hats, close-miked drums, acoustic guitar, piano and any other typical small-diaphragm condenser applications.

    Each ND Series model is equipped with features that are unique to both its price point and its particular application - all designed to offer superior sound quality, acoustic control and robustness. At the heart of the new dynamic models is a new large-diaphragm capsule design which takes the technology of the original N/Dym capsule to new levels of sonic performance. Vocalists can select a specific ND Series model to provide optimal results according to venue size and/or stage volume. Sound engineers and musicians will benefit from an easy set-up due to innovative mechanical solutions that solve typical instrument mic placement challenges. The series features dent-resistant Memraflex grilles, humbucking coils to guard against EMF noise and shock-mounted capsules to minimize handling noise.

    • Features:

      • Premium condenser element: Self-biased condenser element is vividly responsive to sound sources that need a mic which translates transient details very well

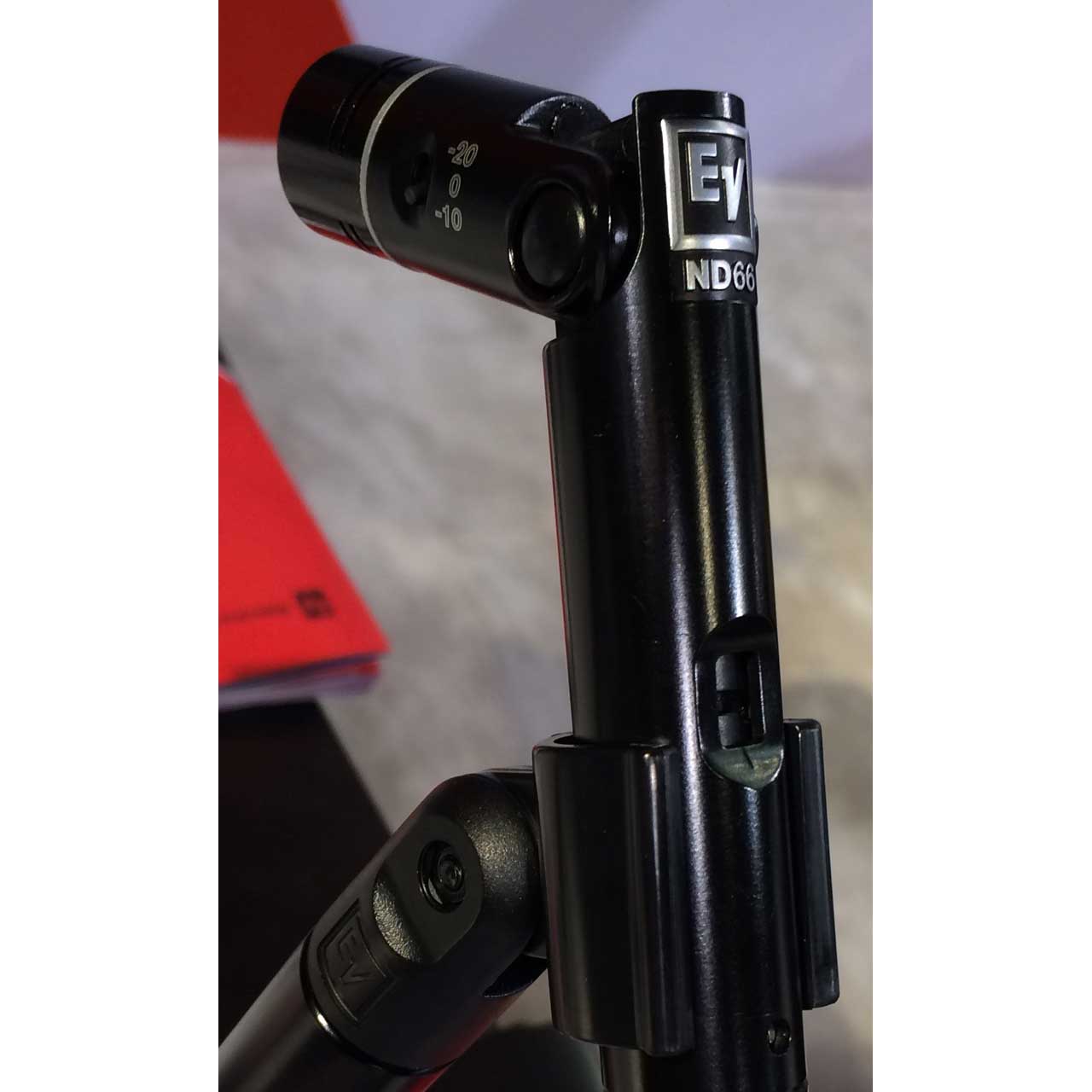

      • Easy mic placement with locking pivoting head: Achieve ideal mic placement in virtually any situation by pushing a button, pivoting the head into position and releasing the button to lock
      • Clean, crisp and detailed condenser sound: Captures all details of percussive and stringed instruments
      • Selectable -10 and -20 dB pads: Provides the necessary gain reduction to prevent the mic element from overloading
      • Selectable 75 Hz and 150 Hz high-pass filters: Selectable HPF frequencies are strategically chosen to eliminate bothersome low frequencies from the signal path

    • Specifications:

      • Audio Frequency Response: 50 - 20,000
      • Case Material: Die cast zinc
      • Connector Type: 3-pin XLR
      • Diameter (Max): 0.83"
      • Element: Dynamic
      • Finish: Black polyurethane paint
      • Impedance, Low-Z balanced: 200 Ω
      • Maximum SPL: 146 dB
      • Mic Type: Instrument
      • Open Circuit Voltage: 10 mV/Pascal
      • Polar Pattern: Cardioid
      • Power Requirement: 48 VDC Phantom
      • Shipping Weight: 16.4 oz (465 g)
      • Wired/Wireless: Wired
      • Height: 5.63"
      • Weight Net: 0.4 lbs

    • Item Includes:

      • EV-ND66 microphone
      • Stand clamp
      • Carry case

    • GTIN:

      0800549805407
