Electro-Voice RE3-BPGC-6M UHF Wireless Audio Bodypack Instrument Set with GC3 Cable - 653-663MHz

ITEM #: EV-RE3-BPGC-6M MFG #: F.01U.354.258

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$613.00

Our Price:

$549.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


F.01U.354.258 - Overview

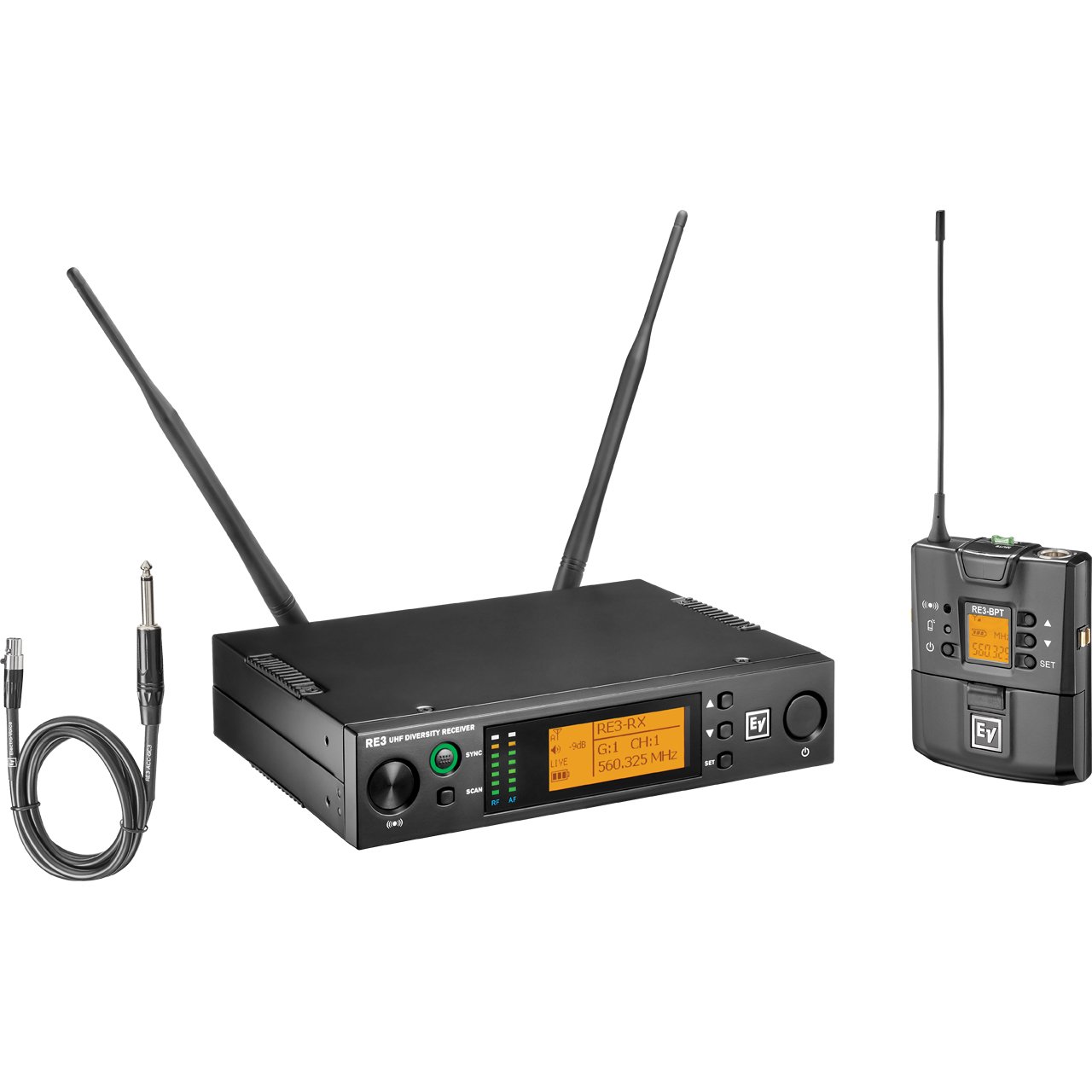

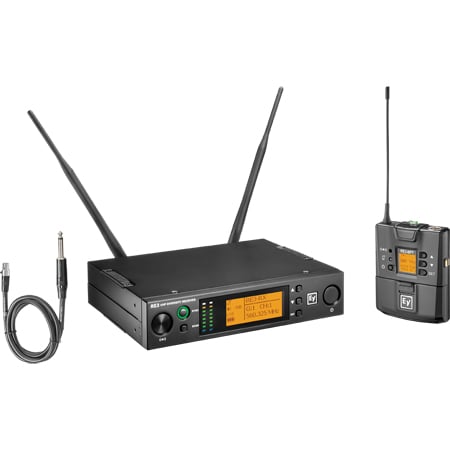

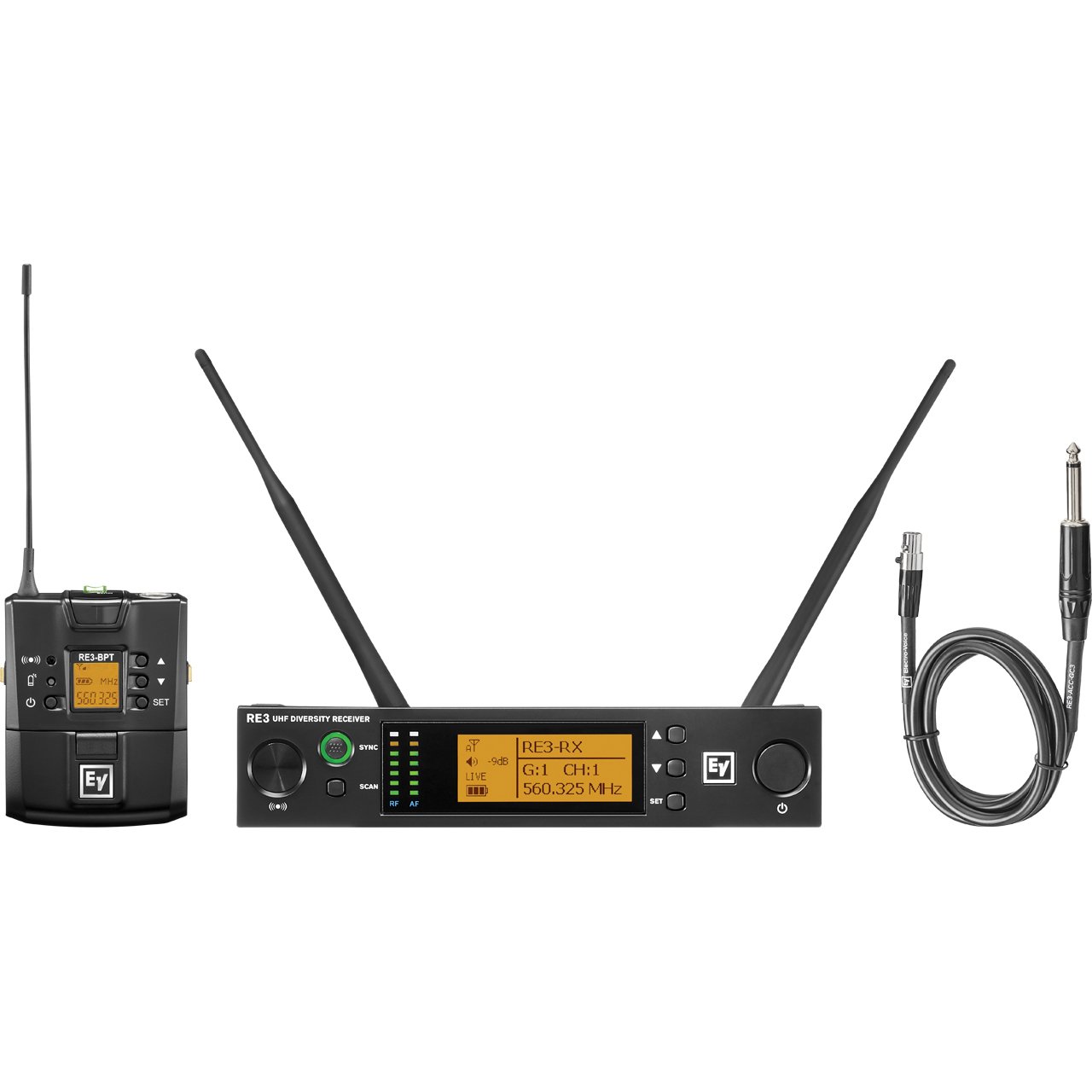

Electro-Voice's RE3-BPGC-6M is a bodypack UHF wireless set of audio transmitter and reciever, featuring the GC3 instrument cable for wireless music performance. The GC3 is a special purpose cable for connecting instruments or line level signal sources with 1/4" output jacks to the RE3-BPT bodypack transmitter. Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust bodypack transmitter and diversity receiver delivers rock-solid system performance. Primary products, such as receivers and transmitters, are preconfigured into sets covering a wide variety of common applications, making them ideal performance and presentation solutions for both portable productions, as well as fixed installation applications. All sets contain one half-rack space receiver with antennas, power supply and rack mount, one transmitter with matteries, and its input device (as applicable), as well as user documentations sheets.

RE3 is a range of RF wireless microphone products operating in the UHF portion of the radio spectrum. The use of this portion of the radio spectrum falls under local government regulations, which may require the user to obtain and maintain a license to operate the wireless product. It is the user's responsibility to know and adhere to local license requirements.

  • Features:

    • Rack mountable 1/2 space receiver with mounting hardware
    • Robust metal handheld and Bodypack transmitter bodies
    • Easy-to-read LCD displays
    • Frequency scanning for selecting open frequencies
    • Sync function links transmitter to receiver
    • Keylock function protects settings from unwanted changes
    • Diversity reception technology for trouble-free operation
    • Broad selection of transmitter microphone types maximize application diversity
    • Wide selection of tuning bandwidths to help compensate for changing global RF
    • regulations
    • Frequencies independently adjustable in 25k Hz steps
    • Eight groups of pre-coordinated frequencies with up to 22 coordinated channels per
    • group
    • Simple multi-channel system setup
    • Transmitters powered by common AA cells
    • Selectable hi and low transmitter power in most global regions
    • Extensive selection of optional system accessories available

  • Specifications:

      RE3-BPT Bodypack Transmitter
    • Frequency Oscillation Mode: Phase-locked loop (PLL)
    • Bandwidth Limits: 653 - 663MHz
    • Tuning Bandwidth: 10MHz
    • Selectable Frequencies: 400
    • Transmit Output Power: 10mW and 20mW
    • Coverage: Global
    • Sync Frequency: Ultrasonic
    • RF Power Output: Frequency band specific
      - 6M 653 - 663MHz: Low 10mW/High 20mW
    • Display: LCD and LED
    • Function Controls: Power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock
    • RF Stability: <±10kHz at Fc
    • Modulation Frequency Shift: Wideband FM, ±48kHz deviation
    • Harmonic Radiation: <-50dBc
    • Input Jack: 4-pin mini jack
    • Battery: 2x AA alkaline battery or NiMH rechargeable battery
    • Charging Contacts: Yes
    • Dimensions (WxHxD): 2.54" x 3.2" 0.98" (64.5mm x 81.5mm x 25mm)

      RE3-RX Diversity Receiver
    • Frequency Oscillation Mode: Phase-locked loop (PLL)
    • Carrier Frequency Range: 470 - 865MHz (tuning bandwidth is band dependent)
    • Tuning Bandwidths: 10MHz
    • Carrier Frequency Ranges: 653 - 663MHz
    • Sync Frequency: Ultrasonic 40kHz
    • Diversity: Antenna
    • Bandwidth: 36MHz
    • Signal/Noise Ratio: >100 dB(A)
    • Total Harmonic Distortion: <0.6% at 1kHz
    • Receiving Sensitivity: -81dBm for -12dB SINAD
    • Frequency Response:
      - 63Hz - 16kHz ±2dB (BPT)
      - 51Hz - 16kHz ±2dB (HHT)
    • Antenna Type: Detachable 1/2 wave with BNC connector
    • Antenna Booster Power: DC 12V - 15V/100mA
    • Function Display: LCD
    • Contents of Display: Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator
    • Control Functions: Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset
    • Sync Data Options: Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)
    • Audio Frequency Output Level: 1/4" Phone Jack: -10dBV
    • XLR Jack:
      - Line: -4dBV
      - Mic: -24dBV
    • Audio Frequency Output Impedance:
      - 240Ω (unbalanced)
      - 1400Ω (balanced)
    • Squelch and Noise Muting: Noise muting and tone code locking
    • Output Ports:
      - 1x balanced XLRM jack
      - 1x unbalanced 1/4" TS jack
    • Power Supply: DC12V - 15V/500mA
    • Finish: Black polyurethane paint
    • Dimensions:
      - Width: 8.27" (210mm)
      - Height: (with feet attached) 1.85" (47mm)
      - Height: (without feet attached) 1.73" (44mm)
      - Depth: (including antenna jack) 6.89" (175mm)
      - Depth: (not including antenna jack) 6.1" (155mm)

  • Item Includes:

    • 1x RE3-BPT Bodypack transmitter
    • 1x RE3-BPT Diversity receiver
    • 2x Receiver antennas
    • 1x Receiver power supply wit four power convention specific AC plug clips
    • 2x Rack-mount brackets
    • 2x Rack-mount bracket hole filler plugs
    • 1x Pack of four screws to mount rack brackets
    • 1x RE3-ACC-GC3 1/4" instrument cable
    • 1x RE3-ACC-GC3 1/4" data sheet
    • 1x Safety booklet
    • 1x Installation manual

  • GTIN:

    0800549898850
