Electro-Voice RE3-BPNID-5H Wireless Bodypack Set - no input device - 560-596MHz

ITEM #: EV-RE3-BPNID-5H MFG #: RE3-BPNID-5H

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$568.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    RE3-BPNID-5H - Overview

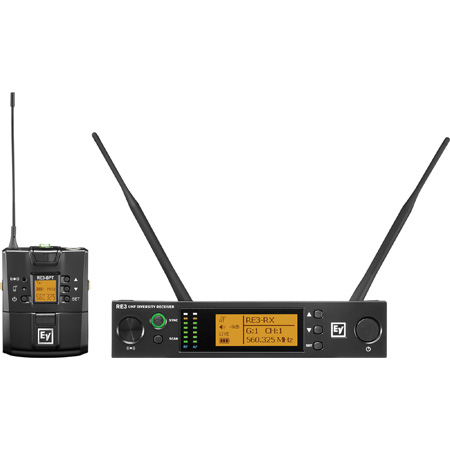

    Achieve solid performance and dependability with the Electro-Voice RE3-BPNID (Band 5H: 560 to 596 MHz) UHF bodypack wireless system. Comprised of a rack-mountable diversity receiver and a compact bodypack transmitter, this wireless set is ready for use with your preferred TA4F-equipped lavalier/headworn microphone or instrument cable, making it well suited and adaptable for a variety of applications such as theater, broadcast, film/TV production, concert sound, and more. Thanks to simple operation and the ability to control the transmitter from the receiver, the RE3-BPNID minimizes setup time and maximizes workflow efficiency.

    Two included AA batteries provide up to eight hours of operating time for the transmitter, which offers adjustable sensitivity, attenuation, and RF output power to optimize your gain structure and avoid clipping. Backlit LCD screens display crucial information such as transmitter battery status, frequency, KeyLock mode, and mute status. Easily sync, scan, and control this wireless system via its dedicated buttons and straightforward menu navigation.

    • Features:

      • For Theater, Broadcast & Film Production
      • Rack-Mountable Diversity Receiver
      • Compact Bodypack Transmitter
      • TA4M Input Accepts Mic/Instrument Level

    • Specifications:

      • System
      • Wireless Transmission: Analog UHF
      • Number of RF Channels: 1440
      • Diversity: Antenna Diversity
      • RF Frequency Band: 560 to 596 MHz
      • RF Bandwidth: Up to 36 MHz
      • RF Channel Scanning: Auto-Scan
      • Modulation: Wideband FM

        Receiver
      • Form Factor: Tabletop
      • Mounting Options: Rackmount (with Included Hardware)
      • Rackmount Size: 1 RU (1/2 Rack)
      • Antenna: 2 x 1/2 Wave External, Detachable (Rear-Mount)
      • Antenna Bias Voltage: 12 to 15 VDC
      • Number of Audio Channels: 1
      • Audio I/O: 1 x XLR 3-Pin Male Balanced Line Output, 1 x 1/4" TS Male Unbalanced Line Output
      • Frequency Response: 51 Hz to 16 kHz (Dependent on Mic)
      • Approximate RF Sensitivity: 81 dBm
      • RF Output Power: Up to 50 mW (Max)
      • Power Requirements: AC/DC Power Adapter
      • AC/DC Power Adapter: 12 to 15 VDC (Included)
      • Display & Indicators: Backlit LCD (Battery Status, Channel, Diversity, Frequency, Group, Mute, Power)
      • Housing: Metal
      • Dimensions: 8.2 x 1.9 x 6.1" / 20.8 x 4.8 x 15.5 cm (without Mounting Hardware)

        Packaging Info
      • Package Weight: 3.395 lb
      • Box Dimensions (LxWxH): 10.6 x 10.1 x 4.1 Inches

    • GTIN:

      0800549895101
