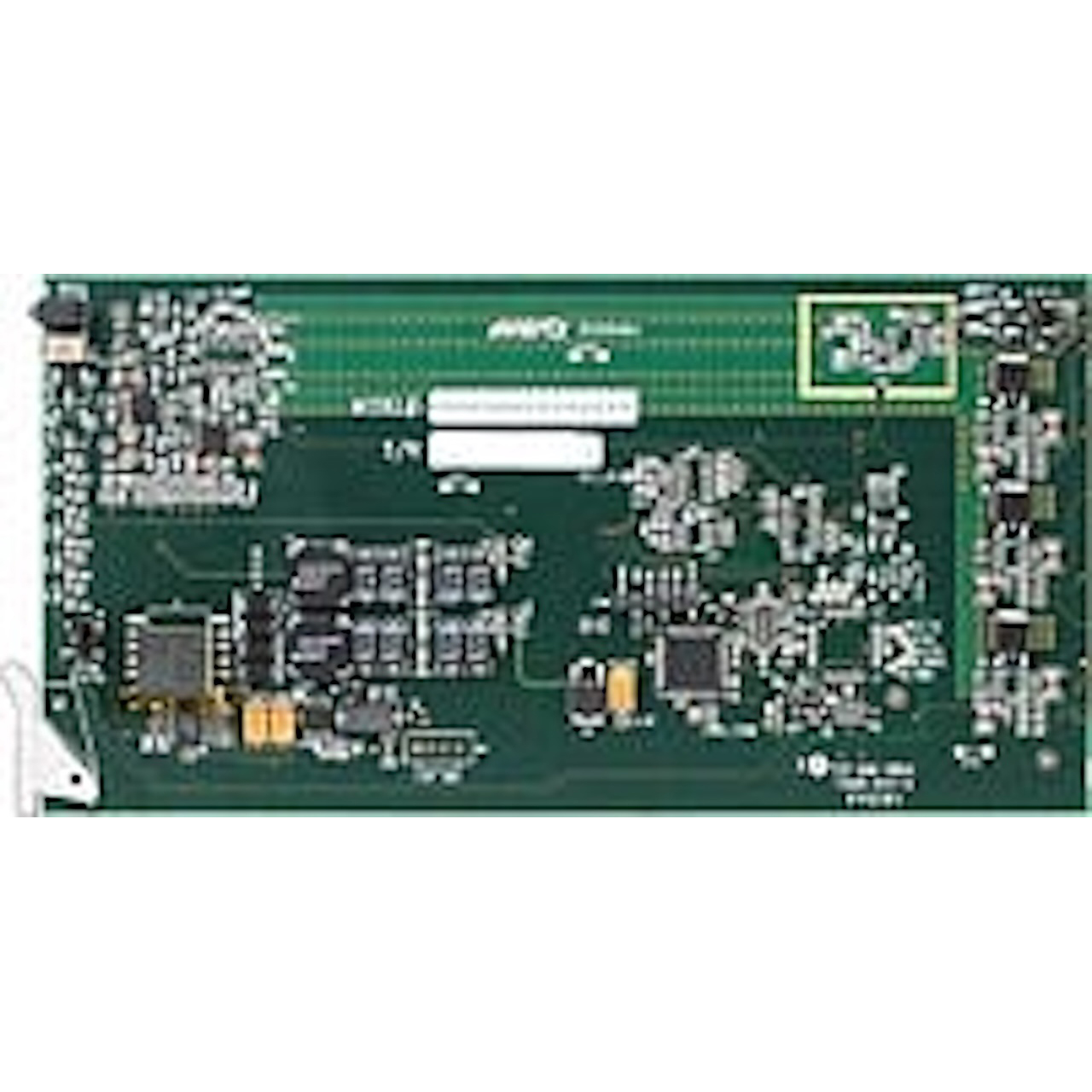

Evertz 500ADA-W SDIF-2 Word Clock Distribution Amplifier with Module Status/Local Fault LEDs

500ADA-W - Overview

• Features:

  • 75Ω or high impedance input (jumper selectable)
  • DA has voltage gain adjustment range from -6dB to +6dB
  • Outputs can drive into 75Ω loads


• Specifications:

  Word Clock Input
  • Standard: SDIF-2 Word Clock
  • Number of Inputs: 1x
  • Connector: BNC per IEC 61169-8 Annex A
  • Level: 0V - 5V (terminated or unterminated)
  • Impedance: Selectable 75Ω or high impedance

    Word Clock Output
  • Number of Outputs: 9x
  • Connector: BNC per IEC 61169-8 Annex A
  • Impedance: 75Ω
  • Maximum Output Levels:
    - 75Ω Load: 5V
    - High Impedance Load: 10V
  • Minimum Output Level: 0V
  • Voltage Gain: -6dB - +6dB
  • Frequency Range: 28kHz - 100kHz

    Electrical
  • Voltage: +12V DC
  • Power: 1.2W
  • EMI/RFI: Complies with FCC Part 15 Class A, EU EMC Directive

    Physical
  • Number of Slots: 1x


• Item Includes:

  • 1x SDIF-2 Word Clock Distribution Amplifier


• Warranty:

  • 1 Year Limited Warranty
