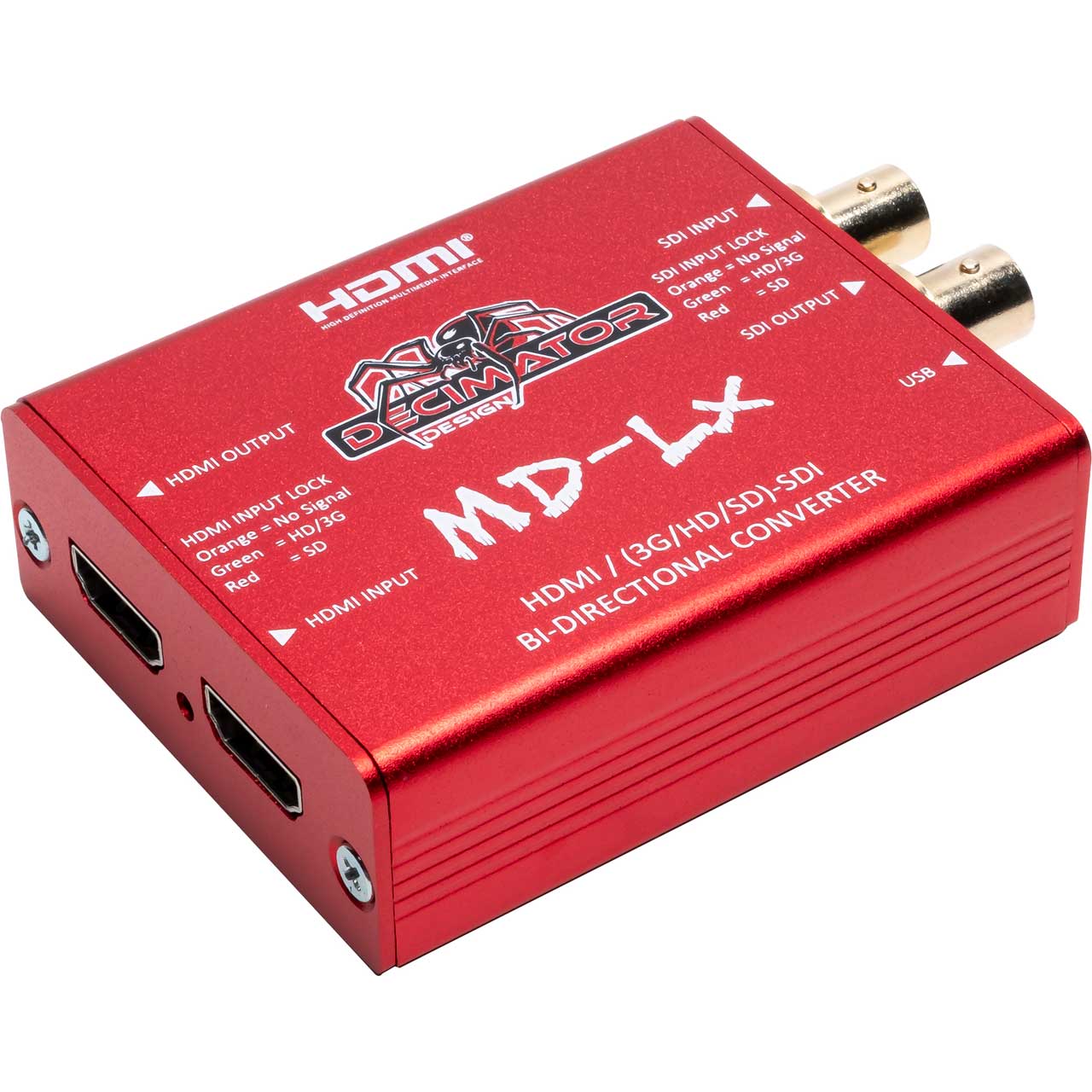

Decimator Design MD-LX HDMI/3G-SDI SMPTE Bi-Directional Converter

MD-LX - Overview

MD-LX - Overview

• Features:

  • Pocket Sized Design
  • Supports 3G level A and B on the input and output, allowing conversion between 3G level A and B
  • Features the following modes: Auto Select (Active input to all outputs or if both inputs are active SDI to HDMI and HDMI to SDI), HDMI In to SDI OUT and SDI IN to HDMI Out, SDI In to HDMI and SDI OuT, HDMI In to HDMI and SDI Out
  • Supports 3G Level A and B and allowing for conversion between both
  • USB provides for power, control and firmware upgrades
  • Low power enabling operation from the USB
  • Includes a Power Supply and USB Cable


• Specifications:

  • SDI Formats:
    3G-A or 3G-B:SMPTE [email protected] and 2.967Gb/s
    [email protected]/59.94/50Hz HD:SMPTE 292M/274M/[email protected] and 1.435Gb/s
    [email protected]/59.94/50Hz
    1080p/[email protected]/29.97/25/24/23.98Hz
    [email protected]/59.94/50/30/29.97/25/24/23.98Hz SD:SMPTE [email protected]/s
    625i50 (PAL)
    525i59.94 (NTSC)
  • HDMI Formats:
    [email protected]/59.94/50/30/29.97/25/24/23.98Hz
    [email protected]/59.94/50Hz
    [email protected]/59.94/50/30/29.97/25
    625i50 (PAL), 525i59.94 (NTSC)

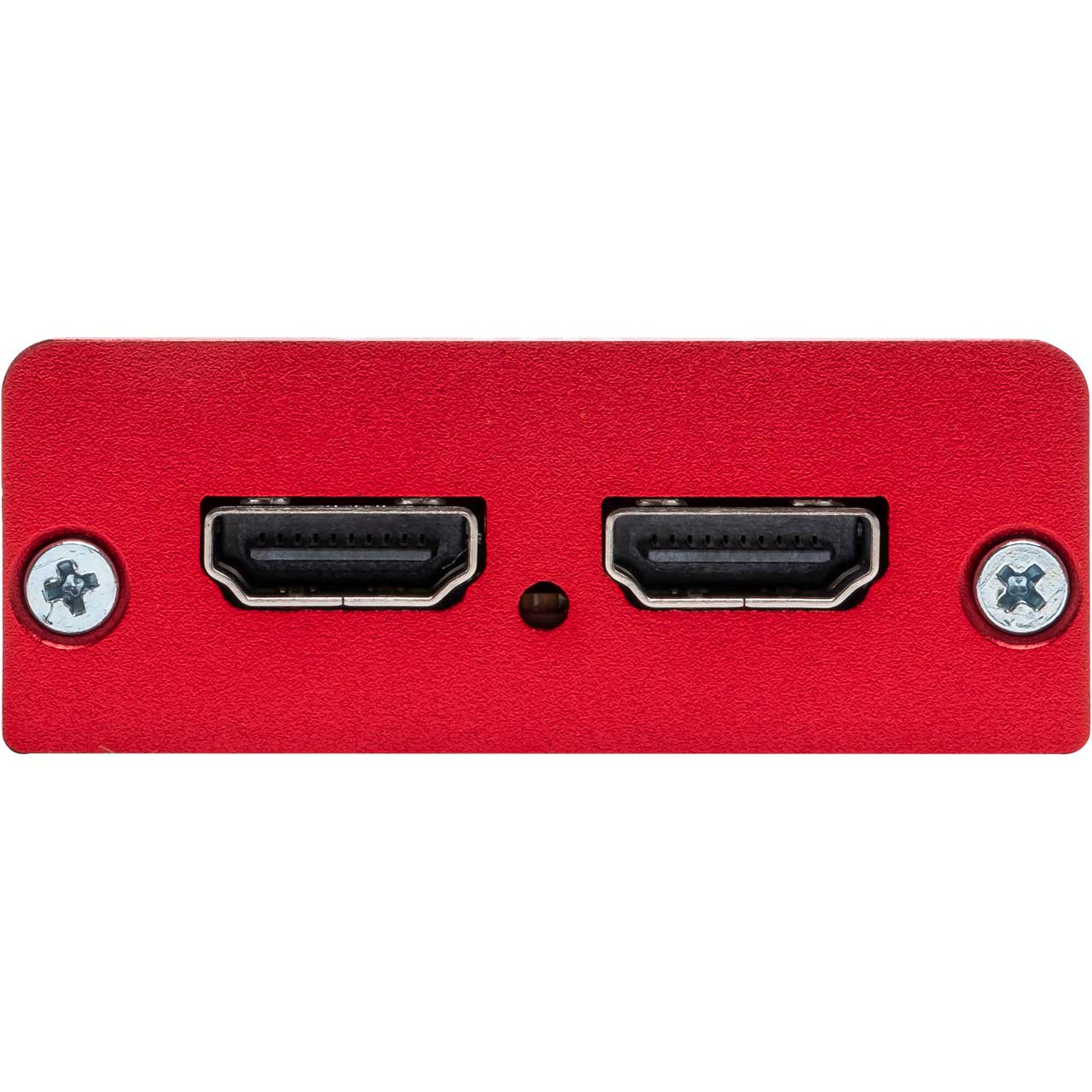

  • Inputs:
    1x HDMI Type A
    1x (3G/HD/SD)-SDI
  • Outputs:
    1x HDMI Type A
    1x (3G/HD/SD)-SDI
    Micro USB for power, control and firmware updates
  • Power: USB Power +4.4V to +5.25V DC, Uses under 2.5 Watts
  • Dimensions: 2.4 x 2.9 x 0.9" (60 x 73.7 x 23mm)


• Item Includes:

  • 1x Decimator MD-LX Converter
  • 1x Power Supply
  • 1x USB Cable


• GTIN:

  5060417390199
