Brainstorm CX-4 Word Clock Expander for DCD-8 - 12 x WC Outputs via BNC

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Brainstorm CX-4 Word Clock Expander for DCD-8 - 12 x WC Outputs via BNC

    Manufacturer: Brainstorm Electronics

    Item #: BRAIN-CX-4   •   MFG #: CX-4




    Our Price:$340.00

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov

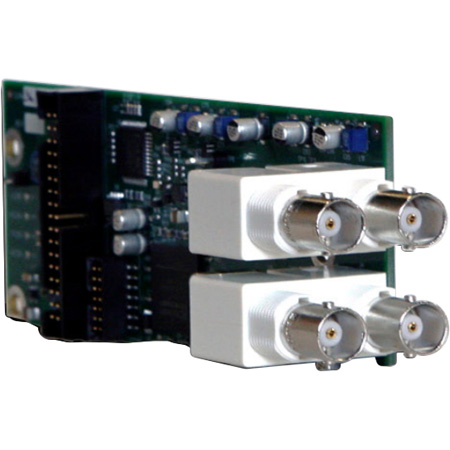

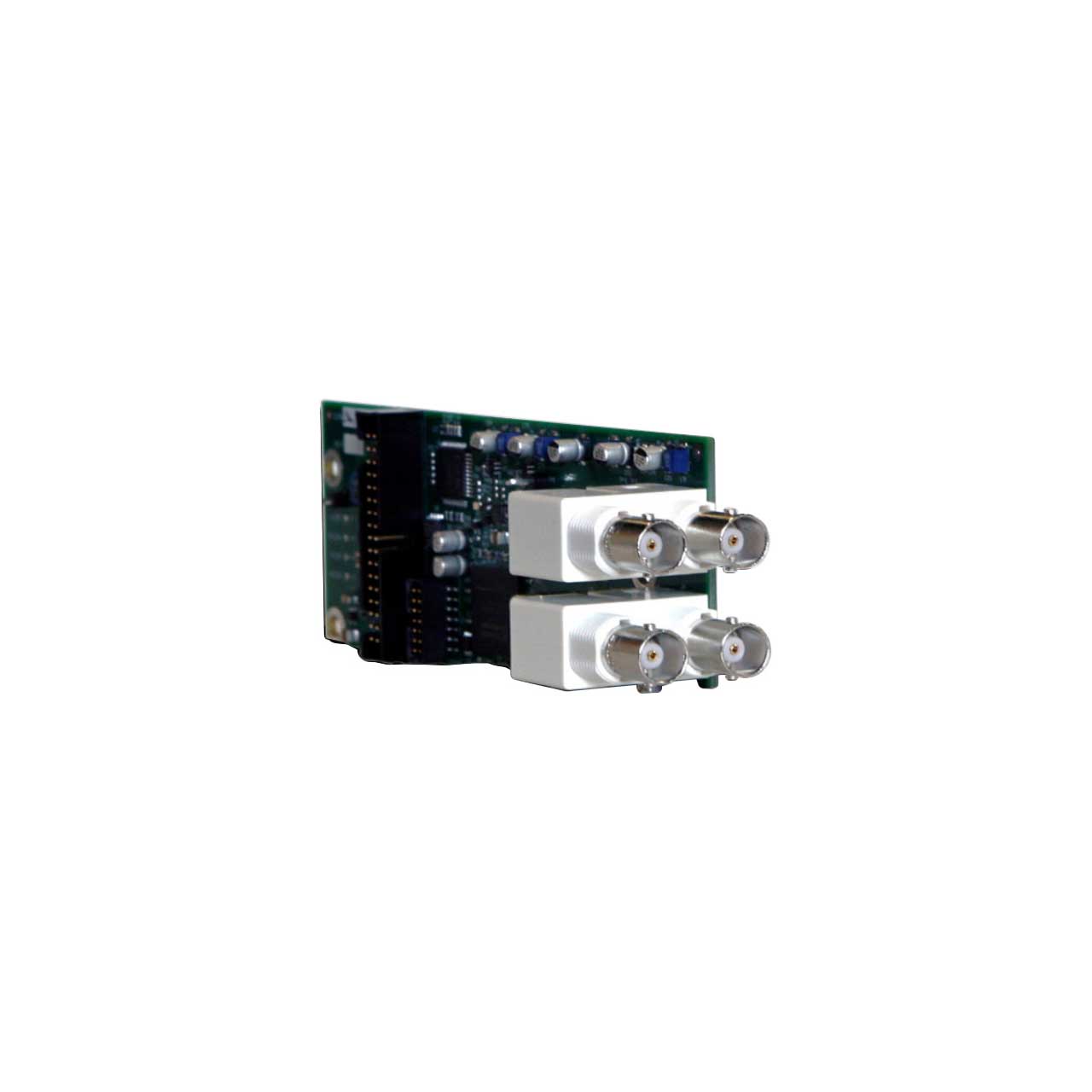

      The CX-4 is an option card designed for the Brainstorm DCD-8 Word Clock Distripalyzer. It provides 4 additional Word Clock outputs through it's 4 BNC connectors.

      The 4 outputs are grouped in 2 pairs. These pairs are identical to the last pair on the DCD-8, outputs 7 & 8, with the same reference and frequency. Also, termination is measured and displayed just like the other DCD-8 word clock outputs.

      Installation is very simple and can easily be performed by any qualified technician. Software version 2.20 or later is required for the CX-4.

      For set-ups requiring more than 8 word clock outputs, the CX-4 is a simple and inexpensive solution.


      • Features

        • Provides 4 additional Word Clock outputs to the DCD-8
        • 4 2 pairs identical to outputs 7 and 8
        • 4 Termination indication
        • 4 Easy installation

      • Specifications

        • No of outputs: 4
        • Waveforms: All rise and fall times per their respective standards
        • References: Video (HD & SD), WC, AES, S/PDIF, ADAT, GPS, Internal crystal
        • Frequency: All standard rates, up to 192K - Same selection as outputs 7 & 8
        • DCD-8 domain: Same selection as outputs 7 & 8
        • Connectors: BNC - 75O - DC coupled
        • Form Factor: 2" x 5.4" PCB - option for Brainstorm DCD-8 only
