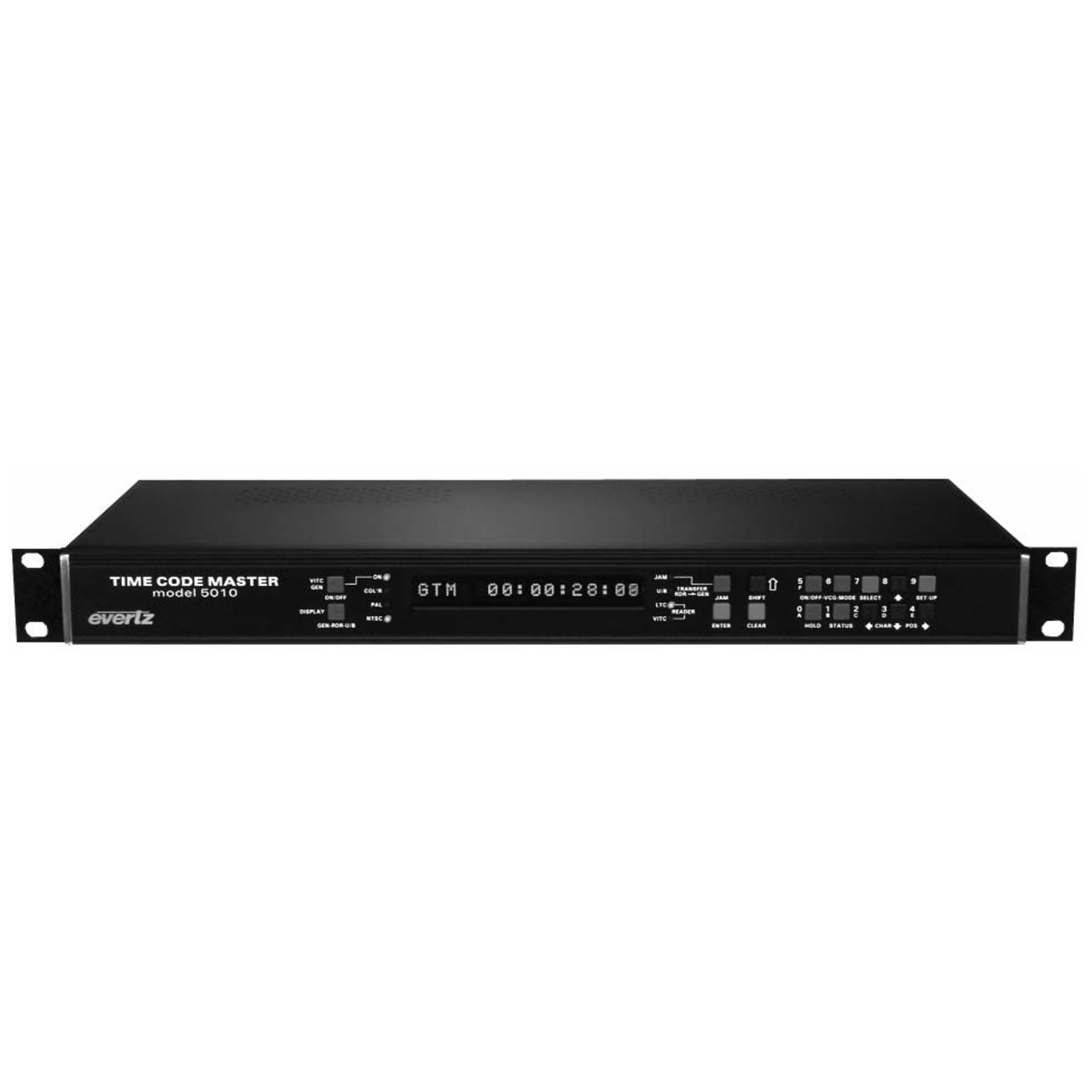

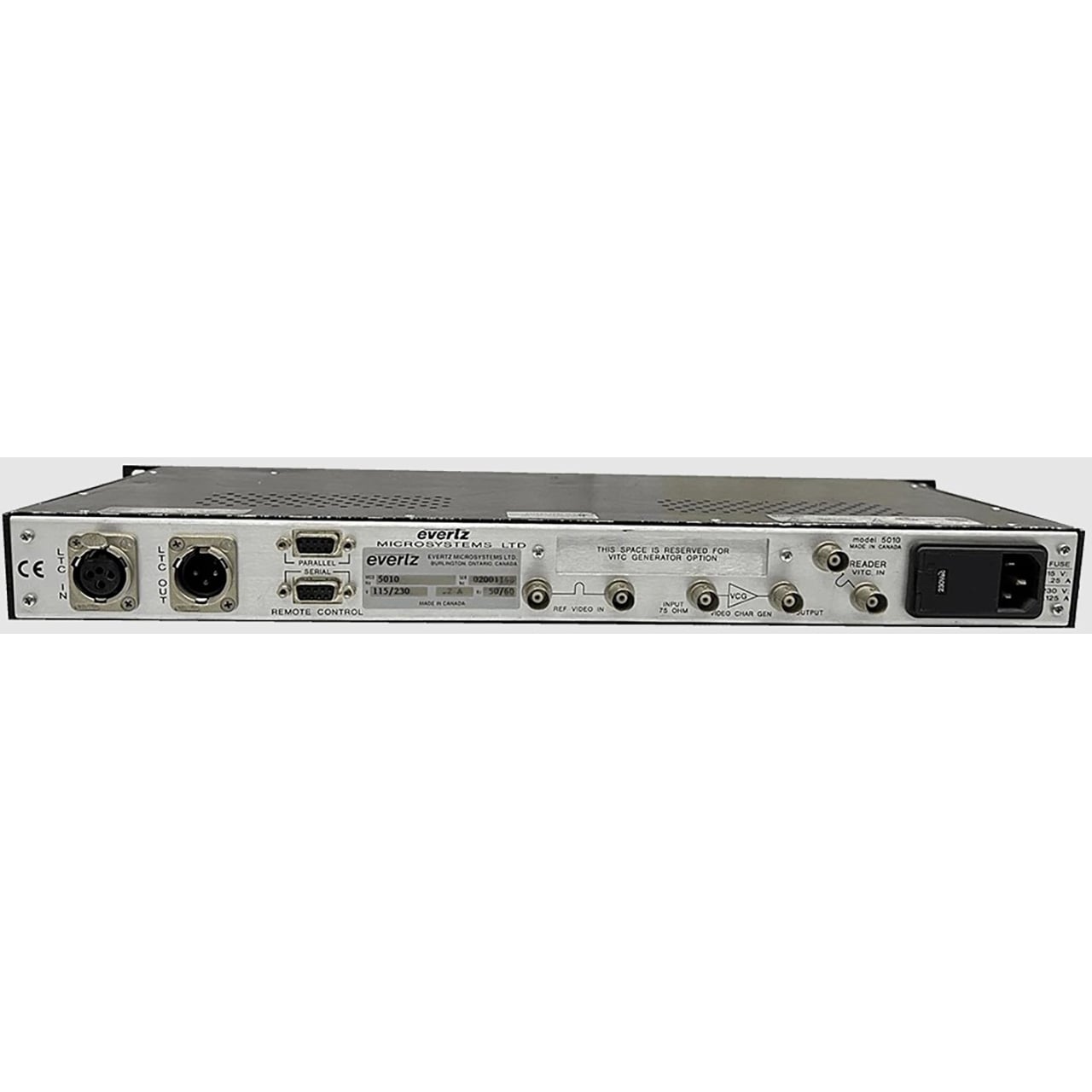

Evertz 5010 Time Code Generator and Full Speed Reader with Video Character Generator - SMPTE 12-1 Standard

5010 - Overview

• Features:

  • Generates Time code in accordance with SMPTE ST 12-1 locked to NTSC or PAL video or free run on internal crystal oscillator
  • High resolution Character Inserter, with three Character sizes: 8,16 and 32 lines, time and user bits separately positionable on raster
  • Reads LTC from 1/30th to 70x play speed
  • Well proven input circuitry design permits reliable recovery of even severely distorted code
  • Momentary or continuous Jam-sync modes
  • Time and user bits are presettable from the front panel
  • RS-232 serial port permits interfacing to computers
  • 25Fps - 29.97Fps drop frame time code translator mode
  • Parallel control of commonly used functions
  • User bit Transfer from Reader Time or User bits
  • On-screen programming menu
  • Date/Time Zone may be encoded into user bits according to SMPTE ST 309
  • Generates and reads universal coordinated time (UTC) or local time in time/date mode
  • Automatic daylight saving time adjustment in time/date mode
  • 2 General purpose outputs can be assigned to several output modes


• Specifications:

  LTC Generator
  • Standard: SMPTE ST 12-1: NTSC 2/4 field; PAL 4/8 field menu selectable
  • Connector: 3 pin male XLR type
  • Level: Adjustable, 0.5V to 2V p-p
  • Rise Time: 40 ±10µs
  • Jitter: < 2µs

    LTC Reader
  • Standard: SMPTE ST 12 Time code
  • Connector: 3 pin female XLR type
  • Level: 0.2 to 4V p-p, balanced or unbalanced
  • Speed: 1/30th to 70x play speed, fwd and rev, machine dependent

    Character Generator
  • Input: Comp. video 1V p-p, 75O terminated
  • Output: Com. video 1V p-p + keyed high resolution characters, selectable background and sizes

    Serial Remote Control
  • Type: RS-232/422 interface, 9 pin "D" connector Computer control of all functions, selectable baud rate

    Electrical
  • Power: Auto ranging 100-230V AC, 50/60Hz 25 Watts
  • Safety: TšV Listed, Complies with EU Safety Directive
  • EMI/RFI: Complies with FCC Part 15 Class A, EU EMC Directive

    Physical
  • Dimensions: 19" W x 1.75" H x 7.75" D (483mm W x 45mm H x 196mm D)
  • Weight: 7lbs. (3.5kg)
