Special care was taken during the design process to ensure that the Evertz 570FR meets the demanding needs of today's advanced television studios and broadcast facilities. In addition, sufficient flexibility was factored into the design of the 570FR to satisfy the emerging demands of the future.

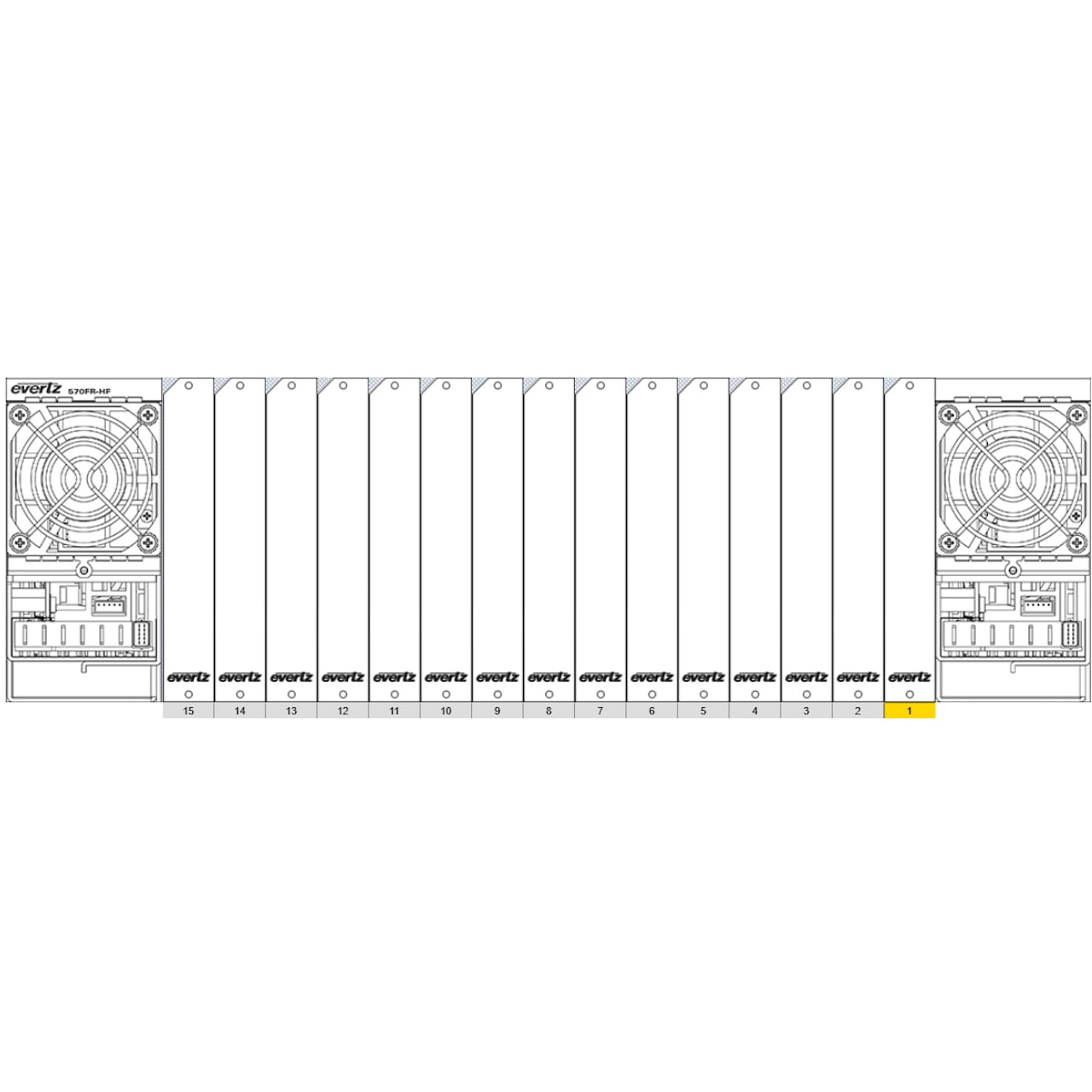

The 570FR High Density Frame offers easy installation and access to latest generation 570 modules. The 570FR is a 3RU frame designed to house 15x single-slot modules.
The 570FR is designed with a high density capacity to conserve equipment rack space. Care has been taken to ensure sufficient thermal relief for up to 750 watts of processing power per frame required to meet the increasing power demands of future high-speed processing cards.

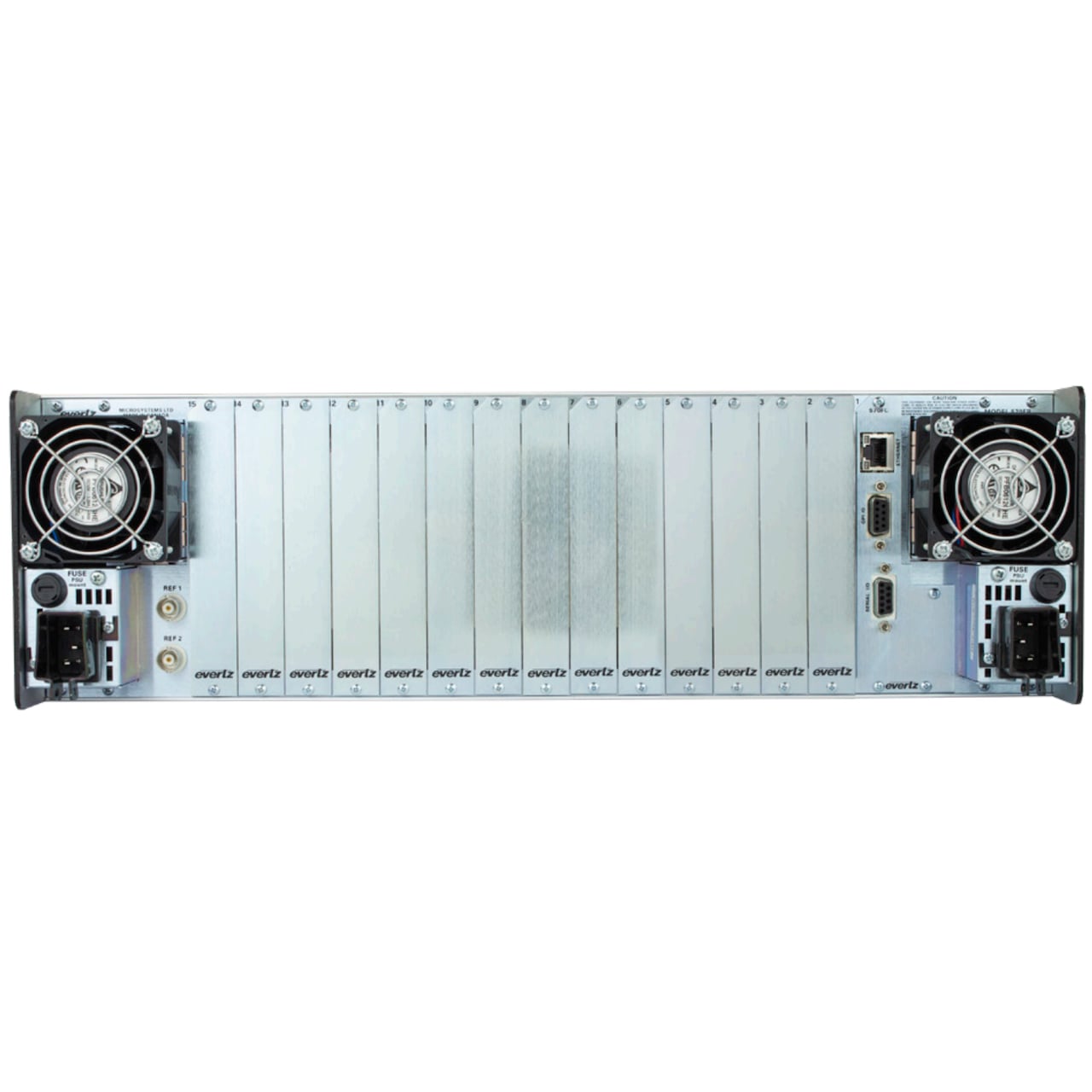

Additionally the 570FR offers hot-swappable dual redundant power supplies that allow for power supply and fan replacement without compromising the integrity of critical signal paths and true remote monitoring of all modules and signals within the chassis via a VistaLINK® frame controller. This configuration provides the SNMP network communication interface from the VistaLINK® Network Management Software to the chassis over the Local or Wide Area Network.
