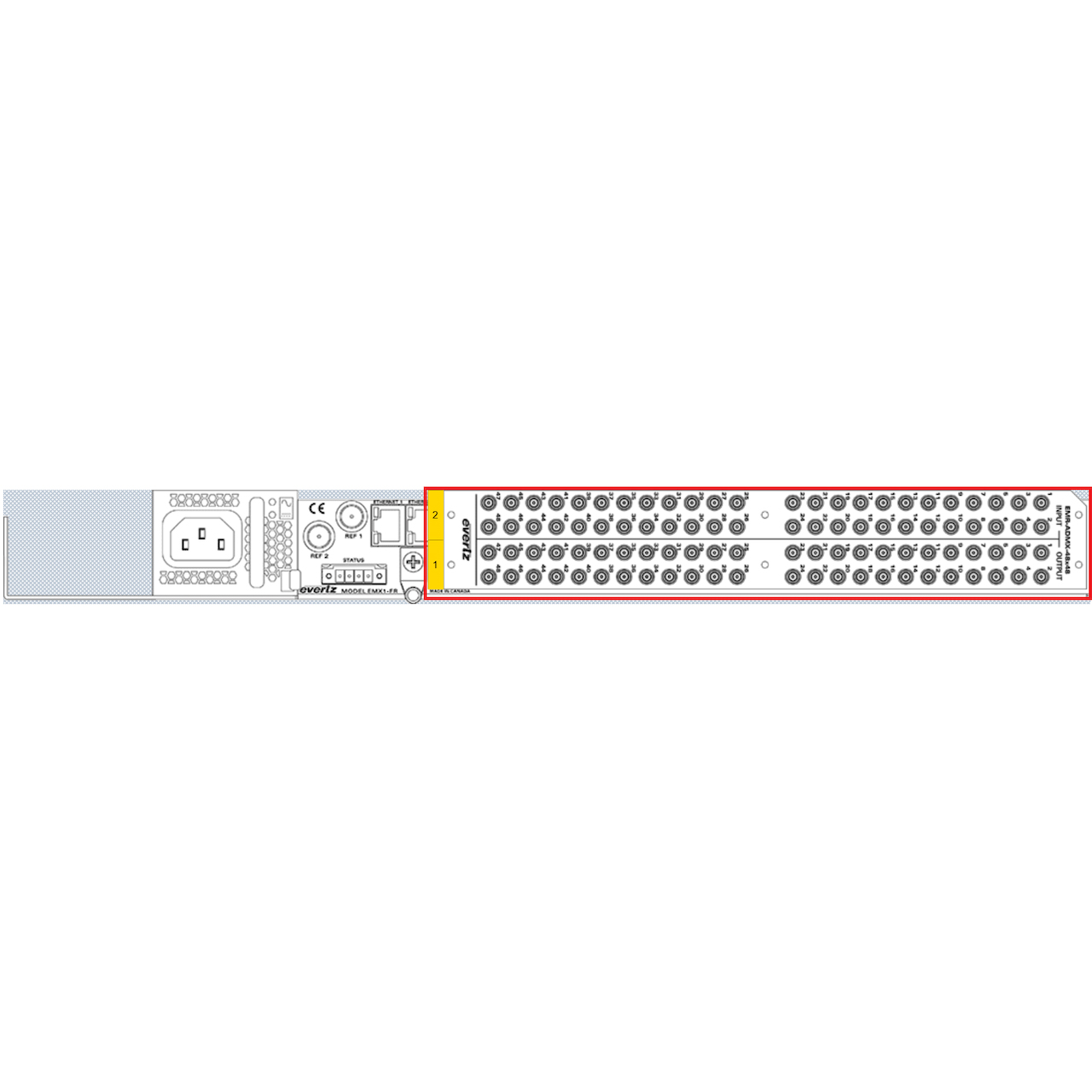

This 2-slot Evertz EMR-ADMX-48x48 module for the EMX series frames an support up to 30720x30720 audio channels across its 48x48 physical TDMv2 ports; all ports have status and error reporting.
The ADMX is the core backbone of the EMR unified platform for the ability to route audio universally across various formats. AES, analog, MADI, Studer A-Link, Calrec Hydra2, SMPTE ST 2110-30, ST 302M, Dante® and embedded audio. This unique audio routing solution provides an extremely robust and flexible any-audio-type to any-audio-type in an unblocking manner down to the mono audio channel level.

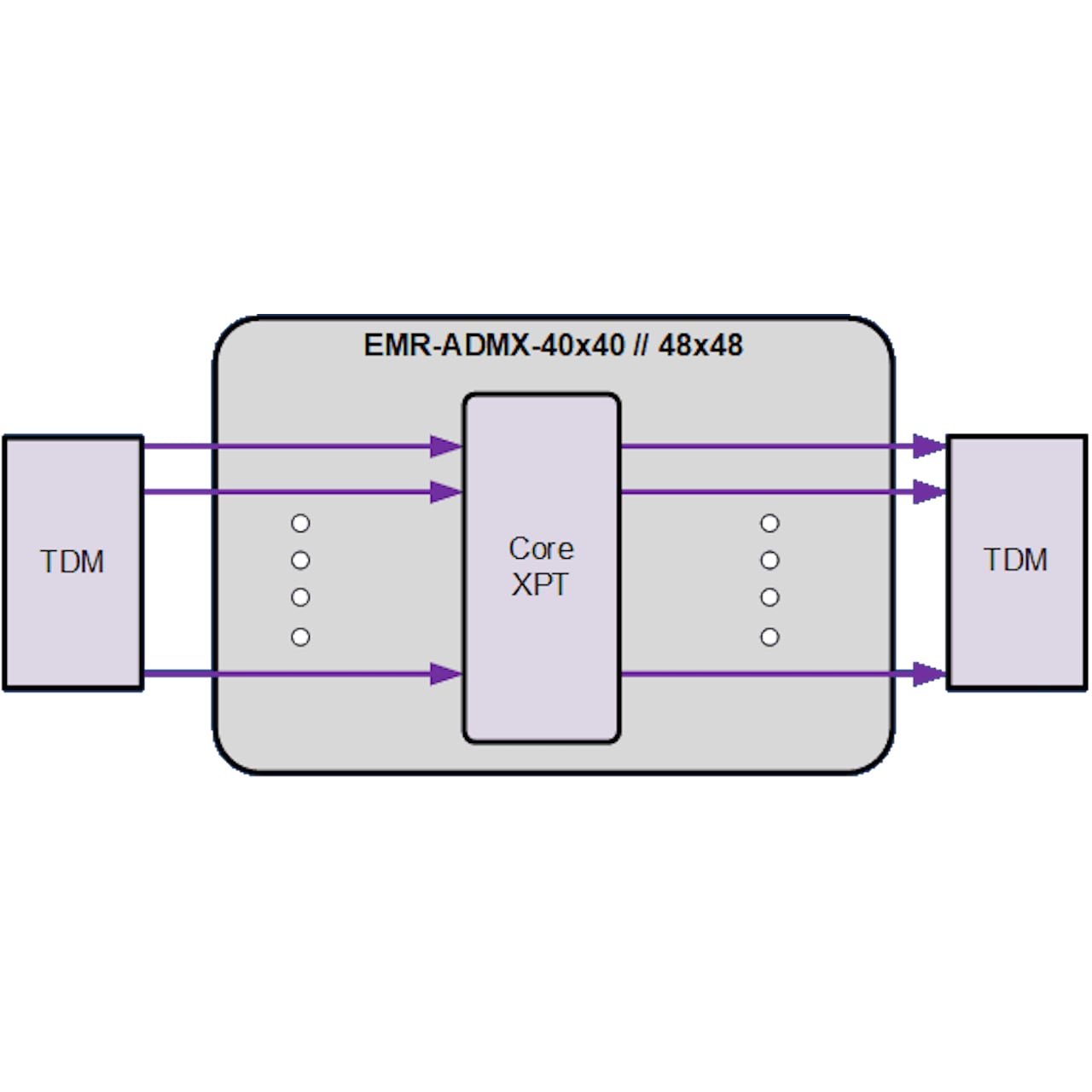

The ADMX audio TDM crosspoint is a packet routing core that allows for flexible non-blocking routing on a mono basis. It is great for applications that are highly dense and also provides elasticity for expansion as demands grow, the ADMX are offered in a number of sizes and form factors to fit the many different environments.
Pair up a set of ADMX for dual hot redundancy, where the OP cards can provide and packer-based resilient fail-over. Integrate with Evertz SDI routers for embedded audio plus any discrete audio routing in a non-blocking wildcard any-audio to any-audio fashion. See their EQX video routers and NEXX processing video router for more information, and the whole suite of EMR discrete audio modules for different audio types.
