BSS Audio BLU-DAN Dante/AES67 to Blu Link Bridge


Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    BLU-DAN - Overview

    Formerly known as BLU-DAN

    The Soundweb London BLU-DA offers Dante / AES67 audio and BLU link. This means that the BLU-DA can be used to `add' Dante / AES67 to one or more BLU link devices.

    The BLU-DA is configurable through HiQnetT Audio Architect. A rich palette of logic objects and a "drag and drop" method of configuration provide a simple and familiar design environment.

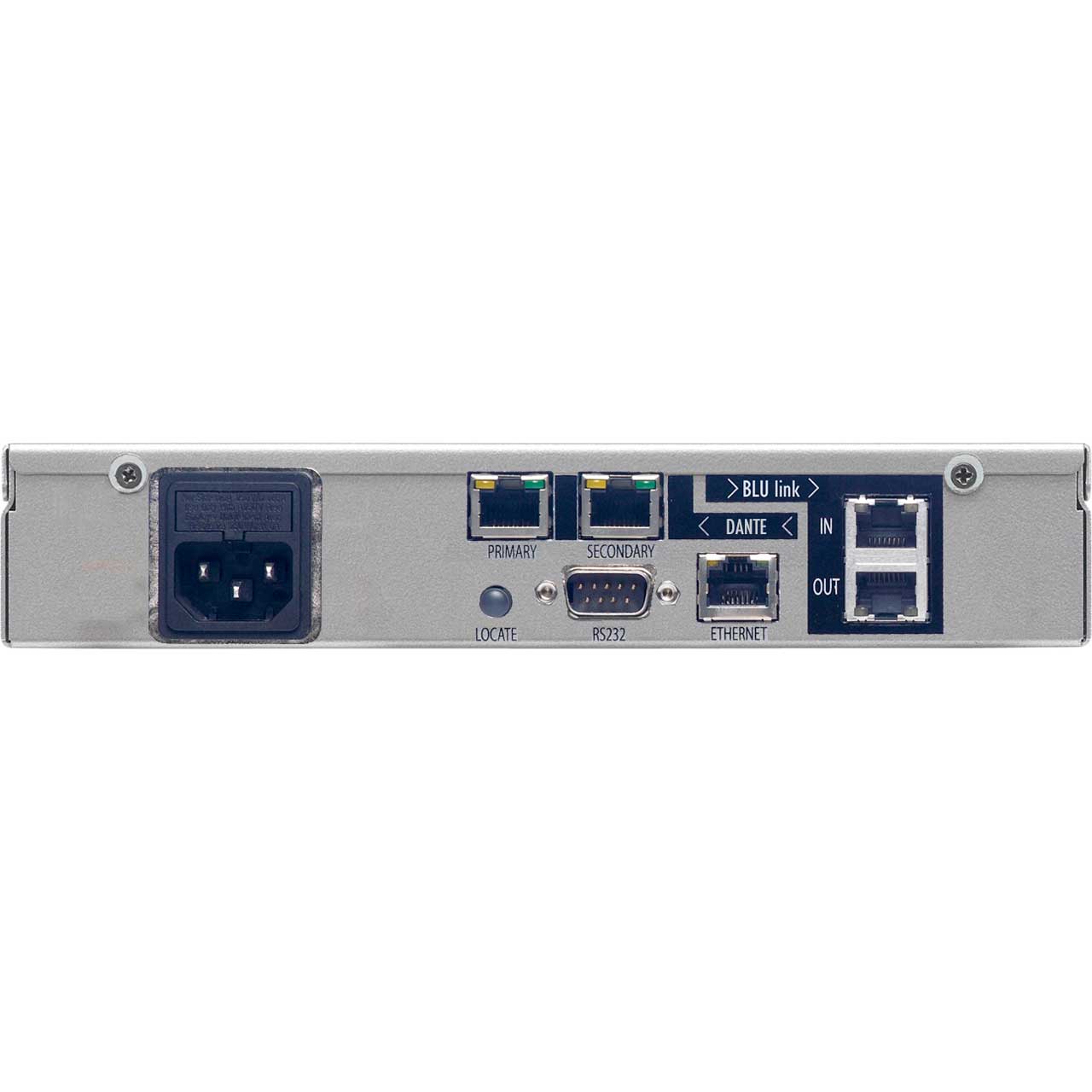

    The BLU-DA features Dante and AES67 audio. The BLU-DA is capable of simultaneously transmitting and receiving up to 64 channels of Dante or AES67 audio (64 x 64). Primary and Secondary ports are provided for fault tolerance. Control is through a separate Ethernet port. The BLU-DA also includes support for Dante 4.0 firmware for integration with Dante Domain Manager.

    The BLU-DA also features BLU link, a low latency, fault tolerant digital audio bus of 256 channels, which uses standard Category 5e cabling giving a distance of 100m between compatible devices. Fiber media converters can be used to increase the distance between devices to over 40km.

    A bi-directional locate function allows devices to be identified both from and within HiQnet Audio Architect.

    The BLU-DA and the other members of the Soundweb London family provide the building blocks of the perfectly tailored system solution.

    This signal processor is EN 54-16 Compliant for life safety applications.

    • Features:

      • AES67 and Dante Audio with support for Dante Domain Manager
      • BLU link - 256 Channel, Low Latency, Fault Tolerant Digital Audio Bus
      • `Add' Dante / AES67 to one or more BLU link devices
      • Clear Front Panel LED Indication
      • Bi-Directional Locate Functionality
      • HiQnet Device
      • Configuration, Control and Monitoring from HiQnet Audio Architect
      • 1RU, Half-Rack Device
      • AES67 Compatible
      • EN 54-16 Compliant for life safety applications
    • Specifications:

      • Chasis: 19" (single rack space)
      • Dante™ / AES67: yes
      • SWL Digital Audio Bus: 256
      • RS-232: yes
    • GTIN:


    BLU-DAN - Required Accessories
