Evertz ENX-18RU Route and Switch in One Media Core with ENX-18FR and 3x 3600 Watt Power Supplies

ITEM #: EVZ-ENX182FC1X3P MFG #: PKG2-ENX18-2FC-1XPT-3PS

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Evertz
Free Shipping with $49 Minimum Order
We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
Report Lower PriceLarge Quantity Quote

PKG2-ENX18-2FC-1XPT-3PS - Overview

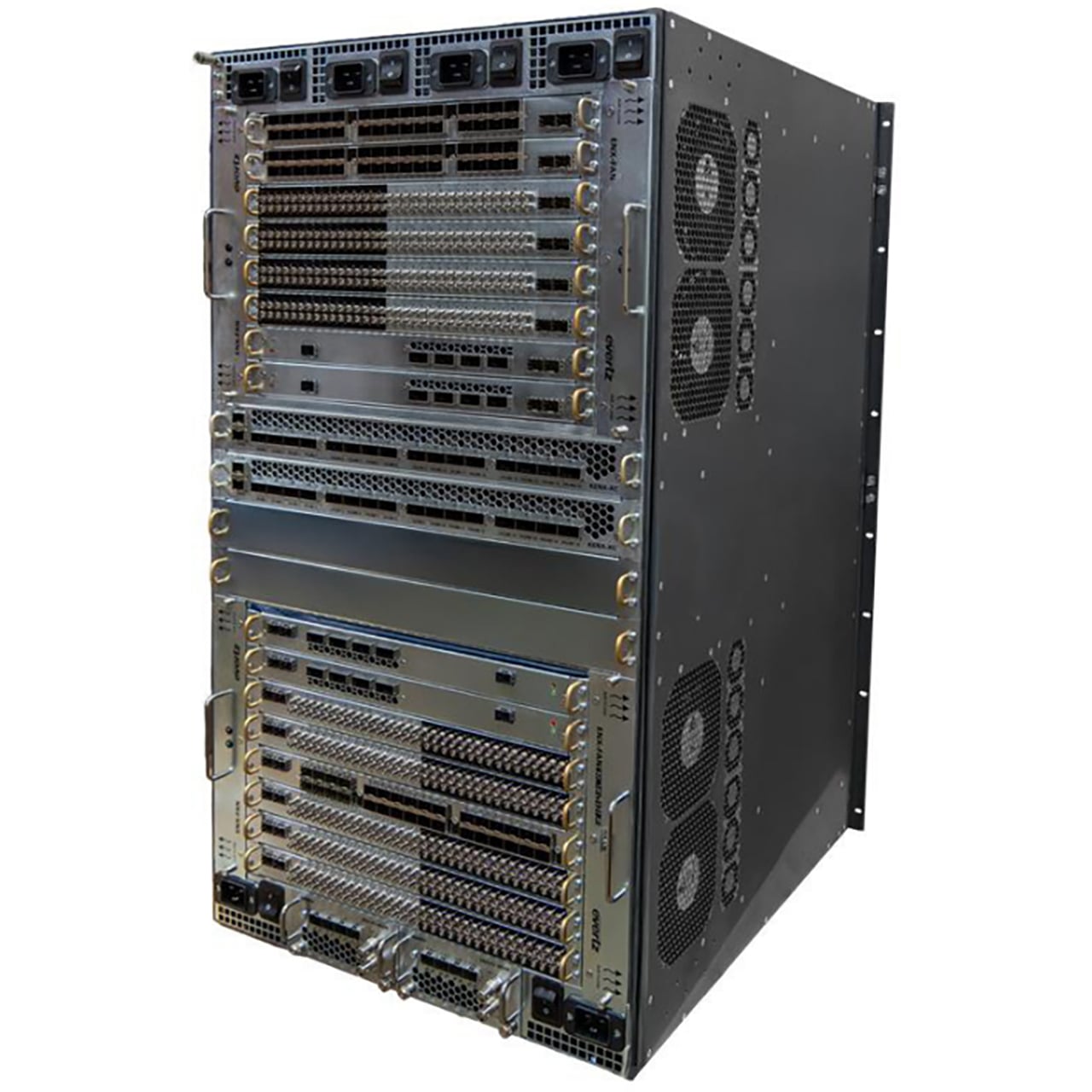

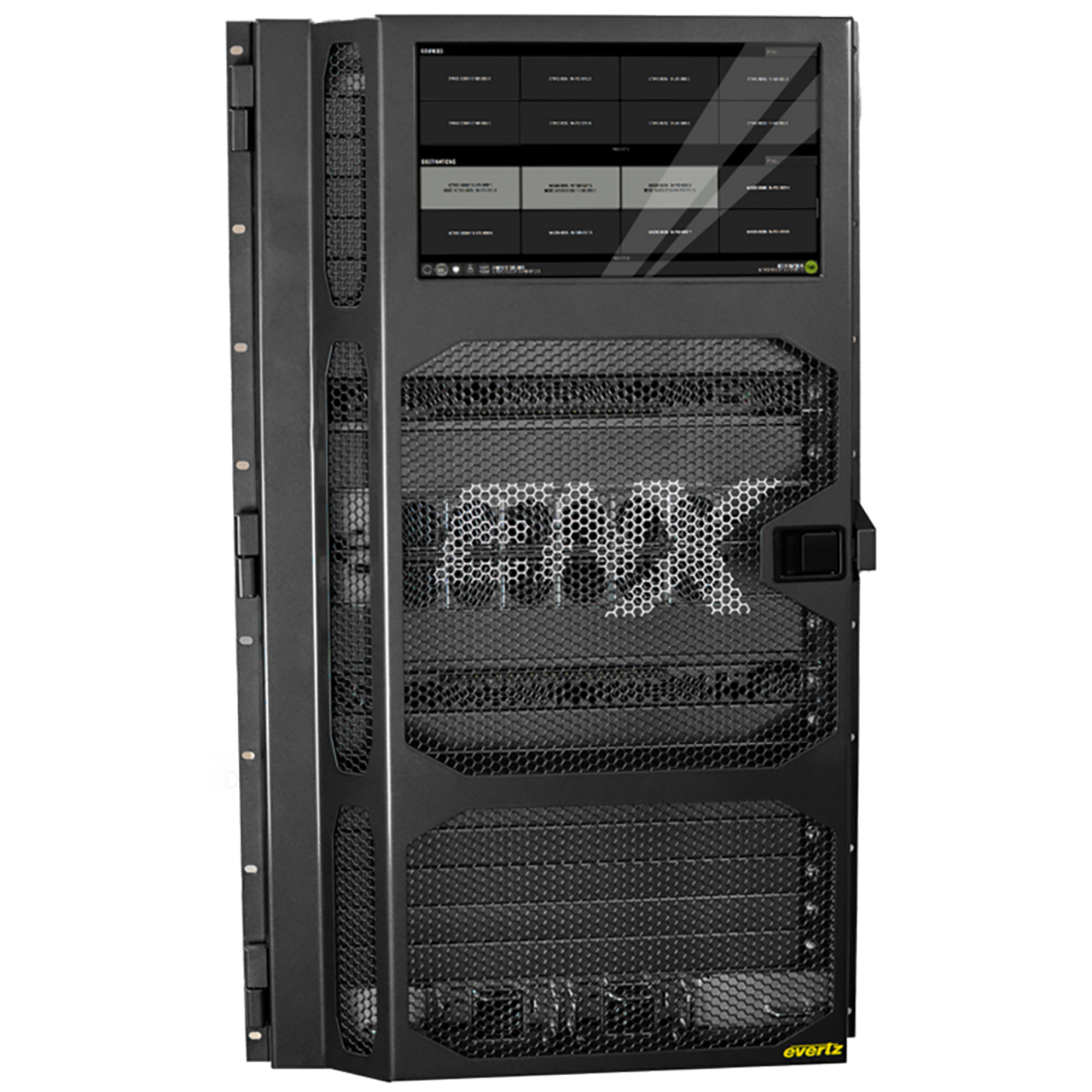

The Evertz PKG2-ENX18-2FC-1XPT-3PS is a package for a single frame ENX 18RU which includes 1x ENX-18FR populated with all 4x IO Fan modules, 2x frame controllers with rear plates, 1x XPT-1K with rear plate, and 3x 3600W Power Supplies. The ENX-18FR is a passive frame with front assessable XPTs, FCs, PSs, and IO with separate rear plates for each (minus PS) and is capable of housing a total of 16x IO modules. Additional XPT & rear plate, IO modules & rear plates, and power supplies are sold separately

Zero-Sacrifice 12G Performance
No gear boxing. No compression. No quadessence anything. Just pure signal integrity.

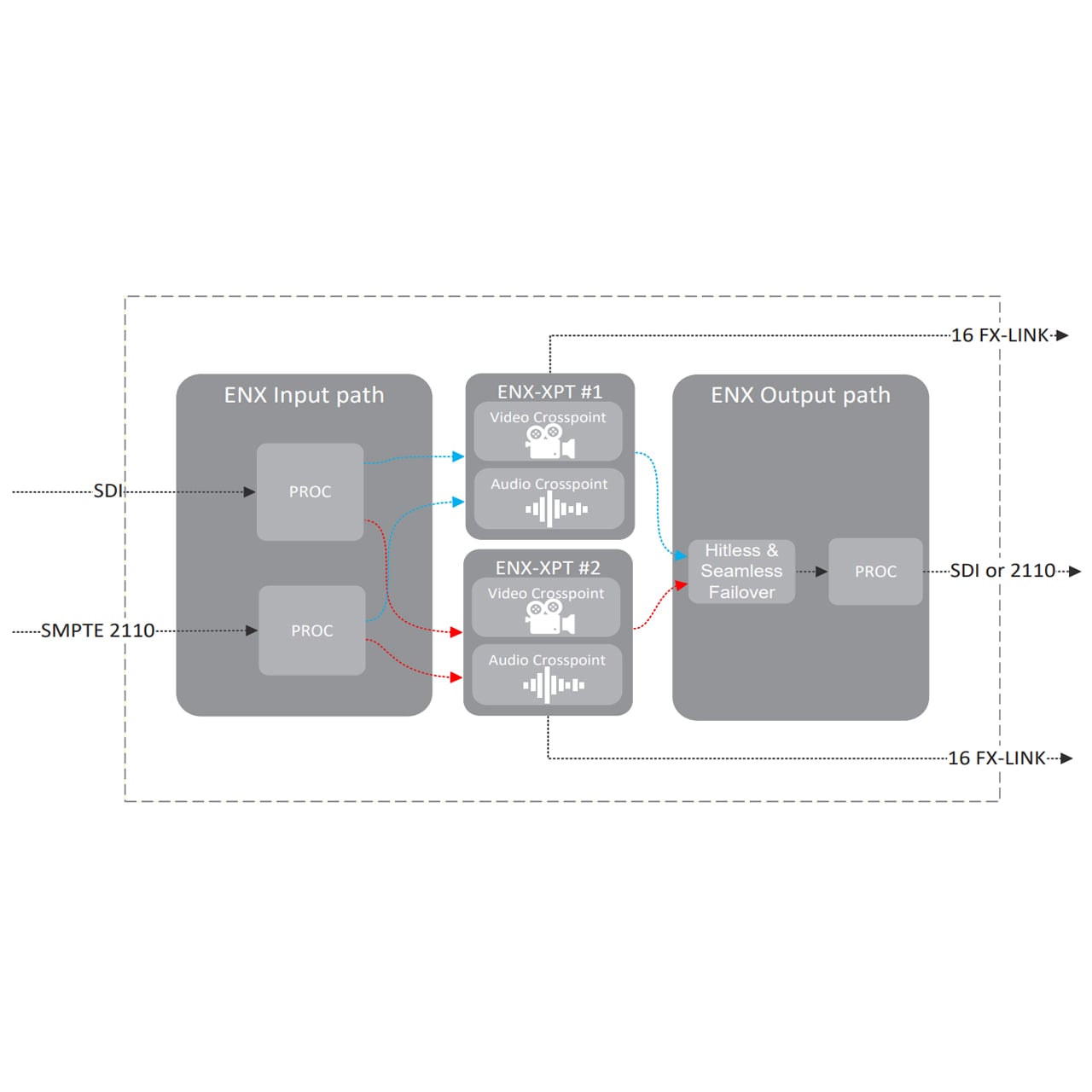

Hitless & Seamless Redundancy
ENX delivers hitless switching and seamless failover. Just uninterrupted 24/7 performance.

Core-Level Audio Shuffling
ENX makes audio routing dynamic, scalable, and truly integrated.

Flexible Control
MAGNUM-OS delivers award-winning control complemented with VUE.

  • Features:

    • Fully Hot Swappable front accessible modules
    • 16x IO Modules Slots
    • 6x Load Sharing Power Supplies
    • Temperature Adaptive Fan Speeds
    • 1024x1024 (local 512x512 + 512x512 over FX-LINK)
    • Mono Audio Crosspoint 34K x 34K
    • ENX-18FR supports up to 4x Crosspoints:
      - Main + Redundant
      - Expansion Main + Expansion Redundant
      - BB Reference (loop through both FCs)
      - Health and Status Monitoring with Magnum-OS


  • Specifications:

      Formats
    • SD-SDI (270MB/s), SMPTE 259M-C ASI (270MB/s),
    • HD-SDI (1.485GB/s), SMPTE 292M,
    • 3G-SDI (2.97GB/s), SMPTE 424M,
    • 6G-SDI (5.950GB/s), SMPTE ST 2081,
    • 12G-SDI (11.88GB/s), SMPTE ST 2082, SMPTE ST 2110

      Redundancy & Protection
    • Passive main interface/backplane
    • Main and backup Crosspoints available
    • Main and backup Frame Controllers available

      Power Supplies
    • Swappable fan trays and modules

      Frame Ethernet Interface
    • 4x ETH SFPs for control, monitoring and PTP

      Protocol for Third-Party Control
    • Quartz
    • Image Video
    • TSL 5.0

      Reference Timing
    • Switching Reference: Analog 525/625
    • Signal Level: 1V p-p ±3dB
    • Impedance: 75Ω
    • Additional Reference: PTP v2 (SMPTE ST 2059)

      Physical
    • Height: 31.5" (800mm)
    • Width: 19" (483mm) rack mount
    • Depth: 20.45" (520mm)

      Power
    • Voltage: Auto-ranging, 200V - 240V 50/60Hz
    • Power per Module: 3600W @ 220V AC


  • Item Includes:

    • 1x ENX 18RU
    • 1x ENX-18FR
    • 4x IO Fan Modules
    • 2x Frame Controllers with Rear Plates
    • 1x XPT-1K with Rear Plate
    • 3x 3600W Power Supplies


  • Warranty:

    • 1 Year Limited Warranty
