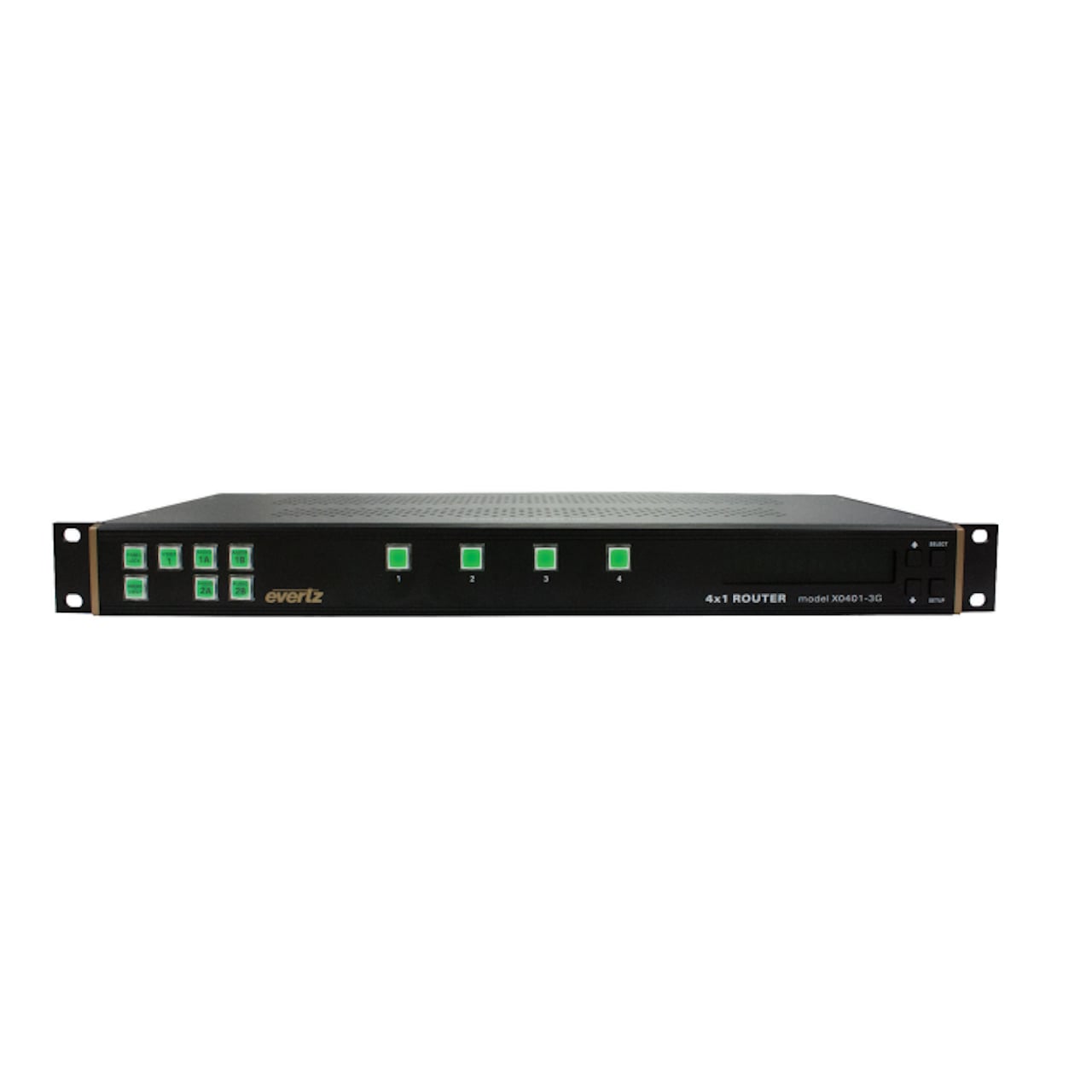

The Evertz X-0401-HX supporting 3G/HD/SD-SDI signals, is a four-input routing switcher that provides a convenient, low-cost way to route high definition and standard definition serial digital signals. The X-0401 routers are used for 3GB/s, 1.5GB/s, 270MB/s, 360MB/s, 540MB/s and DVB-ASI serial digital signals. When the unit is ordered with the Quad 4x1 AES router option, the AES output busses can be used in an "audio follow video" mode, or can be broken away from the video bus. This router features the ability for redundancy protection with a bypass relay and optional dual power supplies.
The router electronics are housed in a 1RU rack mount frame and are controlled from the built-in front panel controls. Each model can also be purchased with an optional rack-mount remote control panel that replaces the built-in control panel, or can be used as a second control panel. All units can also be controlled by Quartz over Ethernet, contact closures on the GPI control port, or through the RS-232 or RS-422 serial remote control port using industry-standard switcher protocols.
Embedded SoftSwitch™ Features (HES)
Routers equipped with EmbeddedSoftSwitch™ have all the features of the SoftSwitch™ versions as well as the following additional features. The embedded audio on the Video 1 buss uses Evertz patented SoftSwitch™ technology to eliminate audible pops when switches are performed (for SD, HD or 3G video). Embedded SoftSwitch is performed on all four audio groups.
Please Note: This is the 4x1 Video Router only. The Quad 4x1 AES Audio router option is not included.
