    DMON-QUAD - Overview

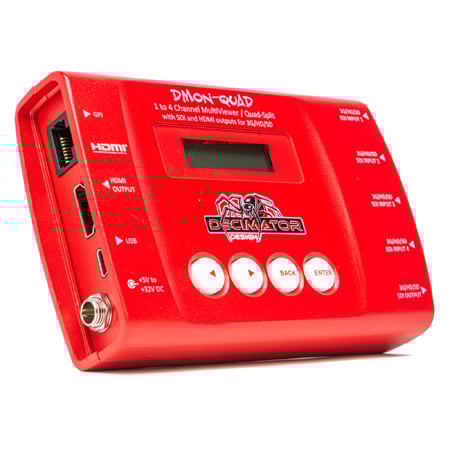

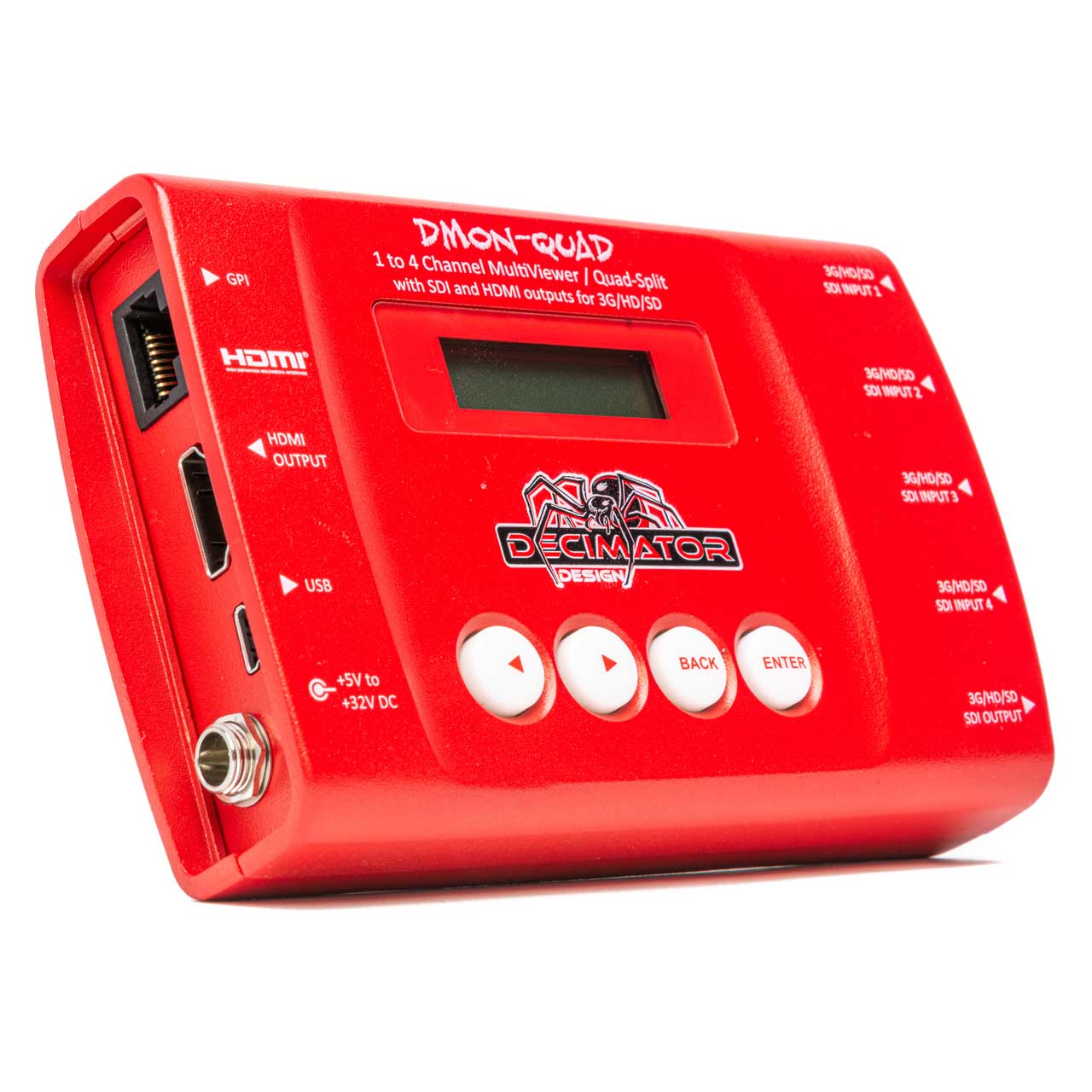

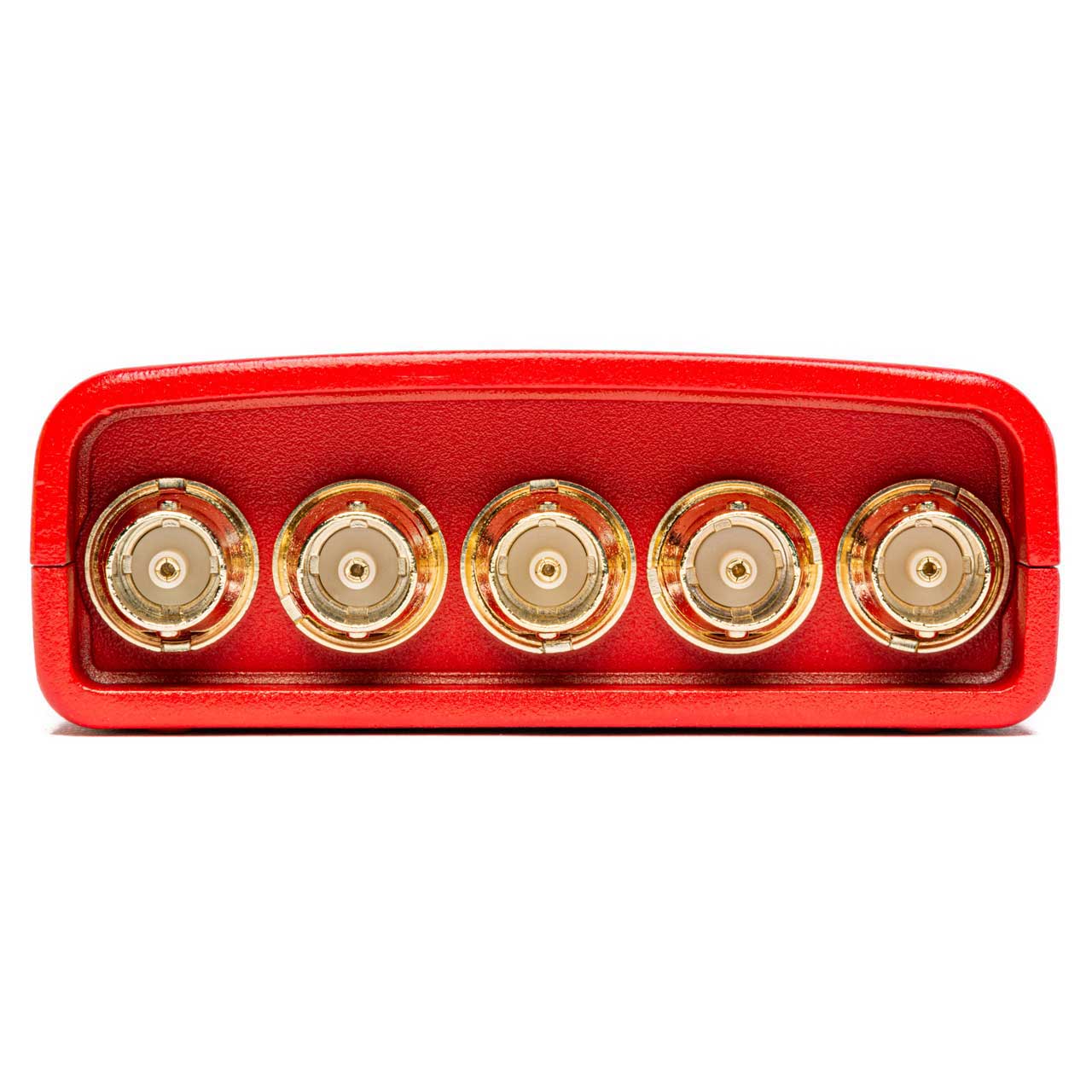

    The Decimator Design DMON-QUAD is a 1 to 4 channel MultiViewer/Quad-Split with SDI and HDMI outputs for 3G/HD/SD with custom layouts, UMDs, audio meters and tallies.

    The DMON-QUAD is a truly portable converter, that incorporates Decimators easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.

    • Features:

      • Supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B
      • Low cost (3G/HD/SD)-SDI 1 to 4 Multi-Viewer or 4 to 1 input multiplexer
      • Custom Layouts with various standard layouts
      • 16 Character UMD overlay per window with individual enables, custom positioning and size
      • 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size
      • Horizontal and/or Vertical image flipping per window
      • Audio ID overlay
      • Tallies can be applied to either Tally Boxes (Default) or Border
      • Tally boxes allows for up to 4 Tallies per window
      • Fast switching between inputs using Full-Screen scaling
      • Selectable output format in both Full-Screen Multi-Viewer mode
      • Low latency buffering for each input allowing non-synchronous inputs
      • Linked (3G/HD/SD)-SDI and HDMI outputs
      • 4 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
      • Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
      • Variable aspect ratios per window
      • In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs

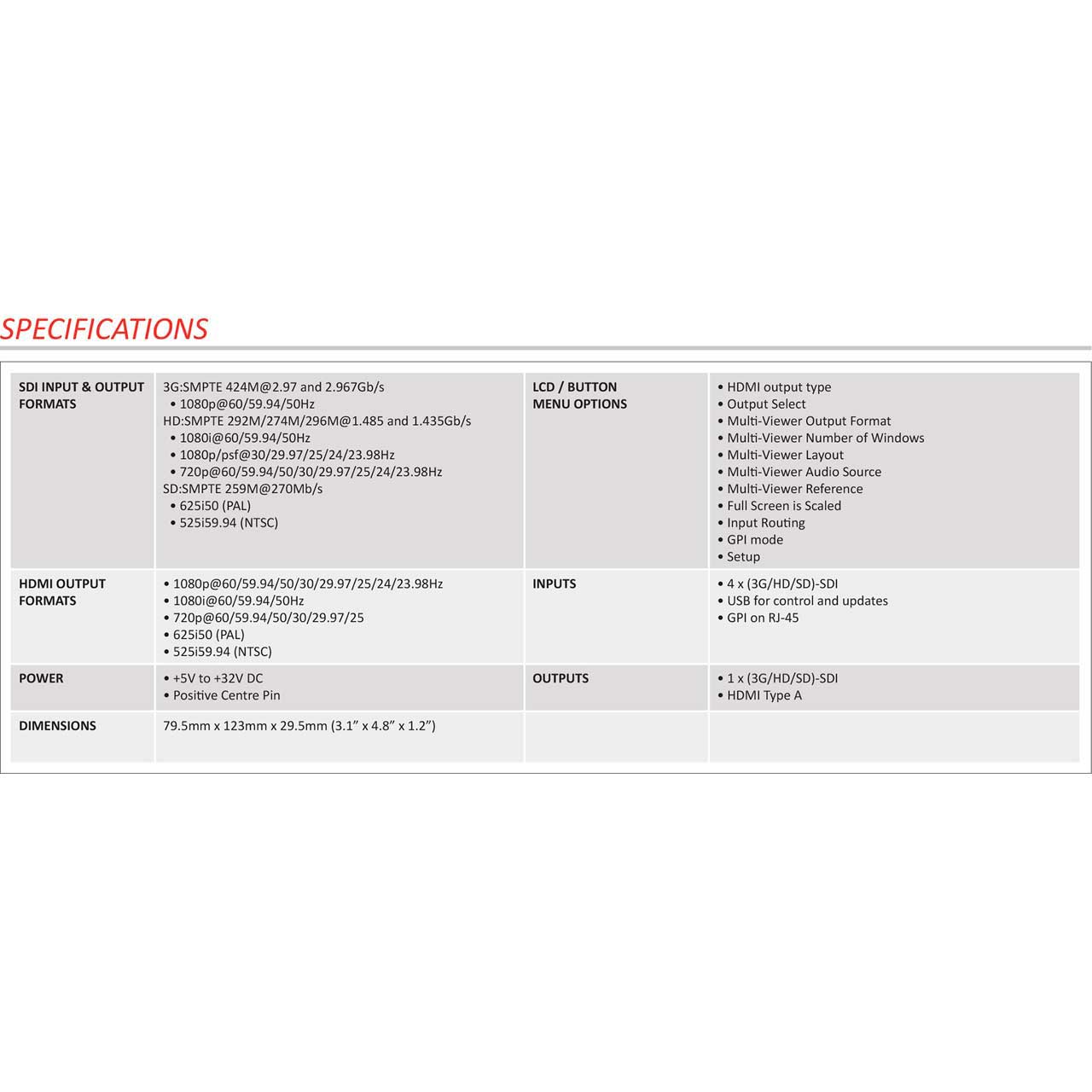

    • Specifications:

      • SDI Input & Output Formats
      • 3G: SMPTE [email protected] and 2.967Gb/s, 1080p@60/59.94/50Hz
      • HD: SMPTE 292M/274M/[email protected] and 1.435Gb/s, 1080i@60/59.94/50Hz, 1080p/psf@30/29.97/25/24/23.98Hz, 720p@60/59.94/50/30/29.97/25/24/23.98Hz
      • SD:SMPTE 259M@270Mb/s, 625i50 (PAL), 525i59.94 (NTSC)

        LCD/Button Menu Options
      • HDMI output type
      • Output Select
      • Multi-Viewer Output Format
      • Multi-Viewer Number of Windows
      • Multi-Viewer Layout
      • Multi-Viewer Audio Source
      • Multi-Viewer Reference
      • Full Screen is Scaled
      • Input Routing
      • GPI mode
      • Setup

        HDMI Output Formats
      • 1080p@60/59.94/50/30/29.97/25/24/23.98Hz
      • 1080i@60/59.94/50Hz
      • 720p@60/59.94/50/30/29.97/25
      • 625i50 (PAL)
      • 525i59.94 (NTSC)

      • 4x (3G/HD/SD)-SDI
      • Input Equalization > 100M using Belden 1694A
      • USB for control and updates

      • Outputs
      • 1x SDI (3G/HD/SD)-SDI
      • HDMI Type A

      • Power: +5V to +32V DC / Positive Center Pin
      • Dimensions: 3.1" x 4.8" x 1.2"
    • Item Includes:

      • 1x GPI on RJ-45 connector for Tallies and Remote Switching
      • 1x RS422/485 on RJ-45 connector for Dynamic UMD and Tallies
      • 1x USB port for control and firmware updates
      • 1x Robust Aluminium box
      • 1x Metal Thread Locking DC Power Socket
      • 1x Power Supply, HDMI Cable and USB Cable
    • GTIN:
