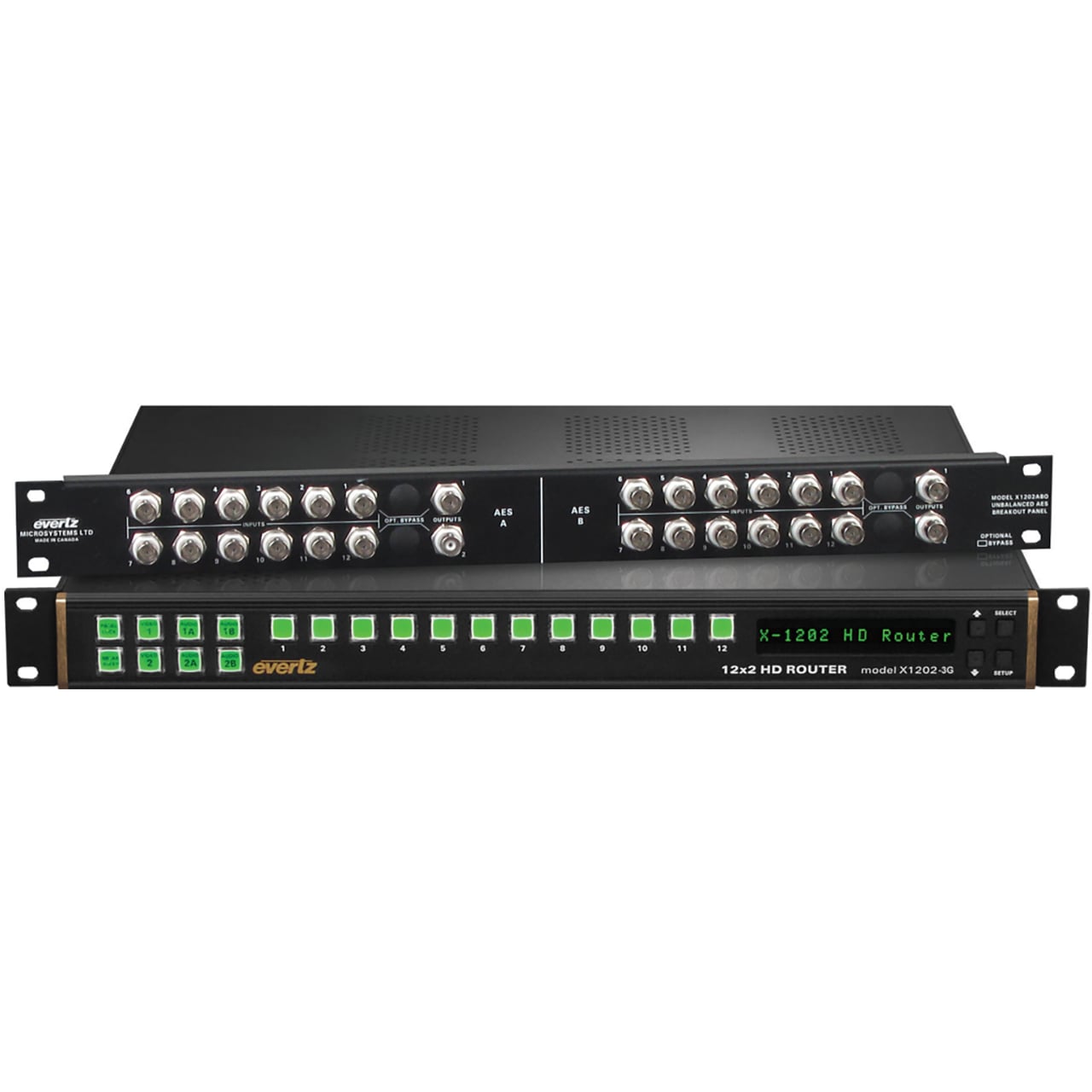

Evertz X-1202-HX - X-Series 12x2 1RU 3G / HD / SD-SDI Video and Audio Bypass Protected Router

Name: Evertz X-1202-HX - X-Series 12x2 1RU 3G / HD / SD-SDI Video and Audio Bypass Protected Router
Brand: Evertz
SKU: EVZ-X-1202-HX
Price: 7865.00 USD
Availability: InStock

ITEM #: EVZ-X-1202-HX MFG #: X-1202-HX

Evertz

Our Price:

$7,865.00

Add to Wish List Leasing Options

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

X-1202-HX - Overview

Provides a Convenient, Low Cost Way to Route High Definition and Standard Definition Serial Digital Signals.

The Evertz X-1202, supporting 3G/HD/SD SDI signals, is a twelve input routing switcher. The X-1202 routers are used for 3GB/s, 1.5GB/s, 270MB/s, 360MB/s, 540MB/s, and DVB-ASI serial digital signals. This router features the ability for redundancy protection with a bypass relay and optional dual power supplies (sold separately). The router electronics are housed in a 1RU rack mount frame and is controlled from the built-in front panel controls. Each model can also be purchased with an optional rack mount remote control panel that replaces the built-in control panel, or can be used as a second control panel. All units can also be controlled by Quartz over Ethernet, contact closures on the GPI control port, or through the RS-232 or RS-422 serial remote control port using industry standard switcher protocols.

Features:
- Supports SMPTE ST 424M (3GB/s), SMPTE ST 292-1 (1.5GB/s), SMPTE ST 259 (270, 360 or 540MB/s) and DVB-ASI video signals
- Switch point is fully controllable from the front panel
- Video input presence detection displayable on the front panel
- Front panel or remote control panel version available. Second control panel can be ordered for any version
- Programmable source input names available on the front panel
- Bypass verification test using main menu
- Programmable tally output bus
- GVG TEN-XL protocol and Quartz protocol are supported
- Video and audio input relay bypass for power failure bypass protection
- Optional dual power configuration (sold separately)
- Remote control via SNMP
Specifications:
- Standard: SMPTE ST 424-1 (3GB/s), SMPTE ST 292-1 (1.5GB/s), SMPTE ST 259 (270MB/s, 360MB/s, 540MB/s) and DVB-ASI
- Number of Inputs: 12x
- Connector: BNC per IEC 61169-8 Annex A
- Equalization: Automatic up to 150m@3G, 275m@HD, 475M@SD and with, bypass output 115m@3G, 200@HD, 450m@SD
- Input Range: Measured with respect to the Genlock reference ±1/2 line when Coarse phase = 1, Fine phase = 0

  Video Output
- Standard: SMPTE ST 424-1 (3GB/s), SMPTE ST 292-1 (1.5GB/s), SMPTE ST 259 (270MB/s, 360MB/s, 540MB/s) and DVB-ASI
- Number of Outputs: 2x per buss, 2x busses; Inputs 1 and 12 bypass protected
- Connector: BNC per IEC 61169-8 Annex A
- Signal Level: 800mV nominal
- DC Offset: 0V ±0.5V
- Output Phase: Measured with respect to the Genlock reference and adjustable line buffer is used for clean and quiet switching

  Video Reference
- Type: Menu selectable - depends on video format
- Connectors: 2x BNC per IEC 61169-8 Annex A
- Termination: High impedance loop through

  GPI Control Port
- Number of Inputs: 14x opto-isolated, programmable functions
- Number of Outputs: 4x sets of relay contacts, normally closed, Programmable functions
- Relay Max Rating: 1A at 30V DC

  Remote Control Panel Port
- Standard: RS-422, 9600 baud rate
- Connector: 9-pin female "D"
- Protocol: Remote Control Panel

  Serial Remote Control
- Standard: RS-232 or RS-422
- Baud Rate: Programmable
- Connector: 9 pin female "D"
- Protocol: GVG Ten XL Protocol, master, slave or quartz router protocol

  Electrical
- Power: Auto ranging 100V - 240V AC, 50/60Hz 40W
- Fuse: 250V, 1A time delay

  Physical
- Dimensions (LxWxH): 7.75" x 19" x 1.75" (196mm x 483mm x 45mm)
- Weight: 8lbs (3.5kg)
