AJA KUMO CP2 2RU Control Panel for All KUMO Routers

ITEM #: AJA-KUMO-CP2 MFG #: KUMO CP2

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:

$1,209.00

Availability: In Stock
iAvailability Description Popup


    KUMO CP2 - Overview

    The AJA KUMO CP2 is a 2RU, destination-oriented panel for plug-and-play control of AJA's complete line of compact KUMO SDI routers. Connecting via Ethernet to the same network as KUMO routers the KUMO CP2 enables full control from any location without the need for a computer. Up to four KUMO routers can be controlled from a single control panel and will support ganged dual and quad port routing allowing users to group together multiple inputs and outputs for Dual Link, 4K and Ultra HD workflows. In addition to HD and SD, every KUMO can route 2 or 4 grouped 3G-SDI connections, supporting uncompressed or RAW 4K and UltraHD signals.

    KUMO CP2 features 80 buttons and enables selection of up to 64 sources and 64 destinations on each of up to four KUMO routers in standalone mode or through a built-in GUI accessible from any web browser on the network.

    While KUMO routers can be controlled via the built-in web UI, connecting a KUMO CP2 to the network provides a familiar, computer-free solution for router control for all KUMO routers.

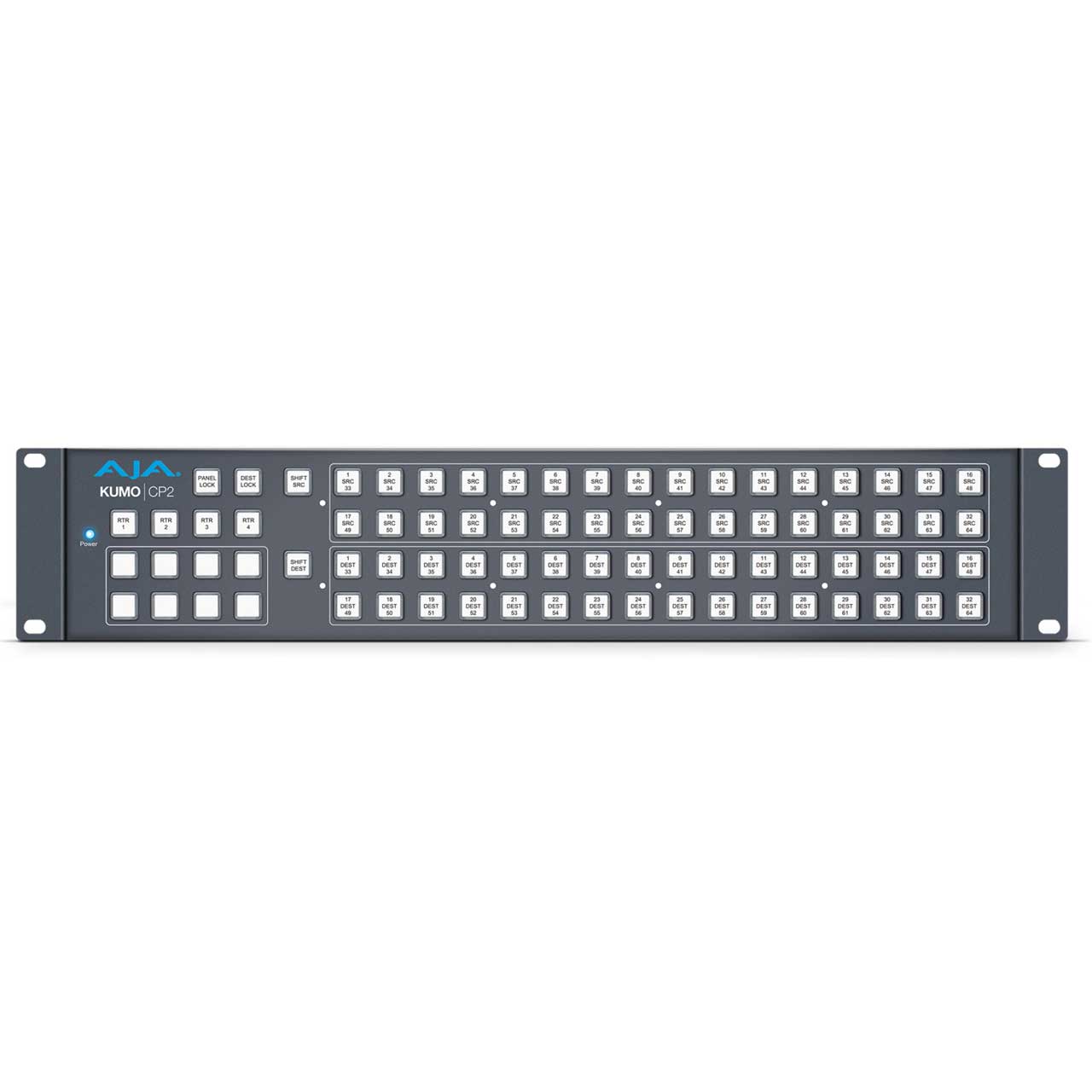

    KUMO CP2's front panel interface is easily recognized and understood by video engineers, tape operators and editors and provides a fast, tactile interface that can stand up to the rigors of daily use.

    • Features:

      • 2RU Control Panel for KUMO Routers
      • Small, portable form factor
      • Control up to 4x KUMOs per router
      • Support ganged dual and quad port routing
      • Eight salvos buttons per router
      • Redundant power supply (option)
      • Embedded web server for remote control
      • USB port to easily configure the router IP address

    • Specifications:

      • User Interface
      • 80 buttons with removable overcap for lens chips
      • Includes factory installed lens chip set
      • High and Low button tally indication, configurable brightness
      • Controls up to four KUMO routers
      • Panel Lock feature
      • Destination Lock feature

        Router Support
      • KUMO 1604
      • KUMO 1616
      • KUMO 3232
      • KUMO 6464
      • KUMO 1616-12G
      • KUMO 3232-12G

        Salvo
      • 8 Salvos buttons can be enabled to trigger a KUMO router's configured salvos.

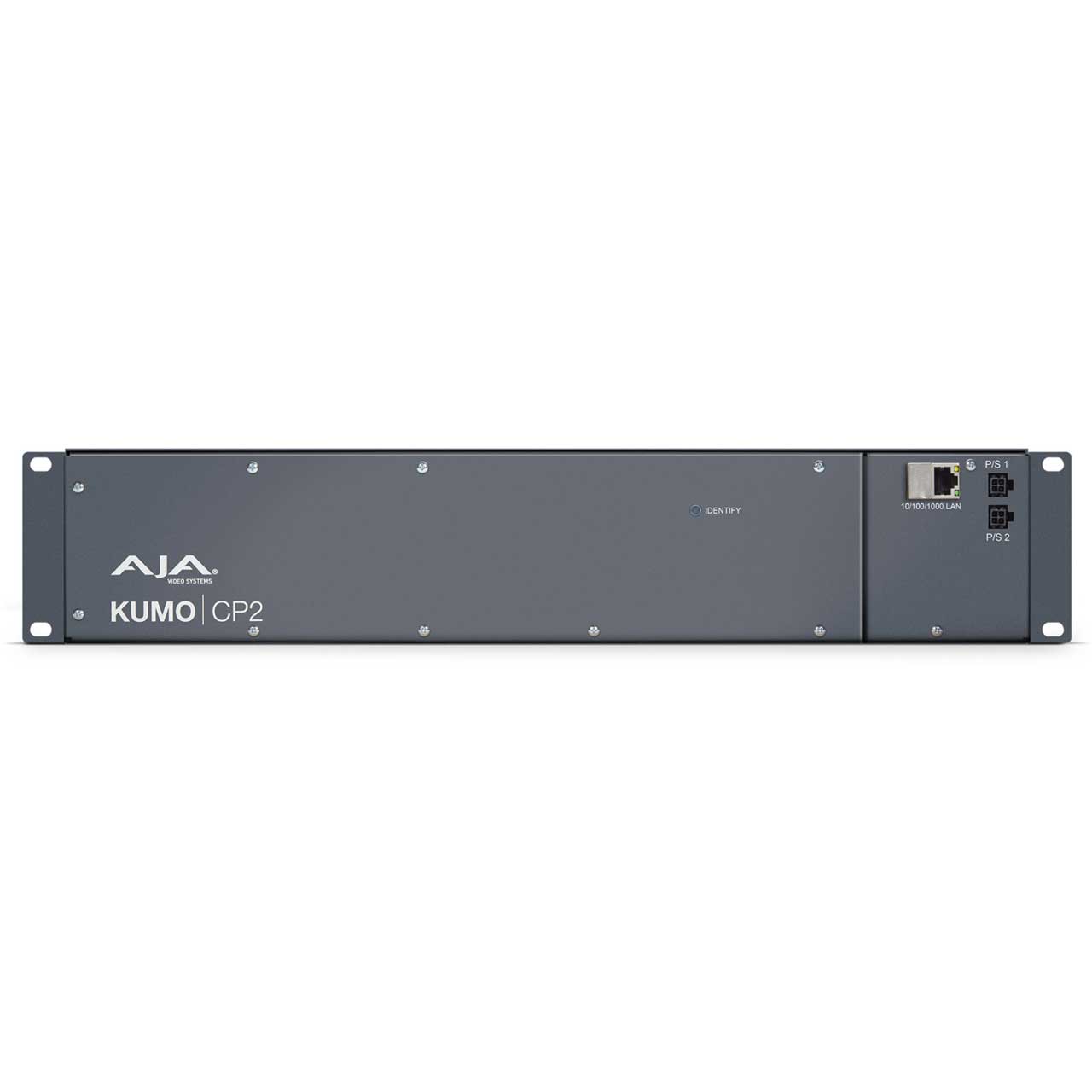

        Network Interface
      • 1x RJ-45, 10/100/1000 Ethernet
      • Embedded web server for remote control

        USB Interface
      • 1x Mini-USB for IP configuration using AJA eMini-Setup

        Dimensions (WxDxH)
      • 2RU - 17.4 x 1.3 x 3.5" (441.96 x 33.02 x 88.9mm)

        Weight
      • 2.1Lbs (1.0kg)

        Power
      • 10-14 VDC regulated, 4W typical, 9.6W max, power supply required, included with purchase
      • AC Adapter: 100-240VAC, 50/60 Hz, universal input

        Environment
      • Safe Operating Temperature: 0° to 40°C (32° to 104°F)
      • Safe Storage Temperature (Power OFF): -40° to 60°C (-40° to 140°F)
      • Operating Relative Humidity: 10 to 90% non-condensing
      • Operating Altitude: <3,000 meters (<10,000 feet)

    • Warranty:

      • 5 Year Warranty

    • GTIN:

      0892448000618
