AVMATRIX MMV1630 1RU 16 channel 3G-SDI MVS-16 Multiviewer & Switcher

ITEM #: LIL-MMV1630 MFG #: MMV1630

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

Our Price:

$1,399.00

Availability: In Stock
iAvailability Description Popup


    MMV1630 - Overview

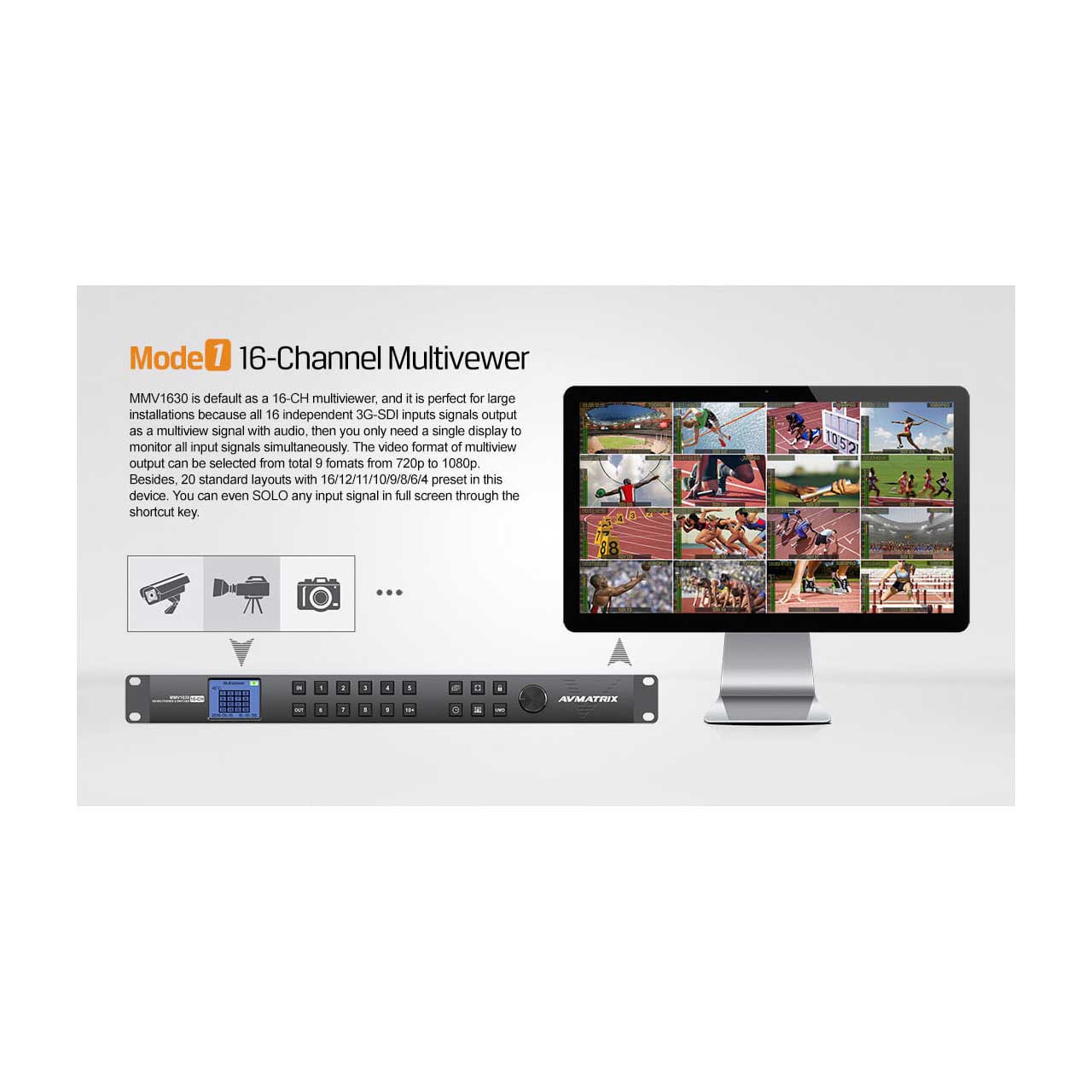

    The AVMATRIX MMV1630 is a 1RU 16 channel 3G-SDI Multiviewer & Switcher perfect for large broadcast projects. This one machine operates as either a 16 channel SDI Multiviewer or a 16x16 SDI Matrix Switcher with the input automatically detecting between SDI, HD or 3G-SDI. The video format of the Multiview output can be selected from a total of 9 choices, ranging from 720p to 1080p, and you can choose from 20 standard layouts with 16/12/11/10/9/8/6/4 presets. You even have the option to SOLO an input signal in full screen with the shortcut key. The MMV1630 also supports UMD, audio metering, signal status and time delay. All functions are at your fingertips with full control via included PC software or the front panel button and knob.

    • Features:

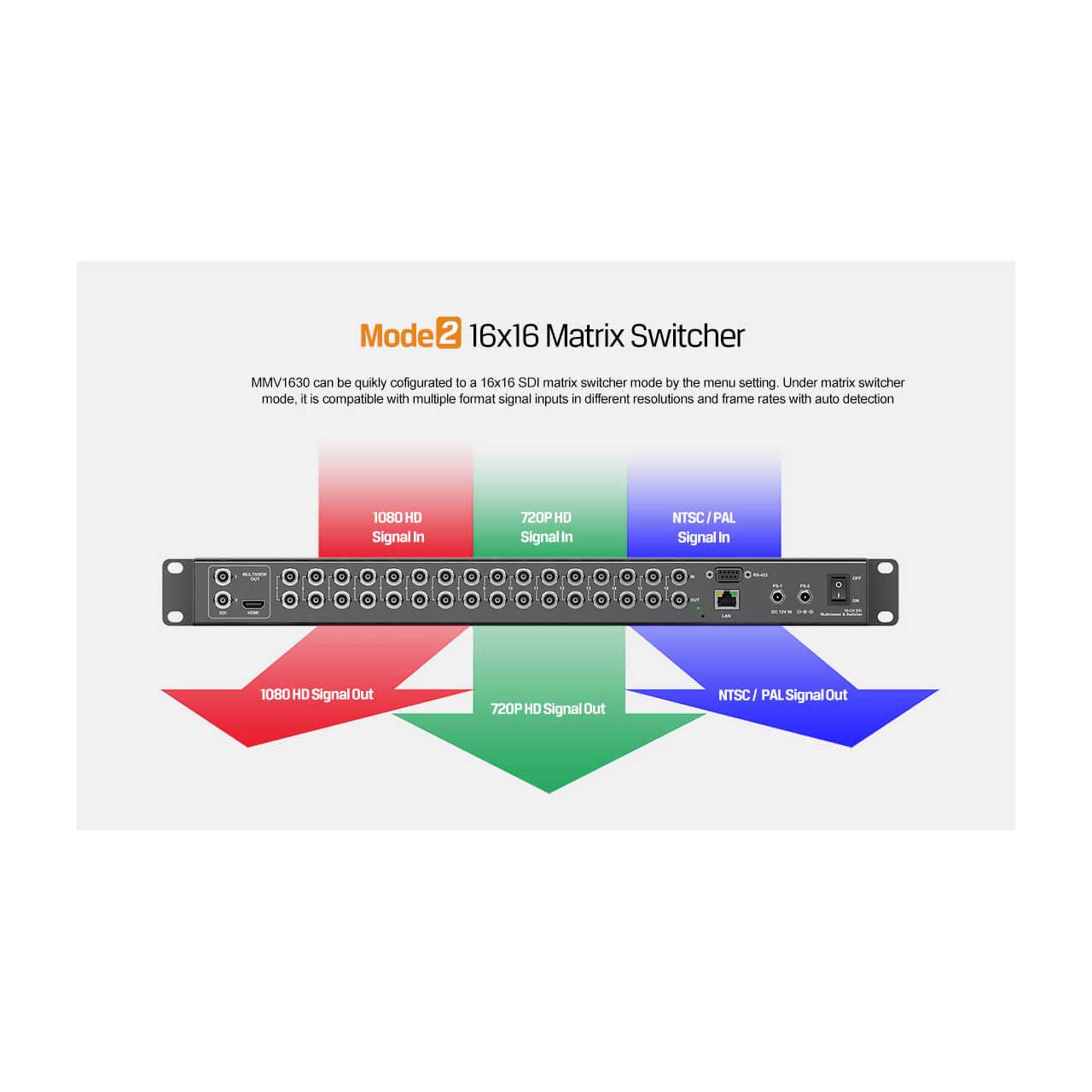

      • Dual modes! A 16 channel 3G-SDI Multiviewer and 16x16 Matrix Switcher.
      • 16 x 3G-SDI Auto-Detected inputs
      • 2x3G-SDI and 1 x HDMI multiview, scaling outputs with audio
      • Fulll screen and 20 preset multiview layouts with clock display
      • Time Code, UMD, signal status and audio meter overlay

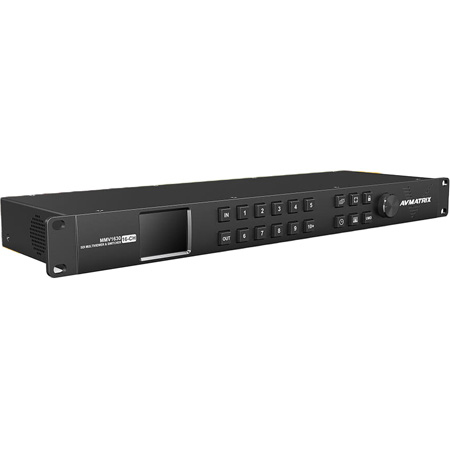

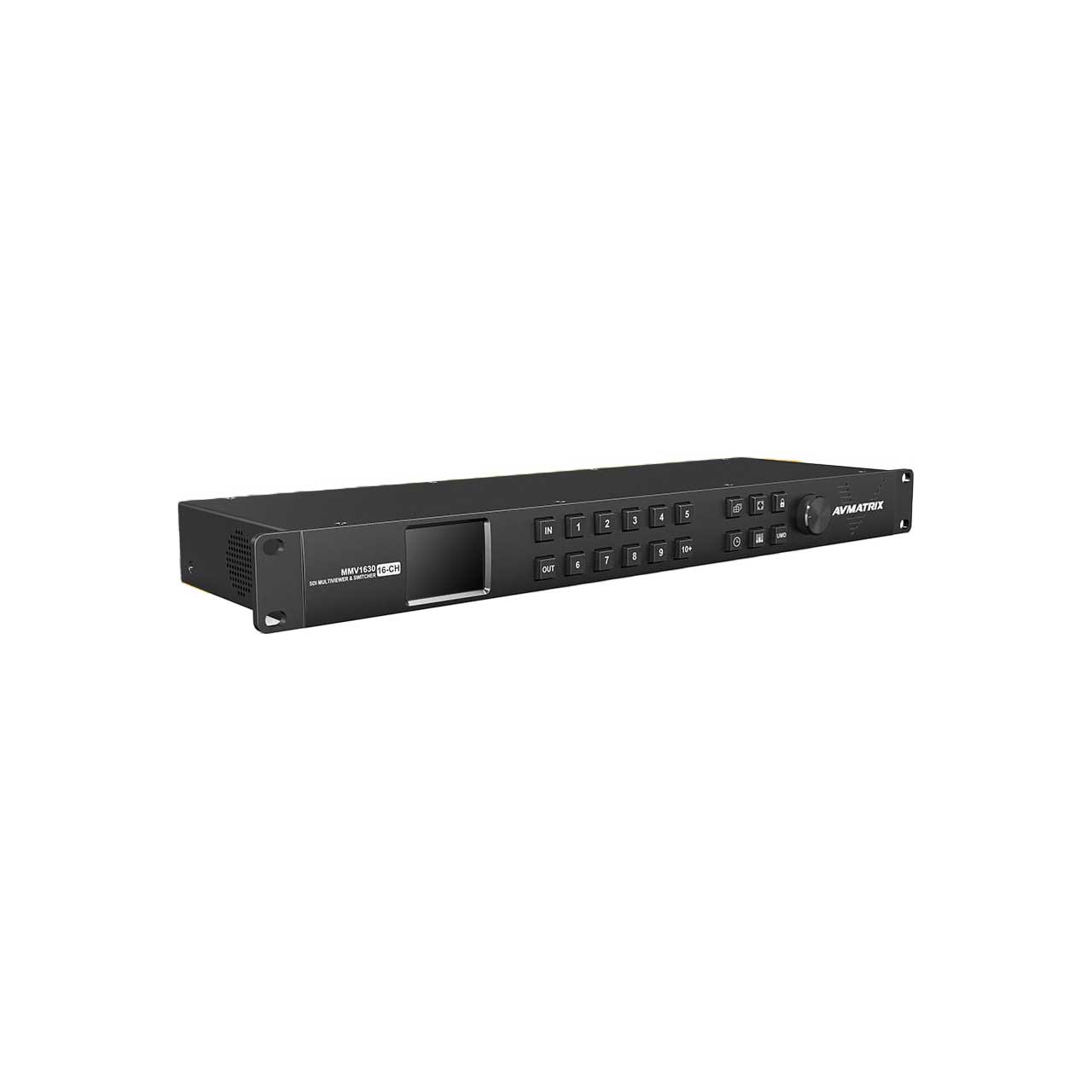

      • Front panel buttons and control knob with LCD display
      • Free PC control software vis LAN port

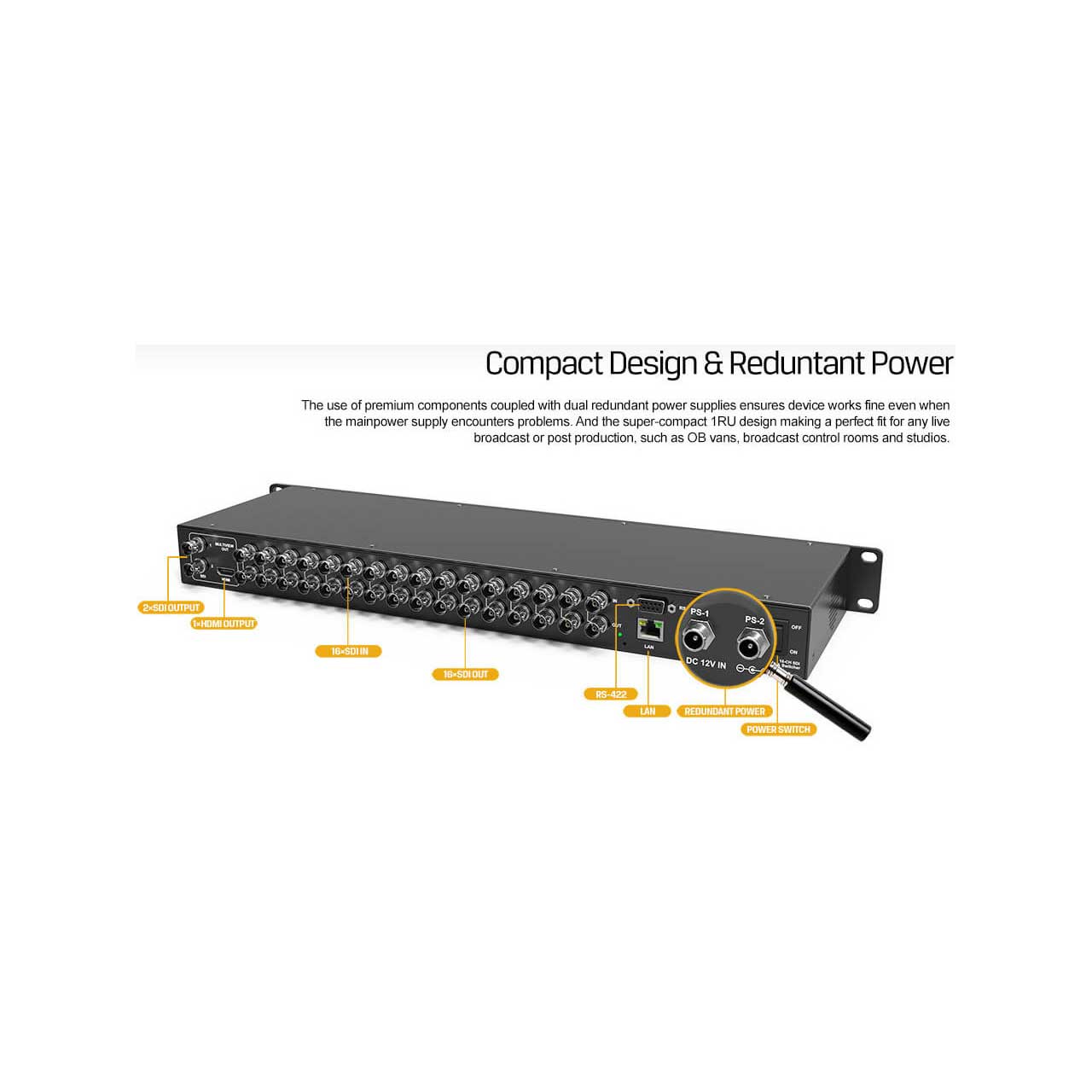

      • Dual power design with redundant power

    • Specifications:

      • SDI Input Formats
      • 1080p - 60/59.94/50/30/29.97/25/24/23.98
      • 1080psf - 30/29.97/25/24/23.98
      • 1080i - 60/59.94/50
      • 720p - 60/59.94/50/30/29.97/25/24/23.98
      • 625i - 50 PAL / 525i 59.94 NTSC
      • SDI Compliance: ST259M/292M/296M/372M/424M/425M
      • SDI Color Space: 8, 10, 12-bit RGB444, YUV422, YUV444
      • Multi Viewer Out: SDI and HDMI at 1080P/720P 25/30/50/60
      • Video Rates: Auto Detect SD, HD, 3G-SDI
      • Controls: Front Panel Buttons, RS-422, LAN
      • Power: 2x Redundant 6-24VDC @ 10W
      • Video Connections: 34x Full SizeBNC, 1x Full Size HDMI
      • SDI Video Rates: 3G/HD/SD - Level A

        Video Standards
      • 525i - 59.94 NTSC, 625i 50 PAL
      • 720p - 23.98,24,25,29.97,30,50,59.94,60
      • 1080p - 23.98,24,25,29.97,30,50,59.94,60
      • 1080psf - 23.98,24,25,29.97,30
      • 1080i - 50,59.94,60

        SDI Compliance
      • SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 352M, SMPTE 424M

        Audio
      • Up to 16 Embedded Audio Channels passthrough

        SDI Color Precision
      • RGB 4:4:4, YUV 4:2:2/4:4:4

        Multiple Rate Support
      • Auto Detect - SD/HD/3G-SDI

        MultiViewer SDI and HDMI Outputs
      • 1080P - 24,25,30,50,60
      • 720P - 50,60
      • 1080i - 50,60

    • Item Includes:

      • One 16 channel 3g-SDI Multiviewer with Switcher
      • One DC 12volt, 5 amp power adapter

    • Warranty:

      • 3 year limited

    • GTIN:

      6971118000098
