Gefen EXT-DVI-FMP DVI FM Extender PLUS

ITEM #: EXT-DVI-FMP MFG #: EXT-DVI-FMP

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

List Price:

$831.60

Our Price:

$541.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    EXT-DVI-FMP - Overview

    The DVI FM Extender Plus from Gefen is distribution system designed to transport DVI signals over extended distances using fiber-optic cable. This solution can be used to transport signals up to 2000'.

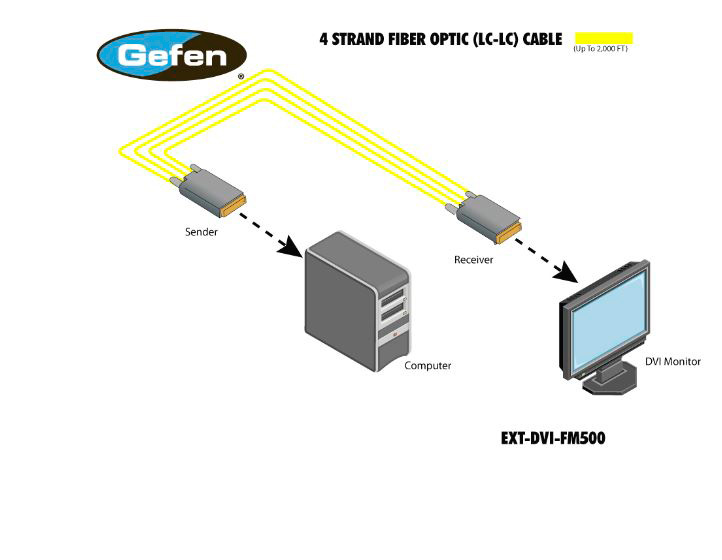

    It consists of a transmitter that plugs into your computer and a receiver that connects to your display. The transmitter sends DVI signals over multi-mode fiber-optic LC cable to the receiver, which in turn translates the signal back into DVI format.

    This unit supports resolutions up to 1080p, 2k, and 1920 x 1200. Also supported is DDWG standard for DVI-compliant monitors. It also features EDID programming to enable quick and correct sync of source to display.

    DVI over Fiber-Optic Cable Use this device to extend DVI signals by transmitting over fiber-optic cable.
    Transmission Distance This unit supports cable runs of up to 2000'.
    Standards It supports DDWG standards for DVI monitors & EDID programming.
    Resolution Resolutions up to 1080p, 2k, and 1920 x 1200 are supported.

    • Features:

      • DVI over Fiber-Optic Cable
      • Supports Cable Runs Up to 2000'
      • Resolutions Up to 1080p, 2k, 1920 x 1200
      • DDWG Standards
      • EDID Programming

    • Specifications:

      • Input
      • Transmitter:
      • (1) dual-link DVI 19-pin female

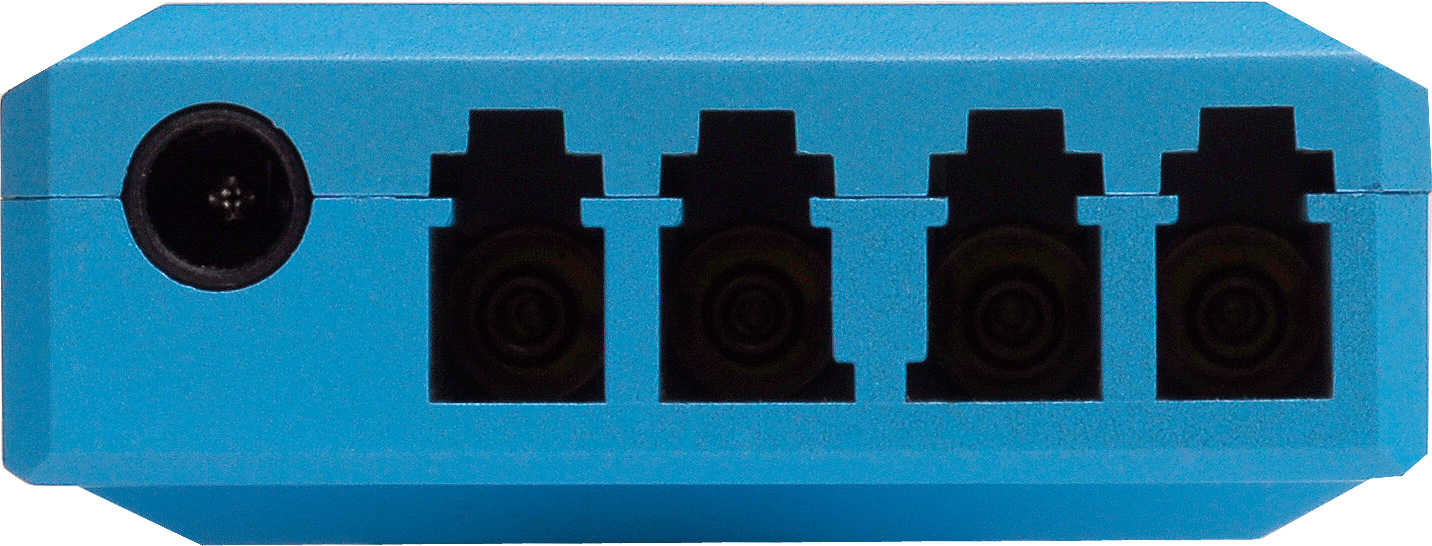

      • (4) fiber-optic LC
      • Output
      • Receiver:
      • (1) dual-link DVI 19-pin female
      • (4) fiber-optic LC
      • Resolution Up to 1080p, 2k, 1920 x 1200
      • Input Signal Input Video Signal: 1.2Vp-p, Input DDC Signal: 5Vp-p (TTL).
      • Bandwidth 165MHz
      • Power 5VDC, 2.5W maximum (each power supply)
      • Dimensions (HxWxD) 0.5 x 2.2 x 1.5"
      • Weight 1 lbs

    • Item Includes:

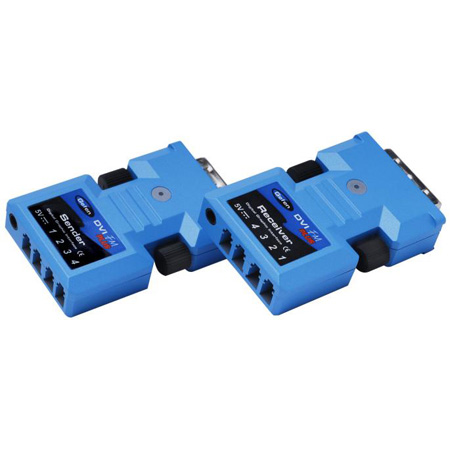

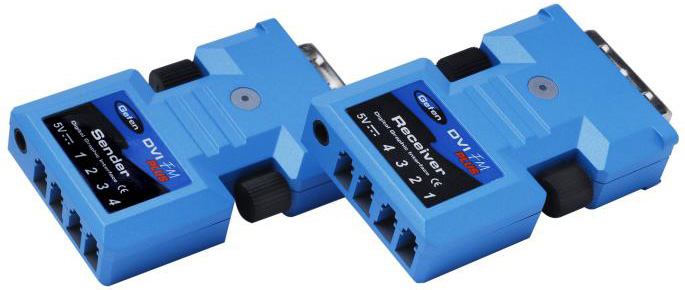

      • Gefen DVI FM Extender Plus
      • DVI FM Plus Transmitter
      • DVI FM Plus Receiver
      • 2 x 5VDC Power Supplies
      • User's Manual
      • Two-Year Warranty Against Defects in Material & Workmanship

    • GTIN:

      0845344095059
