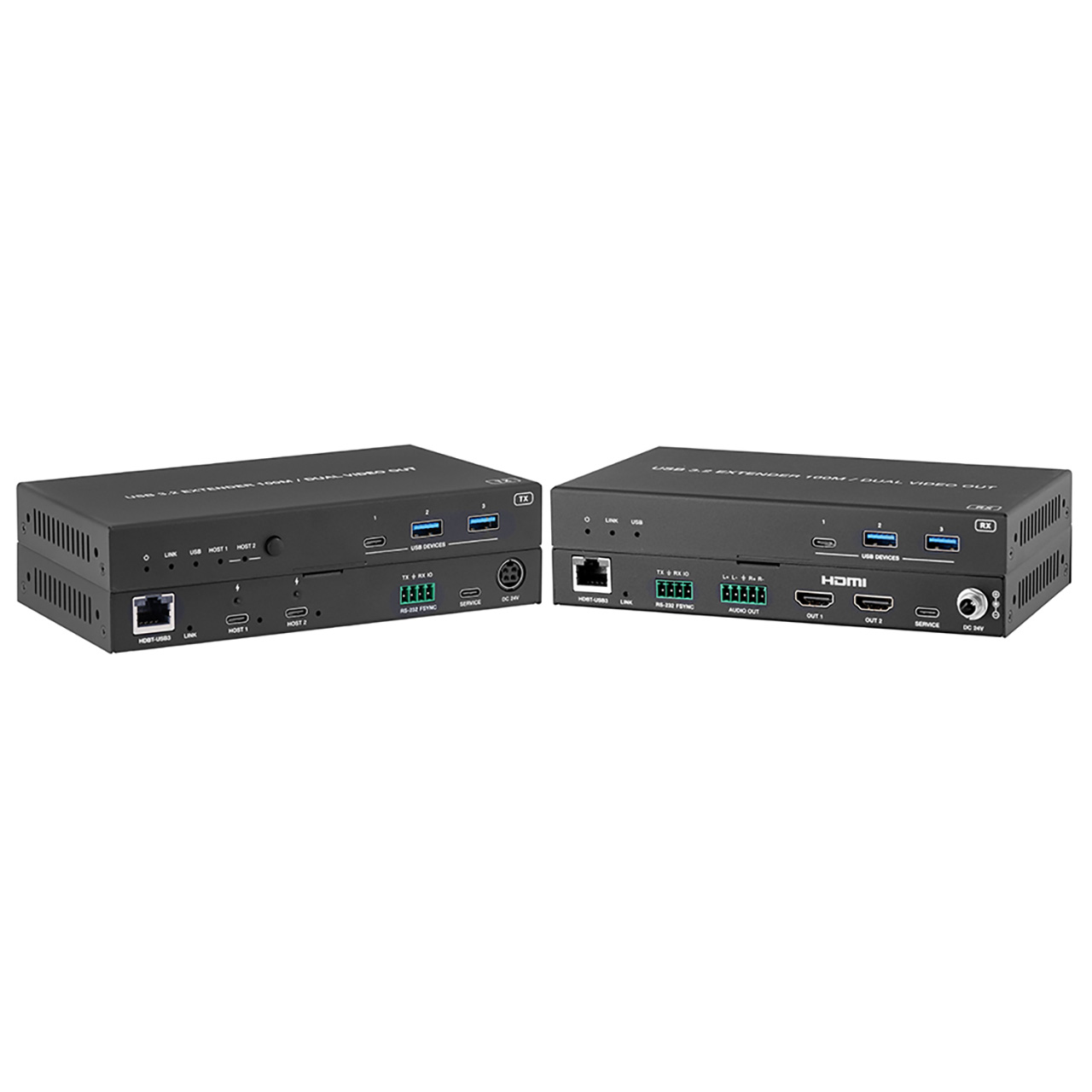

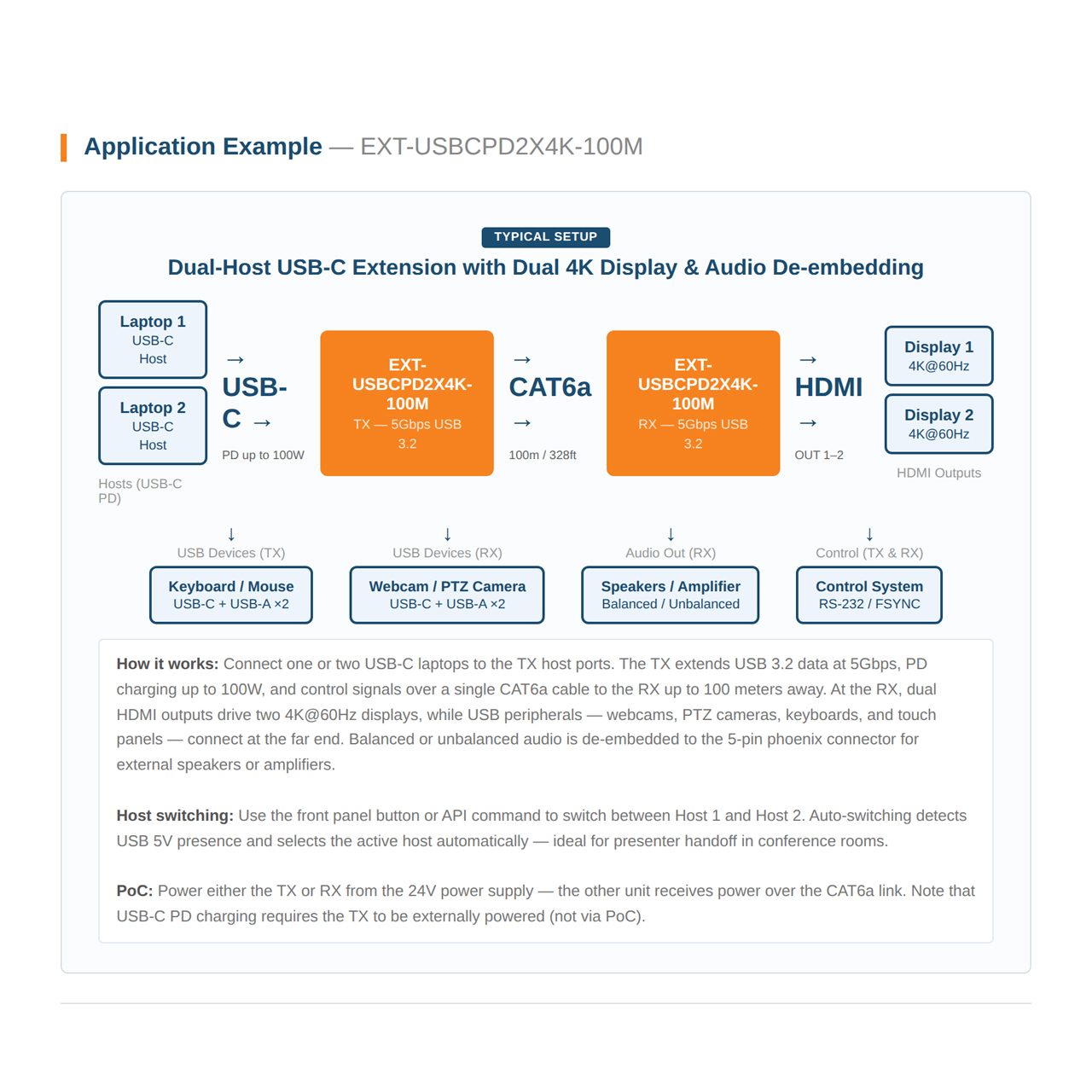

Extend two USB-C host laptops to a remote location up to 100 meters away with dual 4K displays, USB peripherals, analog audio, and control over a single CAT6a cable. The KanexPro EXT-USBCPD2X4K-100M is a 5Gbps USB 3.2 Gen 1 extender kit that delivers full USB-C docking station functionality at distances far beyond standard cable limits. Two selectable USB-C host ports on the transmitter support auto/manual switching for seamless presenter handoff, while USB-C PD charging up to 100W powers laptops directly from the TX.

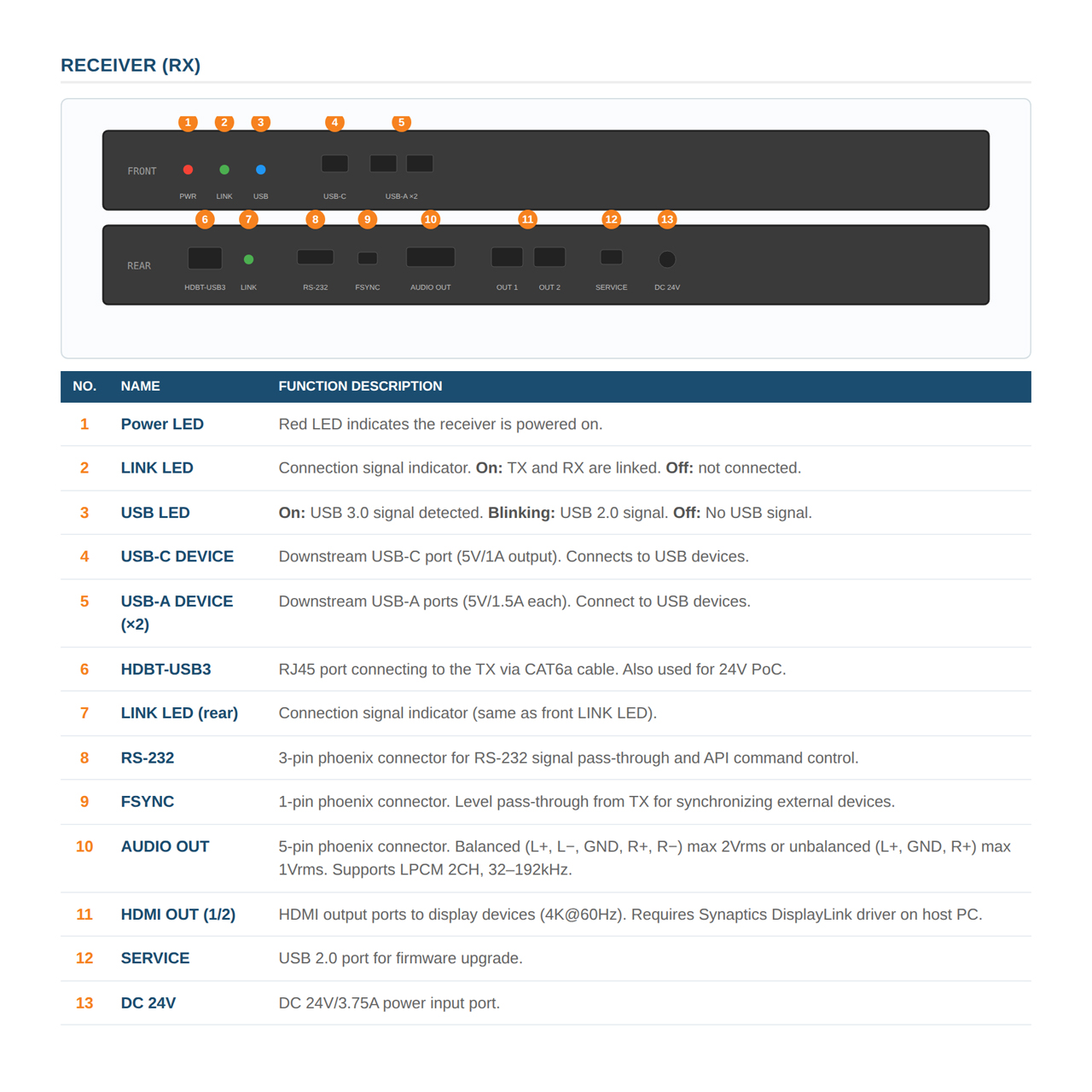

At the receiver, dual HDMI 2.0b outputs deliver mirrored or extended displays at up to 4K@60Hz with HDCP 2.2 compliance. Balanced and unbalanced analog audio is de-embedded via a 5-pin Phoenix connector for integration with existing speaker systems. Three downstream USB device ports on each unit support webcams, PTZ cameras, keyboards, mice, and touch panels. RS-232 pass-through enables third-party control system integration, while FSYNC GPIO provides industrial camera synchronization. Bi-directional 24V PoC allows flexible power deployment at either end of the cable run.
