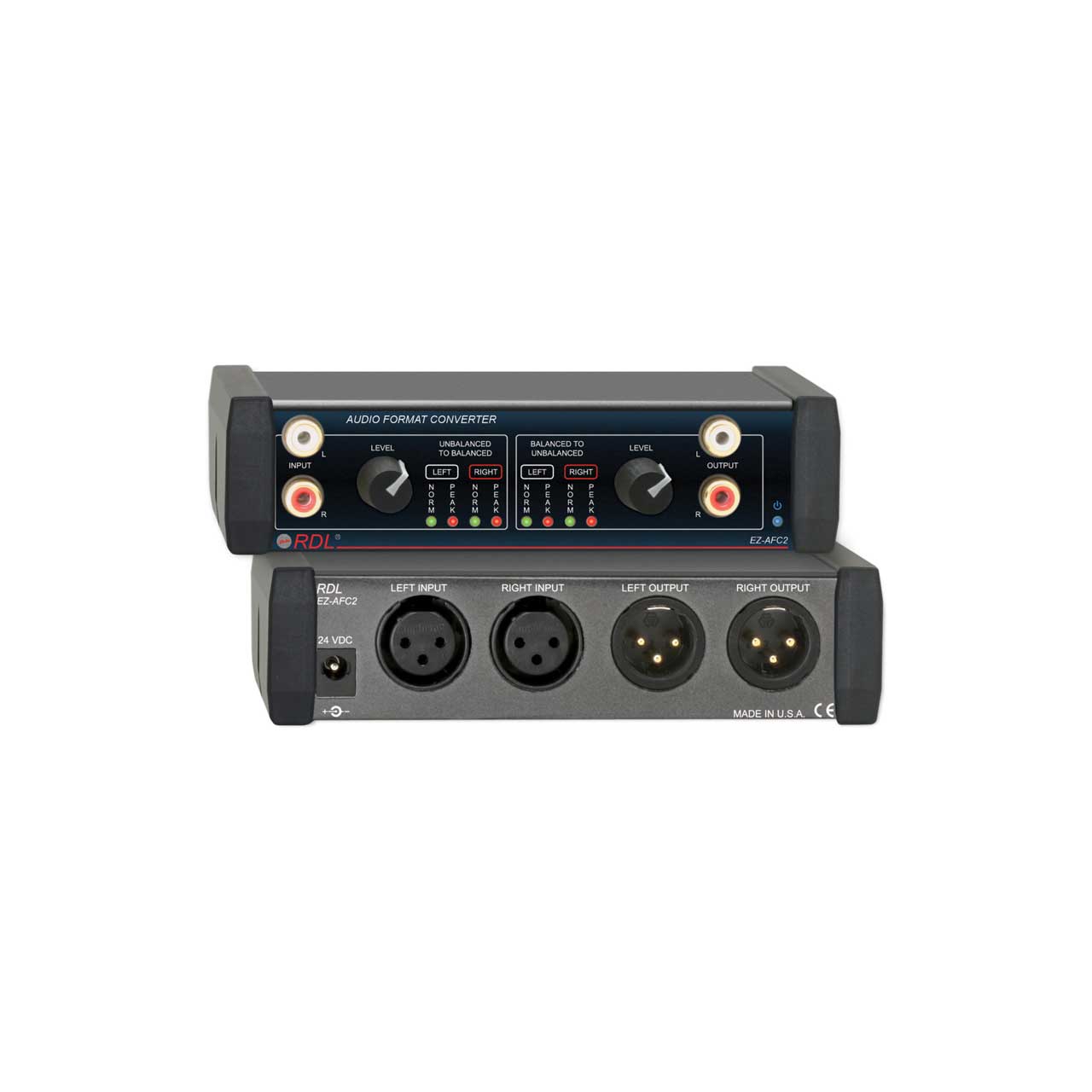

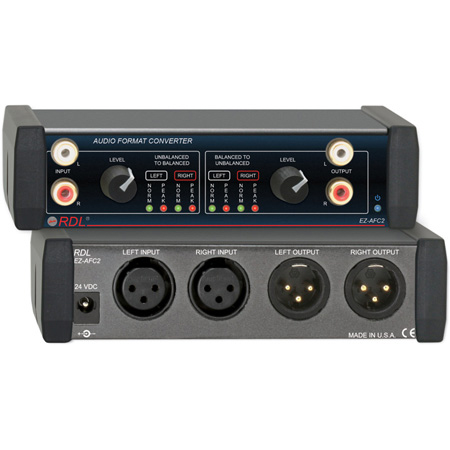

RDL EZ-AFC2 Stereo Balanced to Unbalanced Audio Format Converter

EZ-AFC2 - Overview

• Features:

  • Unbalanced to Balanced Audio Conversion
  • Balanced to Unbalanced Audio Conversion
  • Unbalanced RCA Connections on Front Panel
  • Balanced XLR Connections on Rear Panel
  • Front-Panel LEVEL Controls
  • Dual-LED VU Meter for Each Channel

    Advantages:
  • Gold-Plated Connectors
  • Front-Panel Stereo Audio Metering
  • Knob for Easy Level Adjustment
  • Exceptional Headroom and Frequency Response


• Specifications:

  • Unbalanced to Balanced Section
  • Input: Stereo on dual RCA jacks, > 10 kΩ, -10 dBV nominal, +16 dBV max.
  • Level control: Off to 12 dB gain above nominal
  • Output: Stereo on dual XLR jacks, +4 dBu nominal, +26 dBu max.
  • Frequency Response: 10 Hz to 50 kHz (±0.01 dB)
  • THD+N: < 0.01%
  • Metering: Dual-LED VU Meter for Left and Right, calibrated to +4 dBu output
  • Crosstalk: < 75 dB (1 kHz)
  • Noise: < -85 dB (below +4 dBu output).

    Balanced to Unbalanced Section
  • Input: Stereo on dual XLR jacks, +4 dBu nominal, +26 dBu max.
  • Level control: Off to 12 dB gain above nominal
  • Output: Stereo on dual RCA jacks, -10 dBV nominal, +17 dBV max.
  • Frequency Response: 10 Hz to 50 kHz (±0.01 dB)
  • THD+N: < 0.003%
  • Crosstalk: < 80 dB (1 kHz)
  • CMRR: > 50 dB (50 Hz to 120 Hz)
  • Metering: Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output
  • Noise: < -75 dB (below +4 dBu output)


  • 24 Vdc power supply current: 45 mA (idle), 90 mA (max.)
  • Case dimensions: 5.75” (14.6 cm)W x 3” (7.6 cm)D
  • Mounting size: 1/3 rack width.


• GTIN:

  0813721010032
