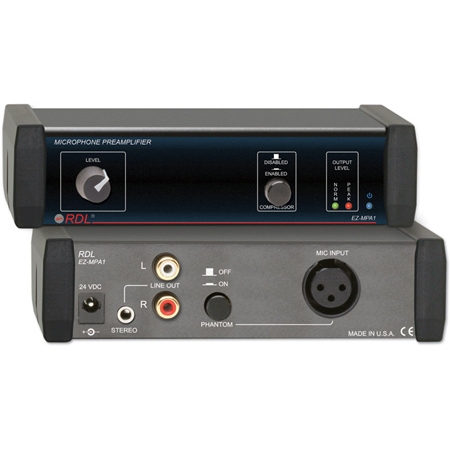

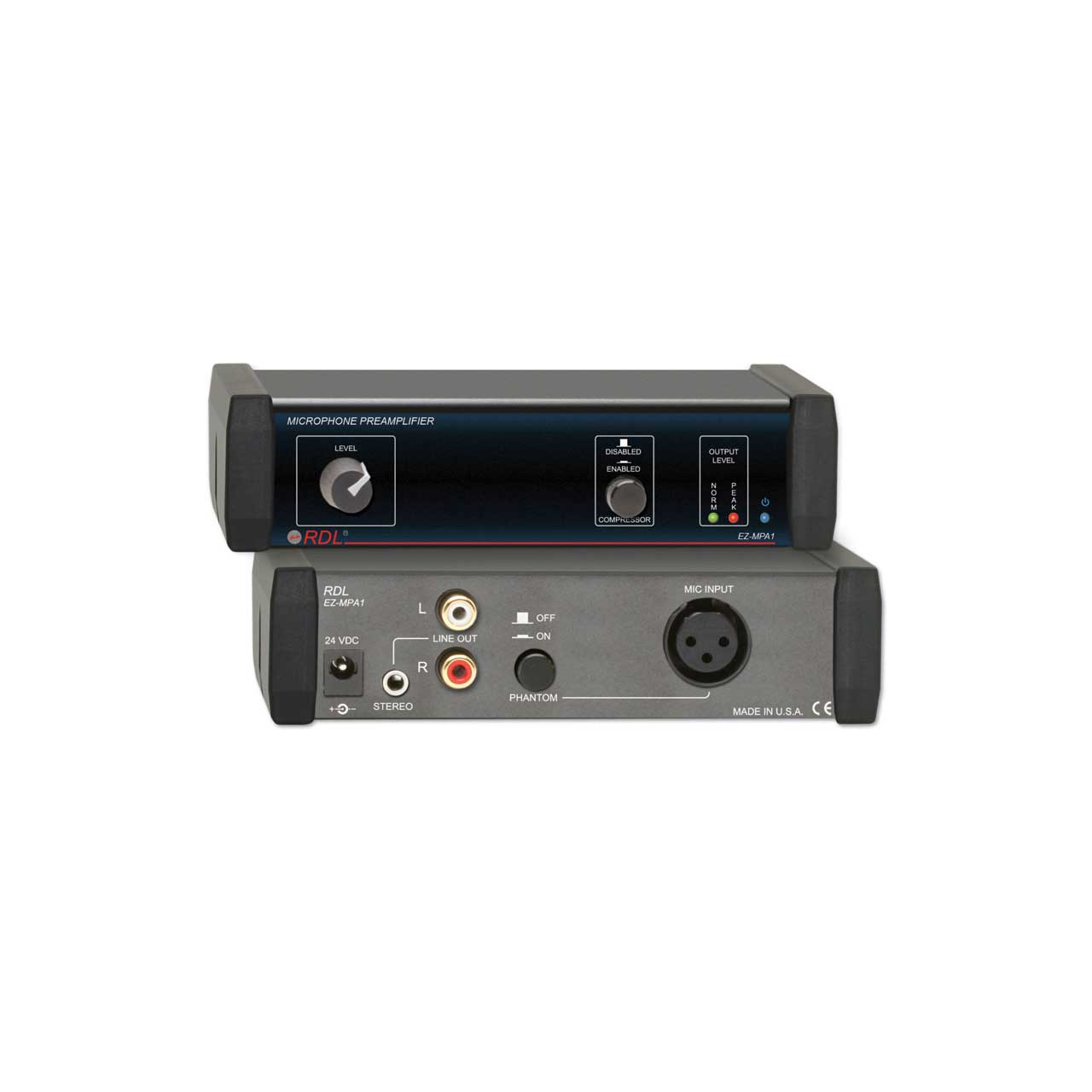

RDL EZ-MPA1 Stereo Output Microphone Preamplifier

ITEM #: EZ-MPA1 MFG #: EZ-MPA1

free ship

List Price:

$258.97

Our Price:

$178.43

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    EZ-MPA1 - Overview

    The EZ series offers unparalleled flexibility. Each unit is fully labeled on the front and rear for use either as a finished product or as a utility module. Installation of multiple products is quick and easy using the comprehensive range of EZ rack mounts, chassis, bezels, drawers and accessories. High quality full-size switches, long life controls, quality connectors, solid-state audio and video switching, gold plating and superior engineering combine to make EZ the best value in the industry. EZ products are attractive, reliable, packed with features and are simple to install and operate. When long-term performance, quality and value matter, the choice is EZ.

    • Features:

      • Balanced Microphone Input on Rear-Panel XLR
      • Switch-Selectable Phantom on Rear Panel
      • Unbalanced Output on MINI or RCA Rear-Panel Jacks
      • Preamp Feeds Left and Right Output Channels
      • Front-Panel Compressor Enable/Disable Switch
      • Audio Compressor Controls Overloads
      • Front-Panel LEVEL Control
      • Dual-LED VU Meter
      • Optimized for Dynamic or Condenser Mics
      • Headroom Accomodates High Input Levels
      • Headroom Increases with Lower Gain Settings
      • Compressor Limits Clipping Over Wide Dynamic Range

    • Specifications:

      • Input: 1.2 k Ohm balanced on XLR jack, mic-level, -11 dBu max.
      • Level control: Off to 50 dB gain
      • Outputs (2): -10 dBV nominal on RCA jacks or Mini jack, +16 dBV max. without compression, -4 dBV max. with 20 dB compression
      • Frequency Response: 80 Hz to 40 kHz (±1 dB, mic input, -6 dB at 20 Hz with integral high-pass filter), THD+N: < 0.1% (35 Hz to 20 kHz, -50 dBu input)
      • Compression: 20 dB range, switch-selectable
      • CMRR: > 55 dB (20 to 20 kHz)
      • Metering: Dual-LED VU Meter, calibrated to -10 dBV output
      • Phantom: Switch-selectable 24 V (IEC 1938: 1996-12)
      • Noise: < -65 dB (below -10 dBV output, -50 dBu input)
      • 24 Vdc power supply current: 55 mA (idle), 80 mA (max.), 100 mA (max. with phantom
      • Case dimensions: 5.75" (14.6 cm)W x 3" (7.6 cm)D
      • Mounting size: 1/3 rack width.
      • Power supply included

    • GTIN:

      0813721010094
