Rupert Neve Designs 5017 Portico Mobile Mic Preamp / DI / Compressor

5017 - Overview

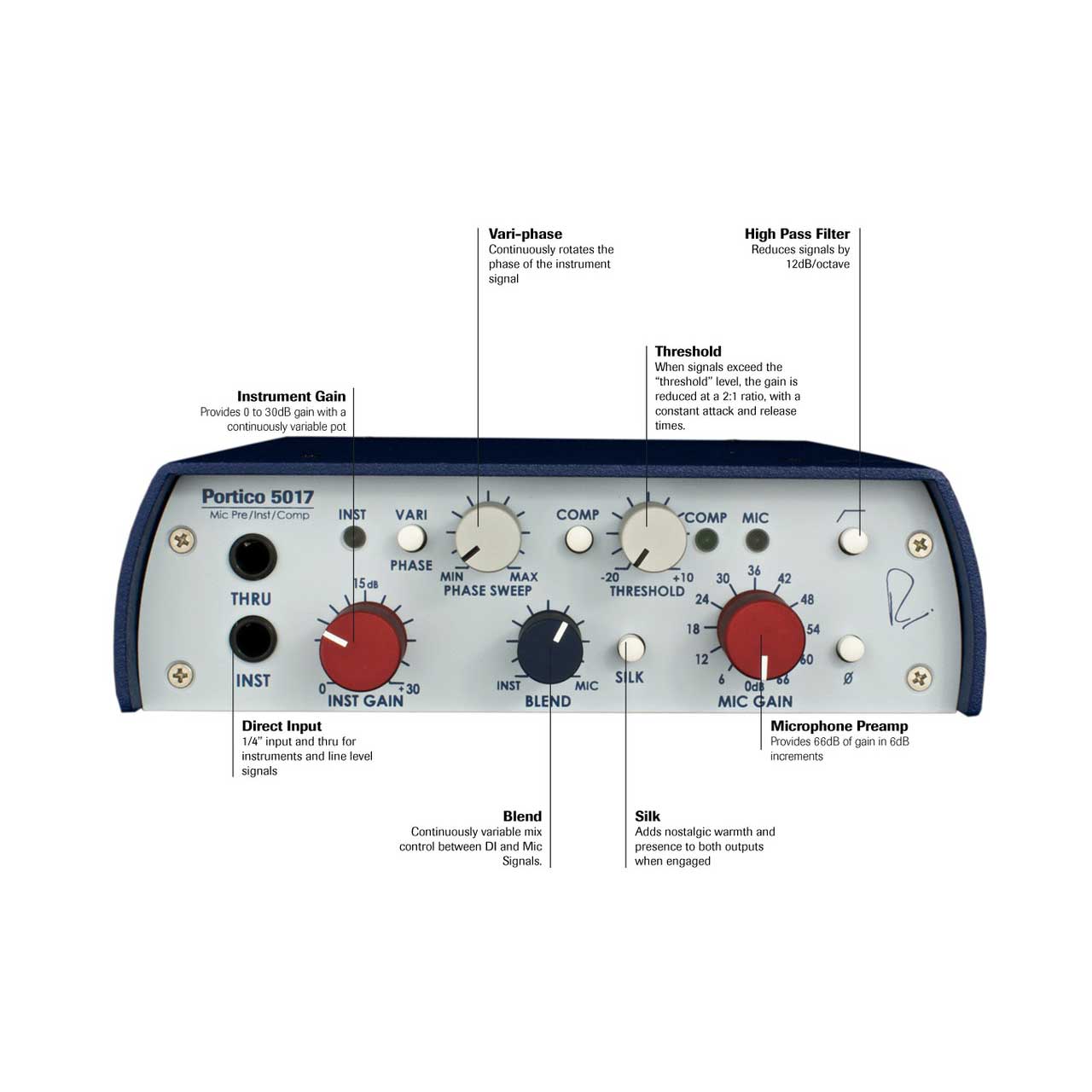

• Features:

  • Portico mic preamp with Silk for everything from modern to vintage sounds.
  • DI Instrument input with separate gain control to handle any instrument you can throw at it.
  • Blend and Variphase circuits to blend the mic and DI input and correct the phase alignment.
  • Optical compressor for an easy way to control levels.
  • High-pass filter.
  • Classic Rupert Neve sound in a portable easy to use package.


• Specifications:

  • Frequency Response:
  • Main Output, no load,
  • –0.2 dB @ 10 Hz
  • –3 dB @ 160 kHz

    Noise:
  • Measured at Main Output, unweighted, 22Hz-22kHz, Terminated 150 Ohms.
  • With gain at unity better than –100 dBu
  • With gain at 66 dB better than –62 dBu
  • Equivalent Input Noise better than –128 dBu
  • Noise Factor 1.5dB

    Maximum Output Level:
  • Maximum output from 20 Hz to 40 kHz is +23 dBu.

    Total Harmonic Distortion and Noise:
  • @ 1kHz, +20 dBu output: Main Output: Better than 0.001%
  • @ 20Hz, +20 dBu output: Main Output: Better than 0.002%
  • Silk Engaged: Better than 0.2% Second harmonic

    Crosstalk:
  • Measured channel to channel: Better than –90 dB @ 15kHz.

    Phantom Power:
  • +48 Volts DC +/- 1%


• Item Includes:

  • 1x 5017 Mobile Mic Preamp
  • 1x PSU Cable
  • 1x Manual


• Warranty:

  • 1 Year Warranty


• GTIN:

  0752423657032
