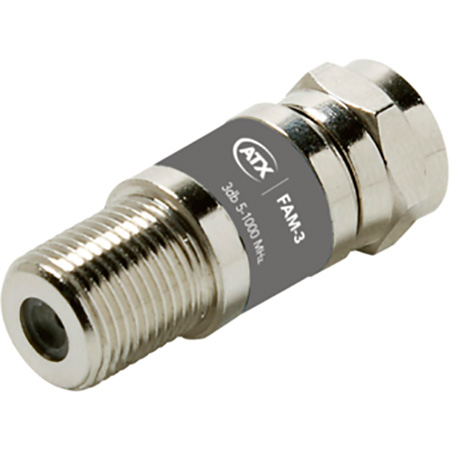

ATX Networks FAM-3 In-Line Attenuator Pad - F Male to F Female - 3dB

ITEM #: FAM-3 MFG #: FAM-3

Primary Image

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the FAM-3

FAM-3 - Overview

The ATX Networks FAM-3 is an in-line 3db attenuator pad. The FAM-3 helps Reduces RF signal strength to reduce intermodulation caused by high input levels.

  • Features:

    • Reduces RF signal strength to reduce intermodulation caused by high input levels
    • Precision SMD monolithic ceramic printed circuit board
    • Etched glazed type resistors
    • Return loss 20dB typical
    • Attenuation values 1, 3, 6, 8, 10, 12, 16, 20dB
    • Flatness 0.5dB
    • 1% Tolerance components
    • 22-Gauge spring steel center
    • Nickel plated precision machined brass


  • Specifications:

    • Bandwidth (MHz): 5~1000MHz
    • Flatness 5MHz-1GHz: <0.5
    • Insertion Loss @ 1GHz: value ±1dB
    • Return Loss @ 1GHz: >20dB
