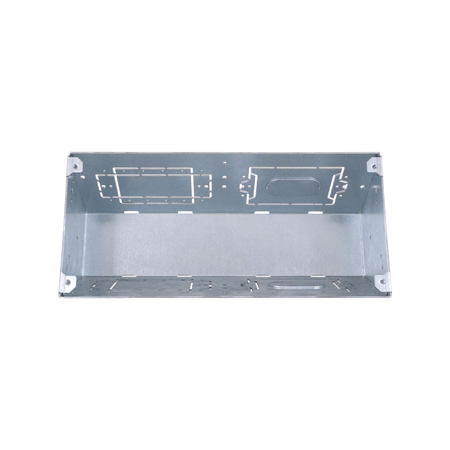

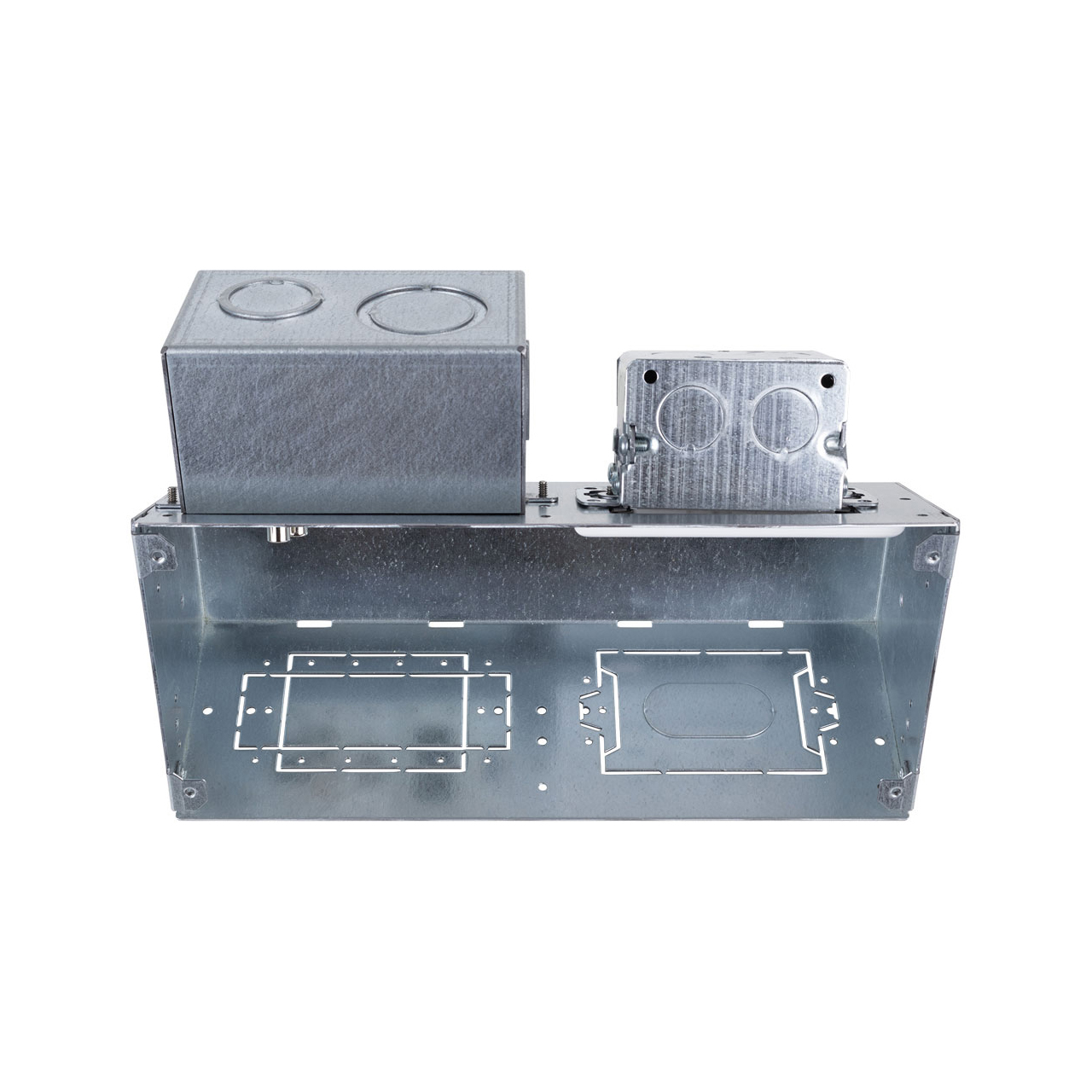

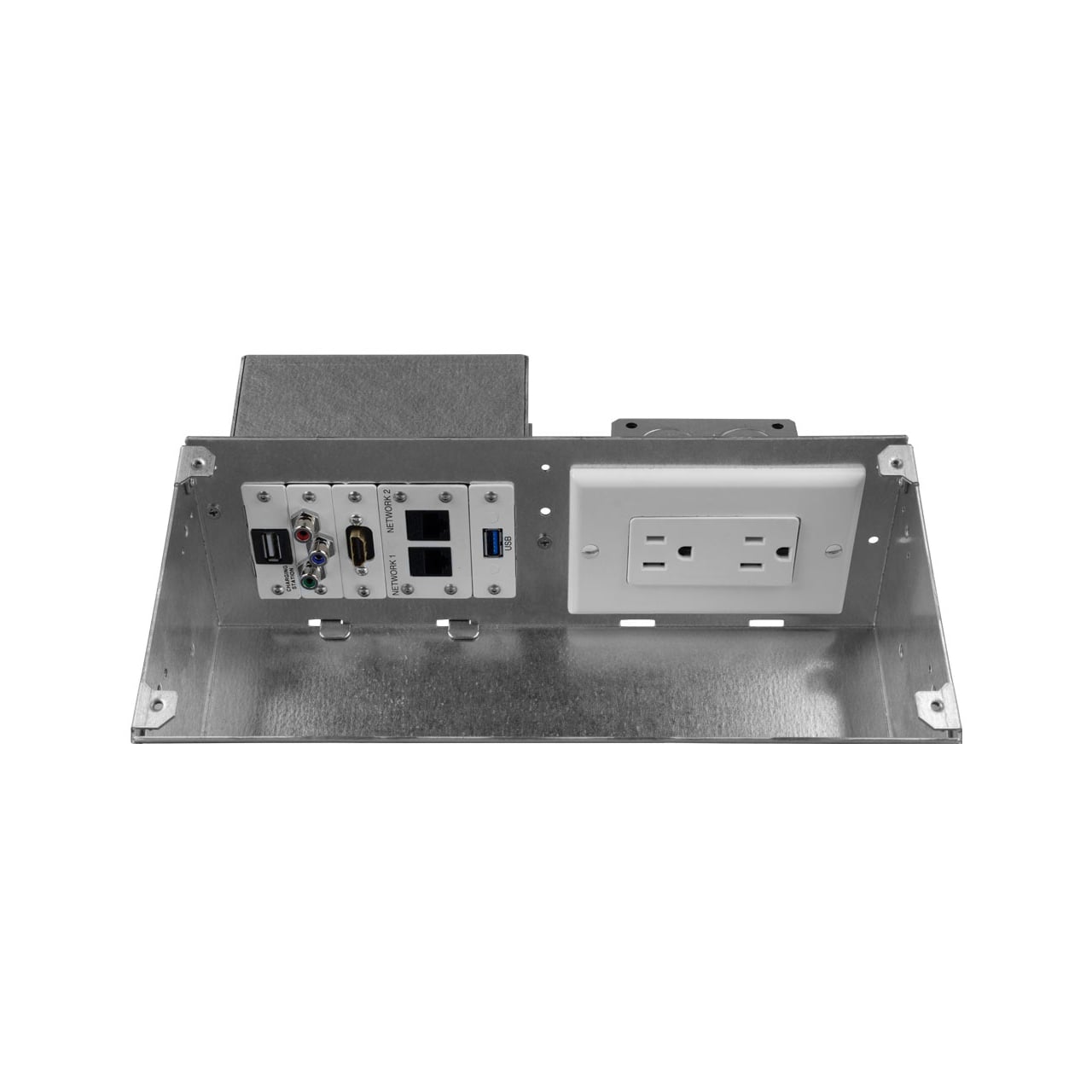

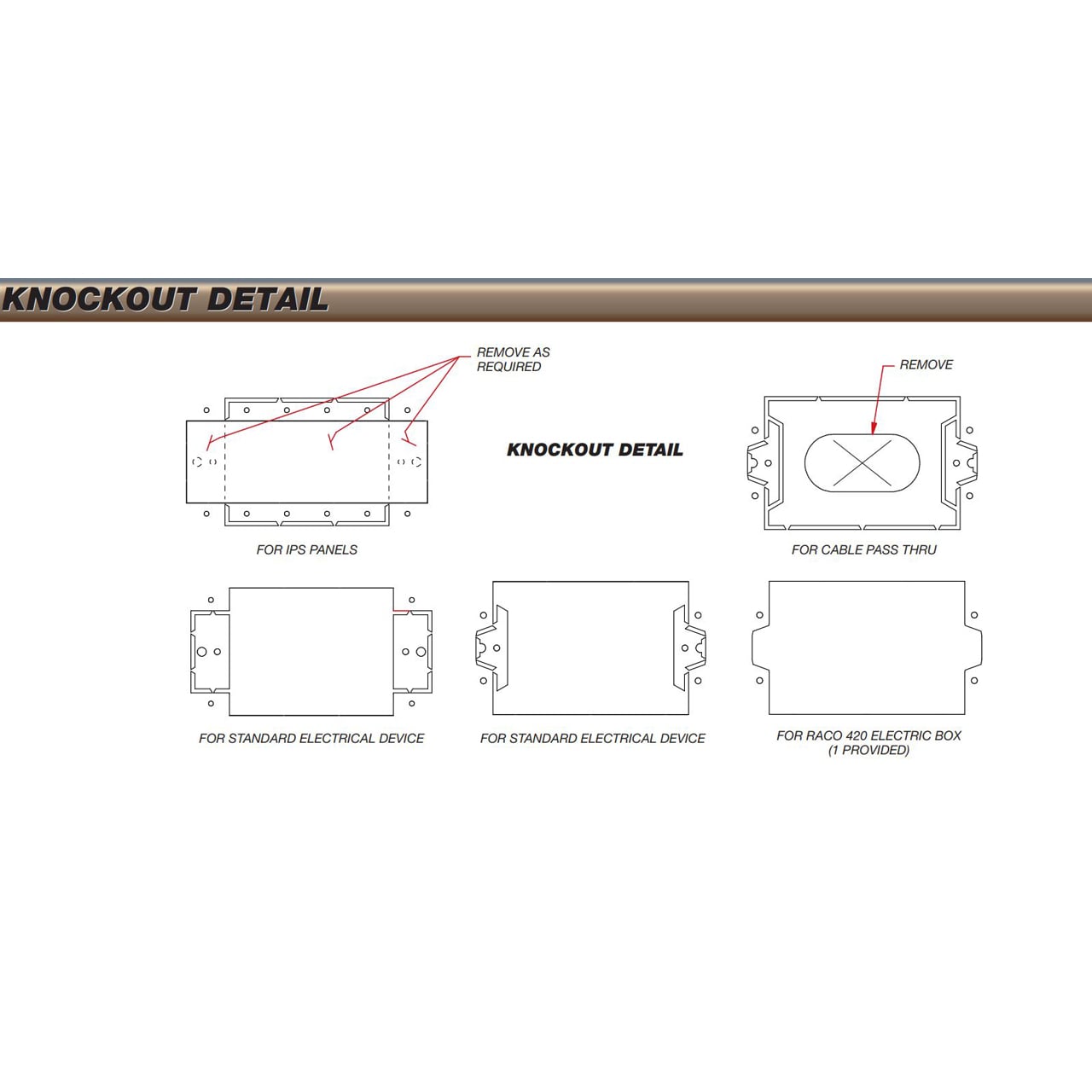

The FSR PWB-100-B is back box only and requires a cover. The PWB-100 back box just received a ndesign upgrade. The back box now has the ability to mount 1 decora device, 1 low voltage device, or 1 provided Gem box and is compatible with FSR's 4 and 6 IPS inserts.The PWB-100 is the essential installation accessory for any flat panel display. It installs easily in the wall behind any display allowing your screen to sit flush against the wall. This wall box provides a neat and secure environment for the audio, video, control and power connections.
Screws are provided for wood or steel stud mounting, grounding screws, tie wraps, and a rubber grommet all included.
The cover for this back box is available in white or black and is suitable for painting or other finishing, giving it the flexibility to match any d‚cor. It has a cable exit slot for the display connections and the excess cable can easily be hidden inside of the box making the entire installation as clean as possible. The cover screws onto the front of the box once all connections are in place.
FSR designed this wall box for new and existing construction. Brackets are included for mounting to studs in new construction as well as surface mount clips for mounting to sheet rock or plywood in existing construction.
Applications
Anywhere a video display is wall mounted!
Digital Signage
Electronic Billboards
Conference Centers
Museums
Schools
General Meeting Facilities
Airports
Arenas
