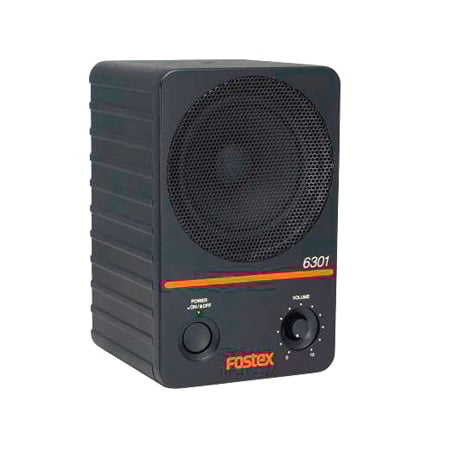

Fostex 6301NX 4 Inch Active Monitor Speaker 20W D-Class (Single) - Transformer

ITEM #: FX-6301NX MFG #: 6301NX

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$429.99

Our Price:

$329.99

Availability: In Stock
iAvailability Description Popup


    6301NX - Overview

    Model 6301-series have been on the market since 1982 as the standard active monitor speaker in the broadcast and production facilities and now we have re-design the speakers with the latest D-class power amplifier and new driver unit featuring energy saving "auto stand-by" function. The electrically balanced version used to be offered only in North America, but now worldwide.

    • Features:

      • 20W D-class power amplifier for higher output level and less power consumption with no heat sink
      • Dedicated 4-inch full range driver for clear audio reproduction
      • Flat panel design to avoid inadvertent power-off or level change
      • Auto Stand-by mode (compliant to ErP directive) for energy saving
      • Detachable IEC type power inlet with multi-voltage power handling

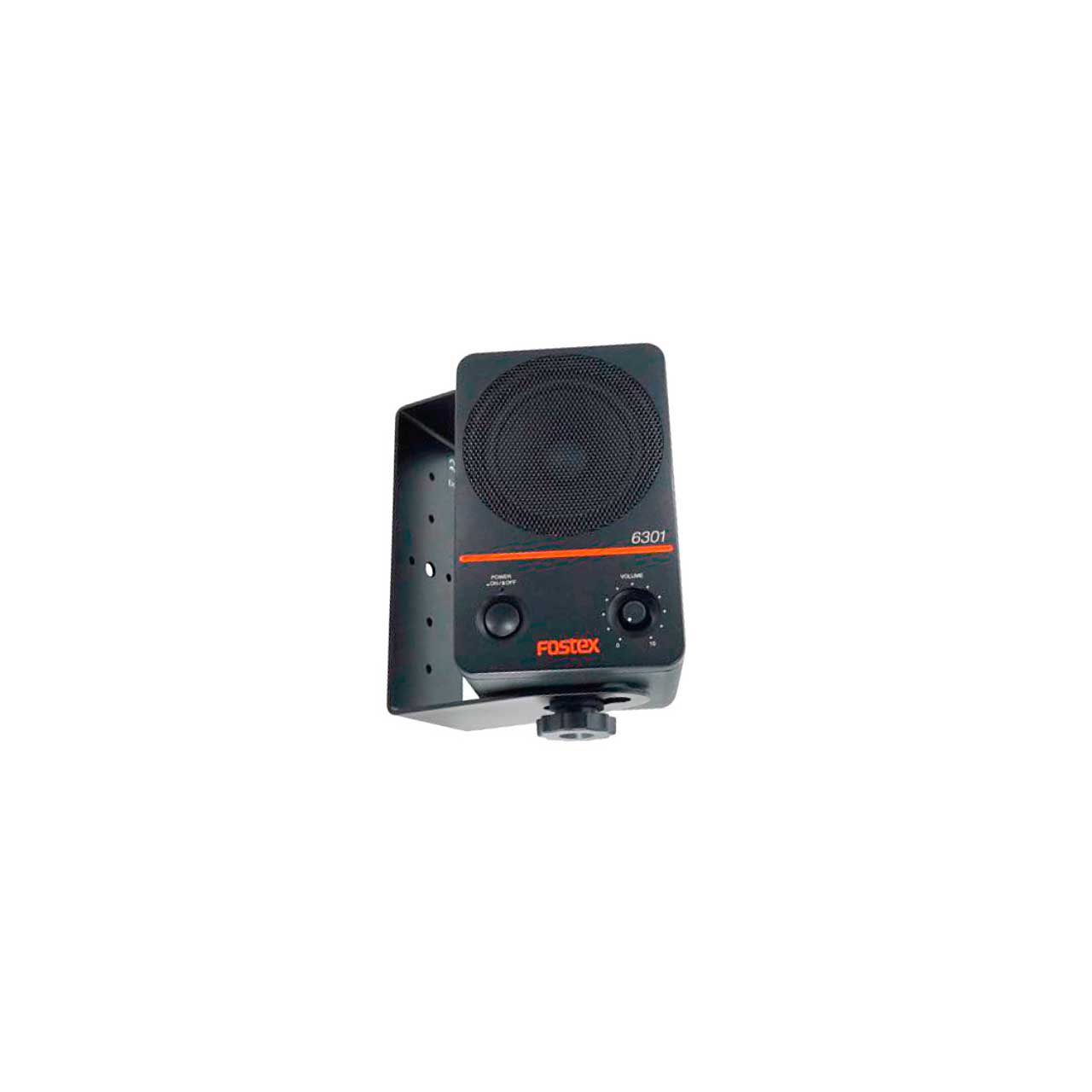

      • Newly designed mounting bracket (EB-6301) for wall mounting with variable angle adjustments - not included

    • Specifications:

      • Speaker:
      • Enclosure Type: Closed
      • Unit: 4" full range
      • Frequency response: 70 Hz - 15k Hz
      • Sound Pressure Level: 85dB / W (1m)
      • Maximum SPL: 98dB

        Amplifier Section:
      • Connector: 1/4" TS Phone (unbalanced)
      • Input Impedance: 10k ohm or more
      • 6301DT Connector: RJ45 (Dante)
      • Rated Output: 20W
      • Distortion (T.H.D.): 0.05% (1kHz / 1W output)
      • Residual Noise: -70dBV or less (NB/NE/NX). -65dBV (DT), -65dBV or less (ND)
      • Input Sensitivity: 1/4" TS phone: -14dBV (0.2Vr.m.s.)
      • XLR: +4dBu (1.2Vr.m.s.)
      • XLR(Digital): -12dBFS
      • Auto Stand-by: Active after approx. 25 min. of continuous input lower than the threshold level

        General:
      • Dimensions: 4.72 (W) x 7.44 (H) x 4.72 (D) Inches
      • Weight: 5.07 Lbs
      • Power Requirement: AC 100 - 240V (50/60Hz)
      • Power Consumption: 10W (less than 0.5W in stand-by mode)

    • Item Includes:

      • 1x Fostex 6301 DT Speaker
      • 1x Power Cord

    • Warranty:

      • Limited 1-Year Warranty

    • GTIN:

      0636827304696
