    GA-30T - Overview

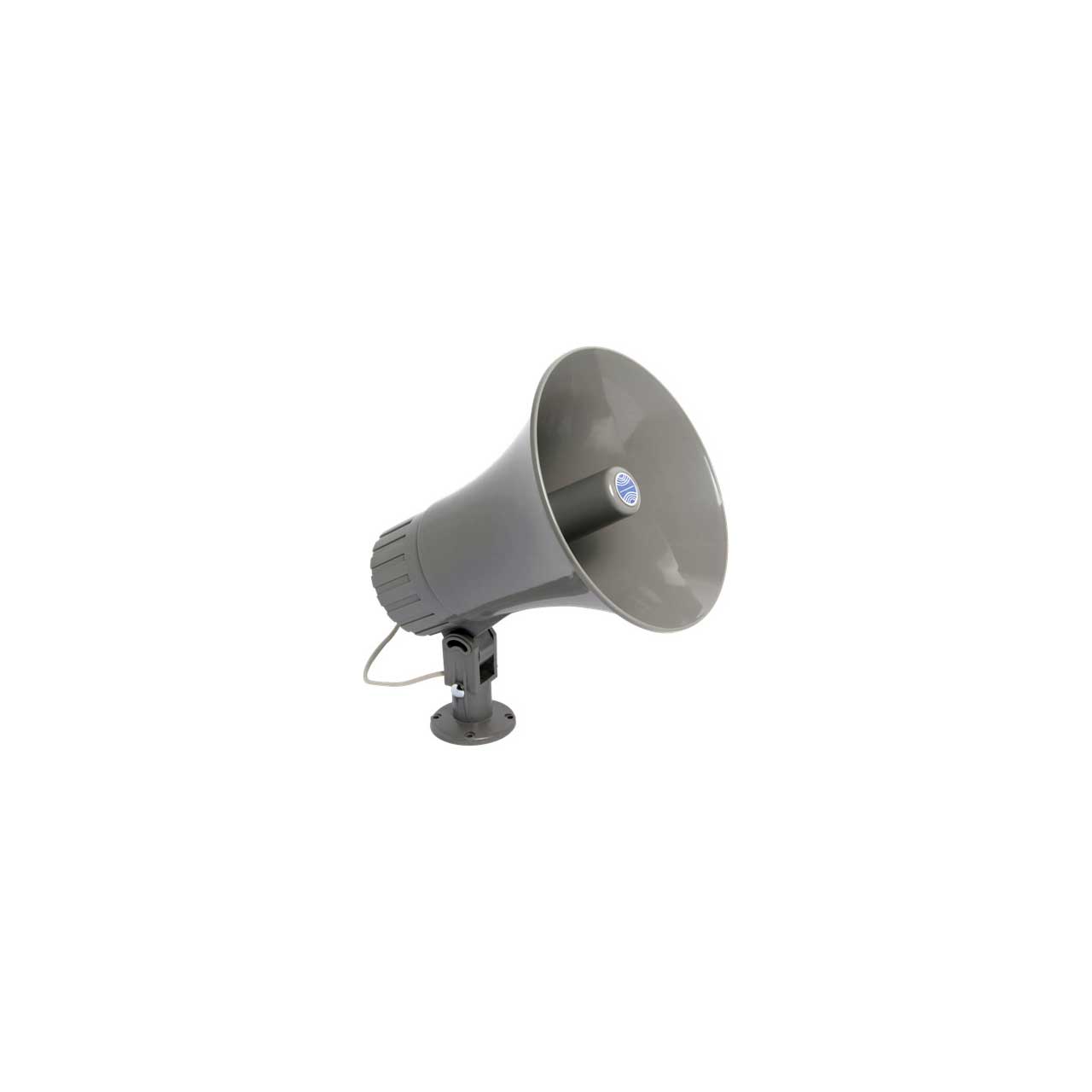

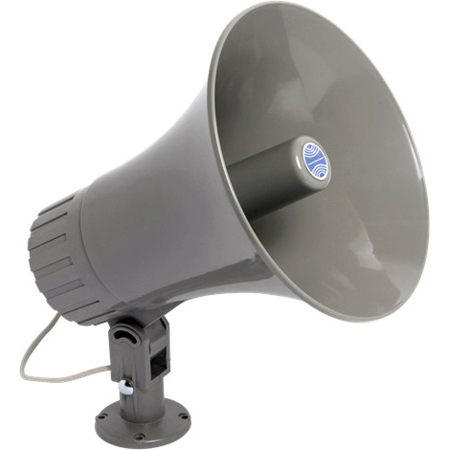

    The GA-30T loudspeaker is a utility horn perfectly suited for voice paging and music transmission.

    Double re-entrant horn construction optimizes loudspeaker output to penetrate ambient sound levels. This 30-watt model incorporates a compression driver with ceramic magnet and includes a combination 25/70.7-volt line transformer with multi-position knob switch for selecting power taps. Unit is also equipped with wiring for an 8-ohm connection to facilitate installation when a transformer is not required.

    GA-30T features a round, high-impact plastic horn and will withstand outdoor installation in high-humidity environments.

    Adjustable surface mounting bracket provides multiple (vertical & horizontal) positioning. Each assembly is supplied with 21 gauge 18" color coded wire leads for matching polarity and loudspeaker connection.

    Entire assembly is gray with silver colored hardware.

    • Features:

      • Dual Voltage, Knob-Adjustable Impedance Selection for 25/70.7V Line Connection
      • Multi-Function, Re-Entrant Horn Loudspeakers Offer Efficient Sound Penetration and Dispersion for Paging, Music and Intercom Use
      • Sturdy Construction for Long-Term Indoor and Outdoor Use

    • Specifications:

      • Depth 12" (30.48 cm)
      • Diameter 10" (25.4 cm)
      • Shipping Weight 4.67 lbs (2.12 kgs)
      • Frequency Response 500 - 3,000 Hz (+5dB)
      • Power Taps 2, 4, 8, 15, 30W @ 70.7V
      • Dispersion 60°
      • Power Rating 30 watts
      • Sensitivity 103dB

    • GTIN:

      0612079132782
