GefenPRO 16x16 DVI Matrix with Front Panel Push Button Control

Manufacturer: Gefen Inc

Item #: GEF-DVI-16416-PB   •   MFG #: GEF-DVI-16416-PB


List Price:$7,724.00
Our Price:$5,399.00

free ship
Availability: Direct Ship From Manufacturer
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.

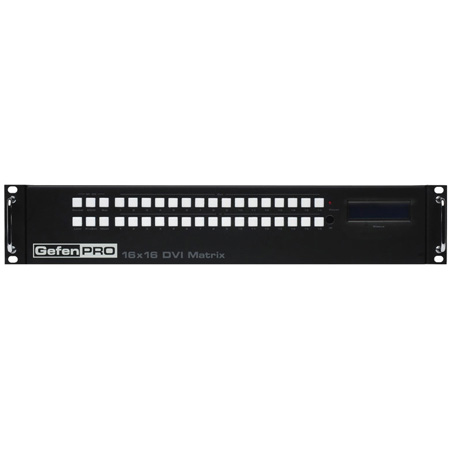

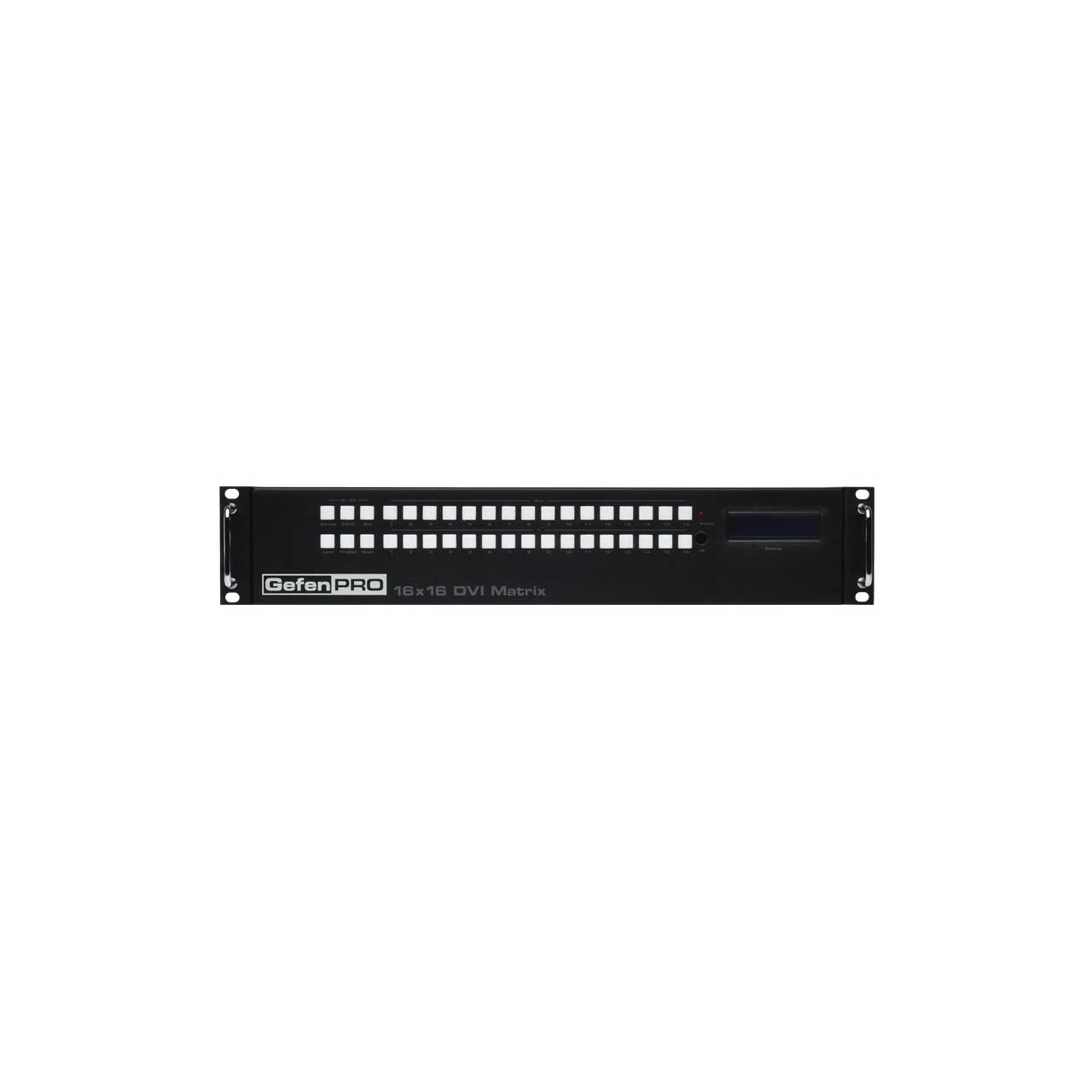

16x16 DVI Matrix with Front Panel Push Button Control

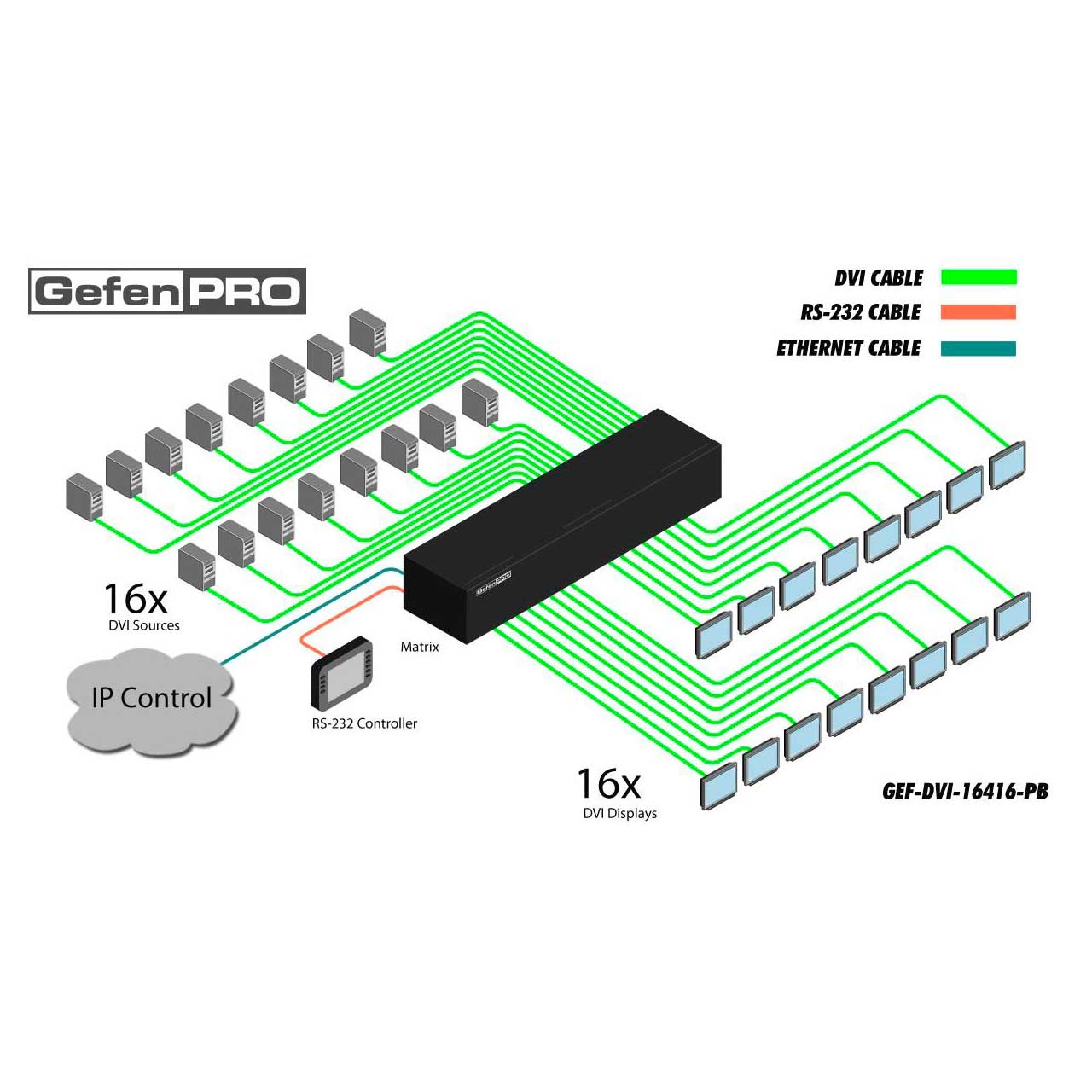

The Gefen 16x16 DVI Matrix Switcher routes 16 DVI sources to 16 DVI monitors without losing resolution. Various output configurations can be implemented with the only exception being routing two or more inputs to one monitor. The switcher features 29-pin DVI-I connectors but only accepts the DVI-D signal from them. VGA signals on DVI connectors will not be processed.

Switching can be controlled by front panel push buttons, IR remote, IP commands, or via RS-232. A front panel LCD display helps with local switching. A built-in web server provides the means for IP control and configuration. Sixteen programmable routing presets are available for routine switching, and stand-by mode is accessible for in-between times.

Additional features include advanced EDID management, which provides rapid integration of sources and displays, and output masking control for hiding an output from displaying video. The switcher is equipped with an internal power supply and with rack ears for 2RU mounting.

Route 16 Sources to 16 Monitors Supports resolutions up to 1920 x 1200
Switches and routes without losing resolution
Switch via front panel, IR, IP, or RS-232 controls
16 programmable routing presets and standby mode
Advanced EDID management and output masking control
Various output configurations with the exception of routing 2 or more inputs to one monitor

  • Features

    • Supports resolutions up to 1920 x 1200.
    • Front-panel push buttons for local switching.
    • Front-panel LCD Display.
    • Switching is controlled via front panel buttons, IR remote, IP, or RS-232 commands.
    • Compatible with the Gefen Keyboard Controller software.
    • Advanced EDID management.
    • Programmable routing presets.
    • Standby mode.
    • Output masking control.
    • IP control and configuration with built-in Web server.
    • Internal power supply.
    • Rack-mountable.
  • Specifications

    • Maximum Pixel Clock: 165MHz
    • Input Video Signal: 1.2V p-p
    • Input DDC Signal: 5V p-p (TTL)

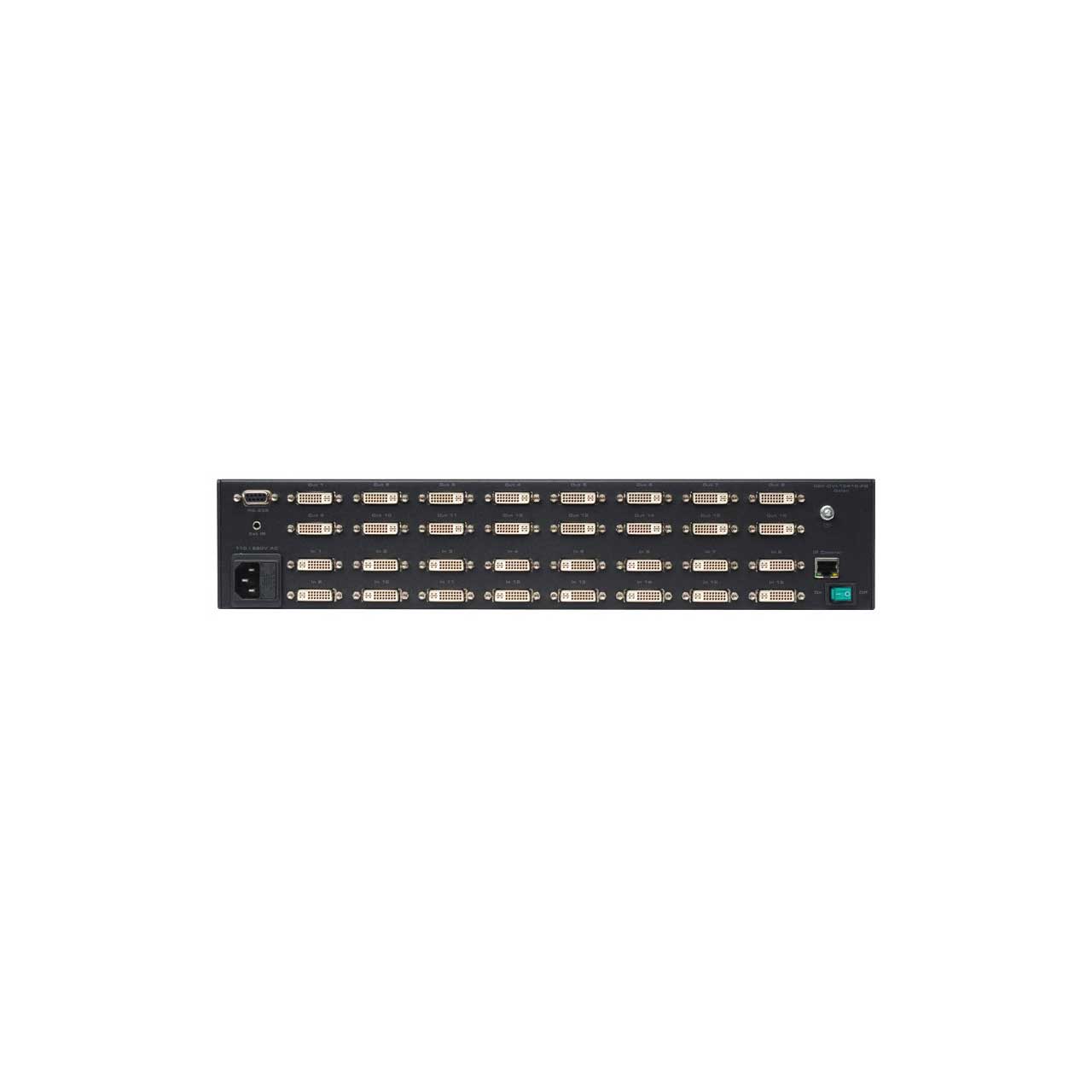

    • Video Input Connectors: (16) DVI-I 29-pin, female (digital only)
    • Video Output Connectors: (16) DVI-I 29-pin, female (digital only)
    • RS-232 Port: DB-9, female
    • IR Extender Input: 3.5 mm mini-stereo jack
  • Item Includes

    • (1) GefenPRO 16x16 DVI Matrix with Front Panel Push Button Control (GEF-DVI-16416-PB).
    • (16) 6 ft. dual link DVI cables (M-M) (CAB-DVIC-DLN-06MM).
    • (1) IR Remote Control unit (RMT-16416R).
    • (1) AC Power Cord (CAB-POWERCORD-XX).
    • (1) Quick-Start Guide (QSG-GEF-DVI-16416-PB.
