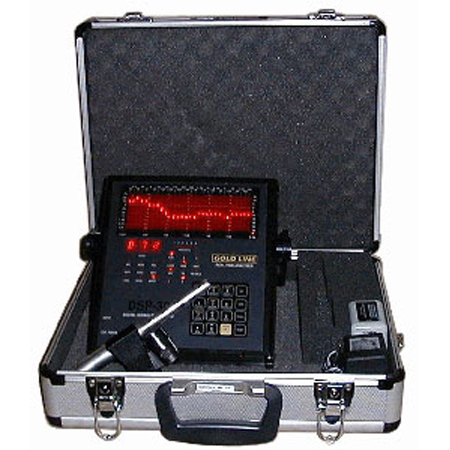

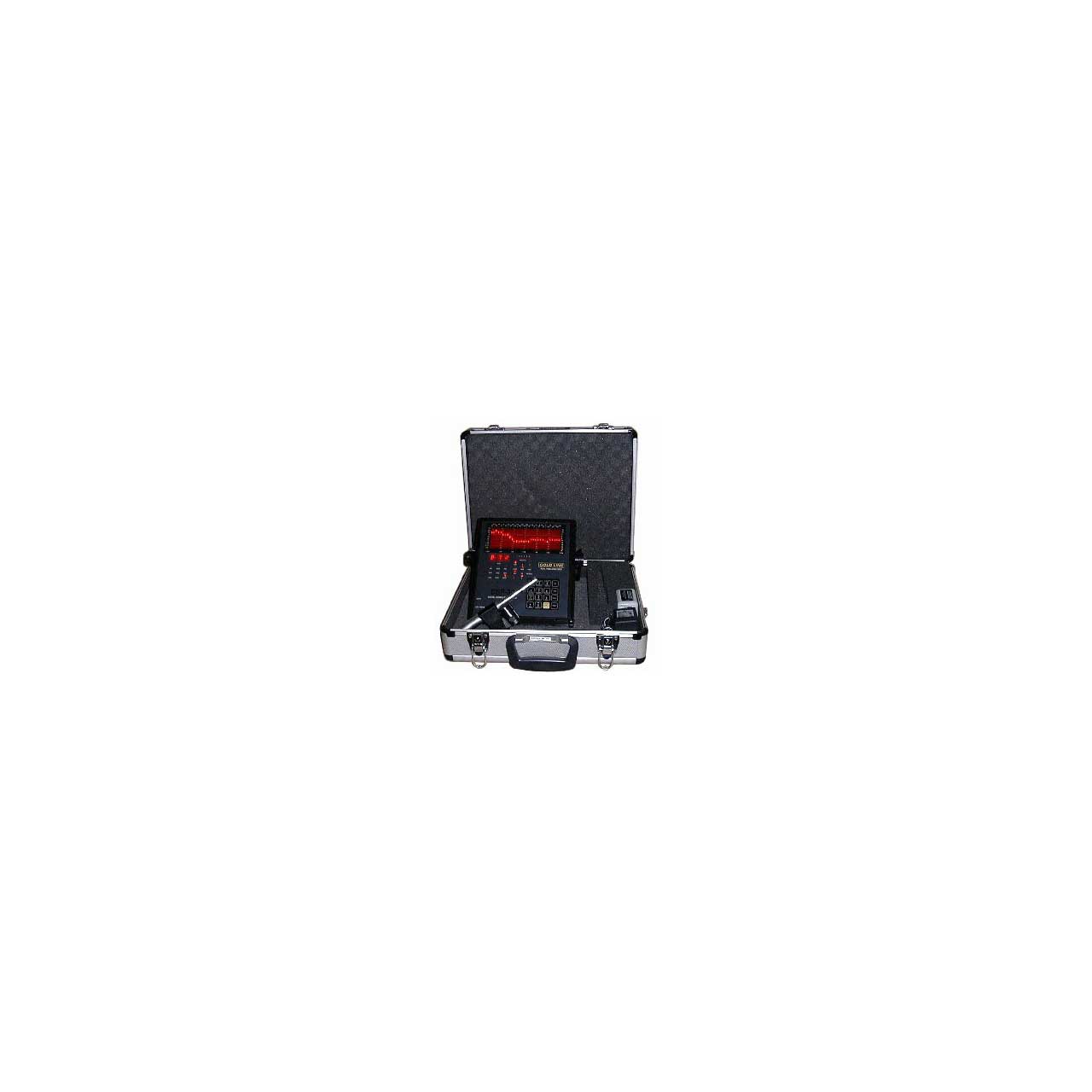

Gold Line PROKIT 30 Portable Audio Analyzer Microphone Kit with Case

PROKIT 30 - Overview

• Features:

  • RS232 Port with RS232 USB adapter cable provides two-way communication with IBM compatible computers and communicates with Macintosh & Virtual PC.
  • Multiplot display - Shows 6 different response curves at the same time.
  • An 85dB window not limited by the display
  • Time Averaging to normalize readings and stabilize pink noise compensating for random variables.
  • Scales from 1/4 to 5dB per step
  • Microphone low impedance (600 ohm) electret condenser type.
  • Keypad Filters selectable either highest ANSI standard (triple tuned ) or custom notching filters.
  • 60 nonvolatile memories per option
  • Sound Pressure Levels & Weighted Curves - Flat, A, C, or User designated weighting.
  • Sum Mode/Spectral response readings can be summed and averaged.
  • Subtract Mode/A memory can be subtracted from another memory.


• Item Includes:

  • 1x DSP30 Audio Spectrum Analyzer
  • 1x TEF04 instrument microphone
  • 1x PN3B pink noise/tone generator with gate
  • 1x BE2 120Vac to 12Vdc @ 500mA power source
  • 1x Aluminum Carrying Case with foam padding, key locks and an adjustable shoulder strap.
