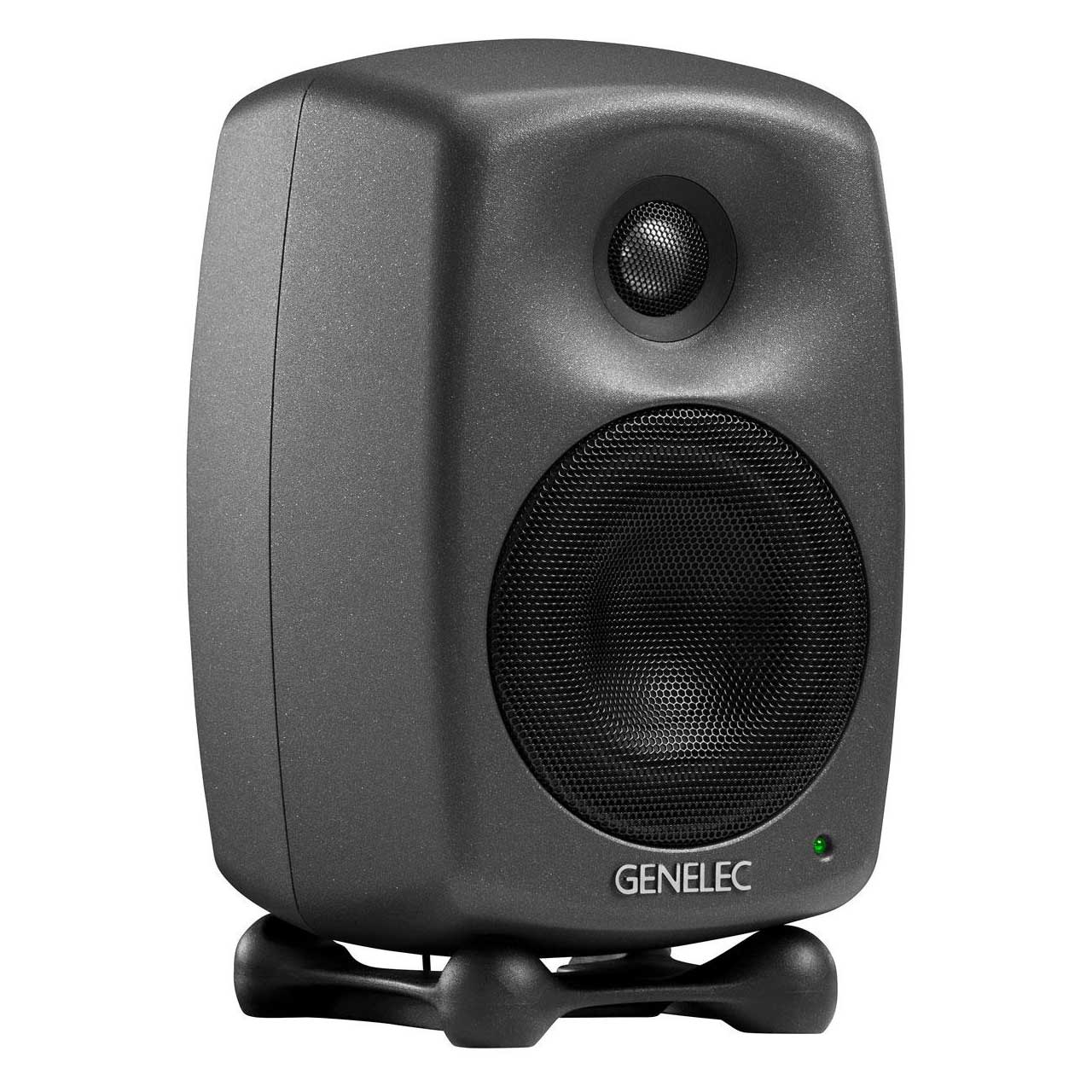

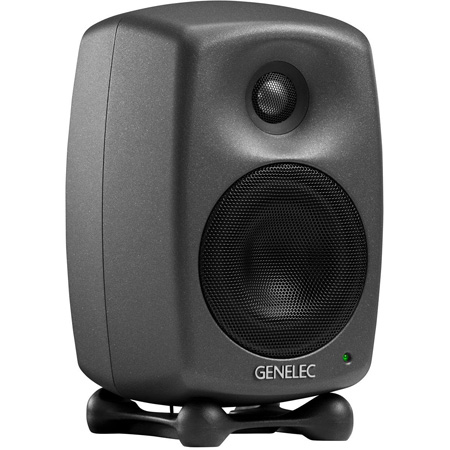

Genelec 8020DPM Studio Monitor with Power Management - Producer Finish

ITEM #: GNC-8020DPM MFG #: 8020DPM

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$625.00

Our Price:

$550.00

Availability: In Stock
iAvailability Description Popup


    8020DPM - Overview

    The bi-amplified Genelec 8020D is a compact two way active monitoring loudspeaker designed for near field monitoring, mobile vans, broadcast and TV control rooms, surround sound systems, home studios, multimedia applications and also for use with computer soundcards. As an active loudspeaker, it contains drivers, power amplifiers, active crossover filters and protection circuitry.

    The MDE™ (Minimum Diffraction Enclosure™) loudspeaker enclosure is made of die-cast aluminium and shaped to reduce edge diffraction. Combined with the advanced Directivity Control WaveguideTM (DCWTM), this design provides excellent frequency balance in difficult acoustic environments. If necessary, the bass response of the 8020D can be extended with a Genelec subwoofer.

    • Features:

      • 4" Woofer, 3/4" Tweeter
      • 50W Bass Amplifier
      • 50W Treble Amplifier
      • Curved Edges Reduce Distortions
      • Wide On- and Off- Axis Response
      • Die-Cast Aluminum Enclosure
      • Iso-Pod Table Stand Reduces Vibration
      • Auto-Switching to Standby Saves Power
      • Class-D Amplification

    • Specifications:

      • Cut-Off Frequency: Lower: ≤ 56 Hz at -6 dB; Upper: ≥ 25 kHz at -6 dB
      • Frequency Response: 62 Hz to 20 kHz (±2.5 dB)
      • SPL: ≥ 100 dB SPL maximum (short-term sine-wave acoustic output on axis in half-space, averaged from 100 Hz to 3 kHz at 3.3' / 1 m); 93 dB SPL maximum (long-term RMS acoustic output in the same conditions with IEC weighted noise (limited by driver protection circuit) at 3.3' / 1 m)
      • Peak Output Capacity: ≥ 107 db maximum peak acoustic output (per pair in listening room with music material at 3.3' / 1 m)
      • Self-Generated Noise Level: ≤ 5 dB (in free field at 3.3' / 1 m on axis (A-weighted))
      • Harmonic Distortion: < 3% (at 85 dB SPL at 3.3'; 1 m on axis, 50 to 200 Hz) < 0.5% (at 85 dB SPL at 3.3' / 1 m on axis, higher than 200 Hz)
      • Drivers Bass: 4" / 105 mm cone; Treble: 3/4"; 19 mm metal dome. Both drivers are magnetically shielded.
      • Amplifier: Bass Amplifier Short-Term Output Power: 50 W; Treble: Amplifier Short-Term Output Power: 50 W; Long-term output power is limited by driver protection circuitry
      • THD: ≤ 0.05% at nominal output
      • Crossover Frequency: Bass/Treble: 3 kHz
      • Digital Controls: GLM Software Frequency Response Adjustment; Parametric Notch Filters: 16x; Shelving Filters: 2 x LF and 2 x HF System Room Response Calibration: Genelec GLM AutoCal, GLM manual, standalone
      • Mains Voltage: 100 to 240 VAC 50/60 Hz
      • Power Consumption: Idle: 3 W; Standby: < 0.5 W; Full Output: 60 W

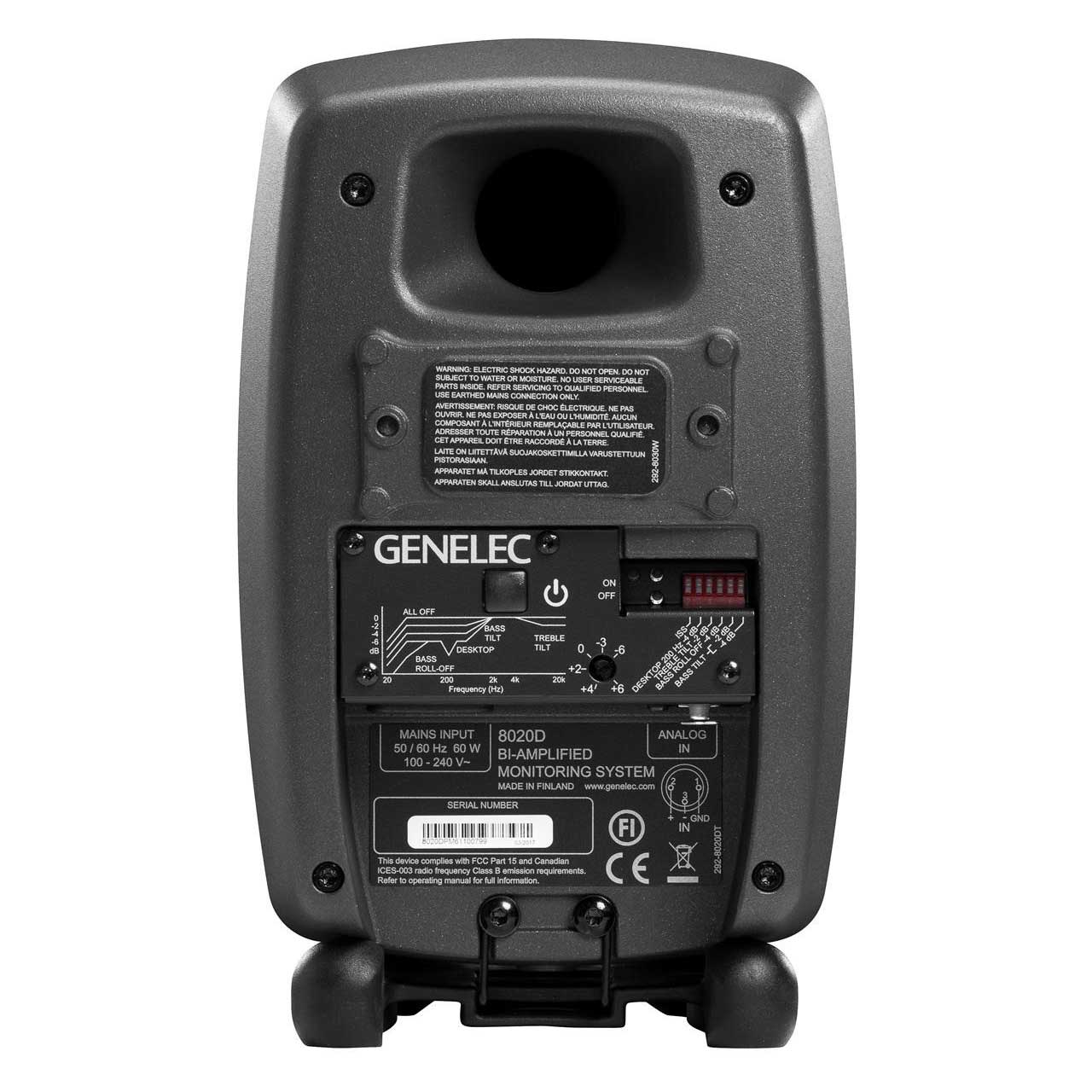

      • Analog Input: XLR female, balanced (pin 1 ground, pin 2 positive, pin 3 negative)
      • Input Level: -6 dBu at volume control max (for 100 dB SPL at 3.3' / 1 m)
      • Input Impedance: 10 kOhms
      • Sensitivity: -12 dB (constantly variable, control range relative to maximum output)
      • Controls: Treble Tilt Control (operating range): 0 to -2 dB at 15 kHz; Desktop 200-Hz Control: -4 dB at 200 Hz; Bass Roll-Off Control: 0 to -4 dB at 65 Hz
      • Analog Input: Maximum Analog Input Level: +24 dBu
      • Analog Input Sensitivity: -6 dBu (100 dBSPL at 3.3' / 1 m)
      • Analog Input Sensitivity Control: Adjustable from +36 to -6 dBu
      • Dimensions(H x W x D): 9.5 x 6.0 x 5.6" (242.0 x 151.0 x 142.0 mm)(Iso-Pod stand included); 9.1 x 6.0 x 5.6" (230.0 x 151.0 x 142.0 mm)(Iso-Pod stand excluded)
      • Weight: 7.0 lb (3.2 kg)

    • GTIN:

      6438128122566
