    8330AP - Overview

    Combining precision, adaptability and a small footprint, the Genelec 8330A offers color-free performance and powerful room compensation features.

    The Genelec 8330A are two-way smart active monitors designed for demanding professional applications. Genelec Smart Active Monitor (SAM) digital signal processing (DSP) built inside each smart active monitor with Genelec Loudspeaker Manager (GLM) software provides unparalleled acoustic quality, ease of use, and high monitoring accuracy even in difficult acoustic environments. The high performance drivers are directly connected to dedicated D Class power amplifiers. System protection is implemented as a part of the SAM signal processing. The MDE (Minimum Diffraction Enclosure) enclosure is made of die-cast aluminium and shaped to reduce edge diffraction. Combined with the advanced Directivity Control Waveguide (DCWTM), this design contributes to the excellent acoustic neutrality.

    The Professional's Choice - The choice of demanding professionals for whom power and flexibility go hand-in-hand, the 8330A offers a little more SPL and LF extension than its smaller 8320A sibling. Providing transparent and truthful reproduction, the 8330A's wide uncolored sweet spot means you are always in a position to make accurate, reliable mix decisions.

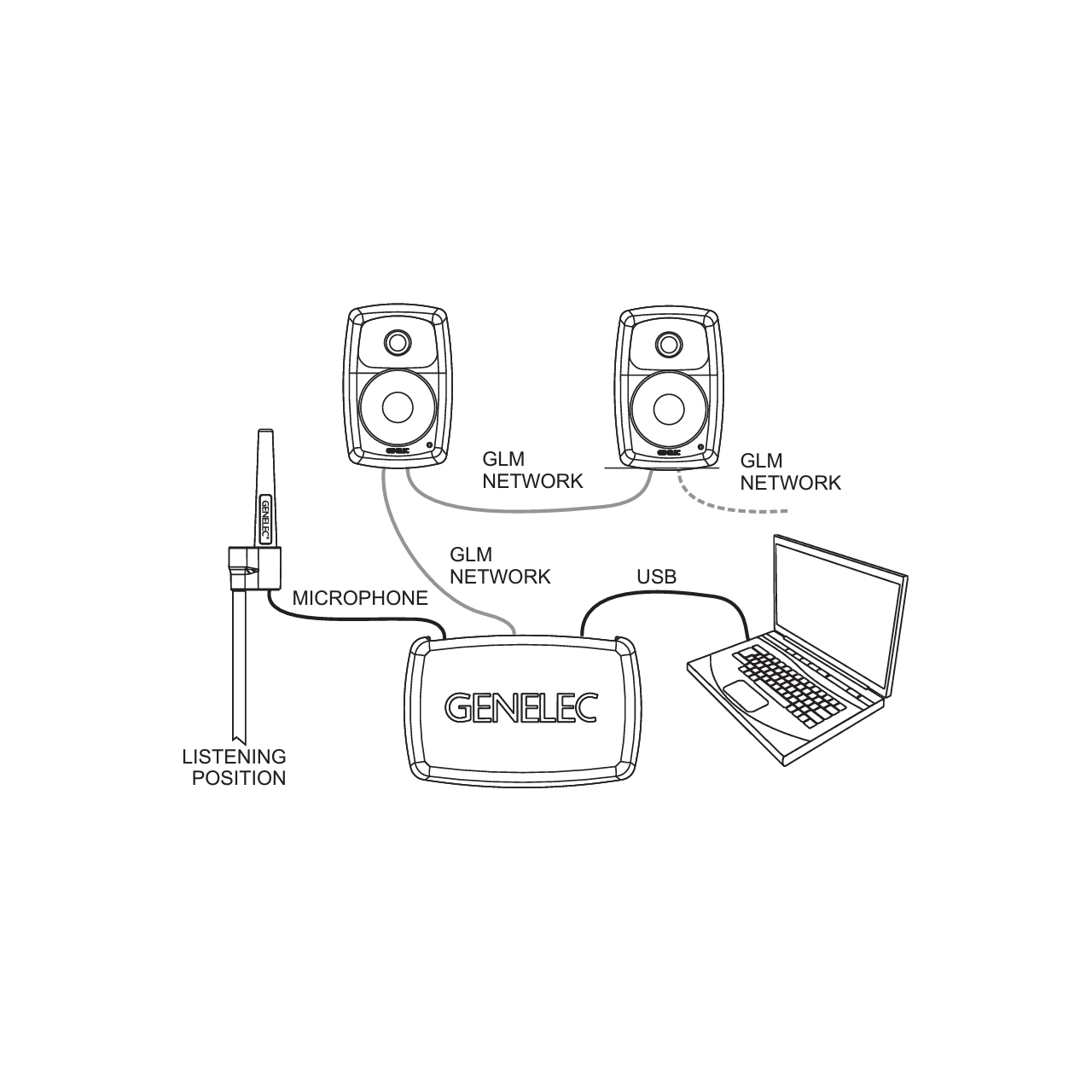

    Truly Optimised Monitoring - As a Smart Active Monitor, the 8330A integrates closely with our GLM software via which it can be configured and calibrated for your listening environment, compensating for detrimental room influences to create a truly optimised monitoring solution from mono to immersive. So if you need to work in challenging acoustic spaces, the 8330A is your compact but clever monitoring companion.

    • Features:

      • Smart Active Monitoring (SAM) and Genelec Loudspeaker Manager (GLM) calibration technology
      • Directivity Control Waveguide (DCW) Technology

    • Specifications:

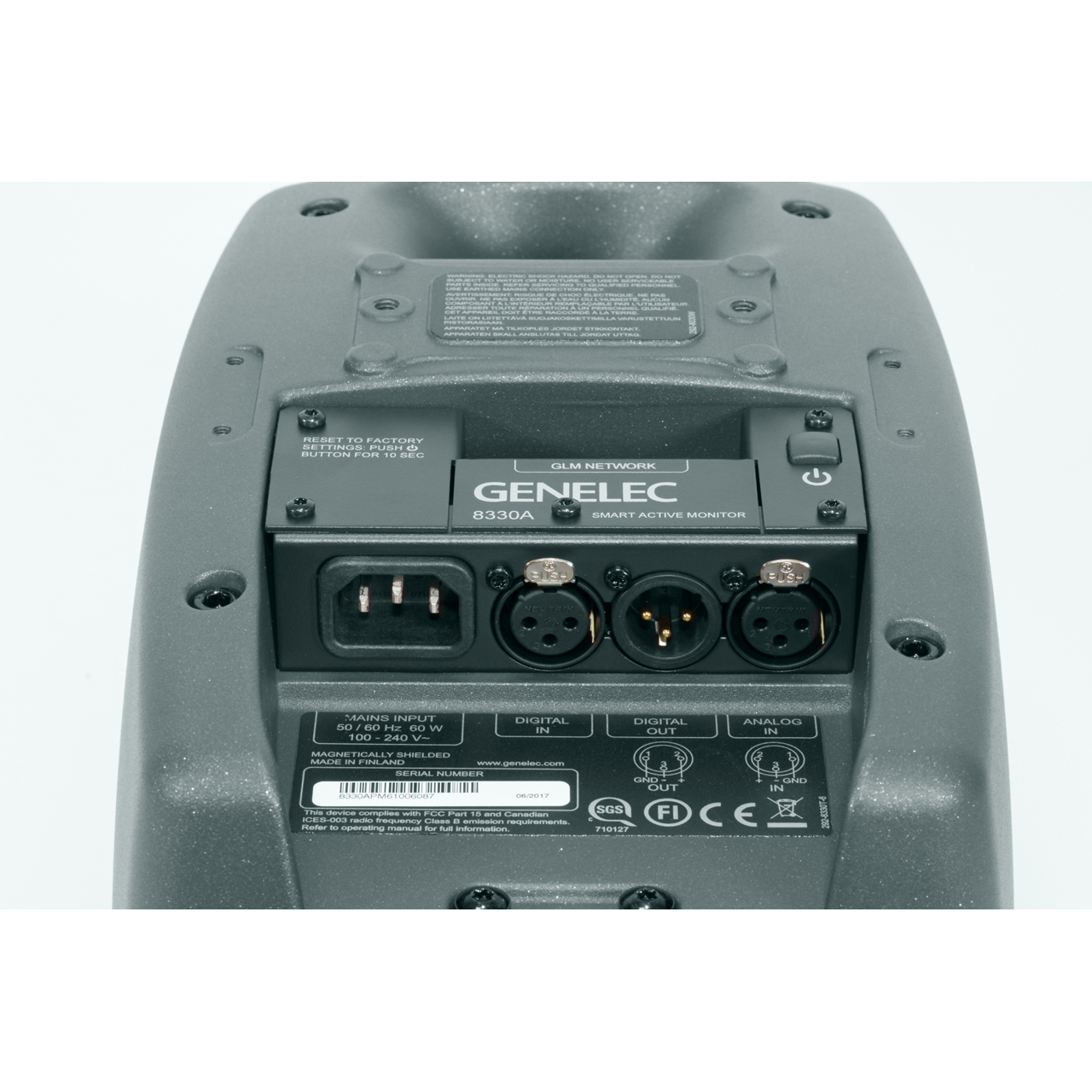

      • Connections
        - 1x XLR Analog Input
        - 1x XLR AES/EBU Input
        - 1x XLR AES/EBU Output
        - 2x RJ45 Control

        Frequency Response
      • Frequency Response: 58 Hz - 20 kHz (± 1.5 dB)
      • Low Cutoff -6dB: 45 Hz
      • High Cutoff -6dB: 23 kHz

        SPL
      • Peak SPL: ≥110 dB
      • Short Term Max SPL: ≥104 dB
      • Long Term Max SPL: ≥96 dB

      • Self-Generated Noise: ≤5 dB SPL

        Drivers
      • Bass Driver:
        - Type: Cone
        - Diameter: 5.11in (130mm)
      • Treble:
        - Type: Metal Dome
        - Diameter: 0.74in (19mm)

        Amplifiers
      • Bass Amplifier: 50 W Class D
      • Treble Amplifier: 50 W Class D
      • Mains Voltage: 100-240 VAC 50/60Hz
      • Power Consumption:
        - ISS Active: ≤0.5 W
        - Idle: ≤3 W
        - Full Output: 50 W

        Weight and Dimensions
      • Weight: 12.1 lb (5.5 kg)
      • Dimensions (HxWxD): 11.77in x 7.44in x 7in (299mm x 189mm x 178 mm)

    • Item Includes:

      • 1x 8330A monitor
      • 1x Mains cable 1.8m
      • 1x RJ45 cable 5m
      • 1x Operating manual

    • Warranty:

      • 2-Year Warranty
