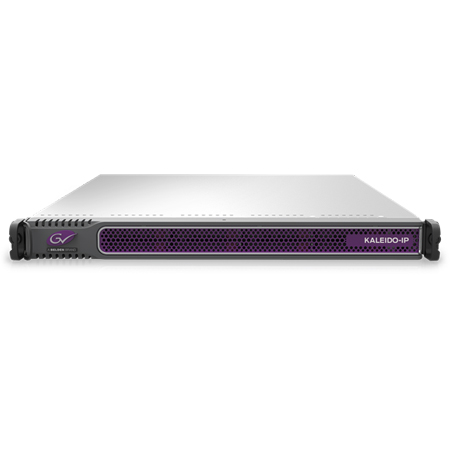

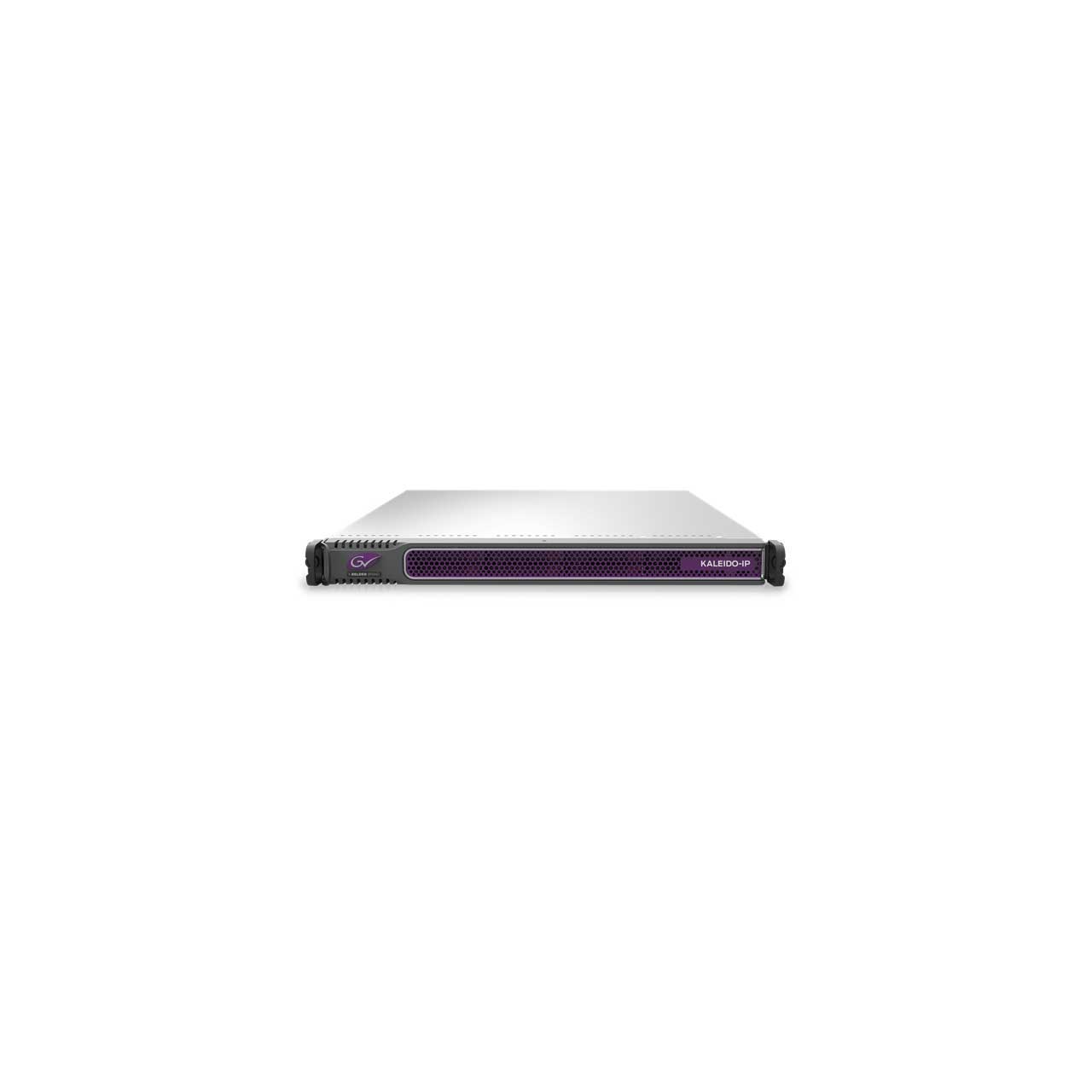

Grass Valley Kaleido-IP X330 Multi-Image IP Processor

ITEM #: GVLY-KIP-X330 MFG #: KIP-X330

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Grass Valley
Free Shipping with $49 Minimum Order
This item is custom made. Ordering this product requires written authorization. Please contact a sales engineer at 1-800-522-2025 for details.
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

KIP-X330 - Overview

PLEASE NOTE: This item has many configurations and will require a CSR to help build it. Please see all options for reference and contact us for help.

SD, HD and 4K UHD IP Video Multiviewer
The Kaleido-IP Video Multiviewer from Grass Valley offers the most simultaneous video and audio program decodes in the industry, including SMPTE ST 2022-6 and the 2110 suite, MPEG-2, MPEG-4 part 2 (H.263) and part 10 (H.264/AVC), H.265/HEVC, HE-AAC v1 & v2, AAC, DD 2.0, DD 5.1 and DD+. For easy ordering and installation, the Kaleido-IP is available as an appliance with two different models to choose to meet your performance requirements.

For scalable, space-saving and easy-to-manage installations, the Kaleido-IP VM version offers all the benefits of virtualization in an easy to deploy virtual image (OVA file).

  • Features:

    • Ordering Information
    • KIP-X330: Kaleido-IP X330 multi-image IP processor. Ultimate processing performance for up to 128 SD MPEG-2/H.264, or 128 HD MPEG-2 or 80 HD H.264 video program decodes; up to 96 HD SMPTE ST 2110 IP video inputs. Includes 2 independent DVI/HDMI/DP outputs, 4 GbE ports, redundant power supply, 1 RU frame. (Decoding performance varies depending on resolution, codec and bitrate)
    • KIP-X130: Kaleido-IP X130 multi-image IP processor. Advanced processing performance for up to 128 SD MPEG-2/H.264, or 100 HD MPEG-2 or 40 HD H.264 video program decodes; up to 96 HD SMPTE ST 2110 IP video inputs. Includes 2 independent DVI/HDMI/DP outputs, 4 GbE ports, redundant power supply, 1 RU frame. (Decoding performance varies depending on resolution, codec and bitrate)
    • KIP-OPT-OP34: Software license to enable output 3 and 4 at 1080p resolution. Available for KIP-X130, KIP-X330, KIP-X120 and KIP-X320
    • KKIP-OPT-STREAMING-OUT: License for remote streaming of the multiviewer outputs over IP. Also required for remote control and monitoring through a web browser
    • KIP-VM16, KIP-VM24, KIP-VM32, KIP-VM48, KIP-VM64: Virtual Kaleido-IP license. Includes 16, 24, 32, 48 or 64 HD/SD video decode licenses with audio/video baseband probing and caption/subtitle extraction (CC 608/708, TXT/DVB subtitling). Provides a single multiviewer output over IP streaming. Audio DD or AAC licenses not included Note: KIP-VM is currently only supported on VMWare hypervisor software version 5.5 or higher


  • Specifications:

    • Decode Licenses
    • KIP-OPT-DEC-AVC: Decode license for Advanced Video Codec (AVC) H.264 streams. One license per Kaleido-IP
    • KIP-OPT-DEC-DD-5.1: Decode license for up to 32 Dolby Digital stereo (AC3) stereo or 5.1 programs
    • KIP-OPT-DEC-DD-2.0: Decode license for up to 32 Dolby Digital stereo (AC3) programs
    • KIP-OPT-DEC-AAC-5.1: Decode license for up to 32 Advanced Audio Codec (AAC) stereo or 5.1 programs
    • KIP-OPT-DEC-AAC-2.0: Decode license for up to 32 Advanced Audio Codec (AAC) stereo programs
    • KIP-OPT-HD-HEVC: Decode license for H.265/HEVC SD/HD video codec. One license per Kaleido-IP
    • KIP-OPT-UHD-HEVC: Decode license for H.265/HEVC UHD video codec. One license per Kaleido-IP
    • KIP-OPT-UCIP: License for uncompressed input monitoring. Requires one of KIP-OPT-ETH-2S or KIP-OPT-ETH-1X network interface card. One license per Kaleido-IP

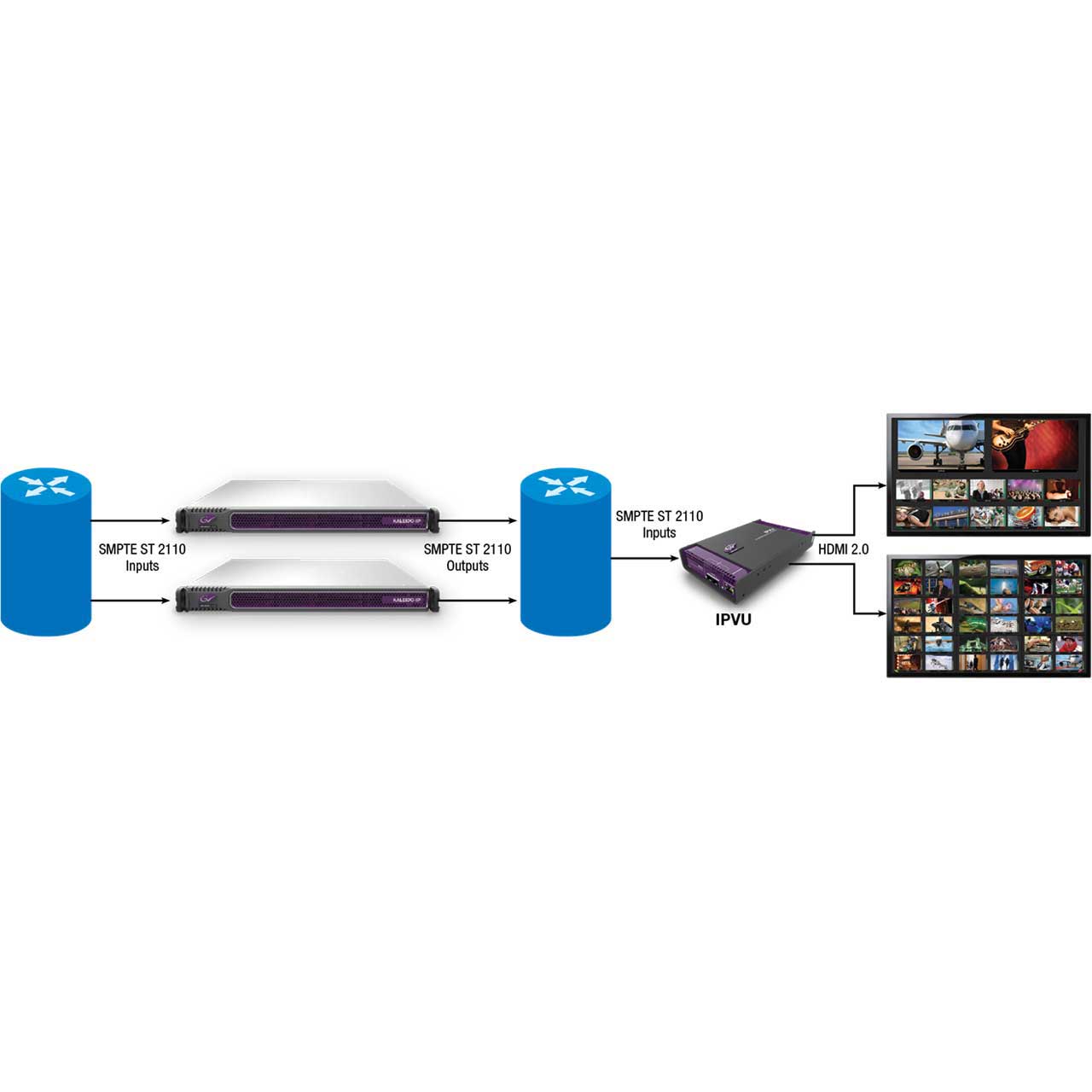

    • KIP-OPT-UCIP-OUT: License for SMPTE ST 2110-20 IP outputs. Requires one of KIP-OPT-ETH-2S or KIP-OPT-ETH-1X. One license per Kaleido-IP

      Probing Licenses
    • KIP-OPT-LOUDNESS: Loudness level measurement for all programs. One license per Kaleido-IP
    • KIP-OPT-SCTE-35: SCTE-35 metadata extraction and alarming license for all programs. One license per Kaleido-IP
    • KIP-OPT-TS-PROBE: TR 101 290 DVB transport stream probing option for priority 1 and priority 2 indicators. One license per Kaleido-IP. Note: indicator 2.4 is not supported

      Decode Licenses
    • KIP-OPT-DEC-AVC: Decode license for Advanced Video Codec (AVC) H.264 streams. One license per Kaleido-IP
    • KIP-OPT-DEC-DD-5.1: Decode license for up to 32 Dolby Digital stereo (AC3) stereo or 5.1 programs
    • KIP-OPT-DEC-DD-2.0: Decode license for up to 32 Dolby Digital stereo (AC3) programs
    • KIP-OPT-DEC-AAC-5.1: Decode license for up to 32 Advanced Audio Codec (AAC) stereo or 5.1 programs
    • KIP-OPT-DEC-AAC-2.0: Decode license for up to 32 Advanced Audio Codec (AAC) stereo programs
    • KIP-OPT-HD-HEVC: Decode license for H.265/HEVC SD/HD video codec. One license per Kaleido-IP
    • KIP-OPT-UHD-HEVC: Decode license for H.265/HEVC UHD video codec. One license per Kaleido-IP
    • KIP-OPT-UCIP: License for uncompressed input monitoring. Requires one of KIP-OPT-ETH-2S or KIP-OPT-ETH-1X network interface card. One license per Kaleido-IP
    • KIP-OPT-UCIP-OUT: License for SMPTE ST 2110-20 IP outputs. Requires one of KIP-OPT-ETH-2S or KIP-OPT-ETH-1X. One license per Kaleido-IP

      Probing Licenses
    • KIP-OPT-LOUDNESS: Loudness level measurement for all programs. One license per Kaleido-IP
    • KIP-OPT-SCTE-35: SCTE-35 metadata extraction and alarming license for all programs. One license per Kaleido-IP
    • KIP-OPT-TS-PROBE: TR 101 290 DVB transport stream probing option for priority 1 and priority 2 indicators. One license per Kaleido-IP. Note: indicator 2.4 is not supported

      Hardware Options
    • KIP-OPT-ETH-2S: Option for dual port 10/25 GbE SFP28 network interface card. SFPs not included. Compatible with SFP-25G
    • KIP-OPT-ETH-1X: Option for single-port 100 GbE QSFP56 network interface card. QSFPs not included. Quantity 2 required for redundancy or for maximum input performance. Supports 10/25/40/50/100 Ethernet speeds (GbE). 50 GbE speed supported as either 2x 25G NRZ or 1x 50G PAM4 when using QSFP56. 100 GbE speed supported as either 4x 25G NRZ or 2x 50G PAM4 when using QSFP56.
    • KIP-OPT-ETH-2B: Option for 2 extra GbE RJ45 ports
    • KALEIDO-RCP2: Ethernet remote control panel and KM gateway
    • KRCP-RK2: Kaleido-RCP2 rack mount bracket
    • DXF-4K: Optical HDMI-HDMI 4K UHD extension system. Includes transmitter, receiver and PSUs
