AS-1800R - Overview

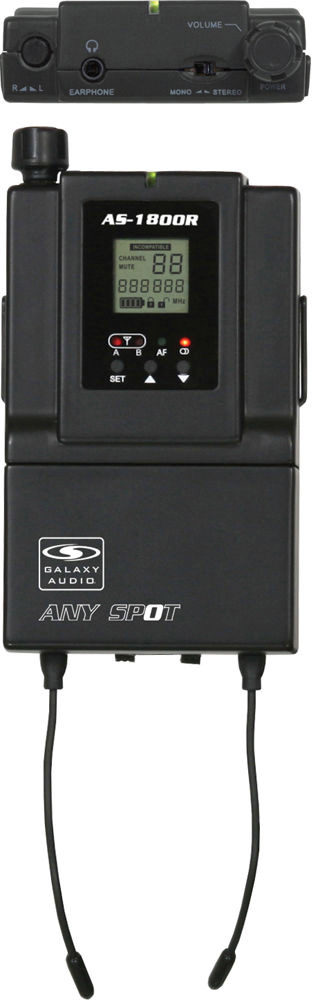

The AS-1800 is designed with features for the professional. The body pack receiver is set up for a king. With 150mW's of output to the earbuds, the Galaxy Audio AS-1800R is sure to be plenty loud for any environment. The receiver has a squelch adjustment, stereo/mono switch, LCD display, button lock, and a Magnesium Alloy Construction.

  • Features:

    • Featuring Mixed Mono Mode
    • 640 Selectable Frequencies / 32 Selectable Channels
    • Backlit LCD (Displays Channel Number, Frequency, Name, Battery Level of Receiver, L/R AF Input, Stereo/Mono and Lock)
    • UHF Phase Locked Loop
    • Stereo or Mono Transmission
    • Multiple Receivers can be used with 1 Transmitter
    • Naming Function
    • 30/100 mW Selectable Transmitter Output
    • Monitor Output
    • Single/Dual Rack Mount Kit Included
    • EB4 Ear Buds Included
    • 300' Range


  • Specifications:

    • Band: UHF
    • Frequency Range: B2 538~554 MHz; B3 554~570 MHz
    • Frequencies: 32 Channels / 640 Selectable Frequencies
    • Transmitter Output Level: 30 mW or 100 mW
    • Operating Range Under Typical Conditions: 300' (92m) Note: actual range depends on RF signal absorption, reflection, interference, and battery characteristics
    • Audio Frequency Response: +/-1dB 45Hz - 18kHz
    • Total Harmonic Distortion: < 0.7% @ 1kHz
    • Signal to Noise: >105dB
    • Maximum Deviation Range: +/-68kHz
    • Dynamic Range: >90dB A-weighted
    • Operating Temperature Range 14°F to 122°F (-10° C to 50° C) Note: battery characteristics may limit this range

      AS-1800R Receiver
    • Audio Output Level: 100 mW
    • Sensitivity: 6dBµV, S/N>60dB at 25 deviation (mono)
    • Stereo Separation: 45dB (at 1 kHz)
    • Output Connector: 1/8" (3.5mm) Stereo Earphone Connector
    • Dimension (H x W x D): 4.25" x 2.6" x 0.87" (108 X 66 X 22 mm)
    • Weight: 0.35 lbs (0.16kg)
    • Power Requirement: 2 "AA" size alkaline or rechargeable batteries
    • Battery Life: About 7 hours (alkaline)
