Shure SLXD5+ Portable Digital 1-Channel Wireless Receiver w/ Bluetooth Remote Monitoring - G57 470-608MHz

ITEM #: SH-SLXD5P-G57 MFG #: SLXD5+=-G57

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$619.00

Our Price:

$489.00

Availability: In Stock
iAvailability Description Popup


SLXD5+=-G57 - Overview

Ready for Every Stage, Theater, or House of Worship Event - Unlock a New World of Handsfree Oversight and Management with SLX-D+

Shure SLX-D+ Wireless Systems provide audio engineers with top-tier wireless engineering and streamlined, automated management that adjusts to confidently fit live performance, installation, location sound and rental provider needs.

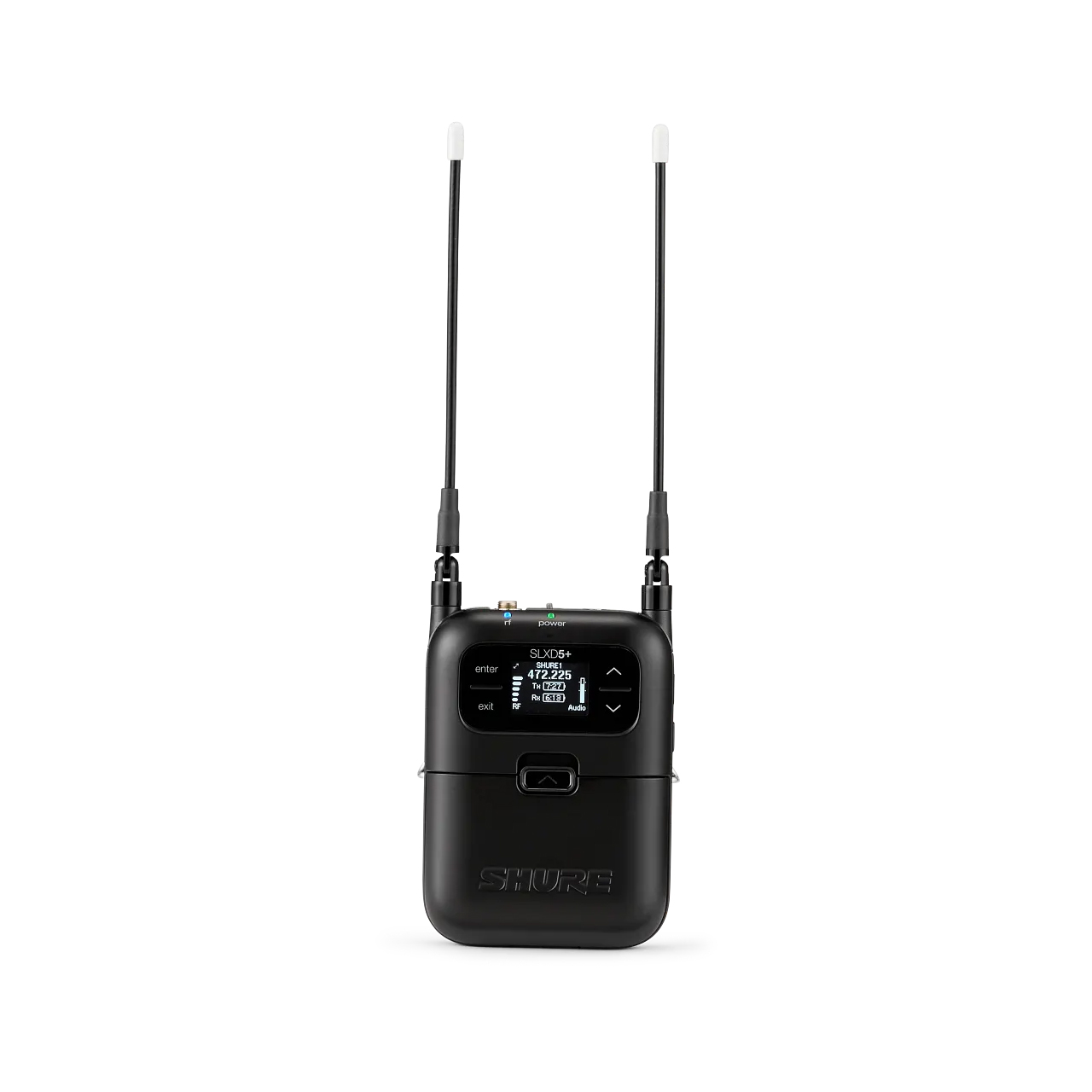

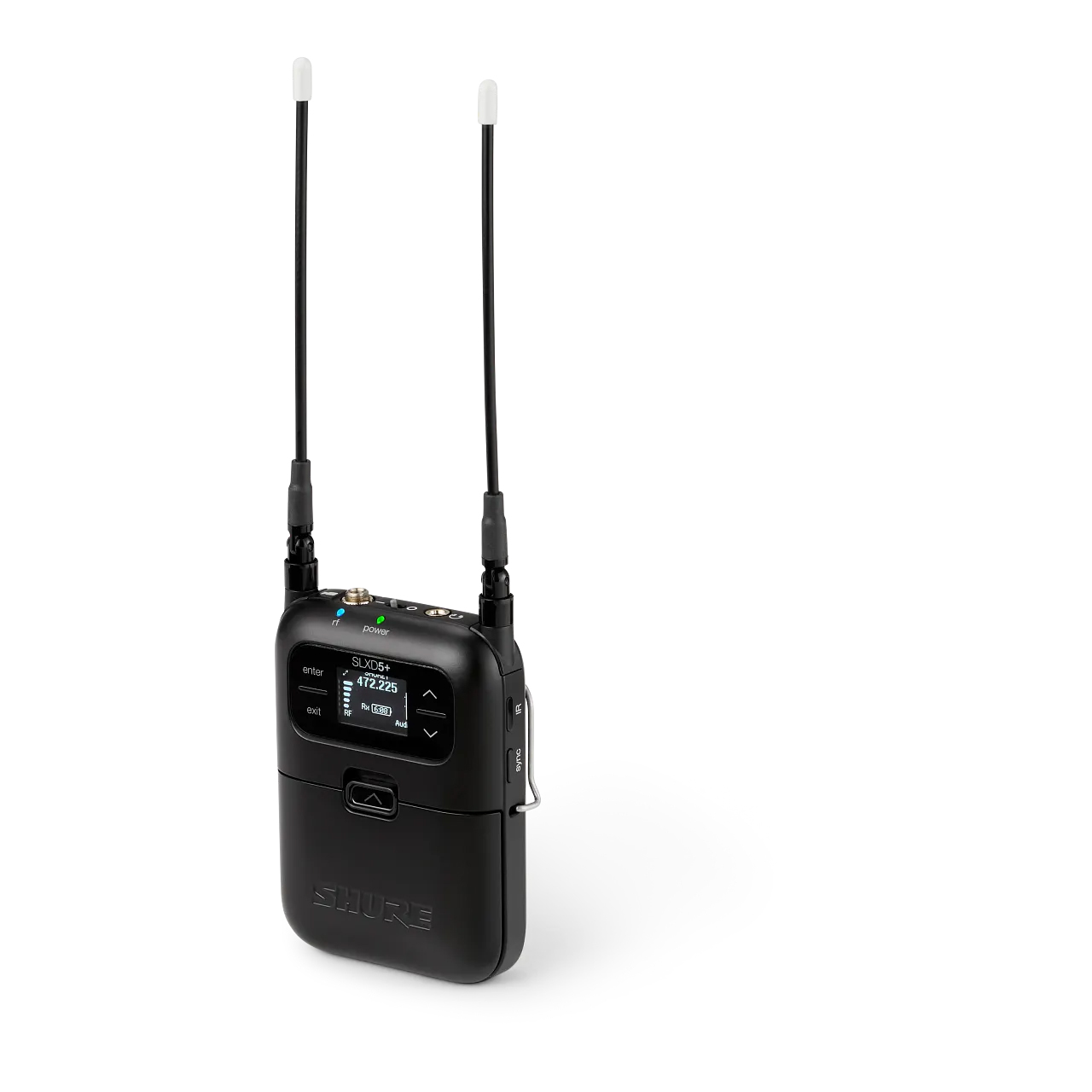

The SLXD5+ single channel portable wireless receiver is at home on top of your camera or in an audio bag providing efficient long-range UHF transmission and easy-to-use setup features to deliver wireless excellence, wherever required. Wide-tuning SLXD+ transmitters and receivers stay in sync courtesy of a dedicated ShowLinkr Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.

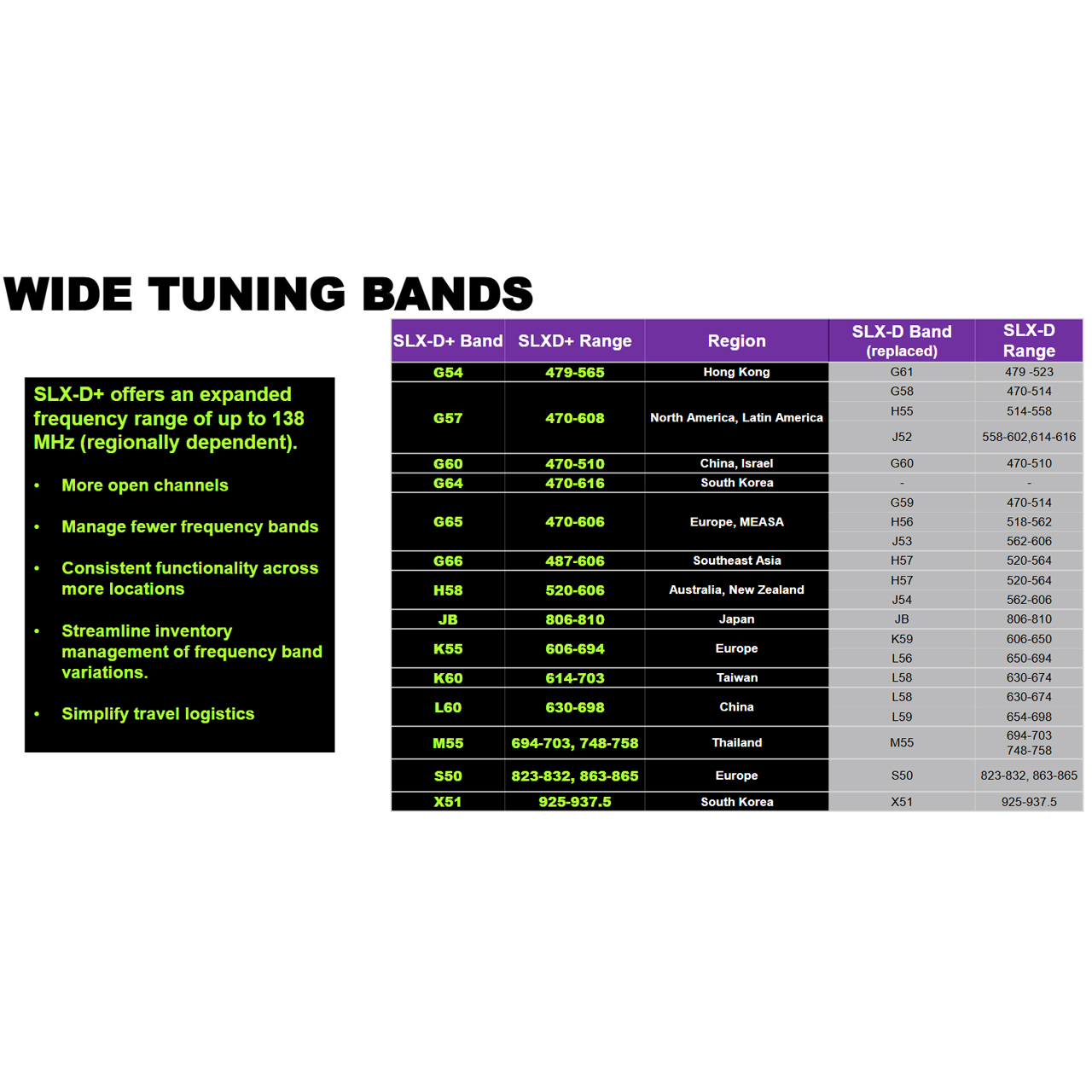

SLX-D+ Wide Tuning Bands
SLX-D+ offers an expanded frequency range of up to 138 MHz (regionally dependent).

• More open channels
• Manage fewer frequency bands
• Consistent functionality across more locations
• Streamline inventory management of frequency band variations.
• Simplify travel logistics

Digital Feedback Reducer
Digital Feedback Reducer (DFR) technology automatically detects and suppresses audio feedback using dynamic notch filters, enhancing sound clarity in live environments. Originally developed as standalone hardware, Shure's Digital Feedback Reduction (DFR) has evolved into a sophisticated software solution integrated into audio systems, offering more flexible and accessible feedback control.

Applications:
• Event, Presentation and Speech
• House of Worship
• Performance and Clubs
• Videography and Location Sound
• Electronic News Gathering (ENG) and Broadcast

  • Features:

    • Single channel, portable digital wireless receiver for on-camera cold shoe mounting and audio bag use
    • 24-bit digital audio with >118 dB dynamic range
    • >118 dB dynamic range and 2.8ms latency
    • 138 MHz wide-tuning range for greater geographical coverage
    • Up to 11 compatible systems per 6MHz TV band; 14 systems per 8 MHz band
    • ShowLink® Ease for remote control and management of transmitter wireless parameters from the mix position and elsewhere
    • Patented Shure Digital Feedback Reducer software embedded in every SLX-D+ receiver
    • AES-256 Encryption included, for complete and secure peace of mind
    • Portable receiver & plug-on transmitter options
    • Single, Dual, and Quad rack receiver options; bodypack and handheld transmitter options
    • Remote control via WWB mobile app for SLXD4+, SLXD4D+, SLXD4Q+, SLXD4QDAN+, and SLXD5+
    • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery

  • Specifications:

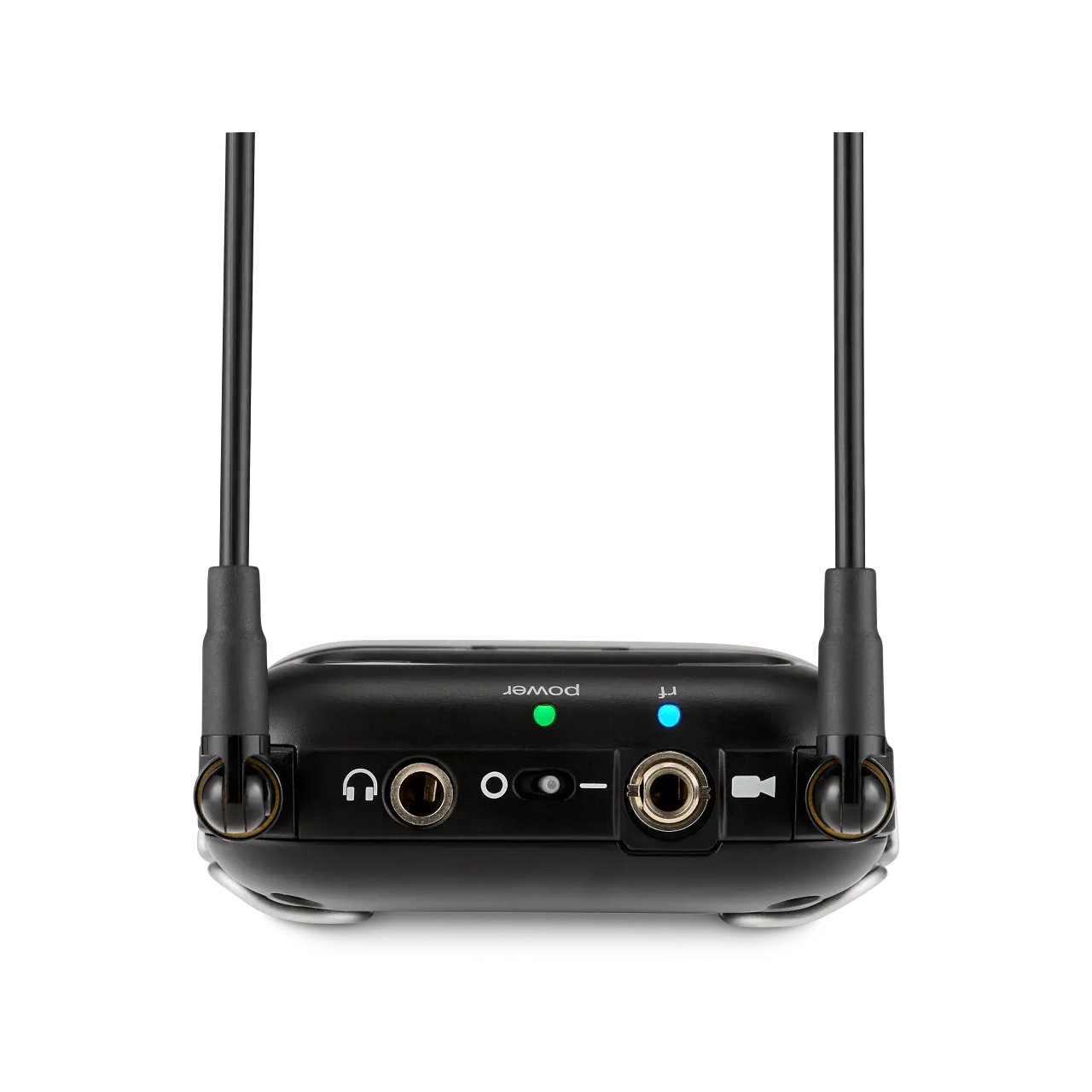

      Audio Output
    • Gain Adjustment Range: 20 Hz - 20 kHz (+1, -3 dB)
    • Connector Type: 1/8" (3.5 mm) x2
    • Configuration:
      - Balanced (Mono): Tip=audio +, Ring=audio -, Sleeve=ground
      - Dual Mono: Tip = left, Ring = Right, Sleeve = Ground
    • Impedance (Camera):
      - Balanced (Mono) Line: 450 Ω
      - Balanced (Mono) Mic: 240 Ω
      - Dual Mono Line: 400 Ω
      - Dual Mono Mic: 200 Ω
    • Full Scale Output:
      - Camera (Balanced Line): 15 dBV
      - Headphone: 13 mW @ 64 Ω Load

      RF Input
    • Spurious Rejection: >75 dB Typical
    • Impedance: 50 Ω
    • Phantom Power Protection: Yes
    • Antenna Type: 1/4 Wave Whip

      Physical
    • Dimensions (H x W x D): 4.21" x 2.68" x 1.0" (107 x 68 x 25.3 mm)
    • Weight 1.8 lb (182 g)
    • Housing Aluminum
    • Power Requirements Battery:
      - Rechargeable Li-Ion or 1.5 V AA batteries
      - Power Supply: SBC-DC-903 Battery
      - Eliminator, or 5 VDC via USB-C

  • Item Includes:

    • 1x SLXD5+ Portable Digital 1-Channel Wireless Receiver
    • 1x Carrying bag
    • 1x WA311 Non-Conductive Cold Shoe Mount Adapter
    • 2x AA alkaline batteries (optional: SB903 Rechargeable Li-Ion Battery)
    • 1x Locking 3.5mm-to-XLR cable (18")
    • 1x Locking 3.5mm audio extender cable (16")

  • GTIN:

    0042406908375
