Galaxy Audio AS-950N Wireless In-ear Monitor System with Receiver / Earbuds & Rackmount Kit - N Band 518-542MHz

ITEM #: GXY-AS-950N MFG #: AS-950N

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup

    AS-950N - Overview

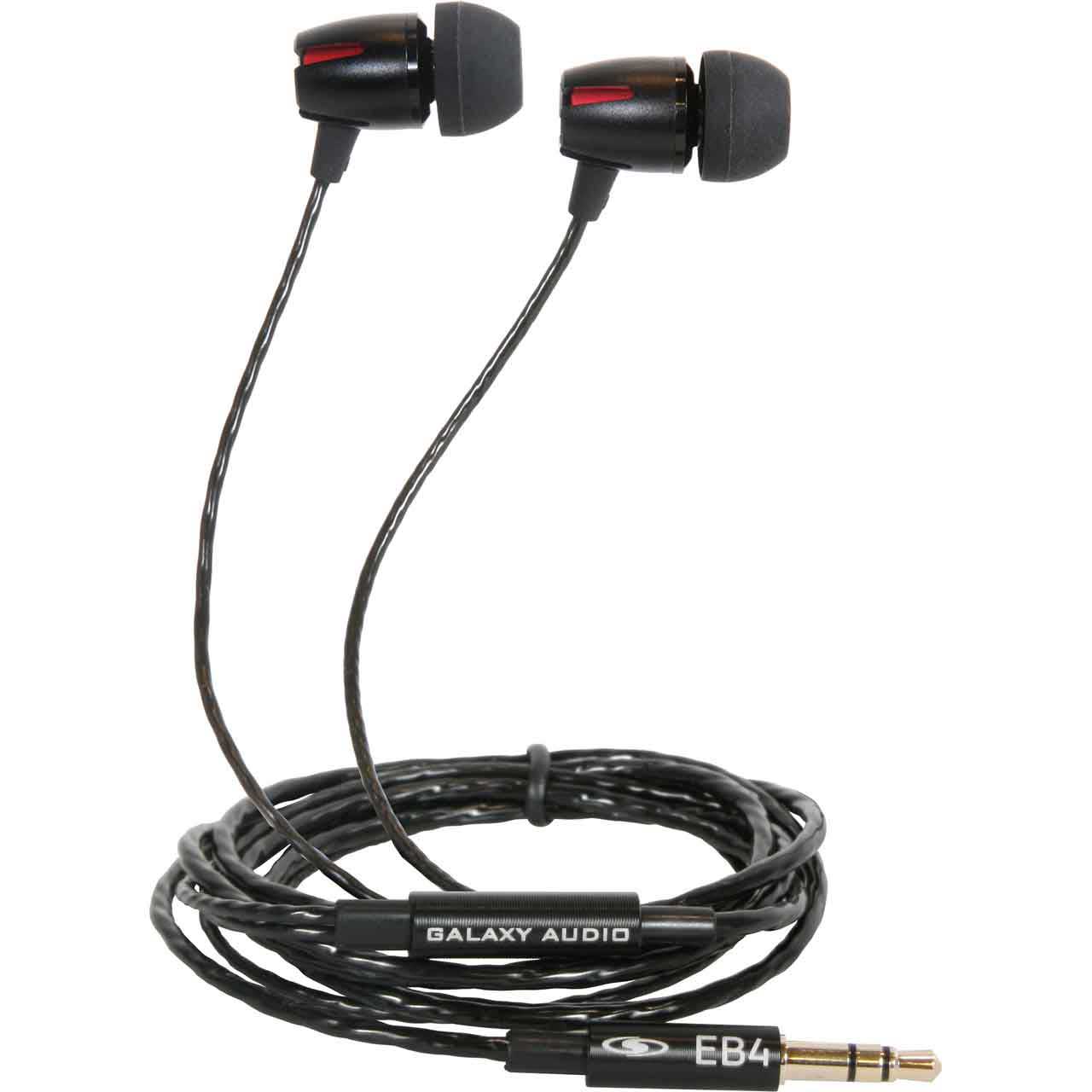

    The wireless Galaxy Audio AS-950-N (N Band 518-542MHz) in-ear monitor system offers reliable quality and exceptional value. The receiver features a 50mW x 2 output with RF and stereo indicator. The transmitter features L/R level display, channel LCD display with channel up and down select, stereo XLR / 1/4" inputs and a headphone output with volume control. The Galaxy Audio AS-950 In-Ear Monitor system also offers 16 selectable UHF frequencies. The Galaxy Audio EB4 ear buds feature titanium drivers, extended bass response, aluminum, alloy construction and come standard with all WPM models. This system comes in options of a Single system, Twin Pack system, and Band Pack system. The Galaxy Audio AS-950 In-Ear Monitor system is perfect as an affordable in-ear monitor solution for the entry level user while providing a high quality sound for an economical price.

    The Twin Pack and Band Pack Systems makes it easy for any duo or band to Get Personal. The Twin Pack system includes two receivers and one transmitter. The Band Pack system includes four receivers and one transmitter. They are designed to get the duo or whole band wireless in one package. The AS-950-2 and AS-950-4 will allow a duo or band to send one stereo mix to 2 or 4 individuals. Additional transmitters may be purchased at a later date to add mixes.

    An unlimited number of receivers may be added at any time.

    • Features:

      • AS-950T Transmitter
      • 16 Selectable UHF Frequencies
      • AF L/R Indicator
      • Transmits in Stereo or Mono
      • Channel LCD Display
      • Up/Down Channel Select
      • XLR/1/4" Combo Input
      • RF Output 10mW
      • Detachable 1/2 Wave BNC Antenna Included

        AS-950R Receiver
      • Built-in Limiter
      • 50mW x 2 Earphone Out w/ Volume Control
      • Channel LCD Display
      • Up/Down Channel Select
      • Operates on 2 AA Batteries (Alkaline or Rechargeable)
      • 3.35 oz (95 g)
    • Specifications:

      • AS-950 System
      • Band: UHF
      • Frequencies Range: CODE N 518-542MHz
      • Frequencies: 16
      • Transmitter Output Level: 10 mW
      • Operating Range: Under Typical Conditions 200' (61m)
      • Note: Actual range depends on RF signal absorption, reflection, interference, and battery characteristics
      • Audio Frequency Response: +/-3dB 50Hz - 15kHz
      • Total Harmonic Distortion: <1% @ 1kHz
      • Signal to Noise: >80dBA
      • Maximum Deviation Range: +/-40kHz
      • Dynamic Range: >90dB A-weighted
      • Operating Temperature: Range 14§ F to 122§ F (-10§ C to 50§ C)
      • Note: battery characteristics may limit this range

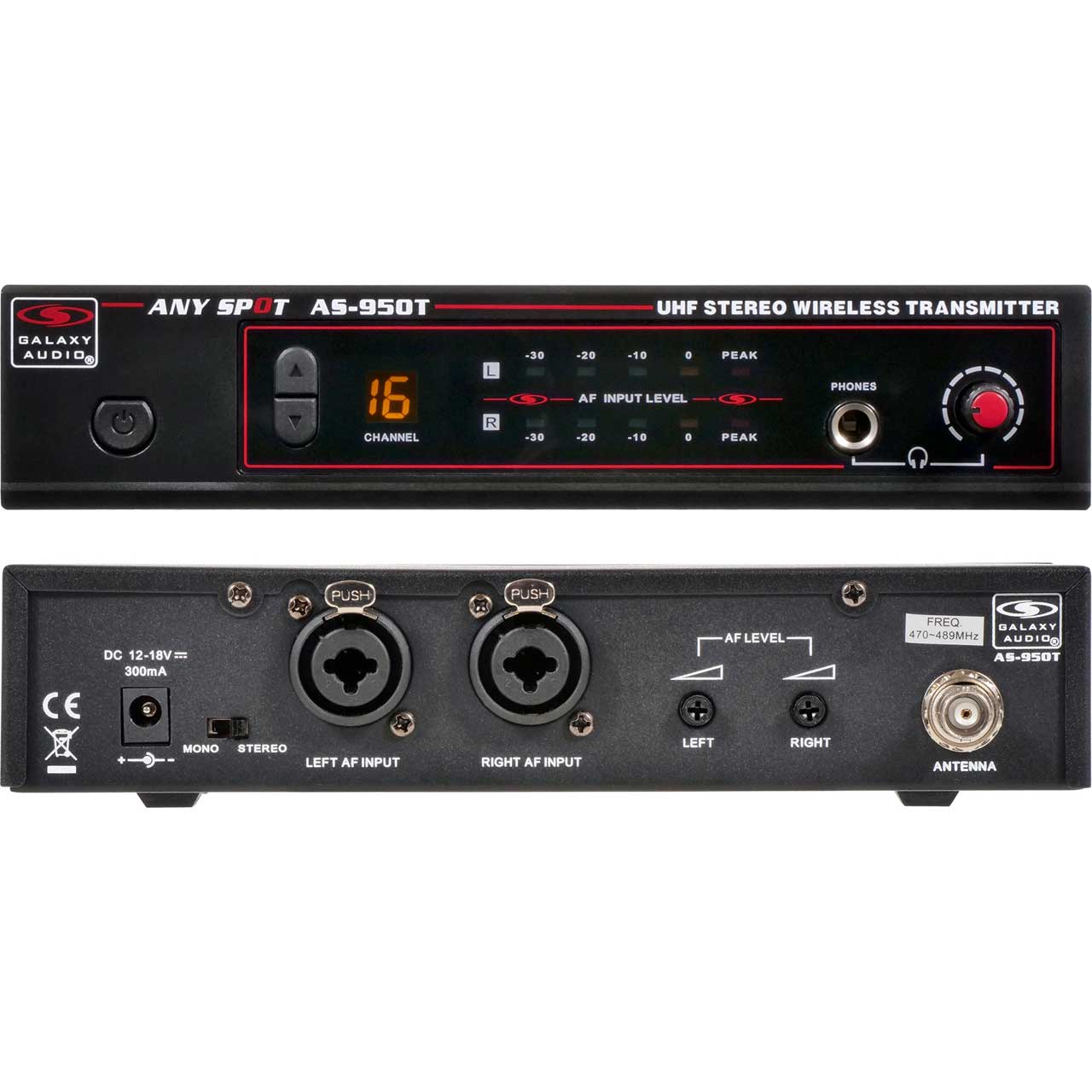

        AS-950T Transmitter
      • Main Frame Size: EIA STANDARD 1/2 U
      • Modulation Mode: FM Stereo Modulation
      • RF Output: 10 mW
      • Max Audio Input Level: +6dBV
      • Gain Adjustment Range: 40dB
      • Controls: Headphone Volume, Channel Up/Down, and Power Button
      • Indicators: LCD Display, Input Level
      • Audio Input: Line Level X 2, XLR / 1/4" Combo Jack
      • XLR Input: Impedance balanced
        Pin 1: Ground (cable shield)
        Pin 2: Audio +
        Pin 3: No Audio -
      • Transmitter Antenna: Detachable 1/2 Wave BNC Antenna
      • Dimensions: 1.73" x 8.34" x 3.77"
      • (44 x 212 x 96 mm) (HxWxD)
      • Weight: 19.75 oz (560 g)
      • Power Requirements: 12-18 V DC at 300 mA, supplied by external power supply

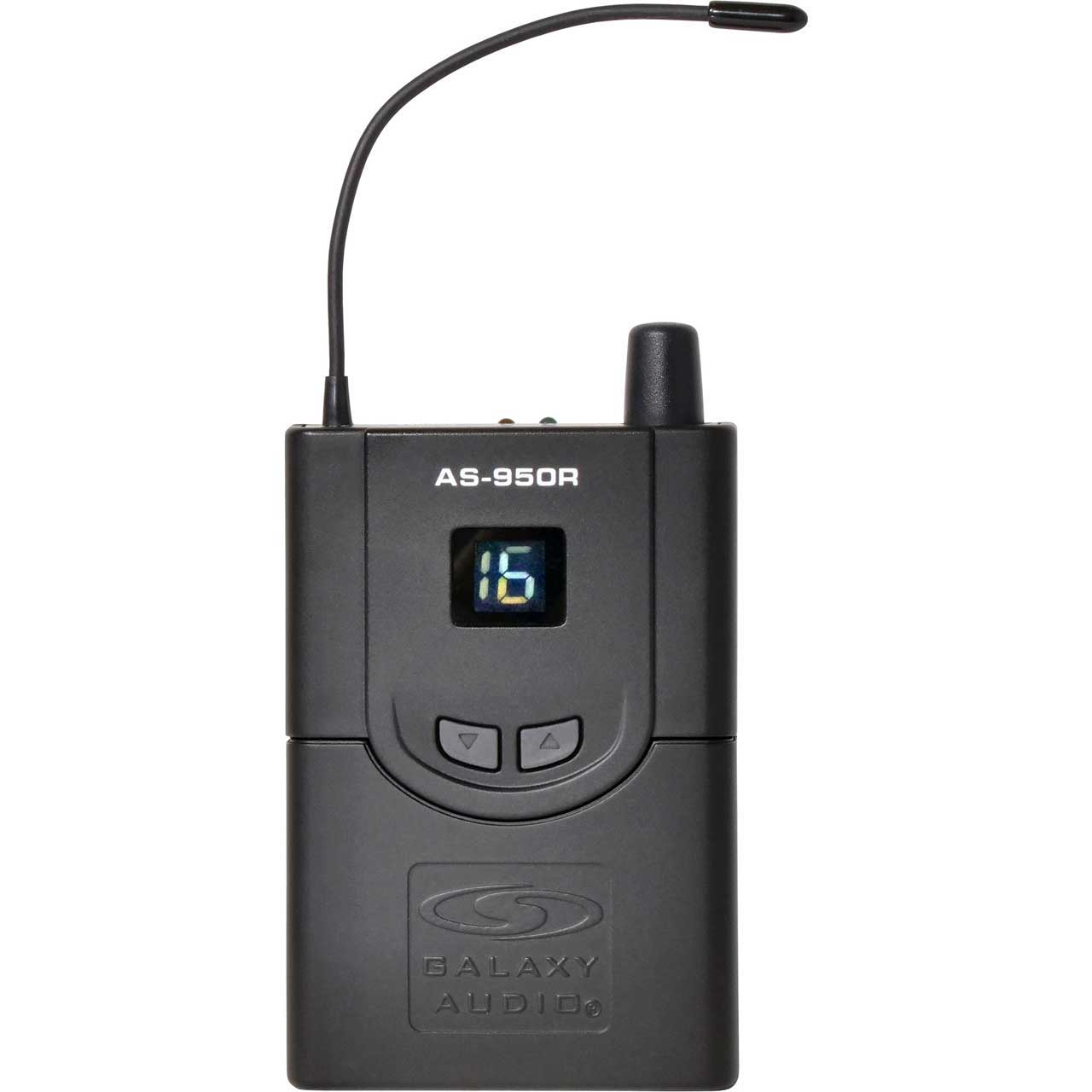

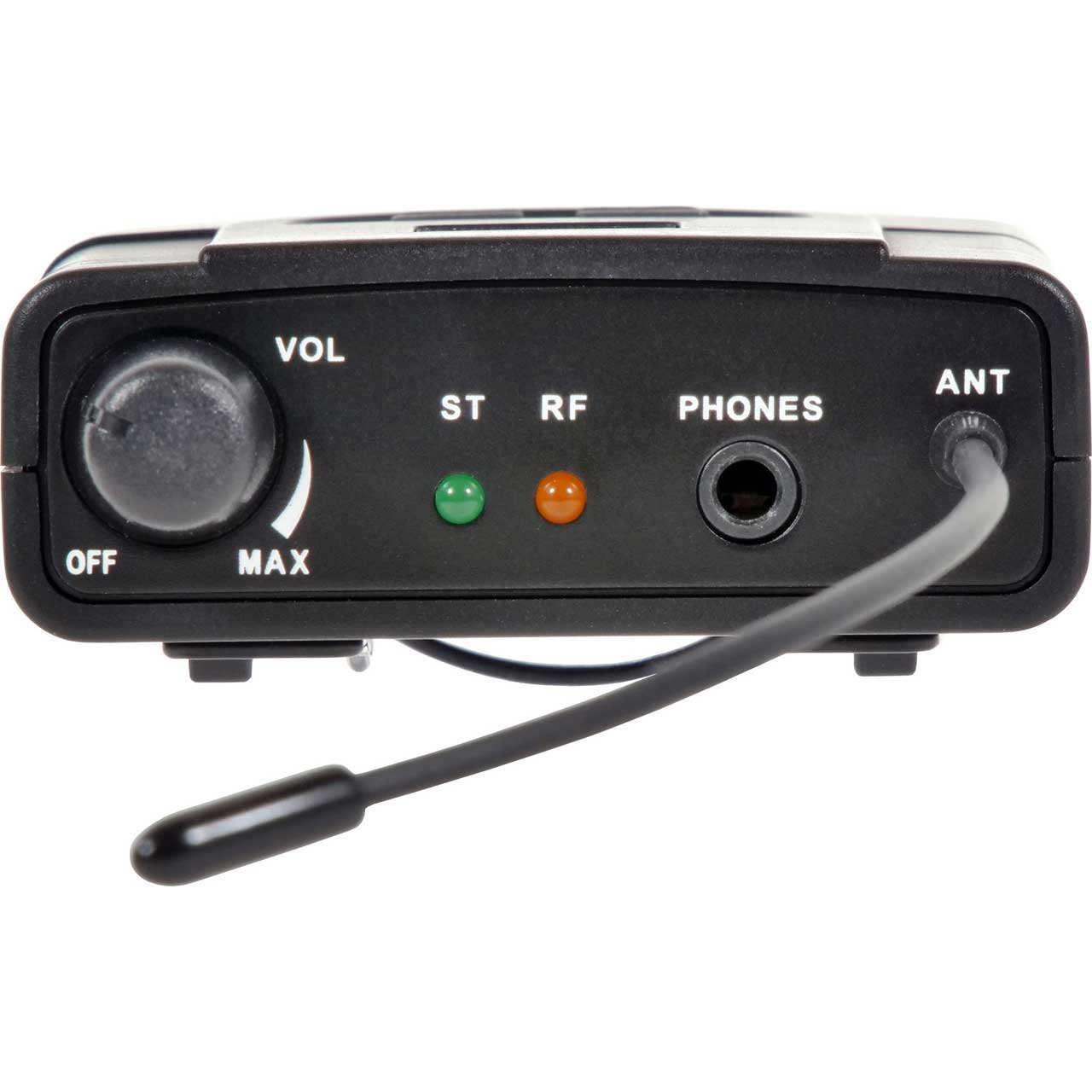

        AS-950R Receiver
      • Audio Output Level: 50 mW x 2 Earphone Out with Volume Control
      • Sensitivity: -94dBm for 30dB
      • Stereo Separation: 40dB (at 1kHz)
      • Output Connector: 1/8" (3.5 mm) Stereo Earphone Connector
      • Controls: Volume, Channel Up/Down
      • Indicators: LCD Display, Stereo LED, RF LED
      • Dimensions: 3.54" x 2.51" x 0.9" (90 x 64 x 23 mm)(HxWxD)
      • Weight: 3.35 oz (95 g) without batteries
      • Power Requirements: 2 "AA" size alkaline or rechargeable batteries
      • Battery Life: About 12 hours (alkaline)

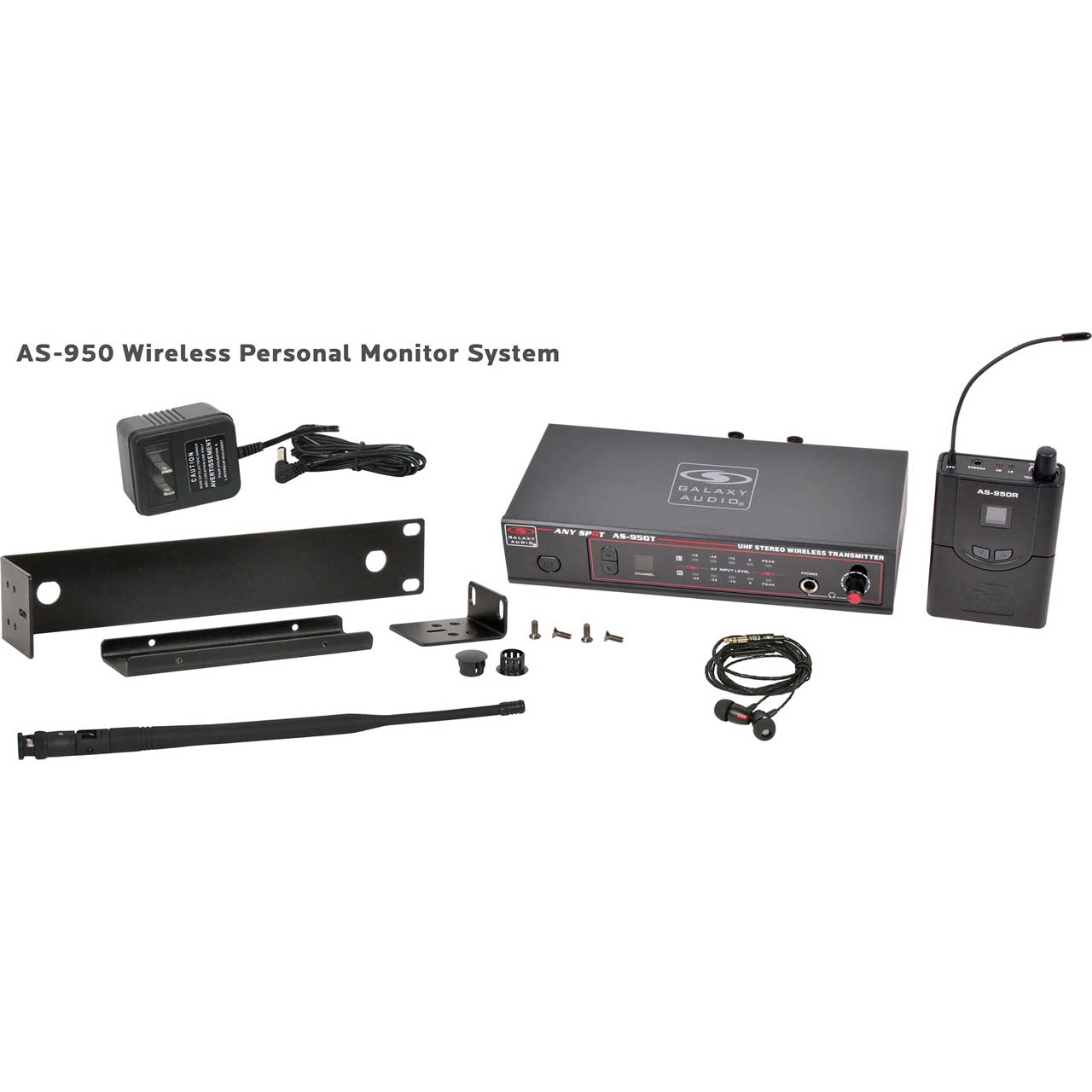

    • Item Includes:

      • 1x AS-950T transmitter
      • 1x AS-950R receiver
      • 1x EB4 ear bud
      • 1x Power supply
      • 2x AA batteries
      • 1x Rack mount kit
      • 1x Antenna
    • GTIN:
