Galaxy DS-CP22 Dual Channel Compressor Limiter
  • Galaxy DS-CP22 Dual Channel Compressor Limiter
  • Galaxy DS-CP22 Dual Channel Compressor Limiter

Questions? Ask a Markertek Expert:
800-522-2025 Email

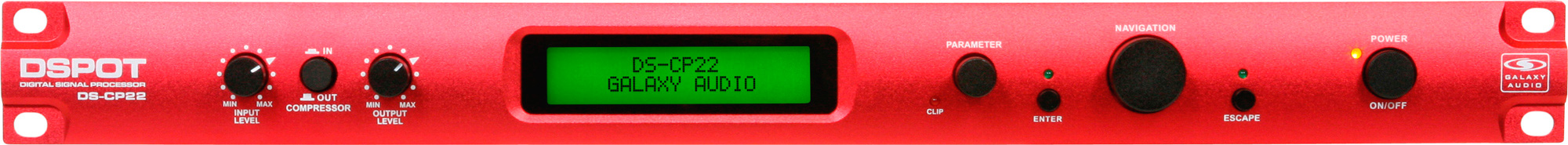

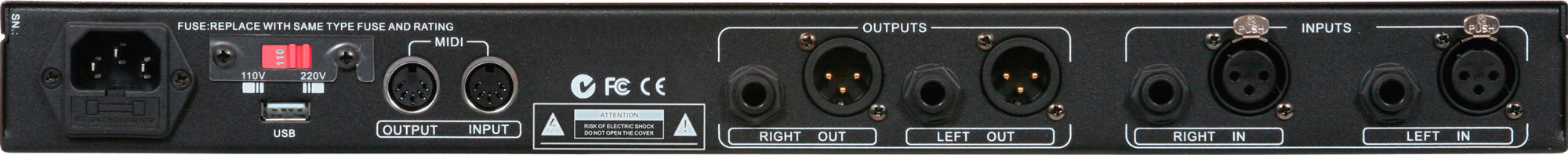

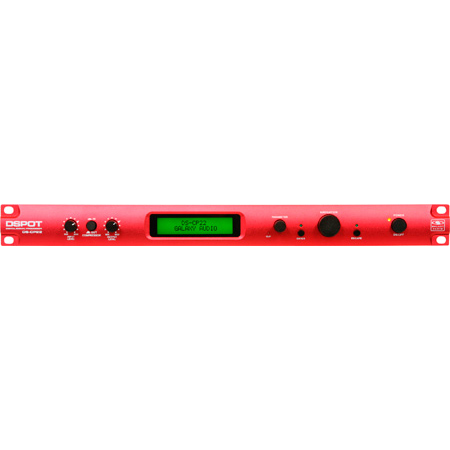

Galaxy DS-CP22 Dual Channel Compressor Limiter

Manufacturer: Galaxy Audio

Item #: GXY-DS-CP22   •   MFG #: DS-CP22



List Price:$339.99
Our Price:$199.99

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


Share!





The new DSPOT Series offers a full line of Digital Signal Processors. These processors allow the user to manage and clarify the sound produced in their speaker system. Each model can be accessed by the front panel or the convenient, easy to use, included software. User defined presets provide a useful tool to live sound, where a preset can be used for frequently visited venues or specific performers in a fixed install. Presets can be also be saved to internal or removable drives, in addition to the device itself, allowing for a preset to be designed in advance, and then downloaded on site. The DSPOT software provides many filtering and other detailed settings easily controlled on your PC, to refine your sound. All DSPOTs are perfect for fixed and live applications. The DS-CP22 is a digital compressor with built in Noise Gate, Gain control, Automatic Gain Control (AGC), EQ, Sub Harmonic Synthesizer, Compressor, and Limiter. The DS-CP22 provides both Limiter and Compressor activity for both output channels. Two great included features are the AGC and Sub Harmonic Synthesizer. The AGC allows you to set a target output level and the circuit will raise or lower the level to meet that target. The Sub Harmonic Synthesizer allows you to create either a deep very low body or a lighter and more booming extra body to the original sound. The DS-CP22 provides 7 bands of parametric equalization with High/Low Pass filtering. Each EQ filter can be easily adjusted to a specific frequency, and the Q selected with simple Bell curve adjustments from 0.05-3.00. The DS-CP22 can store up to 32 presets. Whether traveling on the road with the band or in a fixed installation, the DS-CP22 has the features needed to aid in sound improvement.


  • Specifications

    • Analog Input: Balanced 2 TRS/2 XLR
    • Maximum Input Level: +15dBu
    • Analog Output: Balanced 2 TRS/2 XLR
    • Maximum Output Level: +10dBuTHD+N: <0.01% @ -6dBFS (Bypass)
    • S/N Ratio: >100dBu (Processes in Bypass)
    • Frequency Response: 20Hz – 20kHz +/-0.5dB
    • A/D and D/A Resolution: 24bit
    • Process Resolution: 24x48 bit
    • Processes: RMS Stereo Compressor
    • Power Supply: 110V/220V (Switchable)2x20 Characters LCD Display for the Parameters Editing Fully Remotely Controllable by USB or MIDI Interfaces
    • Dimensions: 9.25" x 19" x 1.75" (234.95 x 482.6 x 44.45 mm)
    • Weight: 6.3lb (2.86kgs)
