Canare HBCP-D25HWA 12G-SDI Micro BNC Crimp Plug for L-2.5CHWS & V4-2.5CHW

ITEM #: HBCP-D25HWA MFG #: HBCP-D25HWA

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Canare
Free Shipping with $49 Minimum Order

List Price:

$9.14

Our Price:

$7.75

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    HBCP-D25HWA - Overview

    Canare micro BNC connectors supporting 12G-SDI. The micro BNC is about half the size of standard BNC and is ideal for high-density mounting. The HBCP-D25HWA is for use with L-2.5CHWS & V4-2.5CHW

    • Features:

      • Return loss: 26dB or greater up to 3GHz, 20dB or greater up to 6GHz, 15dB or greater up to 12GHz
      • SMPTE ST 2082-1 compliant
      • Canare crimp design ensures quick and reliable installation
      • Gold plated "snap locks" center pin
      • Beryllium copper outer contact
      • Come with a position mark on the body for better visibility mating
      • Can be used with 8mm pitch density modules
      • Smaller and lighter version of HBCP-D series
      • Extraction tool BET-HBNC: Specifically designed for HBCP-D*A


    • Specifications:

      • Return Loss: =15dB@DC-12GHz.
      • Narrow Pitch Ready: 8mm with BET-HBNC, 10mm with BET-D/H.
      • Extraction Tools: Canare BET-D/H, Canare BET-HBNC. Common HD-BNC Tool.

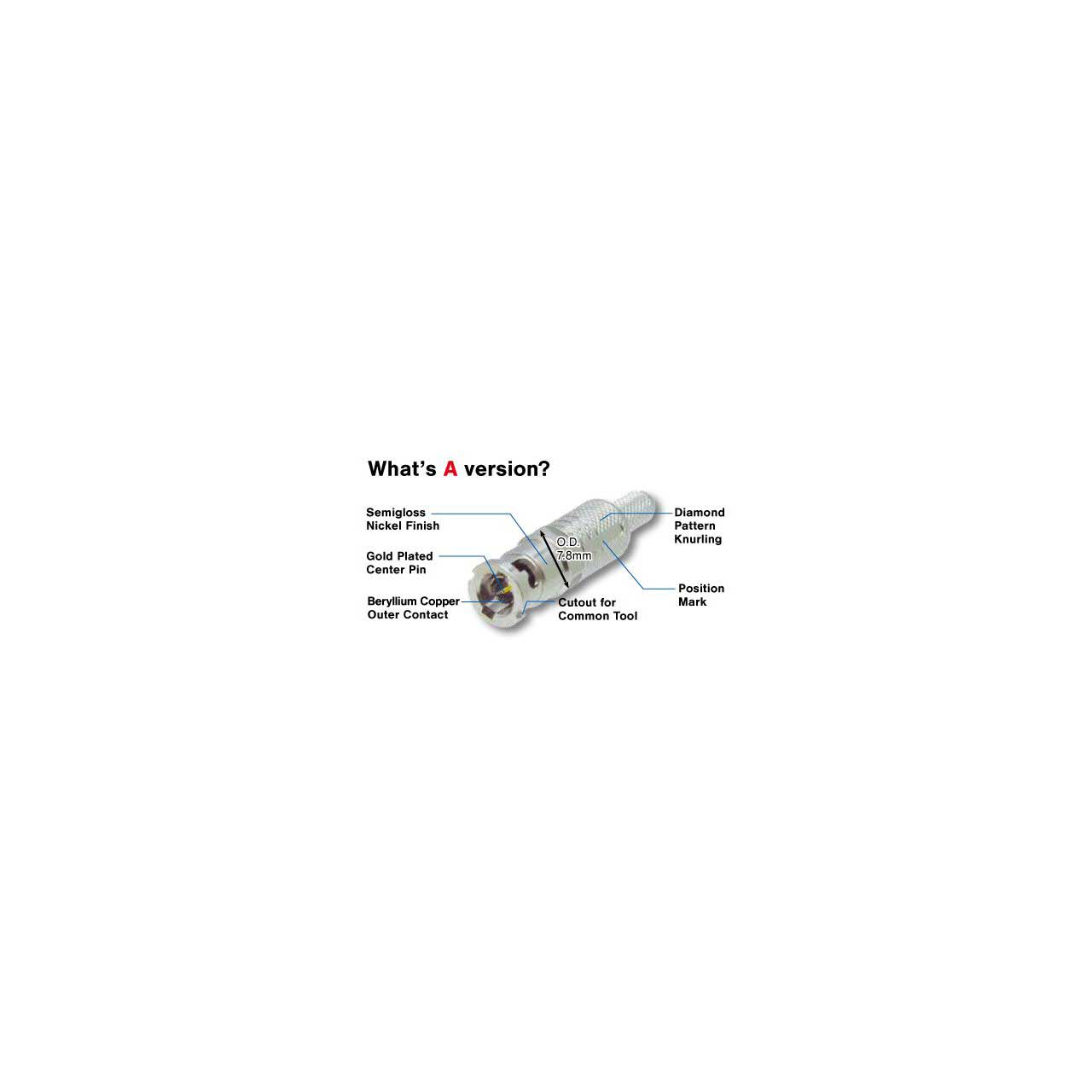

      • Other Features: Wider position mark, Better Finger Grip, Semigloss Finish, Removal Tool Friendly.
