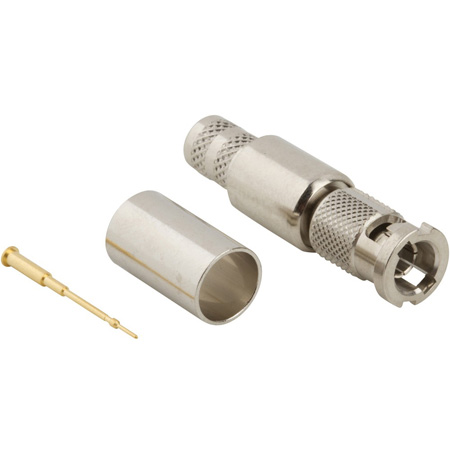

Amphenol 034-1025 HD-BNC Connector High Density BNC Plug Belden 1505A & Image 720 Cable

ITEM #: 034-1025 MFG #: 034-1025

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:

$10.95

Our Price:

$9.95

Availability: In Stock
iAvailability Description Popup


    034-1025 - Overview

    The inventor of the BNC introduces the High Density BNC family of connectors. HD BNC delivers true 75 ohm performance in a footprint 51% smaller than traditional BNC connectors, allowing four times the density. Engineered to enhance electrical and mechanical performance, the HD BNC connector features the trusted, push and turn interface of a traditional BNC, providing tactile feedback and a positive lock for quick and guaranteed mating. Using the same cable prep and termination specifications of legacy broadcast connectors makes adopting HD BNC seamless.

    • Features:

      • High Density Solution - Allows four times as many interconnects as the BNC.
      • 51% smaller than the BNC
      • 39% smaller than the Mini-BNC
      • Bayonet Coupling - Provides a positive lock and allows for quick and easy connect and disconnect
      • True 75 Ohm Impedance - Higher performance, unmached reliability
      • Fits Belden 1505A & Image 720
      • Impedance: 75 Ohms
      • Frequency Range: 0-6 GHz
      • Voltage Rating: 170 VRMS
      • Dielectric Withstanding Voltage: 500 volts
      • Return Loss: 30dB @ 3Ghz
      • Data Rate: 3 Gbps or higher
