Amphenol 034-1026 3G HD-BNC Connector High Density BNC Plug for Belden 1855A Cable

ITEM #: 034-1026 MFG #: 034-1026

free ship

List Price:

$12.95

Our Price:

$11.69

Availability: In Stock
iAvailability Description Popup


    034-1026 - Overview

    Amphenol 034-1025 HDBNC High Density BNC Plug Belden 1855A Cable

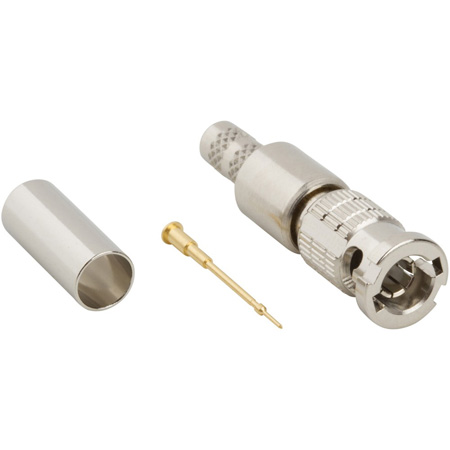

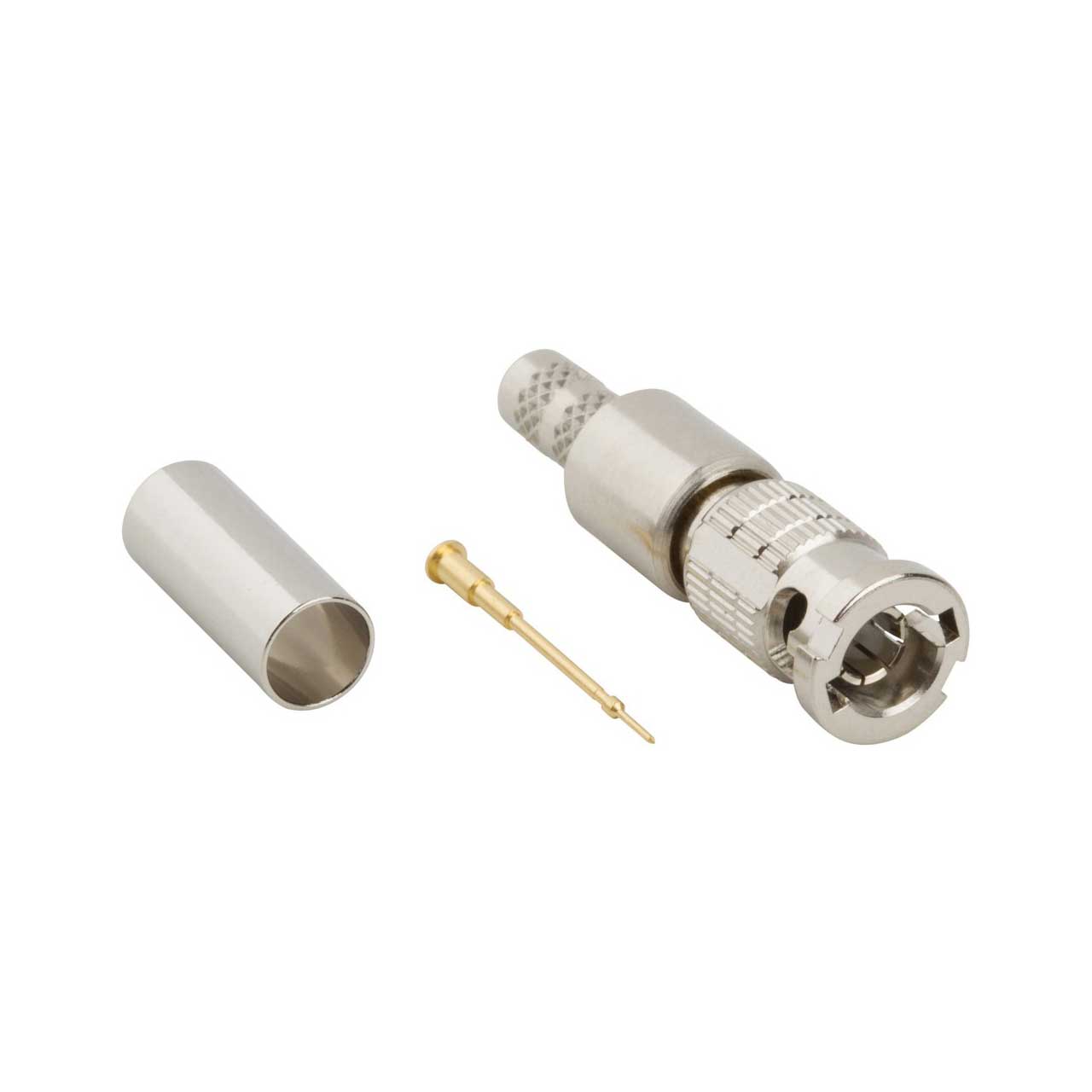

    The inventor of the BNC introduces the High Density BNC family of connectors. HD BNC delivers true 75 ohm performance in a footprint 51% smaller than traditional BNC connectors, allowing four times the density. Engineered to enhance electrical and mechanical performance, the HD BNC connector features the trusted, push and turn interface of a traditional BNC, providing tactile feedback and a positive lock for quick and guaranteed mating. Using the same cable prep and termination specifications of legacy broadcast connectors makes adopting HD BNC seamless.

    • Features:

      • High Density Solution - Allows four times as many interconnects as the BNC.
        51% smaller than the BNC
        39% smaller than the Mini-BNC
        Bayonet Coupling - Provides a positive lock and allows for quick and easy connect and disconnect
        True 75 Ohm Impedance - Higher performance, unmached reliability
        Fits Belden 1855A
        Impedance: 75 Ohms
        Frequency Range: 0-6 GHz
        Voltage Rating: 170 VRMS
        Dielectric Withstanding Voltage: 500 volts
        Return Loss: 30dB @ 3Ghz
        Data Rate: 3 Gbps or higher

    • Specifications:

      • Cable Type: Belden 1855, Belden 1865A, RG-122, RG-180, RG-180A, RG-180B, RG-195
      • Crimp Contact Die: 0.042" Square
      • Crimp Ferrule Die: 0.197" or 0.187" Hex
      • Body and Bayonet Sleeve Finish: Brass, Nickel Plating
      • Impedance: 75 Ohm
      • Frequency Range: DC - 4 Ghz
      • Return Loss: 30dB Min @3Ghz
      • Dielectric Withstanding Voltage: 1000 VRMS, Min
      • Insulation Resistance: 10,000 M-Ohm Min
      • Durability: 500 Cycles Min
